Flowmaster 817713 Outlaw Axle-back Exhaust System
Flowmaster 817713 Outlaw Axle-back Exhaust System
10 in stock
Couldn't load pickup availability
Description & Features

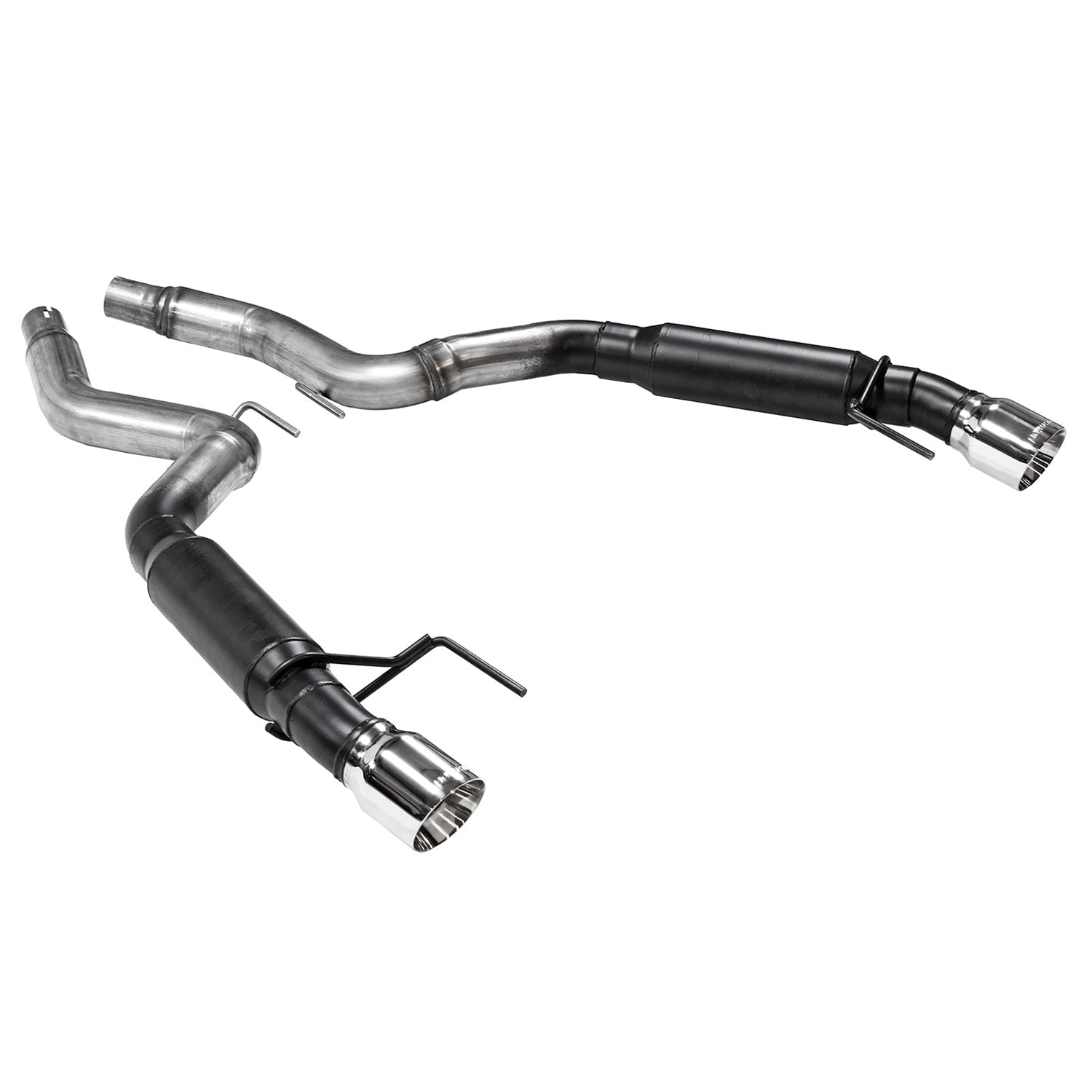

Flowmaster 817713 Outlaw Axle-back Exhaust System
This Flowmaster® Outlaw axle-back exhaust system is specifically designed for 2015-2023 Ford Mustang coupes or convertibles with 2.3L Ecoboost or 3.7L engines. These systems feature race proven Outlaw® mufflers for a very aggressive exterior sound level with a moderate interior sound level. Features include 2.25-inch connections for an easy fit to the stock mid pipe then the inlets quickly expand to full 3.00-inch mandrel-bent inlet tubing leading into a pair of the race proven Outlaw mufflers for maximum performance and sound. The system is supported from the factory hanger locations for an easy and hassle free installation that can be done at home and is finished off with large 4.00-inch highly polished stainless steel tips for that performance look and sound that you've come to expect from Flowmaster. Covered by our Lifetime Limited Warranty. Note: Fits coupes and convertibles

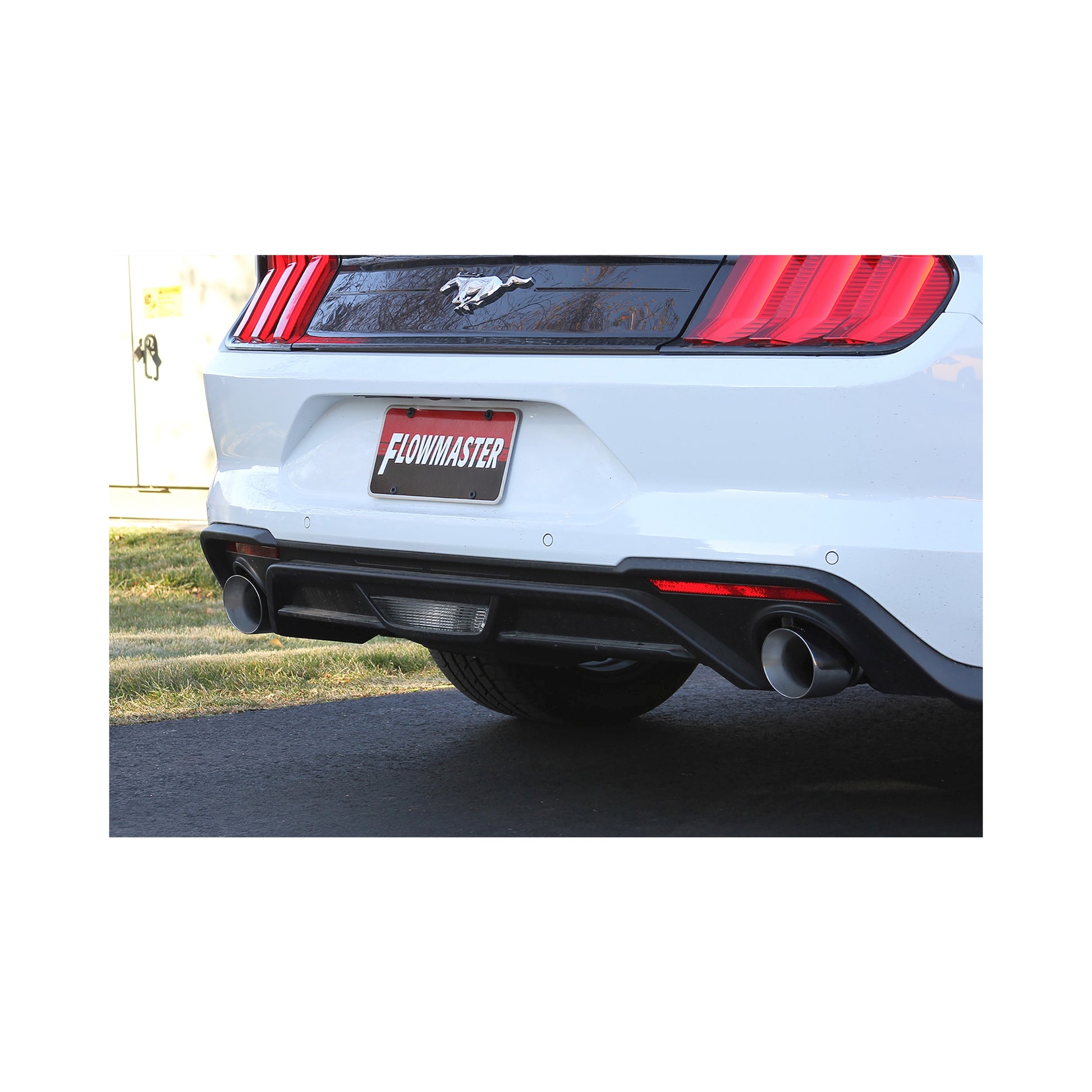

- Large 4.00-inch Polished Stainless Steel Tips
- Aggressive Race Proven Outlaw Mufflers
- Dyno-tuned for Maximum Performance
- Uses the Factory Hanger Locations
- Full Stainless Steel Construction
- Lifetime Limited Warranty
- Mandrel-bent Tubing
- Easy Installation
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |

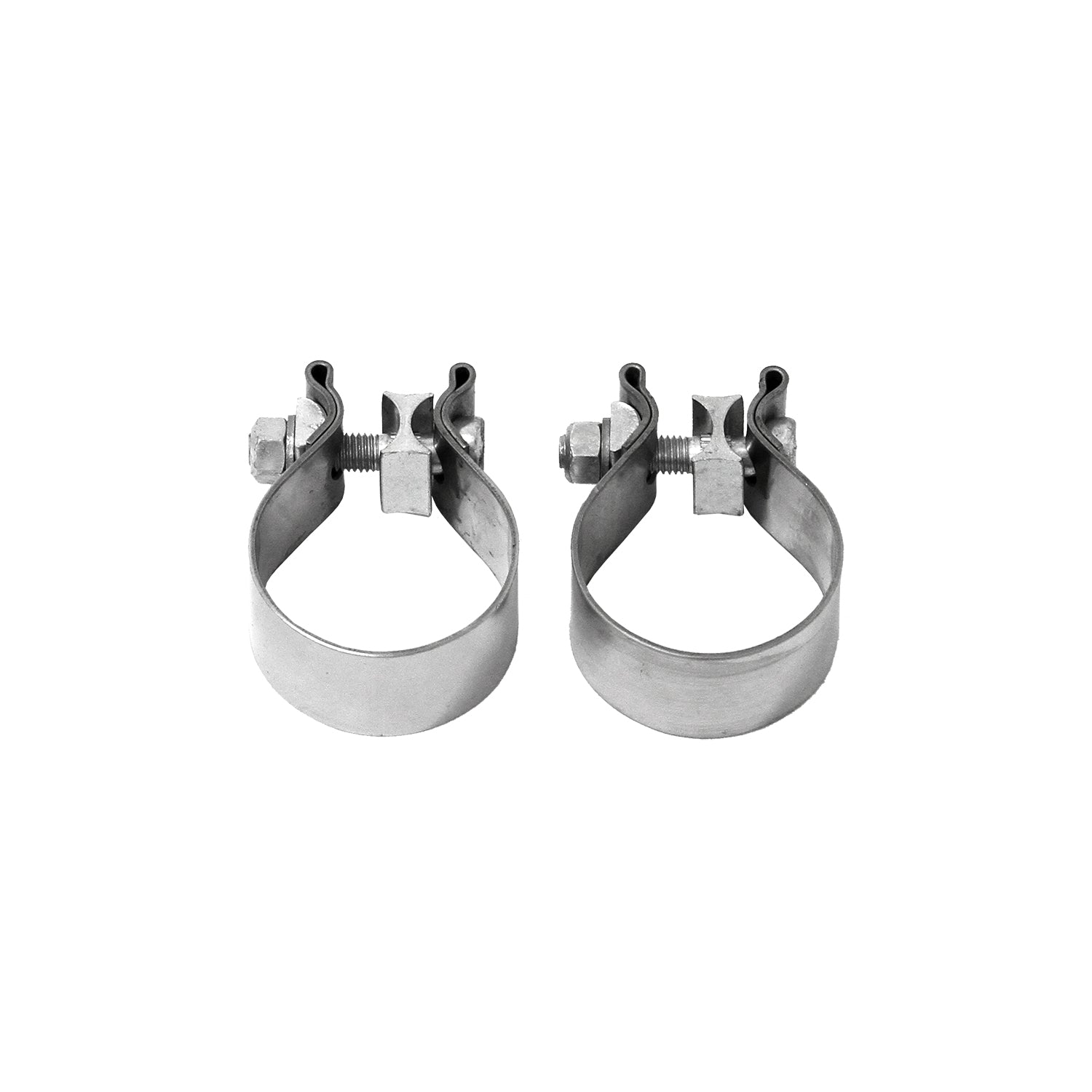

| Clamps Included | Yes |
| Emission Code | 5 |
| Exhaust Series | Outlaw |
| Exhaust Tip Color | Silver |
| Exhaust Tip Connection | Welded |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 4.00 |
| Exhaust Tip Edge | Angle Cut |
| Exhaust Tip Finish | Polished |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 5.25 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Out Rear |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Type | Clamp-On |
| Main Piping Diameter | 3.00 |
| Mount Type | Uses Factory Hangers |
| Mounting Bracket Included | No |
| Muffler (Left) Body Height | 4.00 |
| Muffler (Left) Body Length | 10.50 |
| Muffler (Left) Body Width | 4.00 |
| Muffler (Left) Type | Chambered |
| Muffler (Right) Body Height | 4.00 |
| Muffler (Right) Body Length | 10.50 |
| Muffler (Right) Body Width | 4.00 |
| Muffler (Right) Type | Chambered |
| Muffler Body Diameter | 4.00 |
| Muffler Body Height | 4.00 |
| Muffler Body Length | 49.00 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Round |
| Muffler Body Width | 4.00 |
| Muffler Color | Black |
| Muffler Finish | Black High-Temperature Paint Finish |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Location | Center |
| Muffler Inlet Outside Diameter | 3.13 |
| Muffler Outlet Diameter | 3.00 |
| Muffler Outlet Location | Center |
| Muffler Outlet Quantity | 1 |
| Muffler Overall Length | 10.50 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 2 |
| Muffler Series | Outlaw |
| Muffler Type | Reflection |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 |
| Tail Pipe Quantity | Dual |
| Tail Pipe Tapered Outlet | No |
| Tip Logo | Embossed |
| Type | Axle-back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 28.4 lbs
Dimensions: 58.5 x 16.25 x 11.25 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Polished Tip Finish, Fits coupes and convertibles
- 2015-2023 Ford Mustang with 2.3L Ecoboost or 3.7L engines. Fits coupes and convertibles
Share
Vehicle Fitment
Vehicle Fitment
- 2015-2016 Ford Mustang Base
- 2015-2023 Ford Mustang EcoBoost
- 2015-2023 Ford Mustang EcoBoost Premium
- 2015-2017 Ford Mustang V6
