Flowmaster

Flowmaster 817725 American Thunder Cat-back Exhaust System

$1,171.95 USD

Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Description & Features

Flowmaster 817725 American Thunder Cat-back Exhaust System

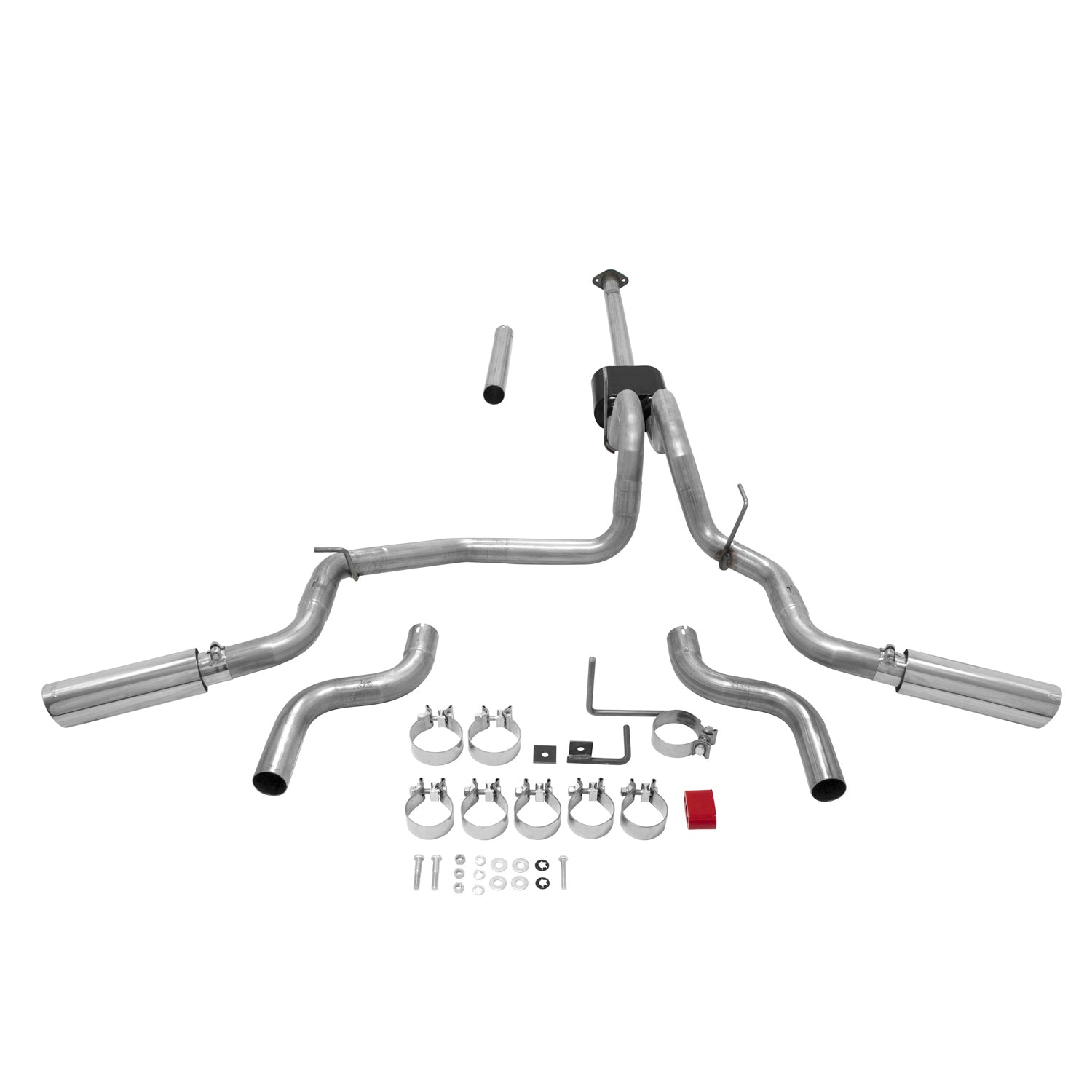

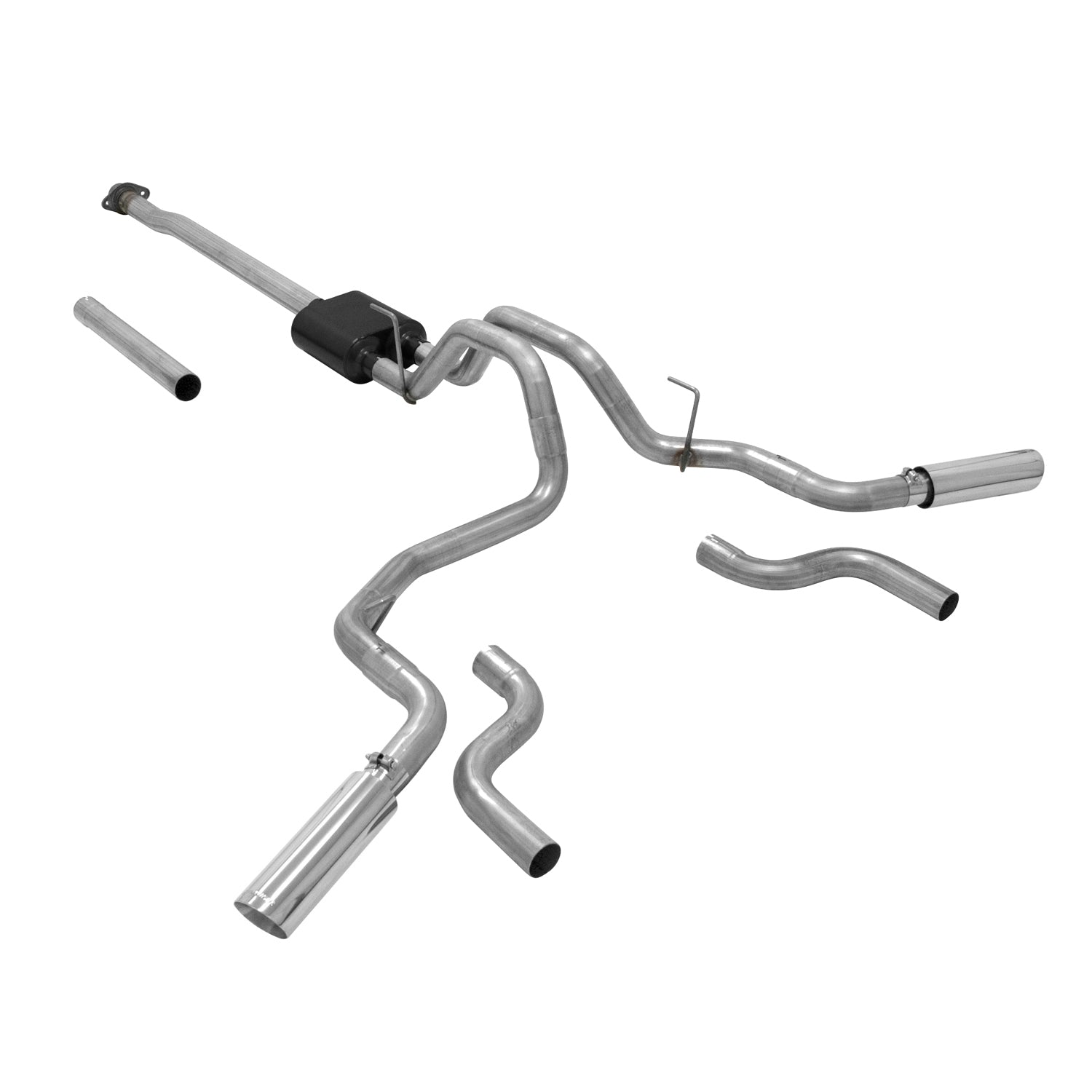

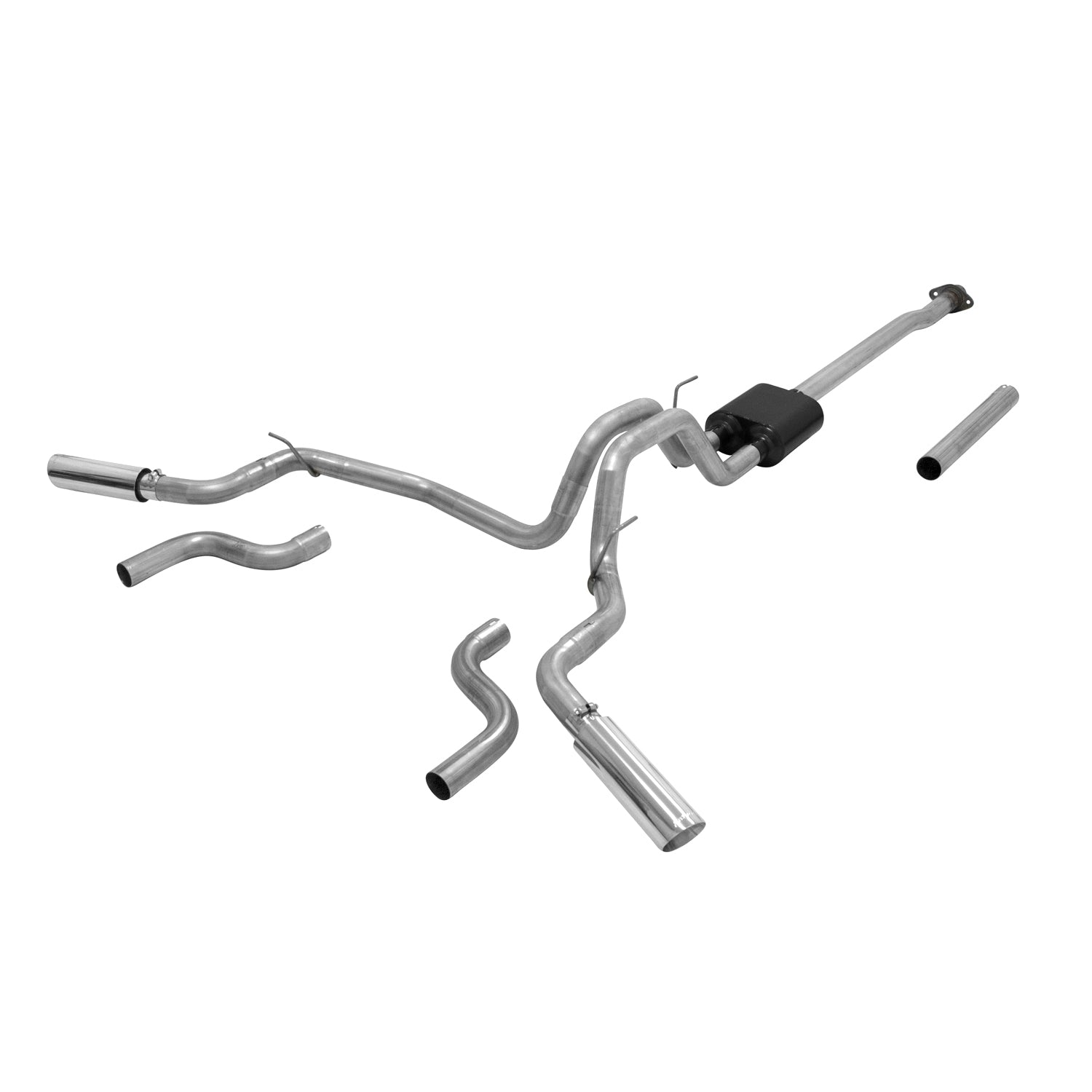

Flowmaster's American Thunder Cat-back exhaust system for the 2015-2020 Ford F-150 is perfect for the person looking for an aggressive exterior sound level while maintaining a moderate interior sound with all of the performance benefits that you would expect from Flowmaster. This bolt-on 409S stainless steel system fits all F-150's with the 2.7L/3.3L/3.5L Ecoboost, 3.5L TiVCT and 5.0L engines. Features include a 3.00-inch mandrel-bent inlet tube flowing into a Super 40 series performance muffler with dual 2.50-inch mandrel-bent tailpipes. The finishing touch is the polished 3.50-inch stainless steel tips. The system comes with your choice of final tailpipe exits, either out the rear under the bumper for a muscular, or out the sides behind the rear tires if you tow an RV, boat or trailer. Designed for an easy fit, this system includes all necessary parts, hardware for an easy installation you can do at home. Notes: This system fits all 2/4 WD and all Wheelbases, except Standard Cab/Short Bed.

Includes Both Rear and Side Exit Tailpipes
Super 40 Series Performance Muffler
Uses the Factory Hanger Locations
Clears the Factory Spare Tire
Stainless Steel Construction
Lifetime Limited Warranty
Delta Flow Technology
Deep Powerful Sound
Mandrel-bent Tubing
Easy Installation

Specifications

Brand	Flowmaster
California Proposition 65	Yes
California Proposition 65 Chemical Name	Chromium (hexavalent compounds)
CARB (California) Compliant	Yes
Catalytic Converter Included	No
Catalytic Converter Quantity	0
Category	Exhaust
Clamping Type	Flat Band
Clamps Included	Yes
Emission Code	5
Exhaust Series	American Thunder
Exhaust Tip Color	Silver
Exhaust Tip Connection	Clamp-On
Exhaust Tip Cut	Angled
Exhaust Tip Diameter	3.50
Exhaust Tip Edge	Angle Cut
Exhaust Tip Finish	Polished
Exhaust Tip Intercooled	No
Exhaust Tip Length	13.00
Exhaust Tip Material	304 Stainless Steel
Exhaust Tip Quantity	2
Exhaust Tip Resonated	No
Exhaust Tip Shape	Round
Exhaust Tip Wall	Double Wall
Exit Style	Dual Out Rear
Finish	Natural
Gasket Or Seal Included	No
Grade Type	Performance
Hangers Included	Yes
Heat Shield Included	No
Inlet Diameter	3.00
Inlet Type	Flanged
Main Piping Diameter	2.50
Mount Type	Flanged
Mounting Bracket Included	Yes
Muffler Body Height	5.00
Muffler Body Length	10.25
Muffler Body Material	409 Stainless Steel
Muffler Body Shape	Oval
Muffler Body Width	10.00
Muffler Color	Black
Muffler Finish	Black High-Temperature Paint Finish
Muffler Flanged Inlet	No
Muffler Flanged Outlet	No
Muffler Included	Yes
Muffler Inlet Connection	Slip-Fit
Muffler Inlet Inside Diameter	3.00
Muffler Inlet Outside Diameter	3.13
Muffler Outlet Connection	Slip-Fit
Muffler Outlet Quantity	2
Muffler Part Number	Kit Only
Muffler Quantity	1
Muffler Series	Super 40 Series
Muffler Type	Chambered
part type	Exhaust System
Pipe Color	Silver
Pipe Material	409 Stainless Steel
Product Type	Exhaust System
Sound Level	Aggressive / Moderate
Spring Bolt Kit Included	No
Sub Category	Exhaust and Tail Pipes
Tail Pipe Outlet Outside Diameter	2.50
Tail Pipe Quantity	Dual
Tail Pipe Tapered Outlet	No
Tip Logo	Embossed
Type	Cat-Back
Valve Included	No
Valve Type	Not Applicable
Warning	California Proposition 65

Packaging Information

Weight: 59.65 lbs
Dimensions: 58.5 x 16.25 x 11.25 IN

Safety

⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov

Warranty

View Warranty (PDF)

Installation Instructions

View Installation Instructions (PDF)

⚠ Fitment Notes
