Flowmaster 817726 Outlaw Cat-back Exhaust System
Flowmaster 817726 Outlaw Cat-back Exhaust System
Low stock: 2 left
Couldn't load pickup availability
Description & Features

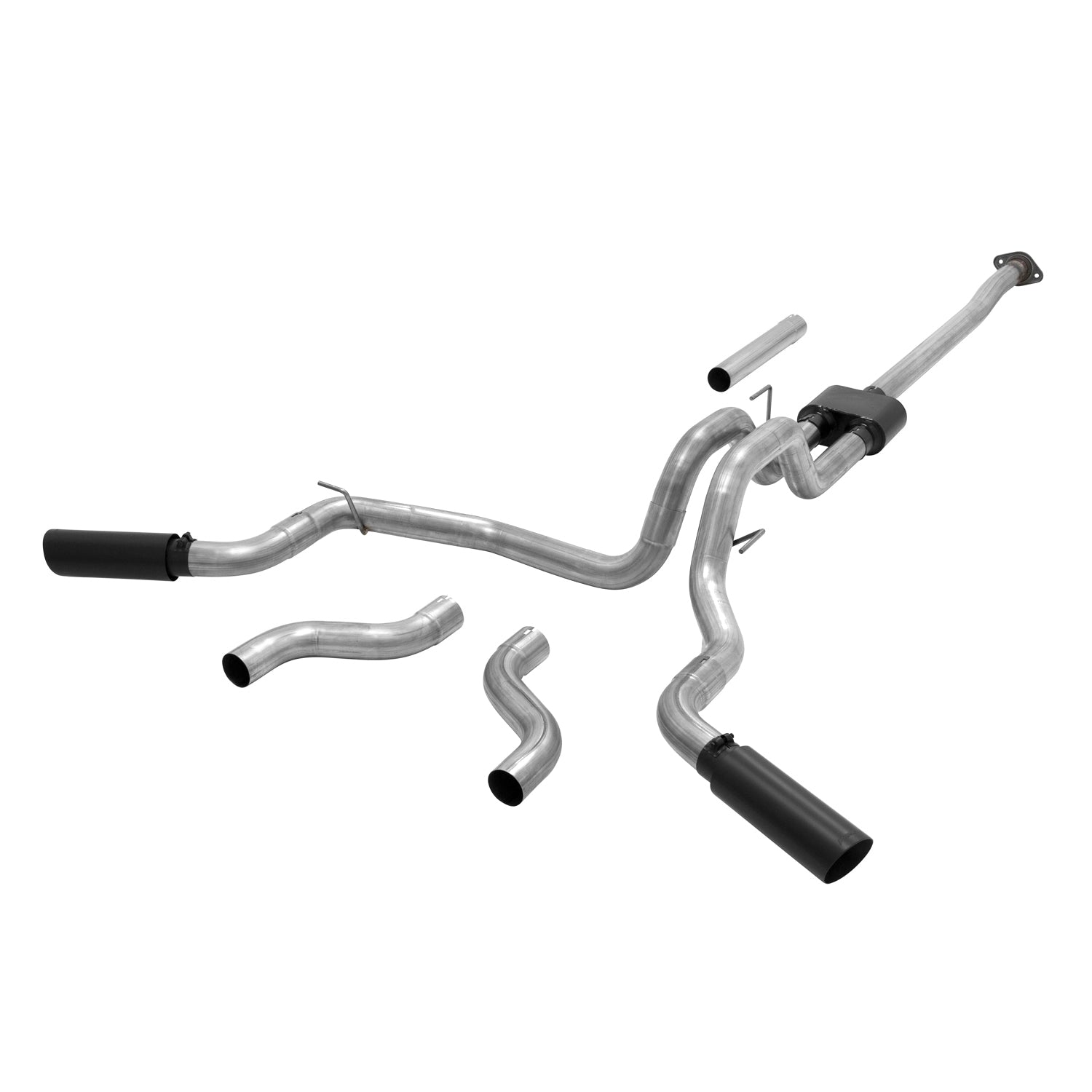

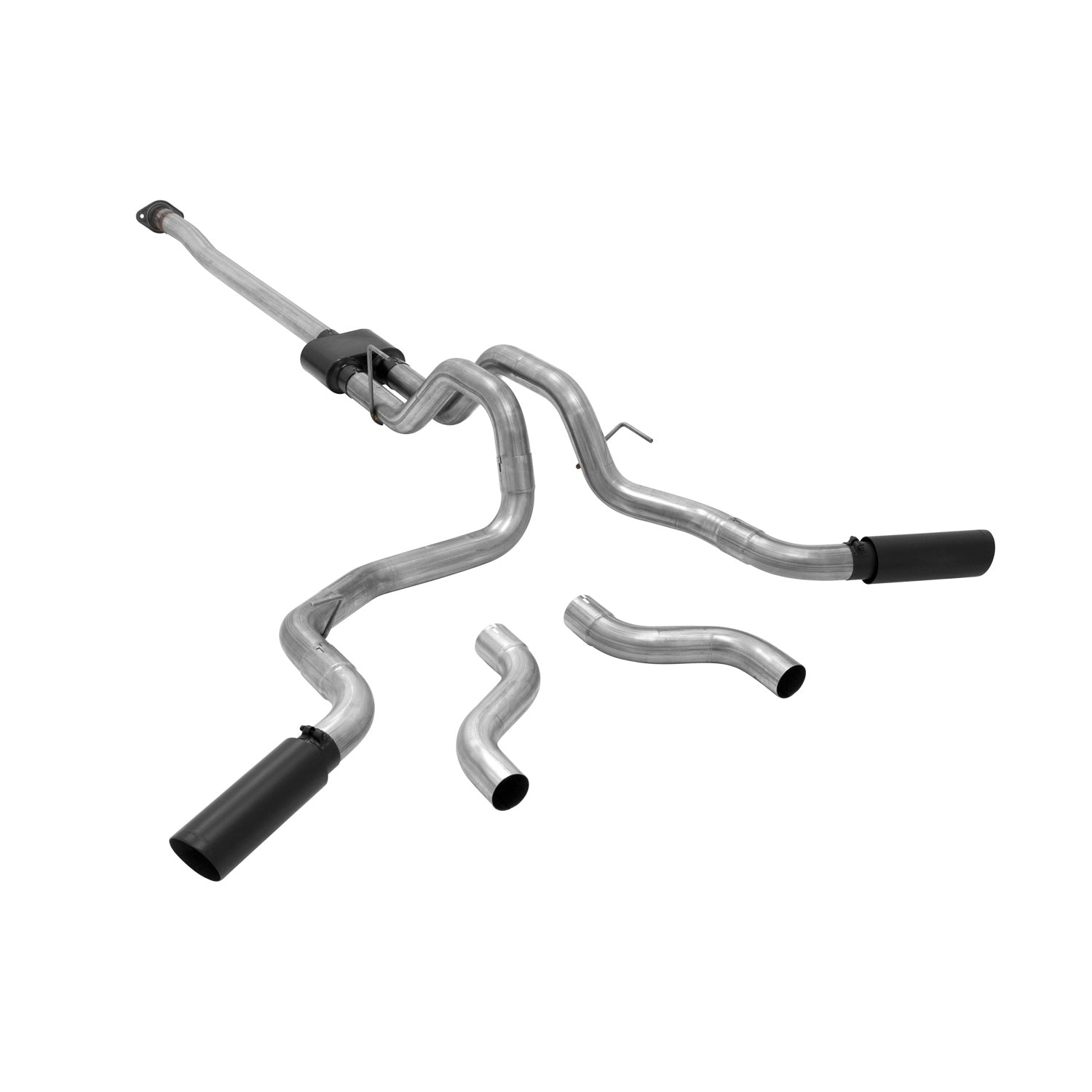

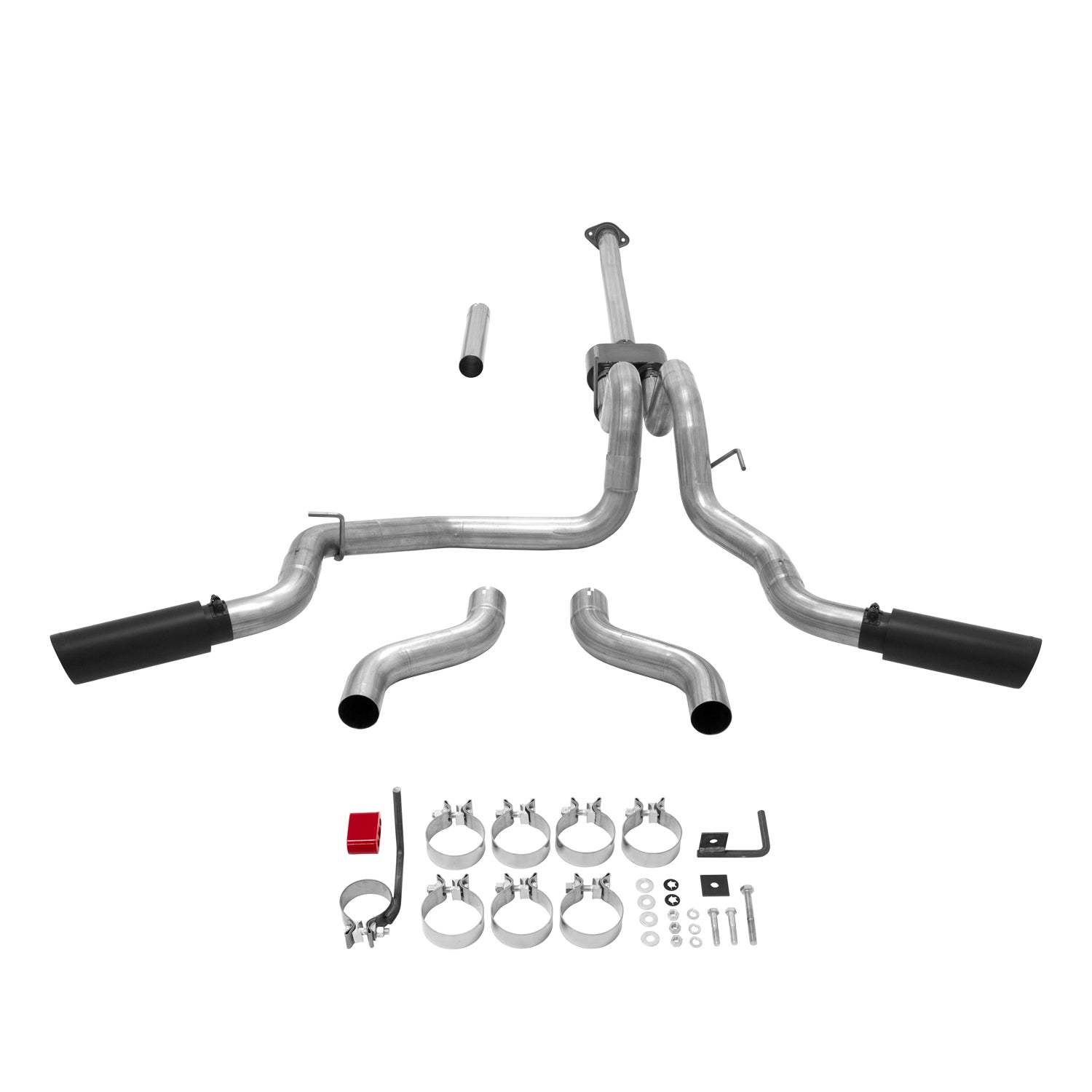

Flowmaster 817726 Outlaw Cat-back Exhaust System
Flowmaster's Outlaw Cat-back exhaust system for the 2015-2020 Ford F-150 is perfect for the person looking for an aggressive exterior sound level while maintaining a moderate interior sound with all of the performance benefits that you would expect from Flowmaster. This bolt-on 409S stainless steel system fits all F-150's with the 2.7L/3.3L/3.5L Ecoboost, 3.5L TiVCT and 5.0L engines. Features include a 3.00-inch mandrel-bent inlet tube flowing into an aggressive Super 10 series performance muffler with dual 2.50-inch mandrel-bent tailpipes. The finishing touch is the large 4.00-inch black ceramic coated stainless steel tips. The system comes with your choice of final tailpipe exits, either out the rear under the bumper for a muscular, or out the sides behind the rear tires if you tow an RV, boat or trailer. This system fits all 2/4 WD and Wheelbases, except Standard Cab/Short Bed models. Designed for an easy fit, this system includes all necessary parts, hardware for an easy installation you can do at home.
- Large 4.00-inch Black Ceramic Coated Tips
- Includes Rear and Side Tailpipes Exits
- Super 10 Series Performance Muffler
- Stainless Steel Construction
- Lifetime Limited Warranty
- Super Aggressive Sound
- Flowmaster Quality
Specifications
| Brand | Flowmaster |
| California Proposition 65 | Yes |
| California Proposition 65 Chemical Name | Chromium (hexavalent compounds) |
| CARB (California) Compliant | Yes |
| Catalytic Converter Included | No |
| Catalytic Converter Quantity | 0 |
| Category | Exhaust |
| Clamping Type | Flat Band |
| Clamps Included | Yes |
| Emission Code | 5 |
| Exhaust Series | Outlaw |
| Exhaust Tip Color | Black |
| Exhaust Tip Connection | Clamp-On |
| Exhaust Tip Cut | Angled |
| Exhaust Tip Diameter | 4.00 |
| Exhaust Tip Edge | Angle Cut |
| Exhaust Tip Finish | Black Ceramic Coating |
| Exhaust Tip Intercooled | No |
| Exhaust Tip Length | 13.00 |
| Exhaust Tip Material | 304 Stainless Steel |
| Exhaust Tip Quantity | 2 |
| Exhaust Tip Resonated | No |
| Exhaust Tip Shape | Round |
| Exhaust Tip Wall | Double Wall |
| Exit Style | Dual Out Rear |
| Finish | Natural |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Hangers Included | Yes |
| Heat Shield Included | No |
| Inlet Diameter | 3.00 |
| Inlet Type | Flanged |
| Main Piping Diameter | 3.00 |
| Mount Type | Flanged |
| Mounting Bracket Included | Yes |
| Muffler Body Height | 4.00 |
| Muffler Body Length | 6.50 |
| Muffler Body Material | 409 Stainless Steel |
| Muffler Body Shape | Oval |
| Muffler Body Width | 9.50 |
| Muffler Finish | Black High-Temperature Paint Finish |
| Muffler Flanged Inlet | No |
| Muffler Flanged Outlet | No |
| Muffler Included | Yes |
| Muffler Inlet Connection | Slip-Fit |
| Muffler Inlet Inside Diameter | 3.00 |
| Muffler Inlet Outside Diameter | 3.13 |
| Muffler Outlet Connection | Slip-Fit |
| Muffler Outlet Quantity | 2 |
| Muffler Part Number | Kit Only |
| Muffler Quantity | 1 |
| Muffler Series | Super 10 Series |
| Muffler Type | Chambered |
| part type | Exhaust System |
| Pipe Color | Silver |
| Pipe Material | 409 Stainless Steel |
| Product Type | Exhaust System |
| Sound Level | Aggressive |
| Spring Bolt Kit Included | No |
| Sub Category | Exhaust and Tail Pipes |
| Tail Pipe Outlet Outside Diameter | 3.00 |
| Tail Pipe Quantity | Dual |
| Tail Pipe Tapered Outlet | No |
| Tip Logo | Embossed |
| Type | Cat-Back |
| Valve Included | No |
| Valve Type | Not Applicable |
| Warning | California Proposition 65 |
Packaging Information
Weight: 60.7 lbs
Dimensions: 58.5 x 16.25 x 11.25 IN
Safety
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov
Warranty
Installation Instructions
⚠ Fitment Notes
- Polished Tip Finish, Aggressive Tone.
- Does Not fit Std Cab/Short Bed or Ford Raptor.
Share
Vehicle Fitment
Vehicle Fitment
- 2015-2020 Ford F-150 King Ranch
- 2015-2020 Ford F-150 Lariat
- 2016-2020 Ford F-150 Limited
- 2015-2020 Ford F-150 Platinum
- 2019-2020 Ford F-150 Police Responder
- 2016-2020 Ford F-150 SSV
- 2015-2020 Ford F-150 XL
- 2015-2020 Ford F-150 XLT
