Flowmaster

Flowmaster 817843 American Thunder Cat-back Exhaust System

$1,171.95 USD

Sale Sold out

Shipping calculated at checkout.

Low stock: 4 left

Description & Features

Flowmaster 817843 American Thunder Cat-back Exhaust System

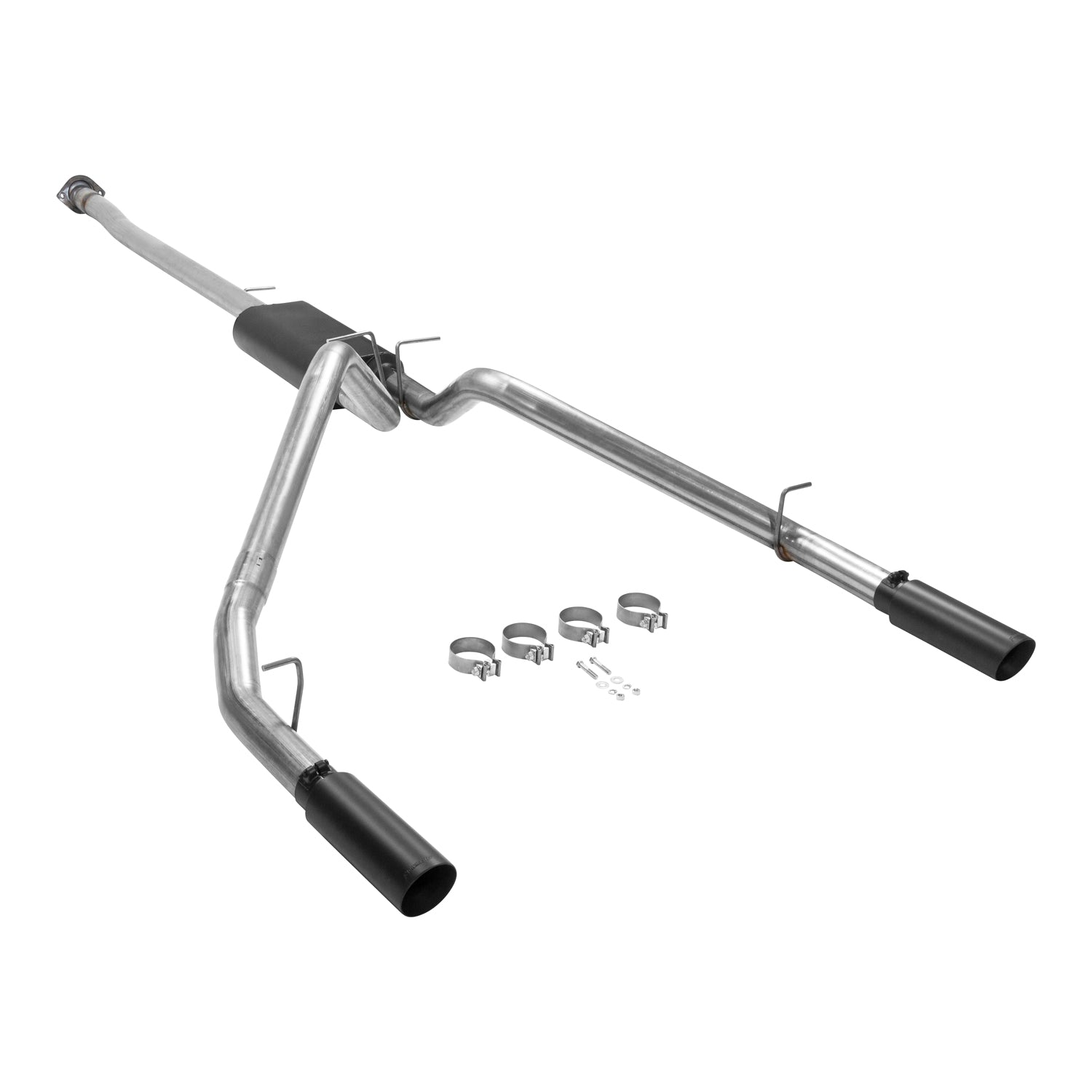

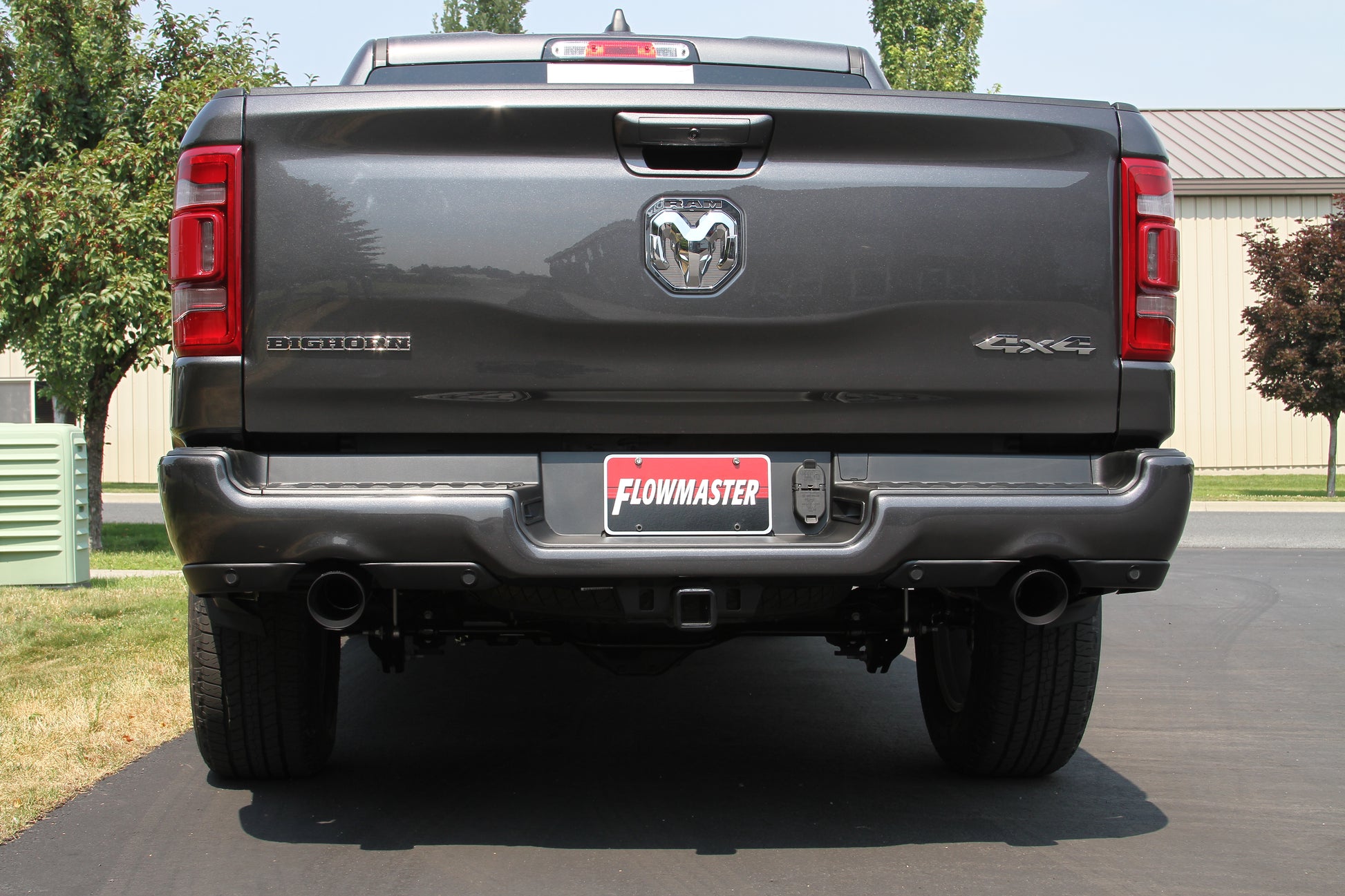

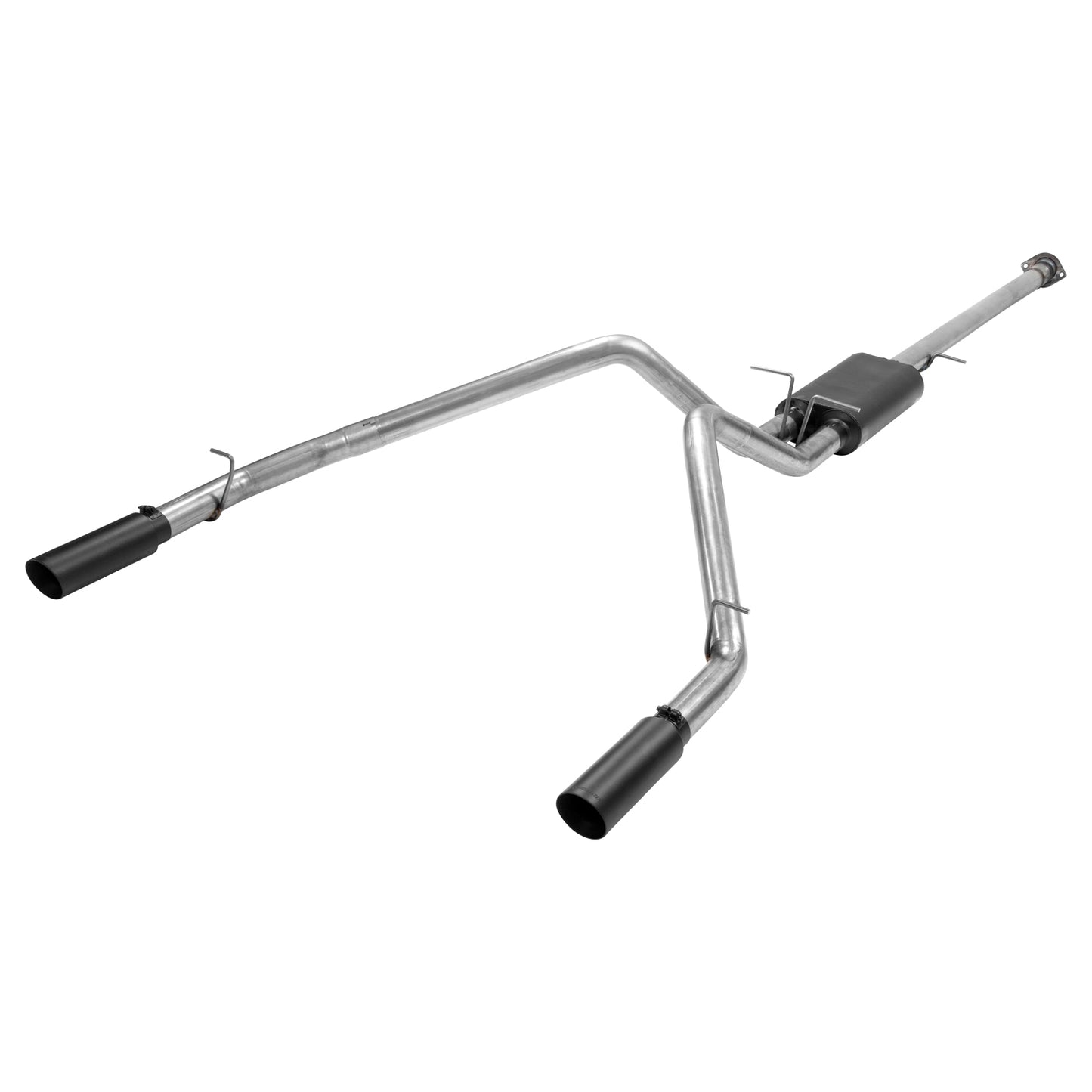

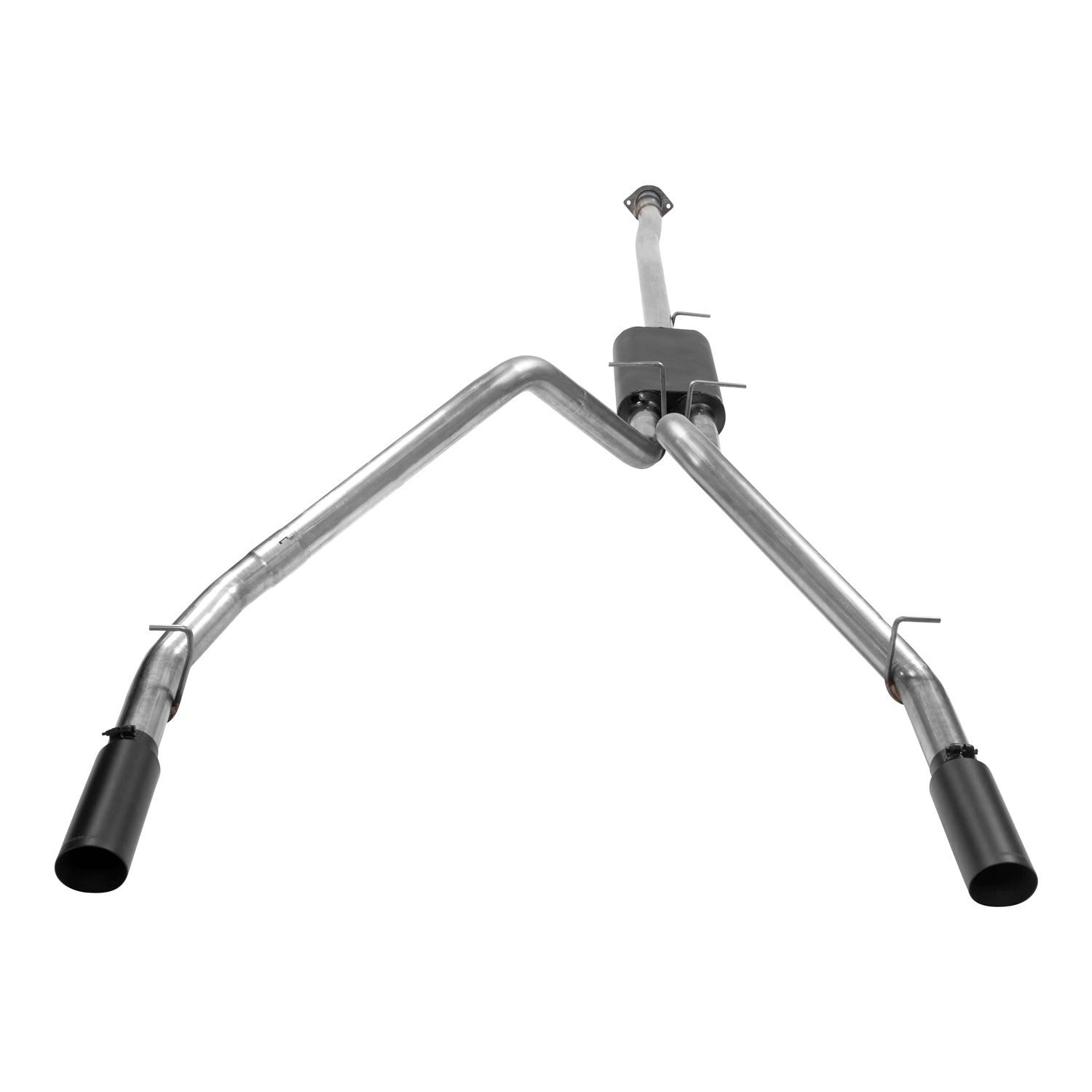

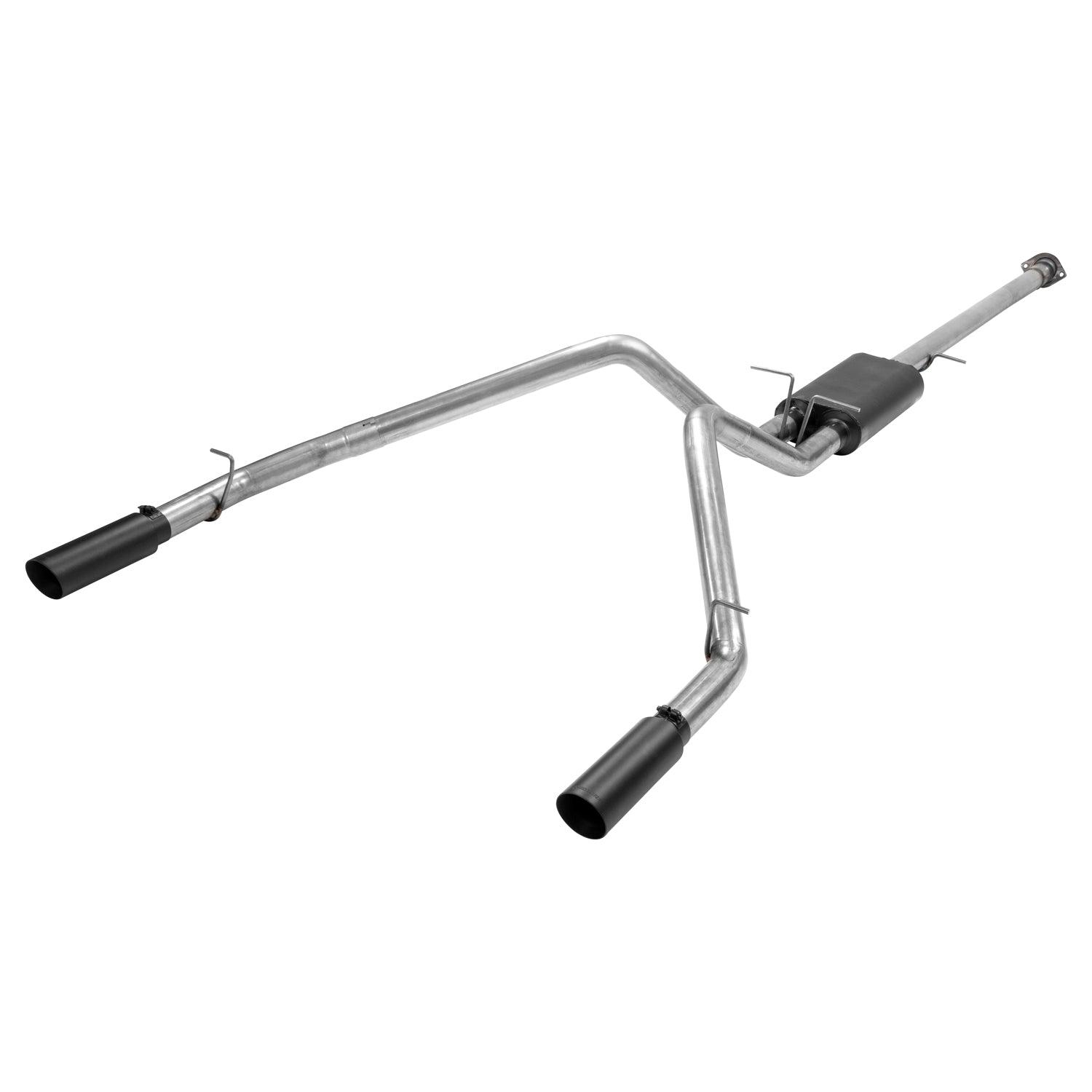

The American Thunder® cat-back exhaust system for the 2019-2024, 2026 RAM 1500 (New body) with 5.7L Hemi engine and factory dual tailpipes is perfect for the person looking for a deep powerful exterior sound with all of the performance benefits that you would expect from Flowmaster®. This bolt-on emissions legal system features all mandrel-bent stainless steel tubing leading into a 50 Series™ HD muffler that was originally designed specifically for RAM Hemi engines to deliver maximum power and exterior sound quality, but with a moderately pleasant interior tone at cruising speeds. Other features include dual 3.00-inch tailpipes that clear the factory spare tire and are finished with large 4.00-inch black ceramic coated exhaust tips filling out the factory cutouts in the rear bumper. The system utilizes the factory hangers, includes all necessary parts, hardware and instructions for an easy installation you can do at home. Comes with Flowmaster's Lifetime Limited Warranty. Notes: Fits all 5.7L Hemi, 2/4 wheel drive models with 140.5, 144.6 and 153.5-inch wheelbases with 5.7 and 6.4-foot bed lengths.

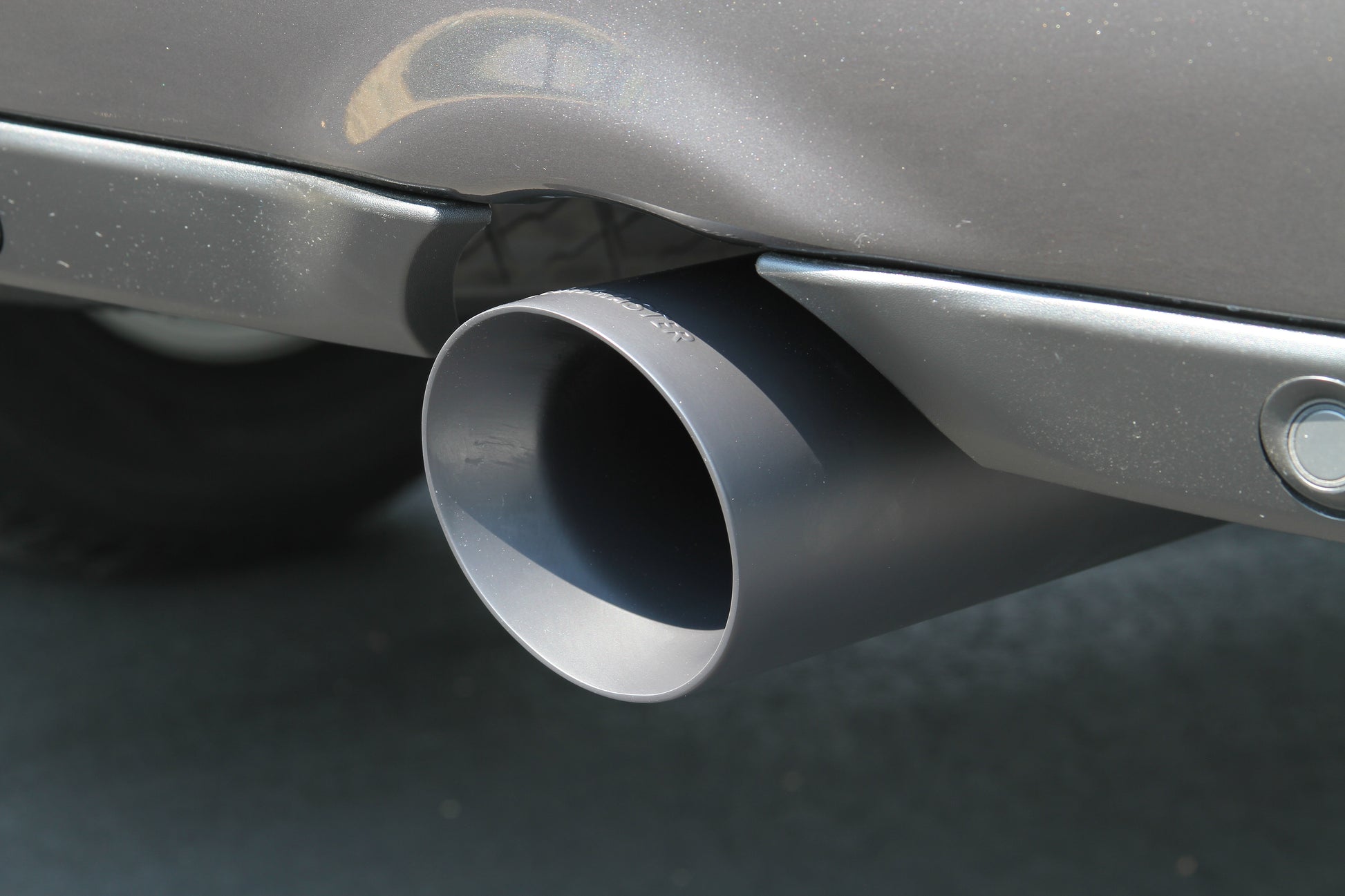

Large 4.00-inch Black Ceramic Coated Tips
Mandrel-bent Dual 3.00-inch Tailpipes
Large 4-inch 50 HD Muffler Internals
Uses the Factory Hanger Locations
Deep Powerful Exterior Sound
Clears the Factory Spare Tire
Stainless Steel Construction
Quick and Easy Installation
Lifetime Limited Warranty

Specifications

Brand	Flowmaster
California Proposition 65	Yes
California Proposition 65 Chemical Name	Chromium (hexavalent compounds)
CARB (California) Compliant	Yes
Catalytic Converter Included	No
Catalytic Converter Quantity	0
Category	Exhaust
Clamping Type	Flat Band
Clamps Included	Yes
Emission Code	5
Exhaust Series	American Thunder
Exhaust Tip Color	Black
Exhaust Tip Connection	Clamp-On
Exhaust Tip Cut	Angled
Exhaust Tip Diameter	4.00
Exhaust Tip Edge	Angle Cut
Exhaust Tip Finish	Black Ceramic Coating
Exhaust Tip Intercooled	No
Exhaust Tip Length	13.00
Exhaust Tip Material	304 Stainless Steel
Exhaust Tip Quantity	2
Exhaust Tip Resonated	No
Exhaust Tip Shape	Round
Exhaust Tip Wall	Double Wall
Exit Style	Dual Out Rear
Finish	Natural
Gasket Or Seal Included	No
Grade Type	Performance
Hangers Included	Yes
Heat Shield Included	No
Inlet Type	Flanged
Main Piping Diameter	3.00
Mount Type	Uses Factory Hangers
Mounting Bracket Included	No
Muffler Body Height	5.00
Muffler Body Length	18.00
Muffler Body Material	409 Stainless Steel
Muffler Body Shape	Oval
Muffler Body Width	10.00
Muffler Color	Black
Muffler Finish	Black High-Temperature Paint Finish
Muffler Flanged Inlet	No
Muffler Flanged Outlet	No
Muffler Included	Yes
Muffler Inlet Connection	Slip-Fit
Muffler Inlet Inside Diameter	3.00
Muffler Inlet Location	Center
Muffler Inlet Outside Diameter	3.13
Muffler Outlet Connection	Slip-Fit
Muffler Outlet Diameter	3.00
Muffler Outlet Location	Dual
Muffler Outlet Quantity	2
Muffler Overall Length	24.00
Muffler Part Number	Kit Only
Muffler Quantity	1
Muffler Series	50 Series HD
Muffler Type	Reflection
part type	Exhaust System
Pipe Color	Silver
Pipe Material	409 Stainless Steel
Product Type	Exhaust System
Sound Level	Aggressive / Moderate
Spring Bolt Kit Included	No
Sub Category	Exhaust and Tail Pipes
Tail Pipe Outlet Outside Diameter	3.00
Tail Pipe Quantity	Dual
Tail Pipe Tapered Outlet	No
Tip Logo	Embossed
Type	Cat-Back
Valve Included	No
Valve Type	Not Applicable
Warning	California Proposition 65

Packaging Information

Weight: 63.45 lbs
Dimensions: 62.75 x 18.5 x 14.5 IN

Safety

⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information visit www.P65Warnings.ca.gov

Warranty

View Warranty (PDF)

Installation Instructions

View Installation Instructions (1) (PDF)
View Installation Instructions (2) (PDF)

⚠ Fitment Notes

Black Ceramic Tip Finish; Does not fit trucks with factory single exhaust; Only fits trucks with factory dual tailpipes.
Does not fit trucks with factory single exit tailpipe or 2019-2024 Classic body.
