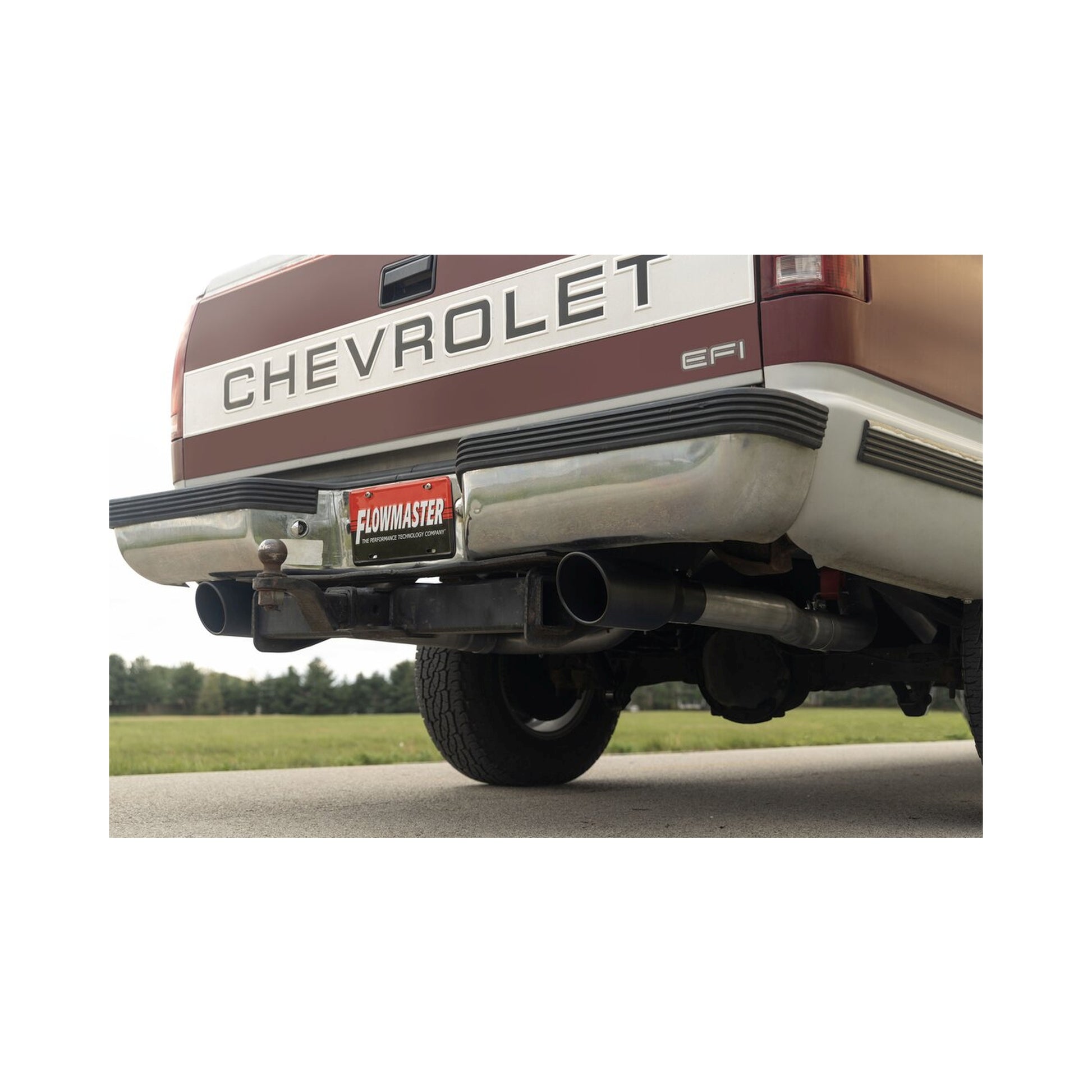

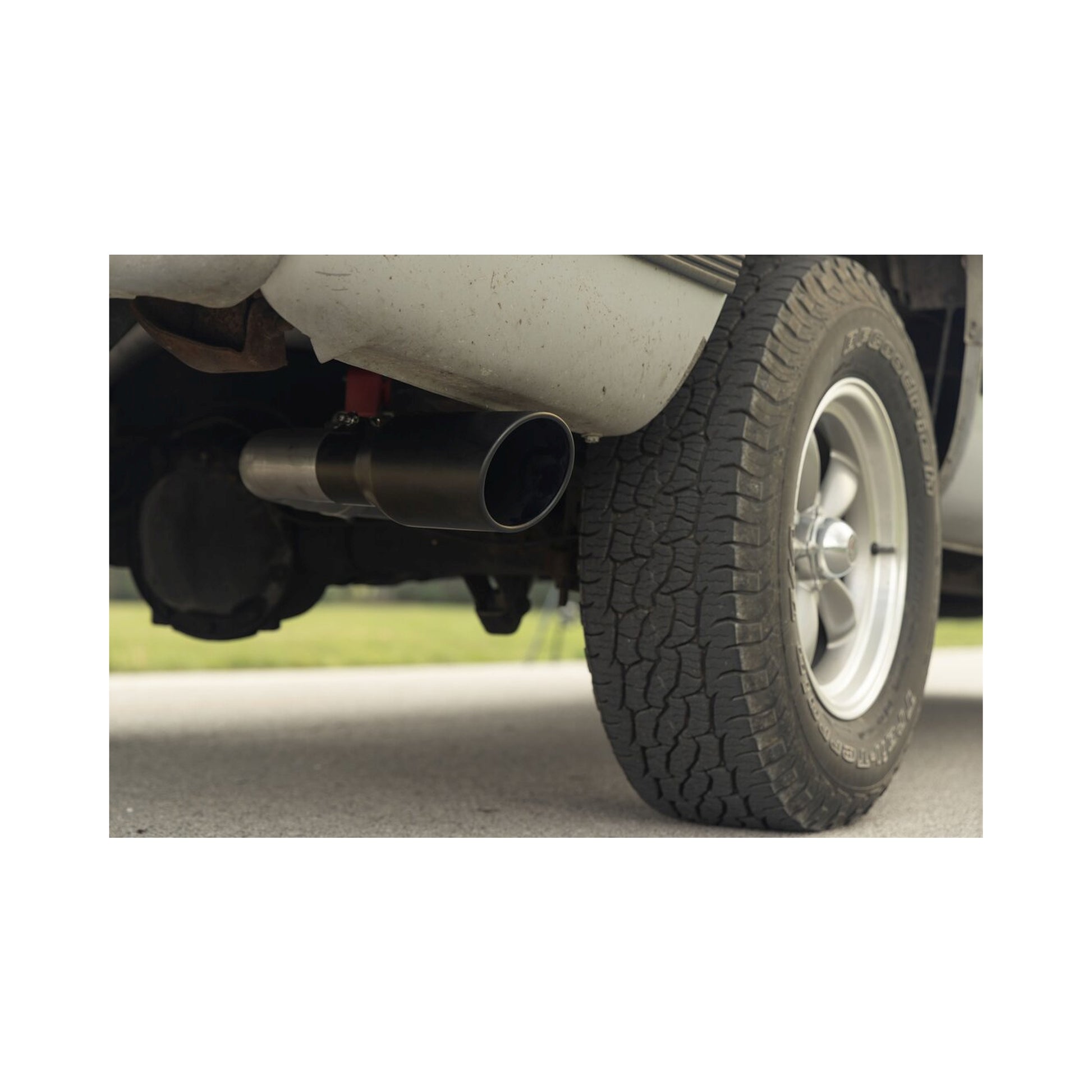

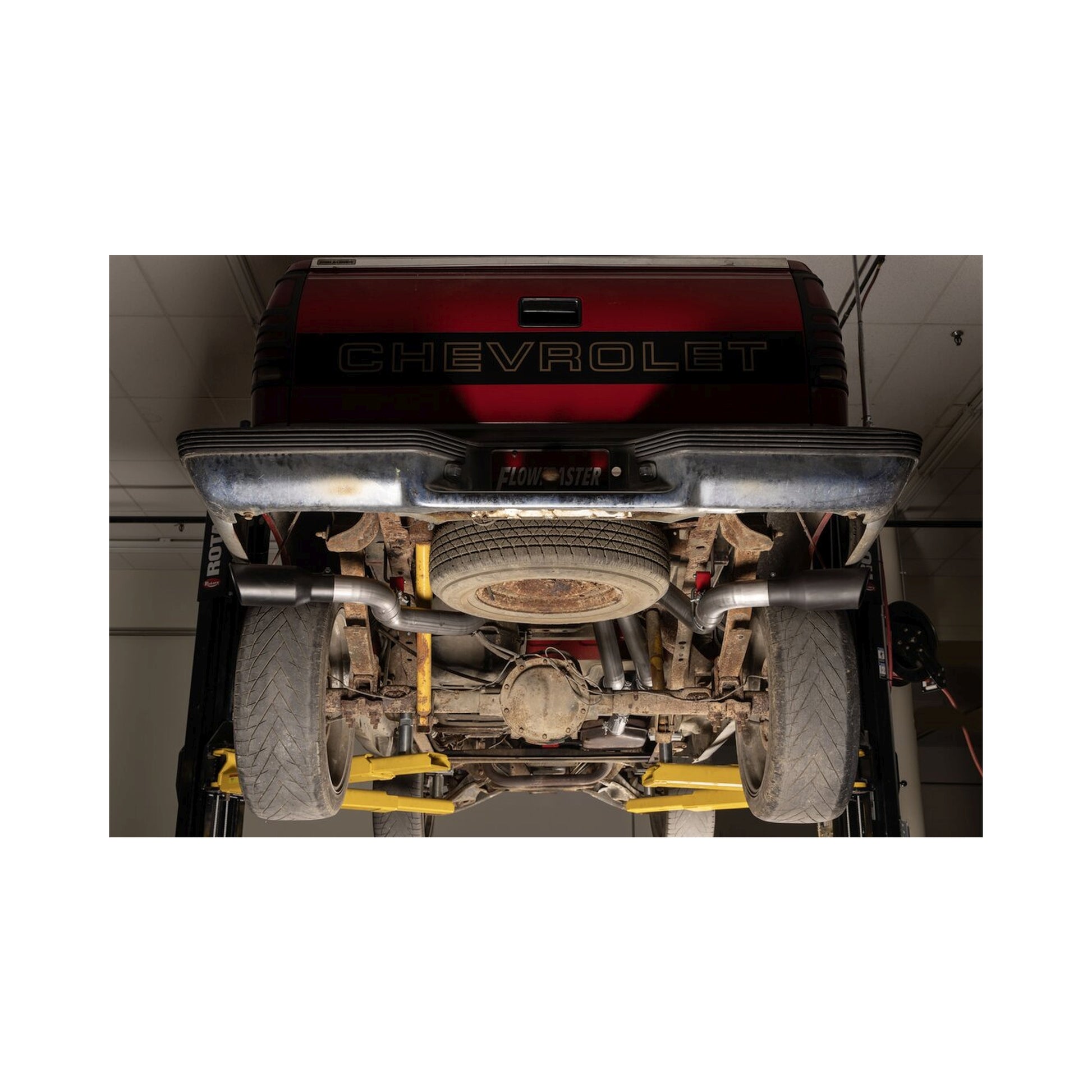

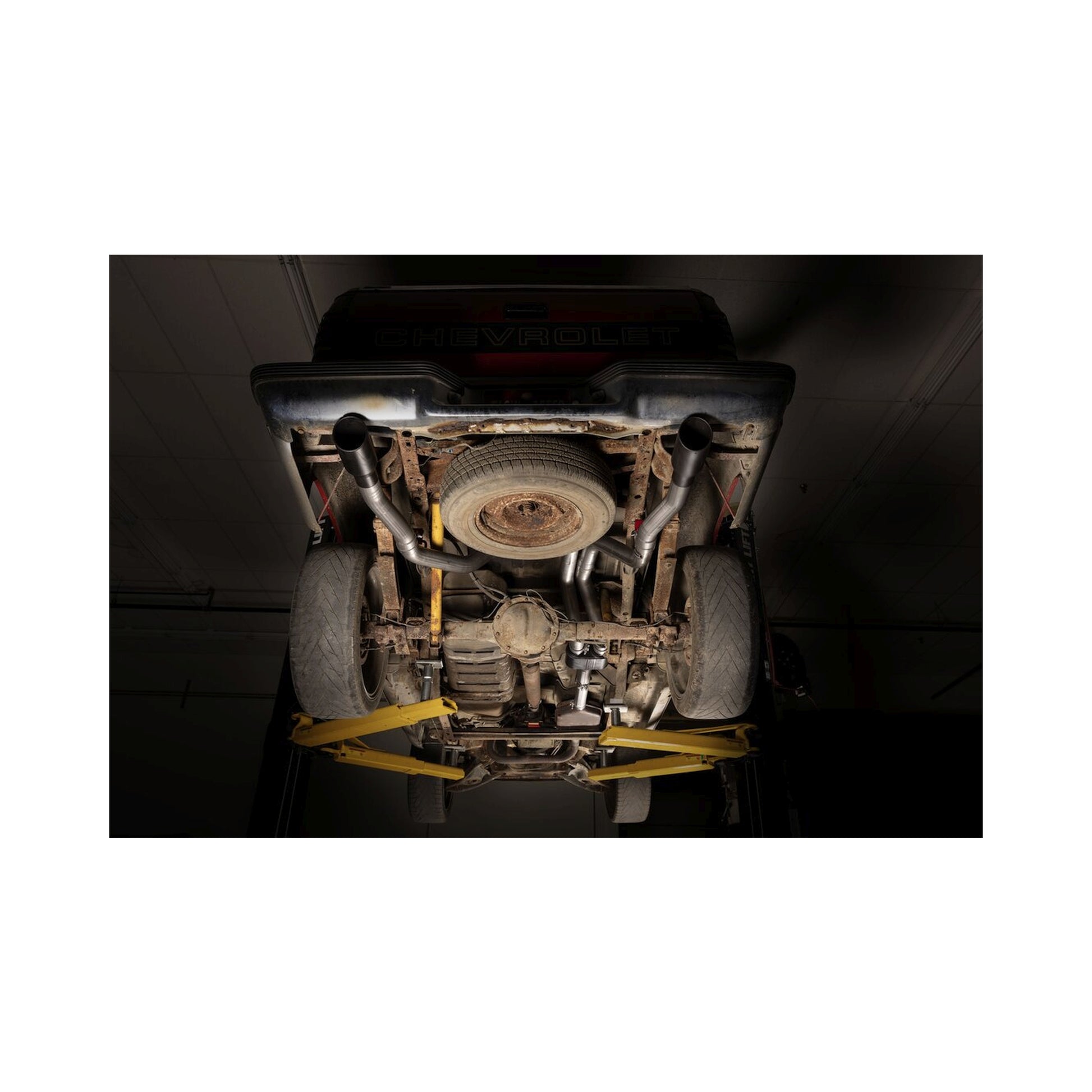

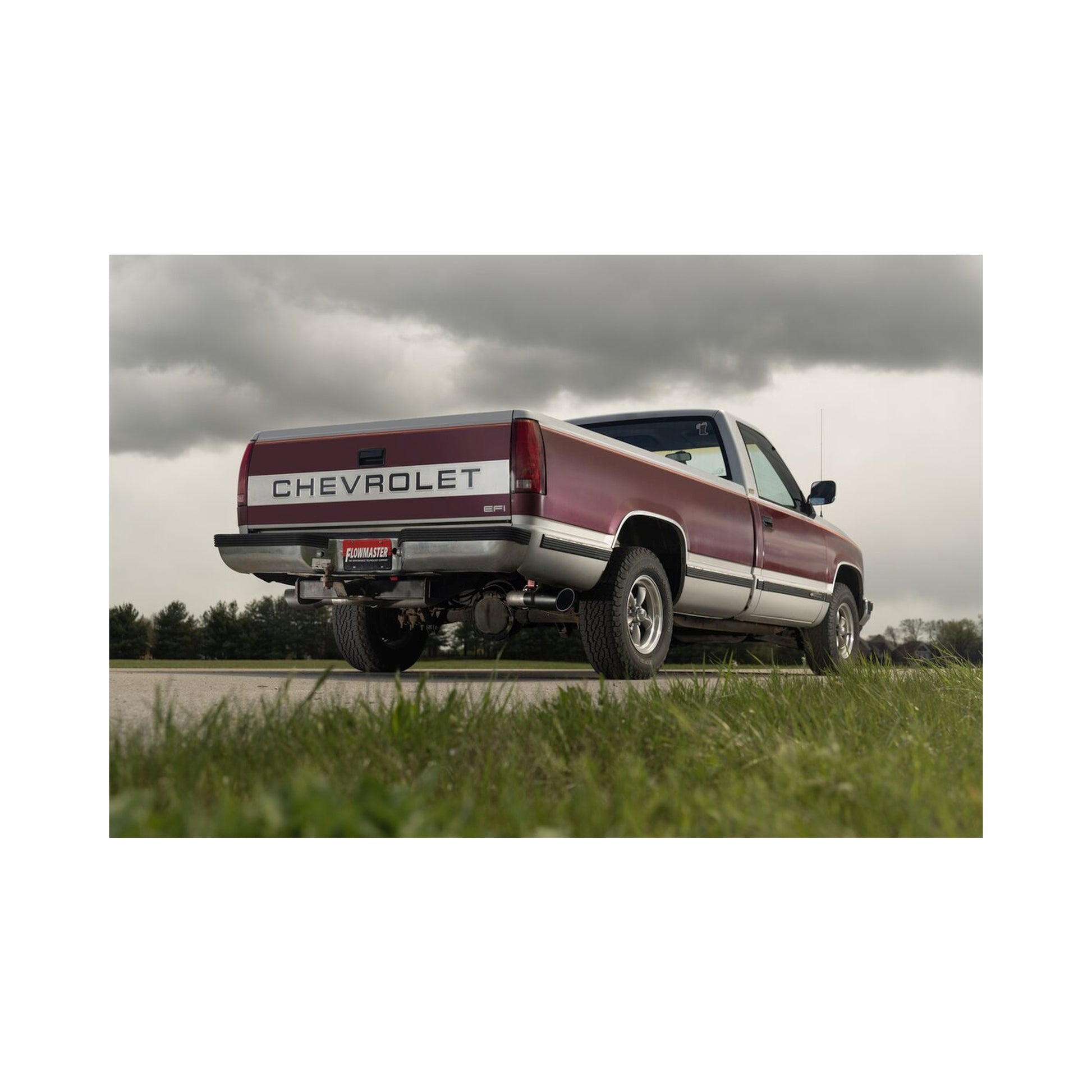

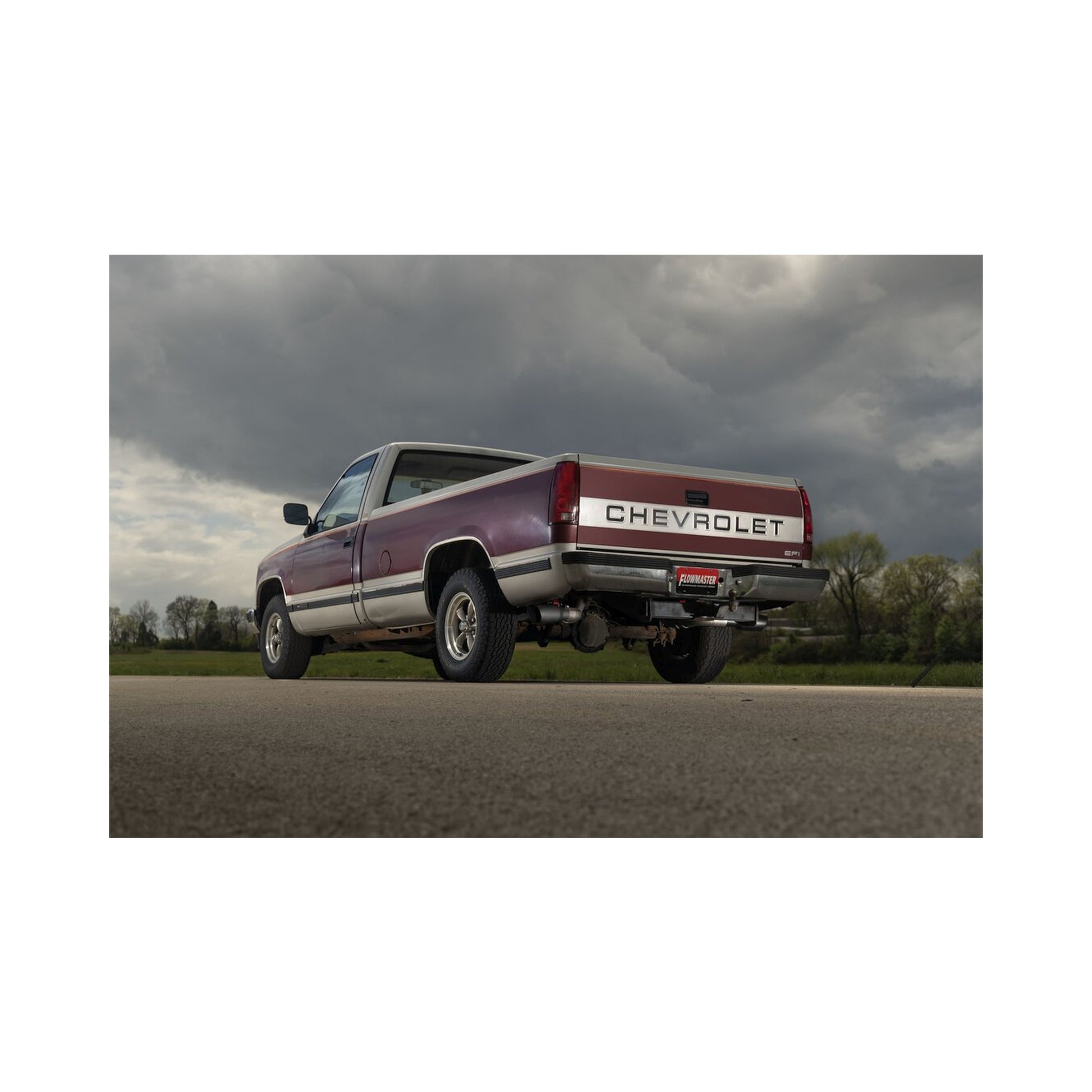

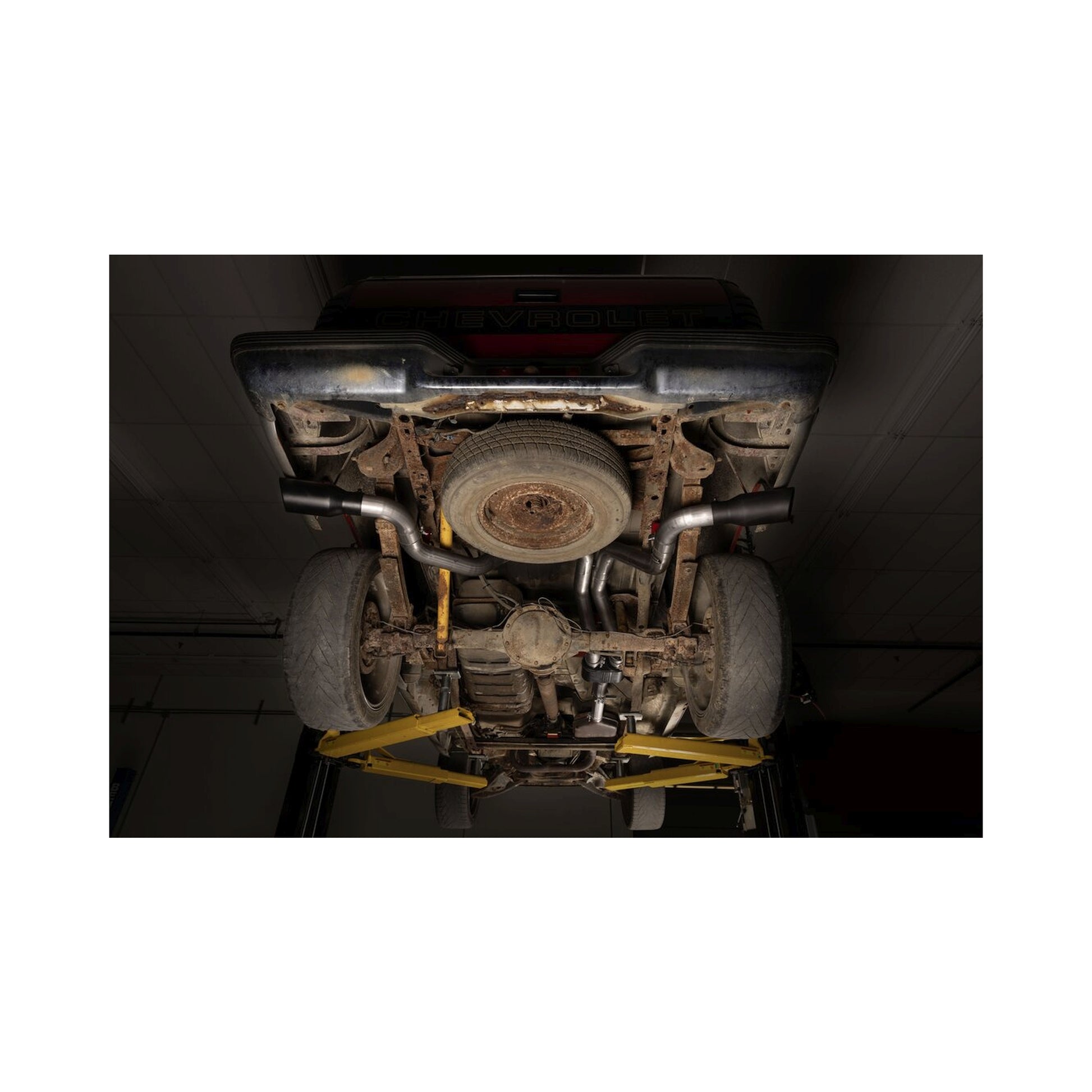

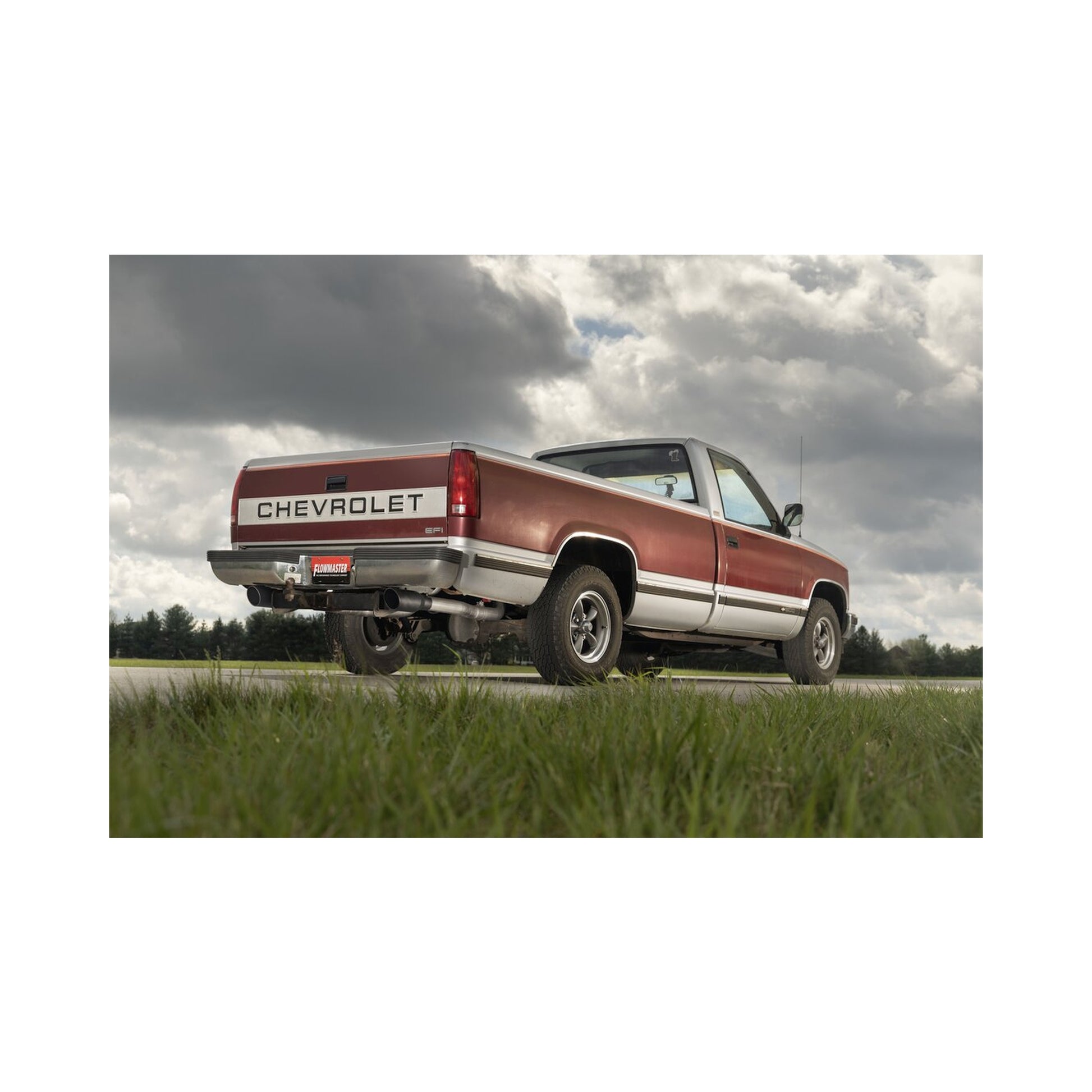

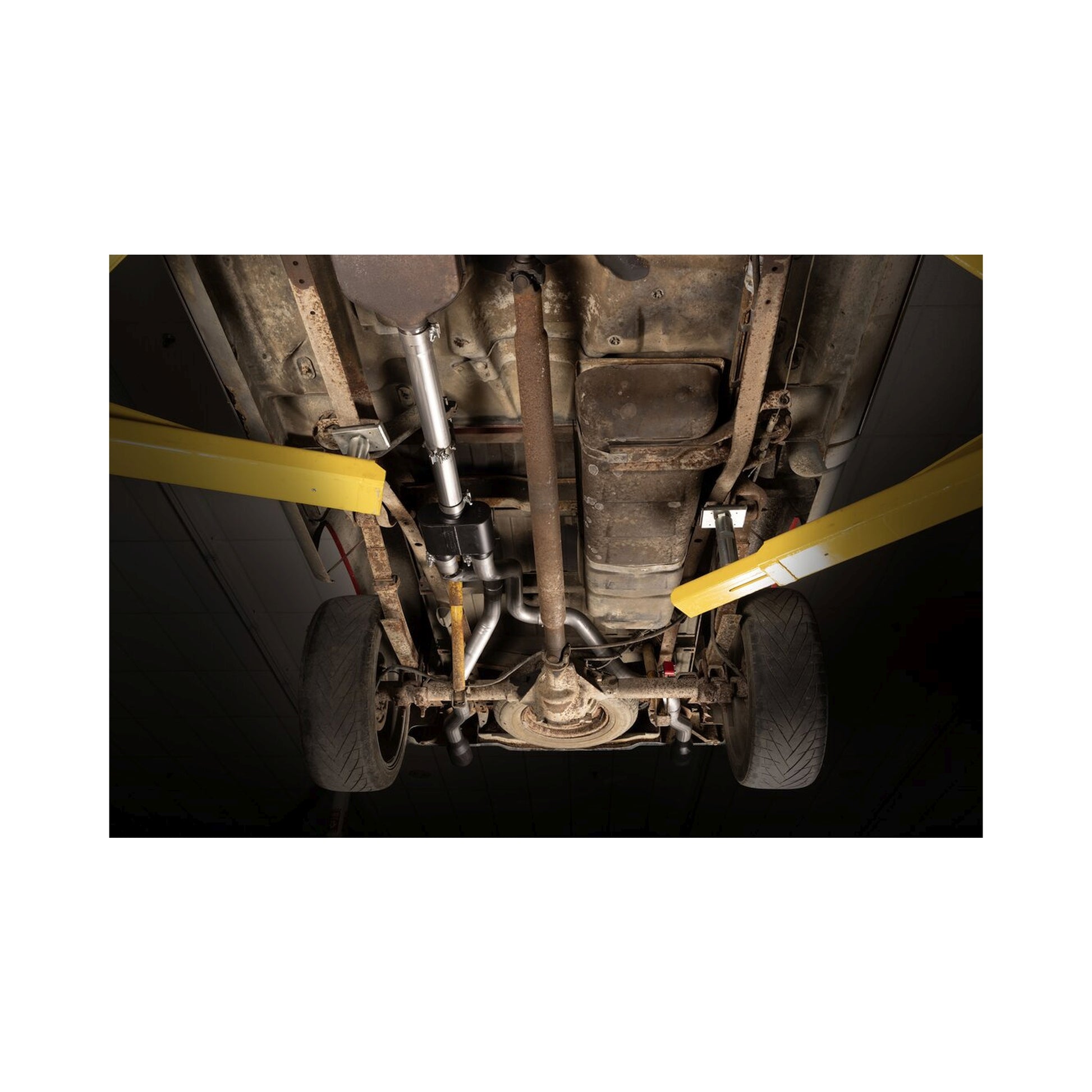

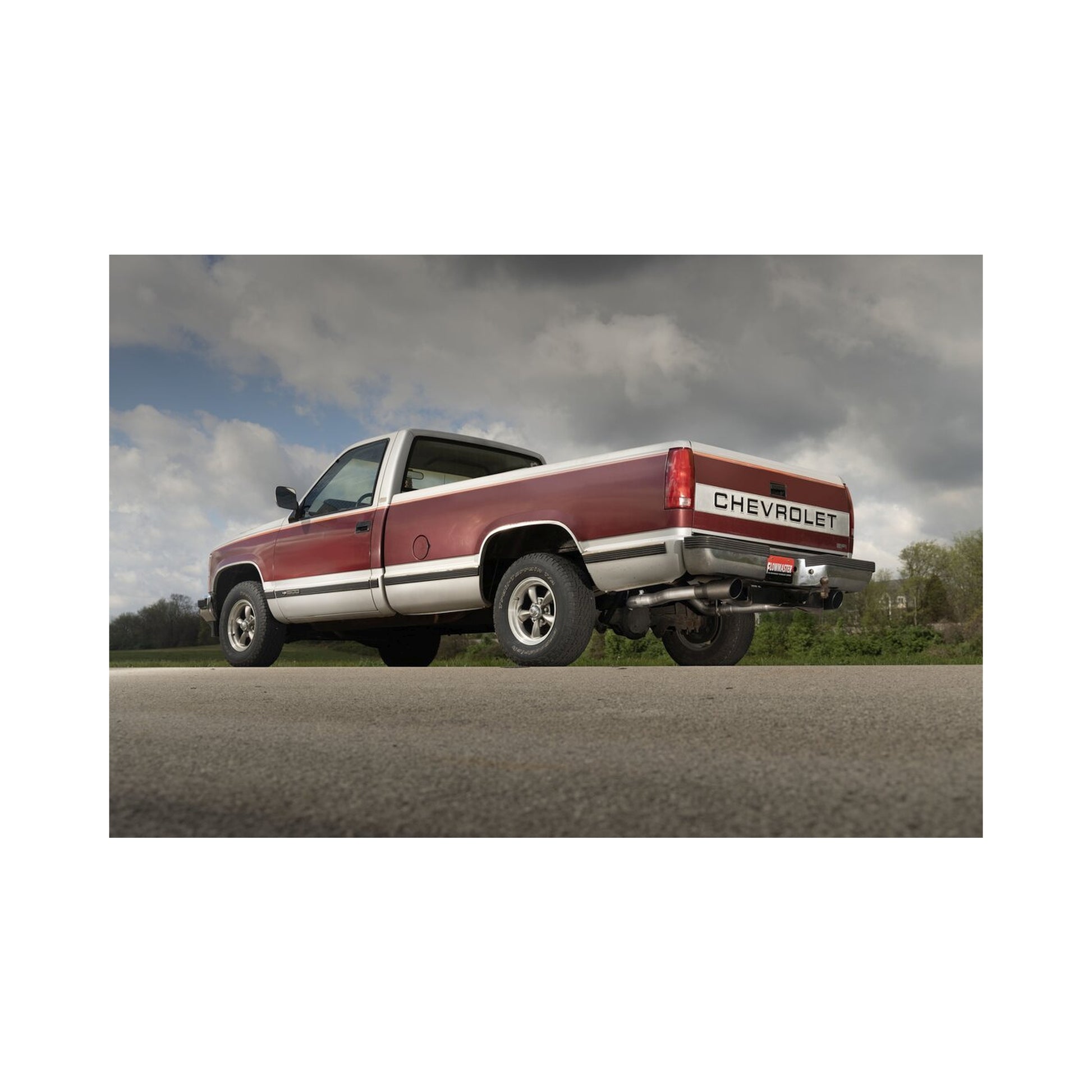

This Flowmaster® Outlaw cat-back exhaust system is for the 1988-1993 GM 1500/2500 LD trucks with the 5.7-liter engine. This system is manufactured using durable 409 stainless steel tubing and is mandrel bent for better exhaust gas flow. A Super 10 Series muffler is used for an improved sound level and maximum performance. This system uses dual 4.5-inch black ceramic coated tips that can exit dual out the rear or dual out the side. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. This system fits all single cab and extended cab models in both 2 and 4 wheel drive. Backed by Flowmaster's Lifetime Limited Warranty.

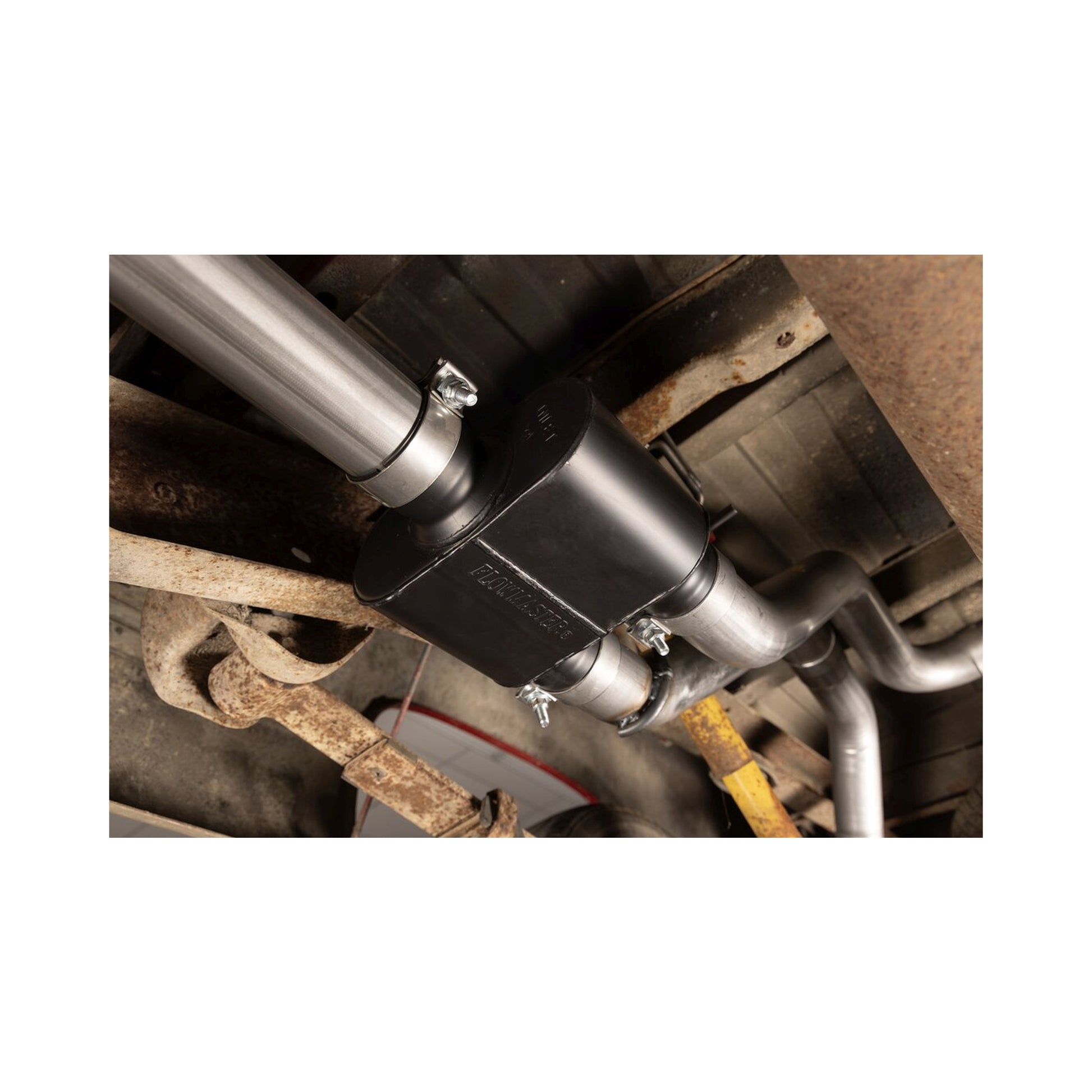

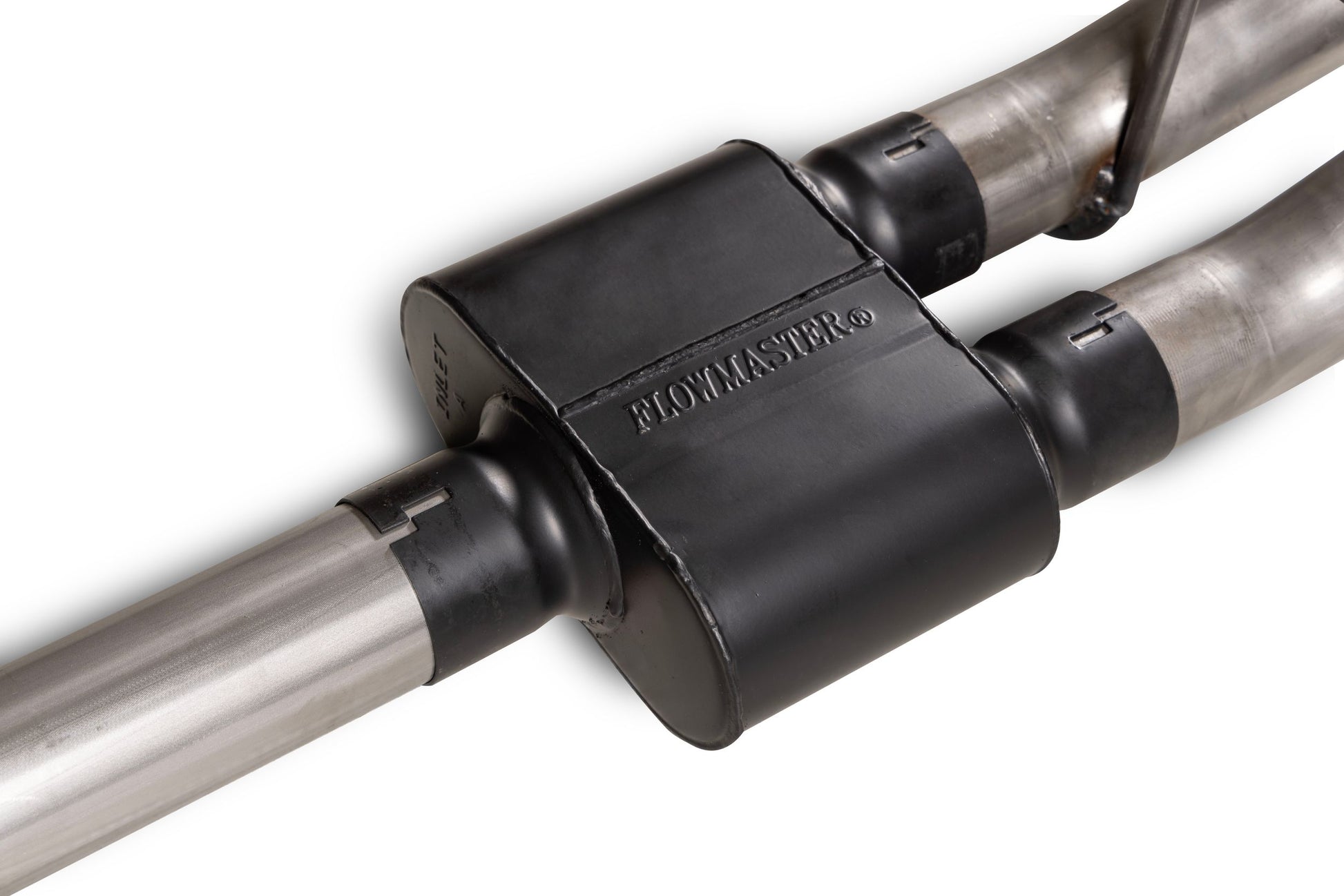

A Super 10 Series muffler deliver a deep performance tone and improves exhaust flow

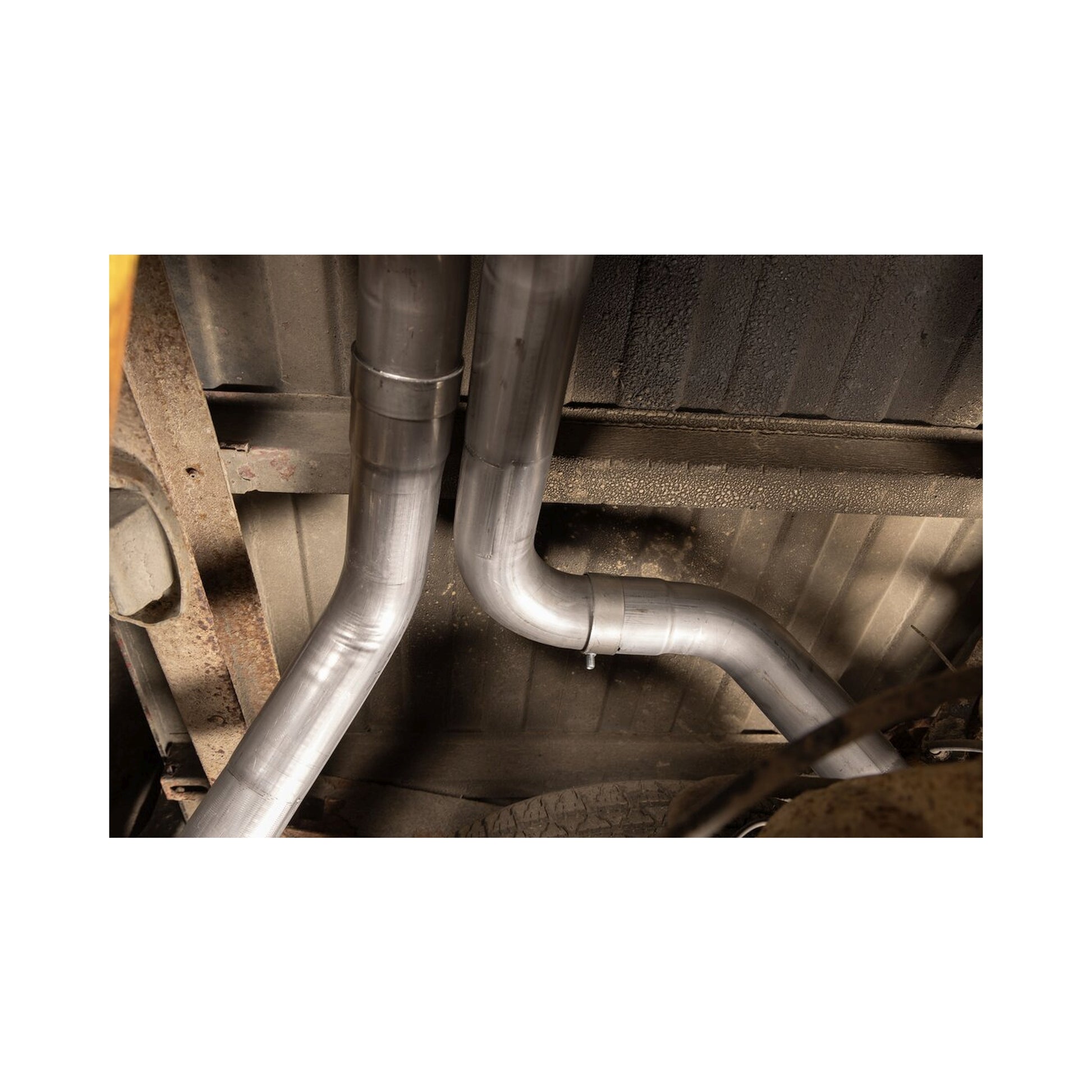

0-inch and 2.5-inch mandrel bent 16- gauge 409 stainless steel tubing maximizes exhaust flow and improves durability

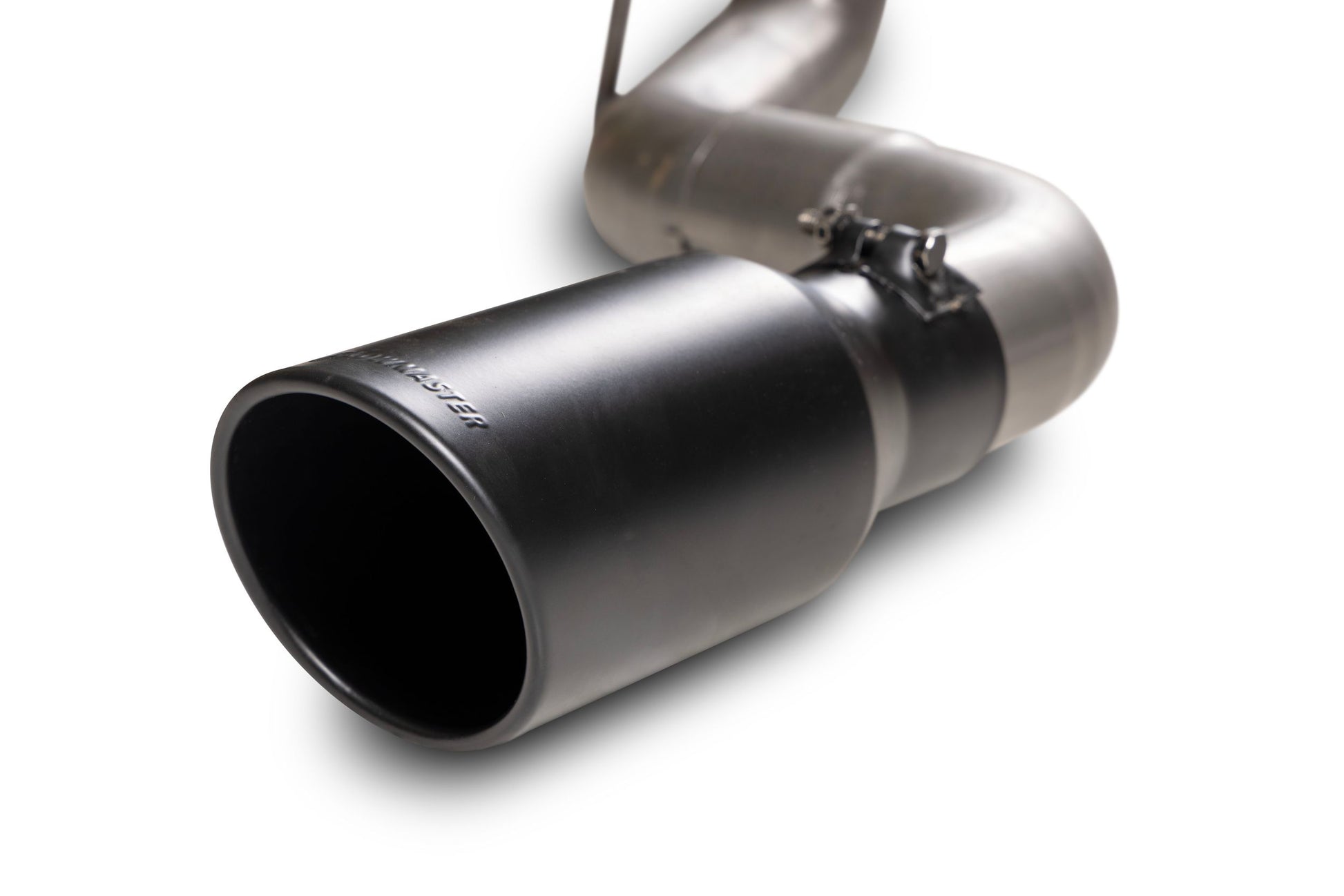

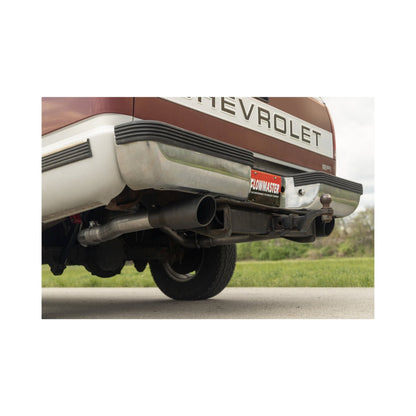

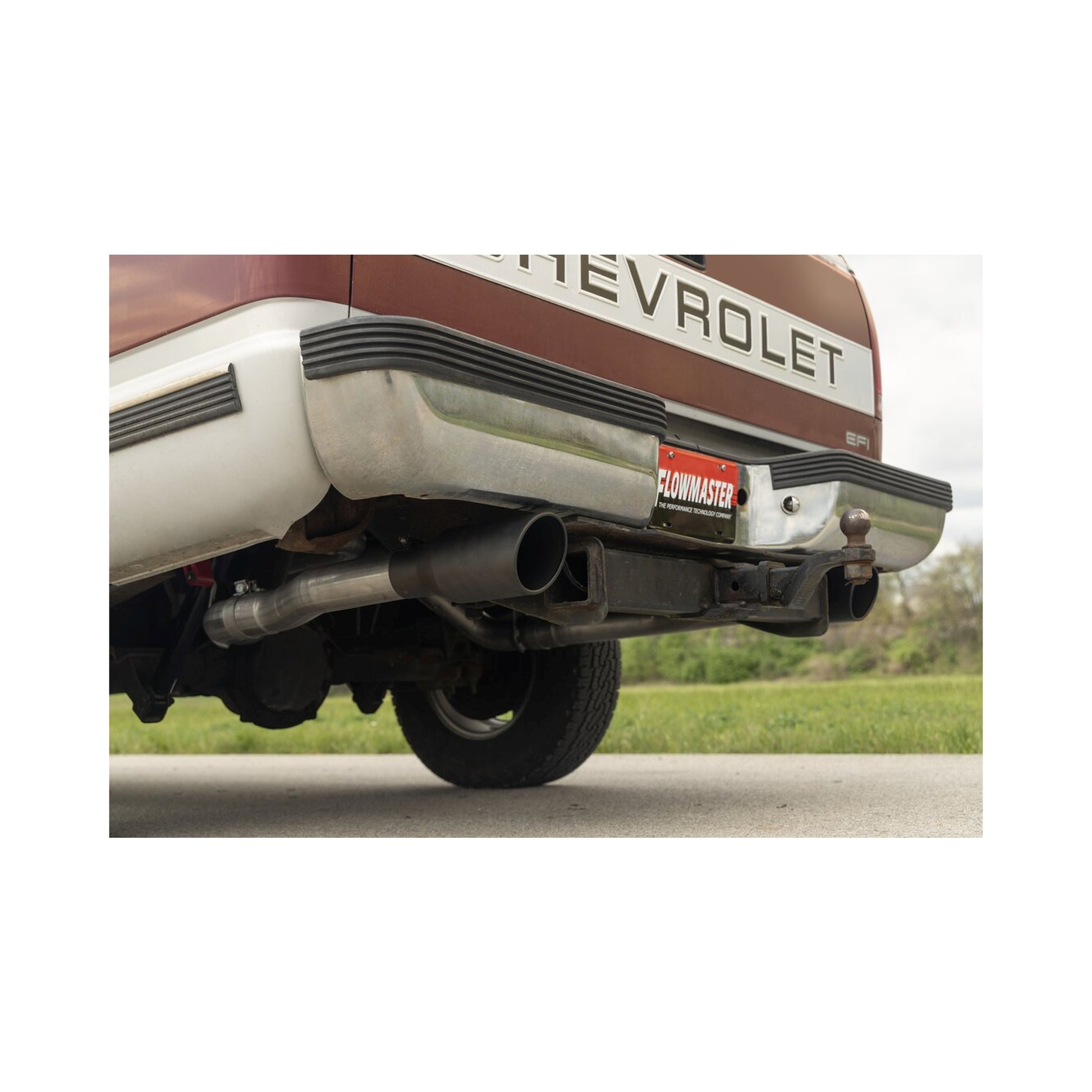

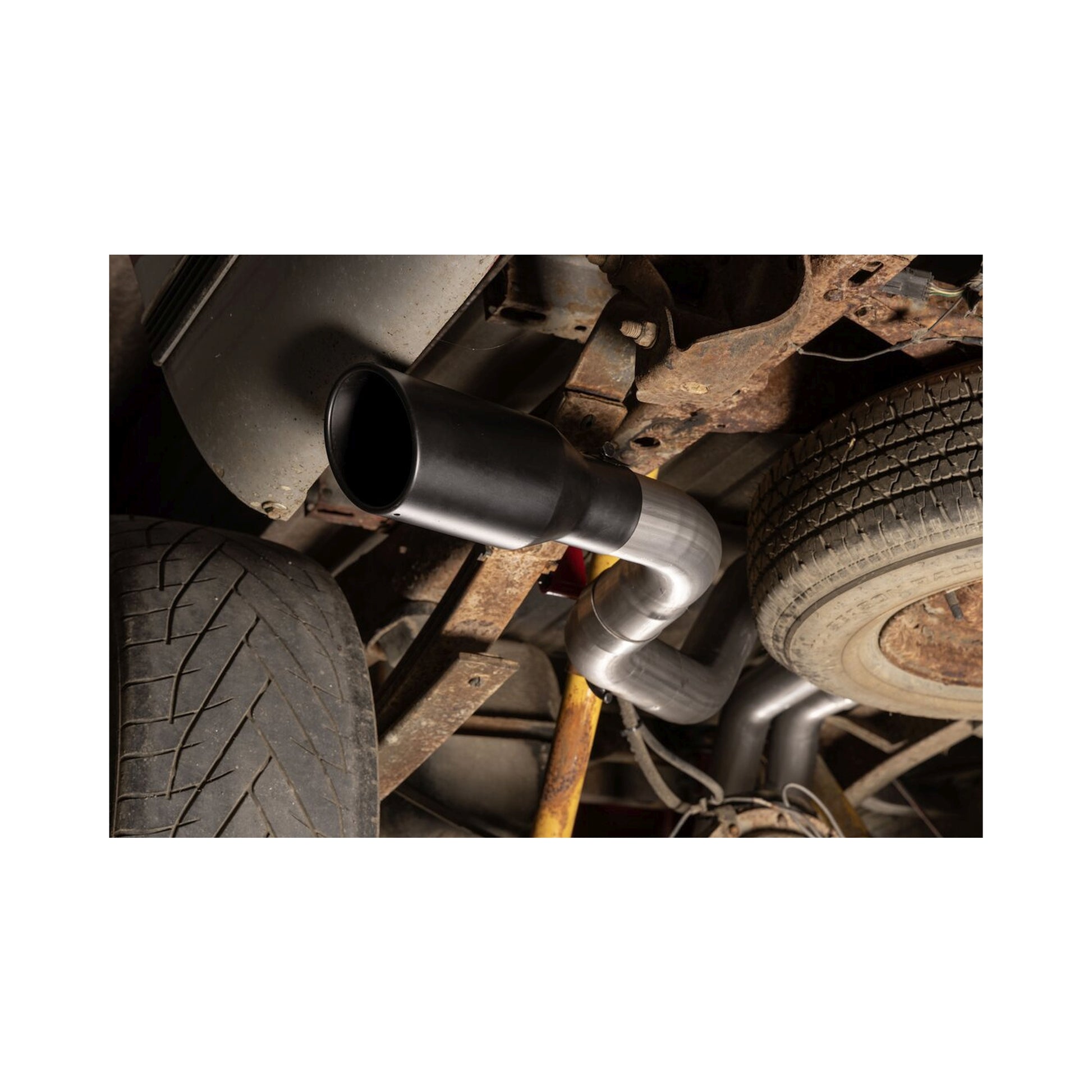

Dual 4.5-inch black ceramic coated stainless steal tips add a custom look to the vehicle

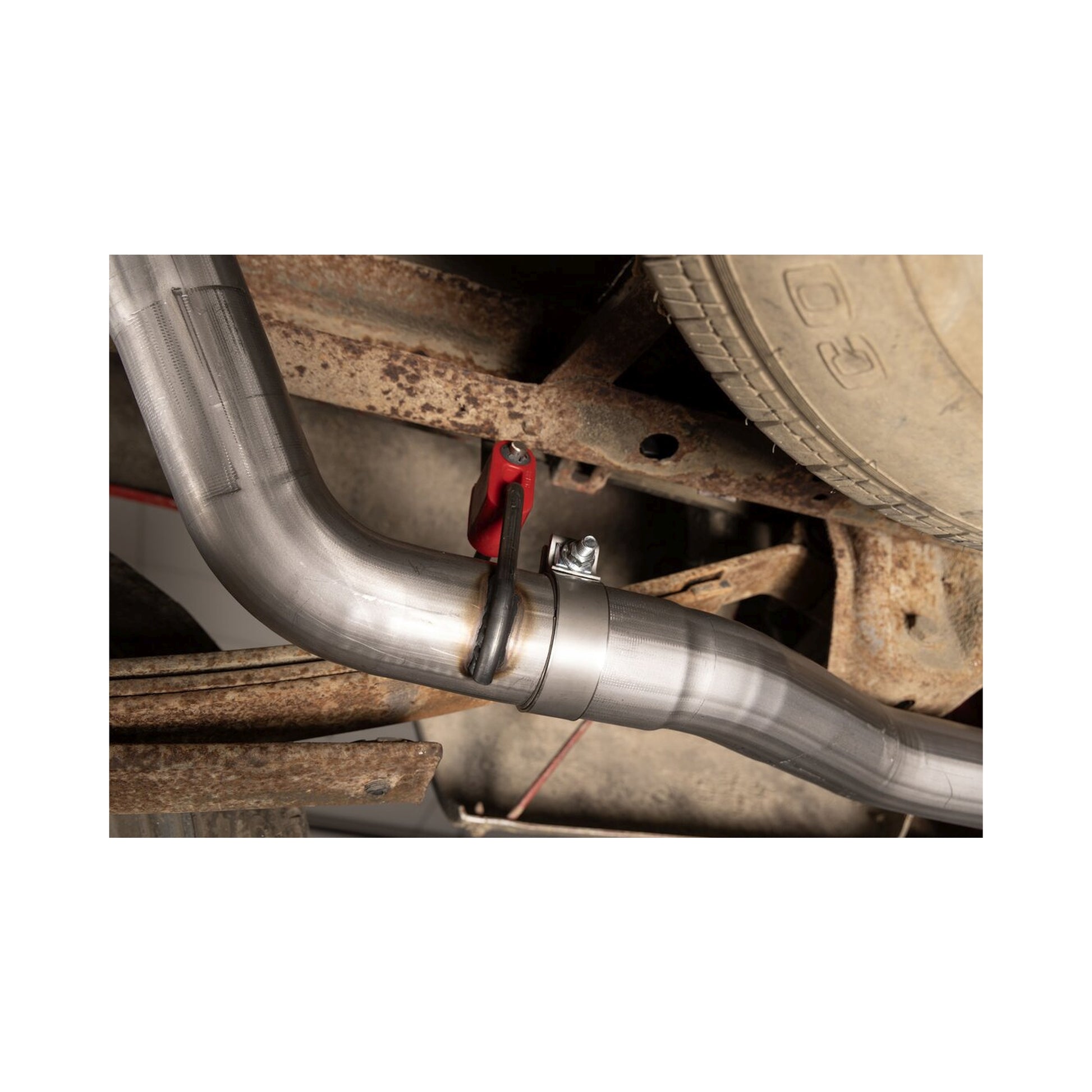

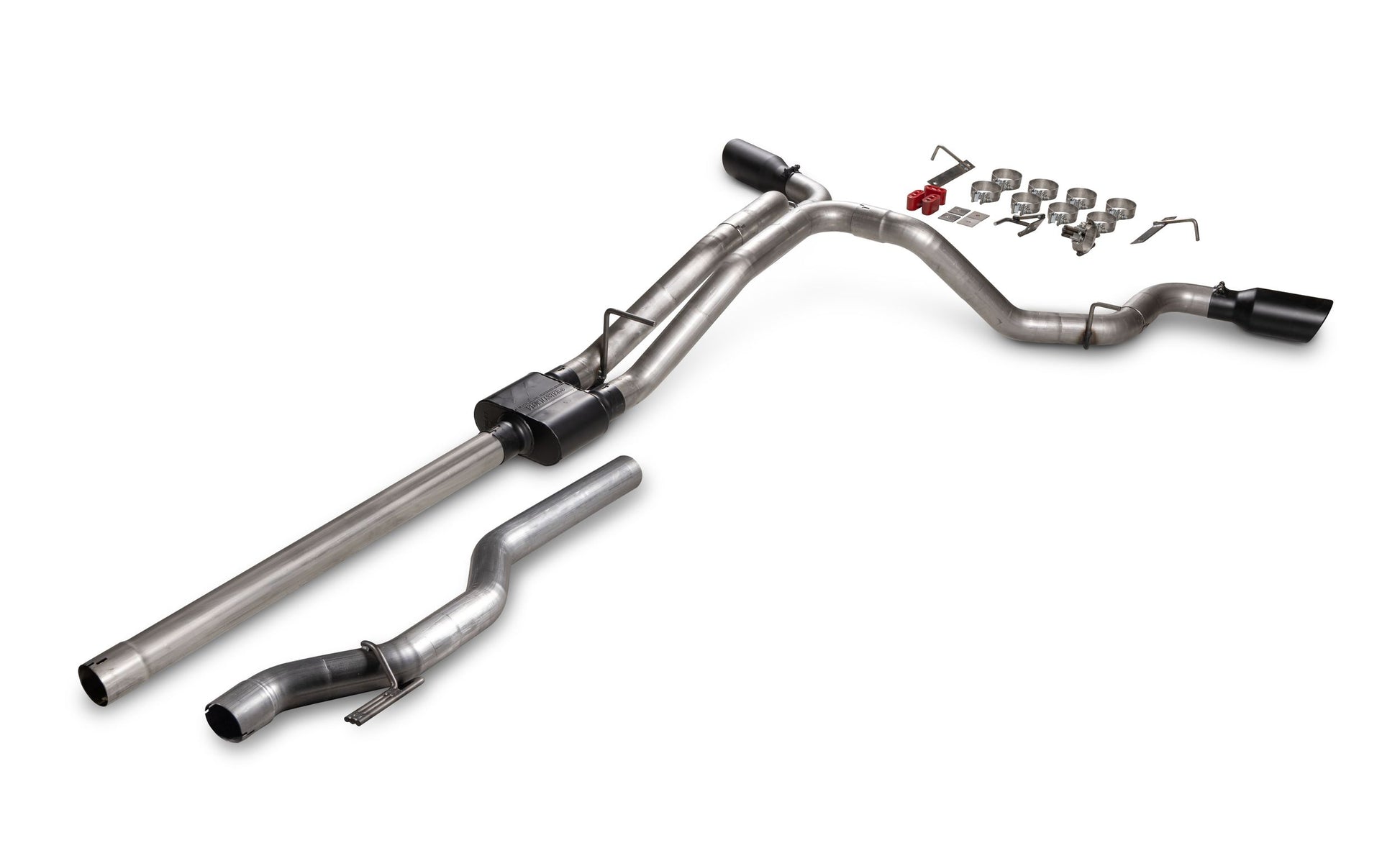

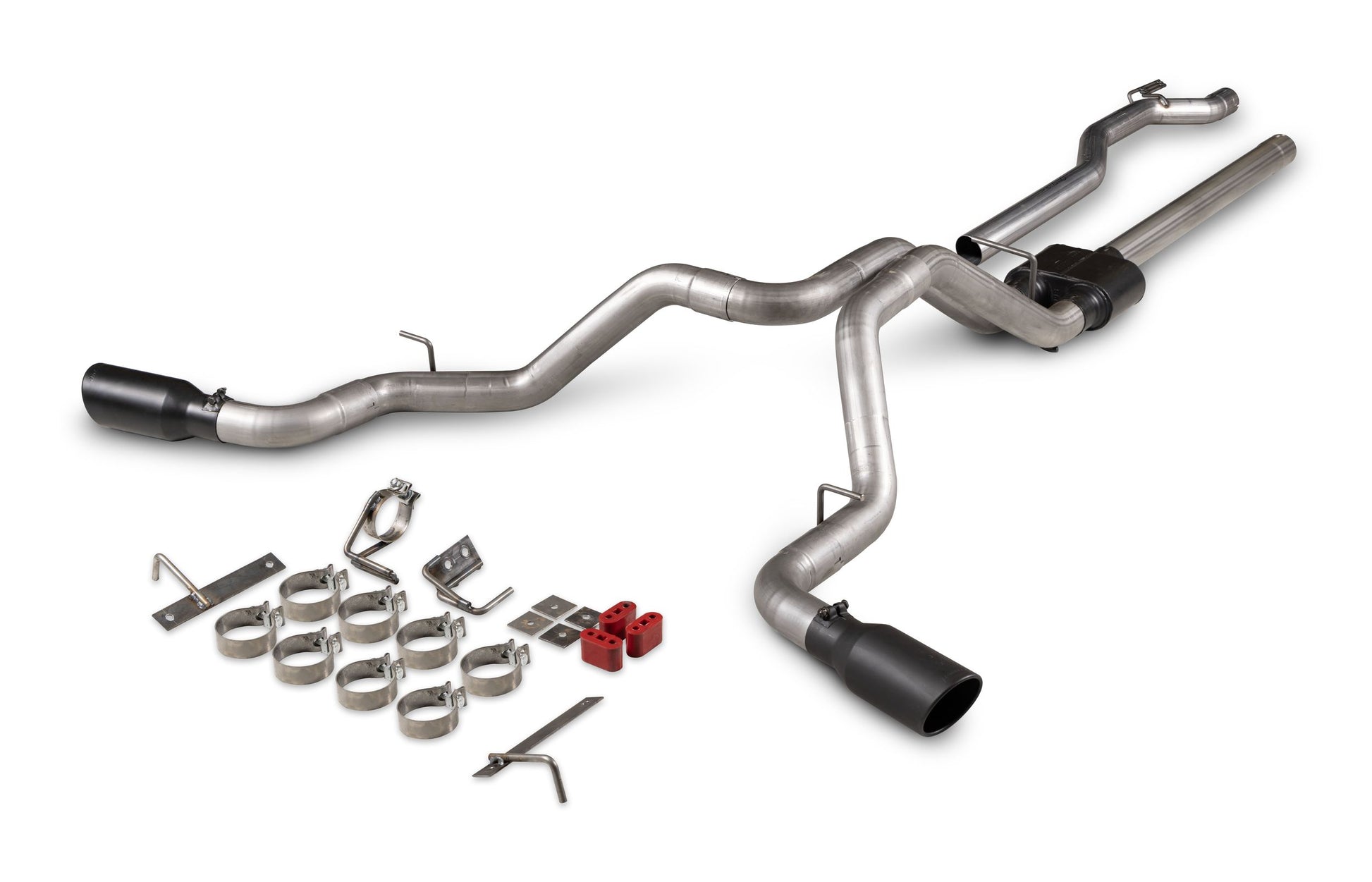

Kits include complete hardware and factory styled hangers in the stock locations for an easy installation
Fit all single cab and extended cab models in both 2 and 4 wheel drive
Lifetime Limited Warranty
Specifications
Brand
Flowmaster
California Proposition 65
Yes
California Proposition 65 Chemical Name
Nickel (Metallic)
CARB (California) Compliant
Yes
Catalytic Converter Included
No
Catalytic Converter Quantity
0
Category
Exhaust
Clamping Type
Flat Band
Clamps Included
Yes
Emission Code
5
Exhaust Series
Outlaw
Exhaust Tip Color
Black
Exhaust Tip Connection
Clamp-On
Exhaust Tip Cut
Angled
Exhaust Tip Diameter
4.50
Exhaust Tip Edge
Rolled Edge
Exhaust Tip Finish
Black Ceramic Coating
Exhaust Tip Intercooled
No
Exhaust Tip Length
11.00
Exhaust Tip Material
304 Stainless Steel
Exhaust Tip Quantity
2
Exhaust Tip Resonated
No
Exhaust Tip Shape
Round
Exhaust Tip Wall
Single Wall
Exit Style
Dual Out Rear
Finish
Natural
Gasket Or Seal Included
No
Grade Type
Performance
Hangers Included
Yes
Inlet Type
Clamp-On
Main Piping Diameter
3.00
Mount Type
Uses factory hangers
Mounting Bracket Included
Yes
Muffler Body Height
4.00
Muffler Body Length
6.50
Muffler Body Material
409 Stainless Steel
Muffler Body Shape
Oval
Muffler Body Width
9.50
Muffler Color
Black
Muffler Finish
Black High-Temperature Paint Finish
Muffler Flanged Inlet
No
Muffler Flanged Outlet
No
Muffler Included
Yes
Muffler Inlet Connection
Slip-Fit
Muffler Inlet Inside Diameter
3.00
Muffler Inlet Location
Center
Muffler Inlet Outside Diameter
3.13
Muffler Outlet Connection
Slip-Fit
Muffler Outlet Diameter
3.00
Muffler Outlet Location
Dual
Muffler Outlet Quantity
2
Muffler Overall Length
12.20
Muffler Part Number
Kit Only
Muffler Quantity
1
Muffler Series
Outlaw
Muffler Type
Reflection
part type
Exhaust System
Pipe Color
Silver
Pipe Material
409 Stainless Steel
Product Type
Exhaust System
Sound Level
Aggressive
Spring Bolt Kit Included
No
Sub Category
Exhaust and Tail Pipes
Tail Pipe Outlet Outside Diameter
3.00
Tail Pipe Quantity
Dual
Tail Pipe Tapered Outlet
No
Tip Logo
Embossed
Type
Cat-Back
Valve Included
No
Valve Type
Not Applicable
Warning
California Proposition 65
Packaging Information
Weight: 68 lbs Dimensions: 58.5 x 16.25 x 11.25 IN
