Hella 002768382 Disc Type Low-Tone, 24 V 335 Hz with Bracket
Hella 002768382 Disc Type Low-Tone, 24 V 335 Hz with Bracket
Regular price
$24.22 USD
Regular price
Sale price
$24.22 USD
⬡Mechanic Division pricing available
Shipping calculated at checkout.
Low stock: 3 left
Quantity
Couldn't load pickup availability
Description & Features
Hella 002768382 Disc Type Low-Tone, 24 V 335 Hz with Bracket
Make your presence known with the HELLA Horn. Designed for loud, clear sound output, it ensures you’re heard in any situation for added safety. Built tough to withstand harsh conditions, this horn delivers reliable performance and easy installation. Trust HELLA for durable, high-quality components that keep you safe on the road.
- Enhances road safety by emitting a 335 Hz tone, providing clear and audible alerts in all conditions.
- Delivers maximum awareness with a volume output ranging from 108 dB(A) to 118 dB(A), ensuring audibility.
- Ensures long-term reliability with robust construction engineered to withstand vibration and harsh conditions.
- Facilitates fast identification and installation with concise short codes, streamlining maintenance and replacement.
- Designed for universal compatibility, this part fits most modern vehicles, simplifying the installation process.
Specifications
| Voltage | 24.00 |
| Mounting Bracket Included | Yes |
| Terminal Quantity | 2 |
| Color | Black / Gray |
| Terminal Type | Blade |
| Mount Type | Bracket Mounting |
| Mounting Hardware Included | Yes |
| Decibel Rating | 105.00 |

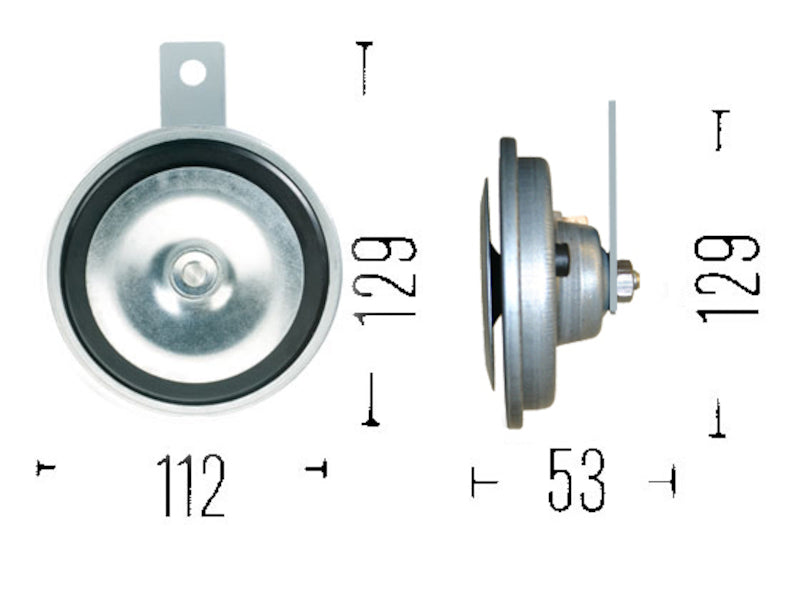

| Diameter [cm] | 11.2 |
| Single Includes | (1) Low-Tone Disc Horn, Mounting Brackets, Step-by-Step Mounting Instructions |
| Grade Type | Standard Replacement |
| Depth [in] | 2.09 |
| Quantity | 1 |
| Supplementary Article/Supplementary Info 2 | with E Quality Seal |
| Assy/Disassy by Qualified Personnel Required! | . |
| California Proposition 65 Required | No |
| Power consumption [A] | 3 |
| Temperature range to [°F] | 140 |
| Overall Height [in] | 5.08 |
| IP Rating | IP5K9K |
| Sound Level [dB(A)] | 105 |
| Measurements [cm] | 5.3 x 12.9 |
| Temperature range to [°C] | 60 |
| Depth [mm] | 53 |
| ECE Regulation | R28 |
| Frequency range from [Hz] | 335 |
| Frequency Range [Hz] | 335 |
| Mounting Type | with 6.3 mm Blade Terminal Contacts, Open |
| Temperature range from [°F] | -40 |
| Temperature range from [°C] | -40 |
| Housing Color | Black / Gray |
| Signal | Low Tone |
| Overall Height [mm] | 129 |
| Registration Type | ECE Approved |
| Homologation | ECE-R28 |
| Test Mark | ECE-R28 |
| Operating Mode | Electric |
| Bracket | M10 Mounting Screw |
| Voltage [VDC] | 24 |
| Diameter [mm] | 112 |
| Diameter [in] | 4.41 |
| Wattage [W] | 72 |
Packaging Information
Weight: 0.7275 lbs
Dimensions: 4.9213 x 2.4016 x 5.4331 IN
Warranty
12 Month Warranty
