Hella

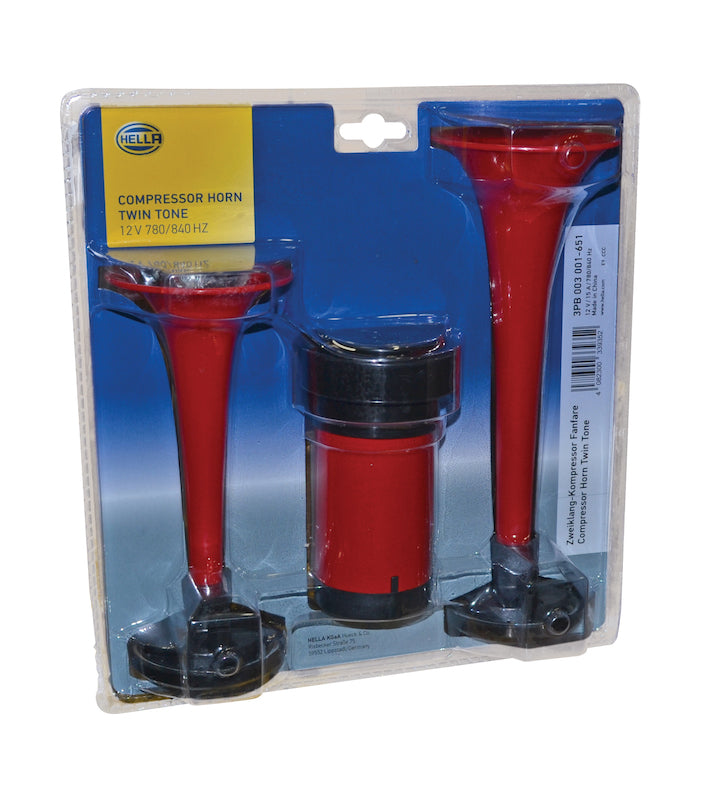

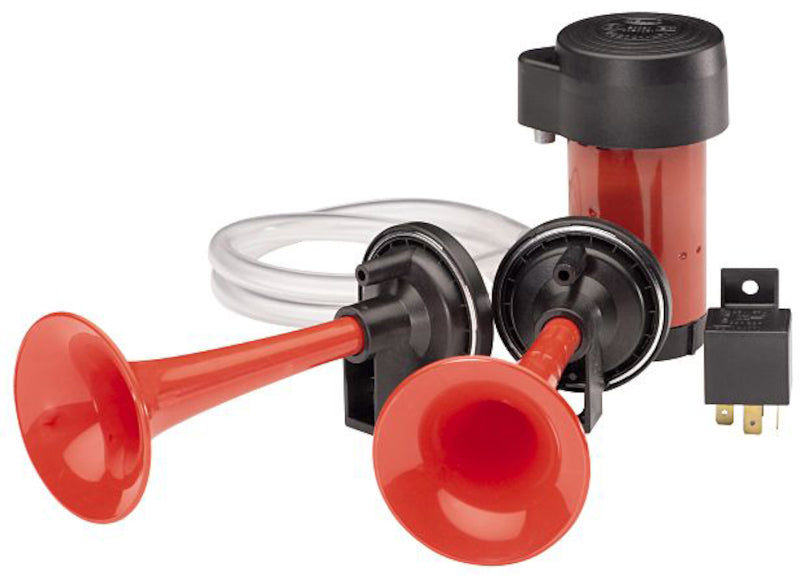

Hella 003001651 Accessory Horn
Hella 003001651 Accessory Horn
10 in stock
Couldn't load pickup availability
Description & Features
Hella 003001651 Accessory Horn
The HELLA Horns deliver a powerful and reliable acoustic signal to enhance vehicle safety and road awareness. With tone frequencies ranging from low to high, each horn is engineered for clear audibility in all driving environments. Built from durable, vibration- and weather-resistant materials, HELLA horns ensure long-lasting performance and consistent output. Featuring OE-style connections and straightforward 12V installation, they are designed to integrate seamlessly with vehicle systems. Available in multiple styles and sound levels, HELLA horns provide dependable signaling performance for a wide range of vehicle applications.
- Powerful Sound: Emits a loud, clear tone to ensure you're heard in traffic or emergency situations.
- Durable Construction: Built with high-quality materials to withstand harsh weather and road conditions.
- Easy Installation: Designed for quick, straightforward mounting and wiring on most vehicles.
- High-Performance Output: Provides reliable, consistent sound for long-term use without degradation.
- Universal Fit: Compatible with a wide range of vehicles, from cars to trucks, for versatile use.
Specifications
| Grade Type | Standard Replacement |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Color | Red / Black |
| Mounting Hardware Included | Yes |
| Mounting Type | with 6.3 mm Blade Terminal Contacts, Open |
| IP Rating | IP54 |
| Temperature range to [°C] | 90 |
| Single Includes | Compressed Air Trumpet, Pressure Tubes, Bifurcated Piece, Fastening and Relay 12 V, Mounting Brackets, Step-by-Step Mounting Instructions |
| Trumpet Length 1 [cm] | 16.3 |
| Temperature range from [°C] | -40 |
| Trumpet Length 2 [cm] | 21.2 |
| Homologation | ECE-R28 |
| California Proposition 65 Required | No |
| Assy/Disassy by Qualified Personnel Required! | . |
| Test Mark | ECE |
| Registration Type | ECE Approved |
| Operating Mode | Electric-Pneumatic |
| Supplementary Article/Supplementary Info 2 | with E Quality Seal |
| Mounting bracket Included | Yes |
| Sound Level [dB(A)] | 118 |
| Decibel Rating [dB] | 118.00 |
| Voltage [VDC] | 12.00 |
| Wattage [W] | 240 |
| Frequency Range [Hz] | 780 |
| Mount Type | Bracket Mounting |
| Signal Horn | Dual-Tone Trumpet Horn |
Packaging Information
Weight: 1.885 lbs
Dimensions: 10.2362 x 8.6614 x 3.1496 IN
Warranty
12 Month Warranty
