Hella 003399801 Accessory Horn
Hella 003399801 Accessory Horn
10 in stock
Couldn't load pickup availability
Description & Features

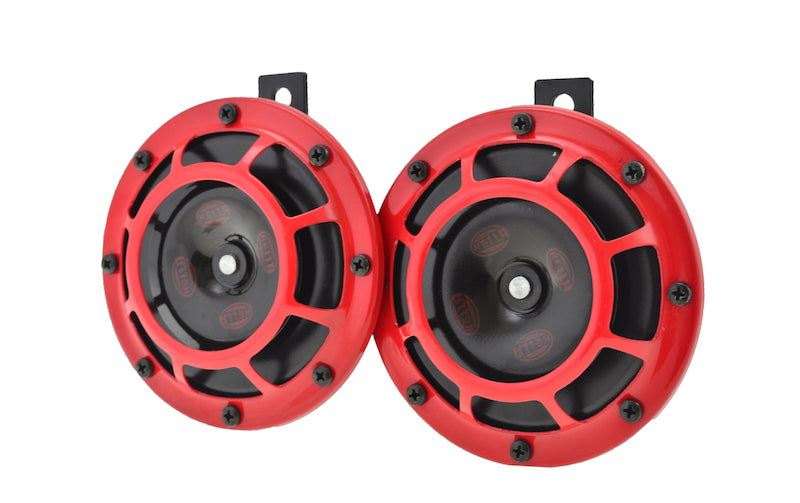

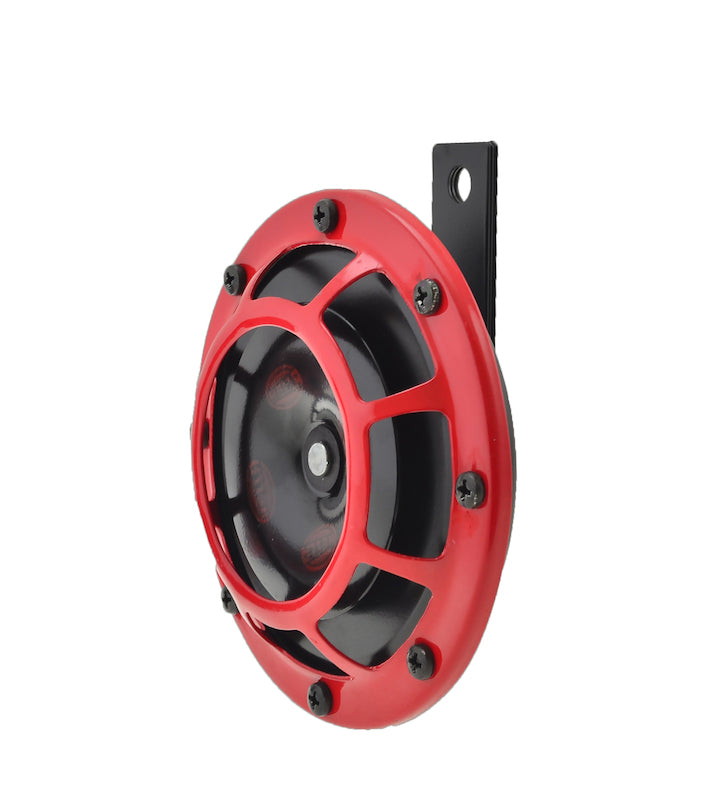

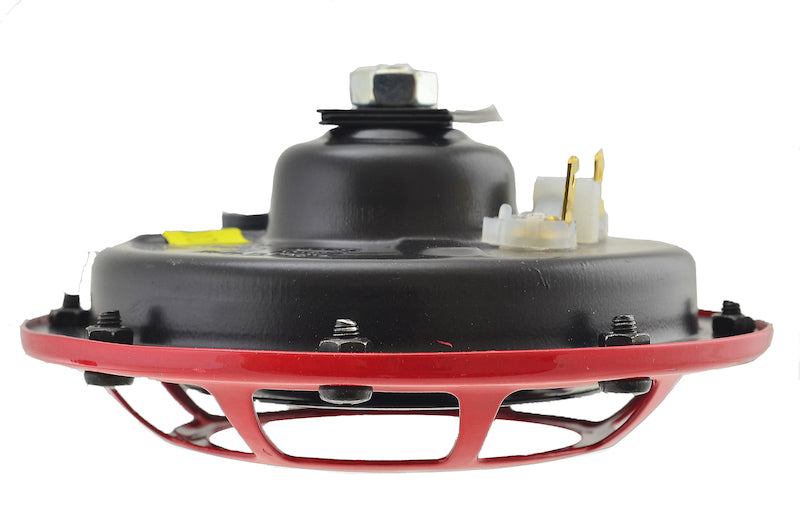

Hella 003399801 Accessory Horn
The HELLA Horns deliver a powerful and reliable acoustic signal to enhance vehicle safety and road awareness. With tone frequencies ranging from low to high, each horn is engineered for clear audibility in all driving environments. Built from durable, vibration- and weather-resistant materials, HELLA horns ensure long-lasting performance and consistent output. Featuring OE-style connections and straightforward 12V installation, they are designed to integrate seamlessly with vehicle systems. Available in multiple styles and sound levels, HELLA horns provide dependable signaling performance for a wide range of vehicle applications.
- Powerful Sound: Emits a loud, clear tone to ensure you're heard in traffic or emergency situations.
- Durable Construction: Built with high-quality materials to withstand harsh weather and road conditions.
- Easy Installation: Designed for quick, straightforward mounting and wiring on most vehicles.
- High-Performance Output: Provides reliable, consistent sound for long-term use without degradation.
- Universal Fit: Compatible with a wide range of vehicles, from cars to trucks, for versatile use.
Specifications
| Grade Type | Standard Replacement |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Color | Red / Black |
| Mounting Hardware Included | Yes |
| Voltage [VDC] | 12.00 |
| Mount Type | Bracket Mounting |
| Sound Level [dB(A)] | 118 |
| Decibel Rating [dB] | 118.00 |
| Diameter [mm] | 123 |
| Width [mm] | 125 |
| California Proposition 65 Required | No |
| Assy/Disassy by Qualified Personnel Required! | . |
| Mounting Type | Flat Plug-in Connector |
| Temperature range to [°F] | 140 |
| Mounting bracket Included | Yes |
| IP Rating | IP65 |
| Overall Height [in] | 5.31 |
| Power consumption [A] | 5.5 |
| Depth [in] | 3.35 |
| Frequency range to [Hz] | 500 |
| Quantity Unit | Kit |
| Temperature range to [°C] | 60 |
| Frequency Range [Hz] | 300 |
| Frequency range from [Hz] | 300 |
| ECE Regulation | R28 |
| Diameter [in] | 4.84 |
| Housing Color | Red / Black |
| Width [in] | 4.92 |
| Temperature range from [°C] | -40 |
| Temperature range from [°F] | -40 |
| Signal | Loud Tone |
| Wattage [W] | 66 |
| Test Mark | ECE |
| Registration Type | ECE Approved |
| Homologation | ECE-R28 |
| Operating Mode | Electric |
| Bracket | M8 Mounting Screw |
| Set includes | (1) High-Tone Unit, Mounting Brackets, Step-by-Step Mounting Instructions |
| Quantity | 2 |
| Depth [mm] | 85 |
| Overall Height [mm] | 135 |
Packaging Information
Weight: 1.996 lbs
Dimensions: 5.1181 x 4.9213 x 5.5906 IN
Warranty
12 Month Warranty
