Hella
Hella 007424801 Accessory Horn
Hella 007424801 Accessory Horn
Low stock: 4 left
Couldn't load pickup availability
Description & Features

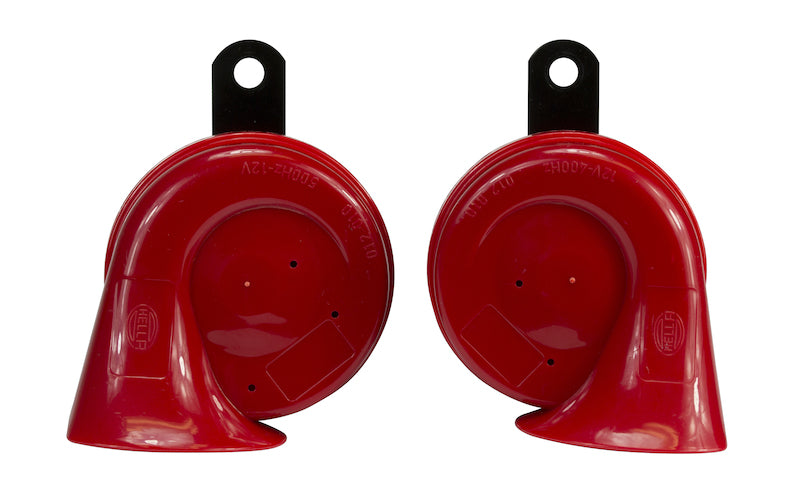

Hella 007424801 Accessory Horn
The HELLA Horns deliver a powerful and reliable acoustic signal to enhance vehicle safety and road awareness. With tone frequencies ranging from low to high, each horn is engineered for clear audibility in all driving environments. Built from durable, vibration- and weather-resistant materials, HELLA horns ensure long-lasting performance and consistent output. Featuring OE-style connections and straightforward 12V installation, they are designed to integrate seamlessly with vehicle systems. Available in multiple styles and sound levels, HELLA horns provide dependable signaling performance for a wide range of vehicle applications.
- Powerful Sound: Emits a loud, clear tone to ensure you're heard in traffic or emergency situations.
- Durable Construction: Built with high-quality materials to withstand harsh weather and road conditions.
- Easy Installation: Designed for quick, straightforward mounting and wiring on most vehicles.
- High-Performance Output: Provides reliable, consistent sound for long-term use without degradation.
- Universal Fit: Compatible with a wide range of vehicles, from cars to trucks, for versatile use.
Specifications
| Grade Type | Standard Replacement |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Color | Red / Black |
| Mounting Hardware Included | Yes |
| Sound Level [dB(A)] | 110 |
| Voltage [VDC] | 12.00 |
| Mount Type | Bracket Mounting |
| Temperature range to [°F] | 176 |
| California Proposition 65 Required | No |
| Supplementary Article/Supplementary Info 2 | with E Quality Seal |
| Assy/Disassy by Qualified Personnel Required! | . |
| Mounting Type | Flat Plug-in Connector |
| Mounting bracket Included | Yes |

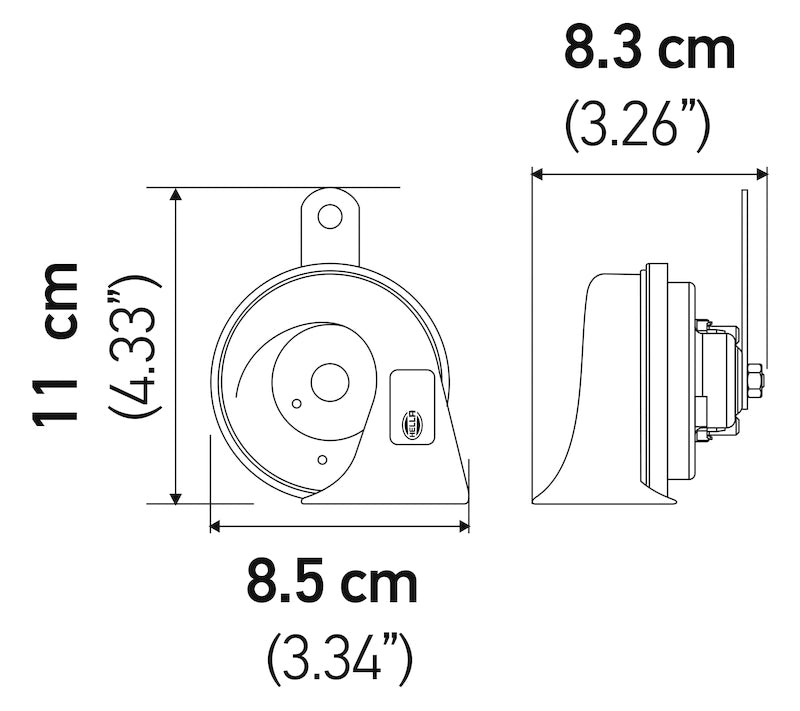

| Width [mm] | 109 |
| IP Rating | IP65 |
| Depth [in] | 3.15 |
| Frequency range to [Hz] | 500 |
| Overall Height [in] | 3.5 |
| Quantity Unit | Kit |
| Power consumption [A] | 6 |
| ECE Regulation | R28 |
| Supplementary Article/Supplementary Info | with Accessories |
| Housing Color | Red / Black |
| Temperature range from [°C] | -40 |
| Temperature range from [°F] | -40 |
| Registration Type | ECE Approved |
| Frequency range from [Hz] | 400 |
| Homologation | ECE-R28 |
| Test Mark | ECE-R28 |
| Operating Mode | Electric |
| Bracket | M8 Mounting Screw |

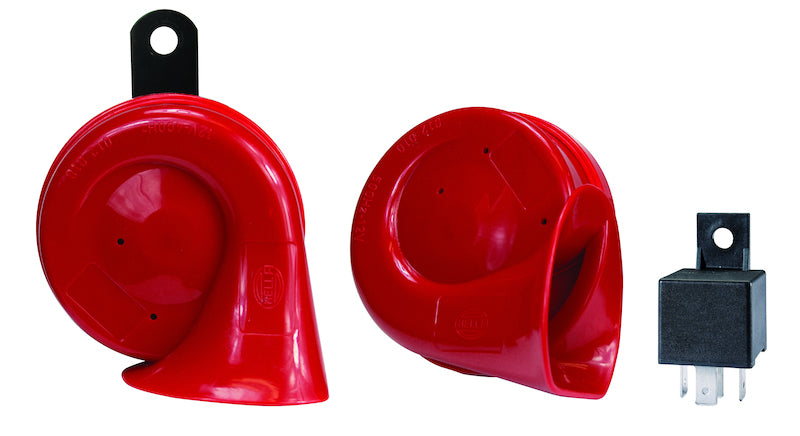

| Set includes | (1) High-Tone Trumpet Horn and (1) Low-Tone Trumpet Horn, (1) Relay, Mounting Brackets, Step-by-Step Mounting Instructions |
| Decibel Rating [dB] | 110.00 |
| Width [in] | 4.29 |
| Temperature range to [°C] | 80 |
| Depth [mm] | 80 |
| Quantity | 2 |
| Overall Height [mm] | 89 |
| Signal | High Tone |
| Wattage [W] | 72 |
Packaging Information
Weight: 1.1244 lbs
Dimensions: 5.6299 x 3.7402 x 4.9213 IN
Warranty
12 Month Warranty
