Hella

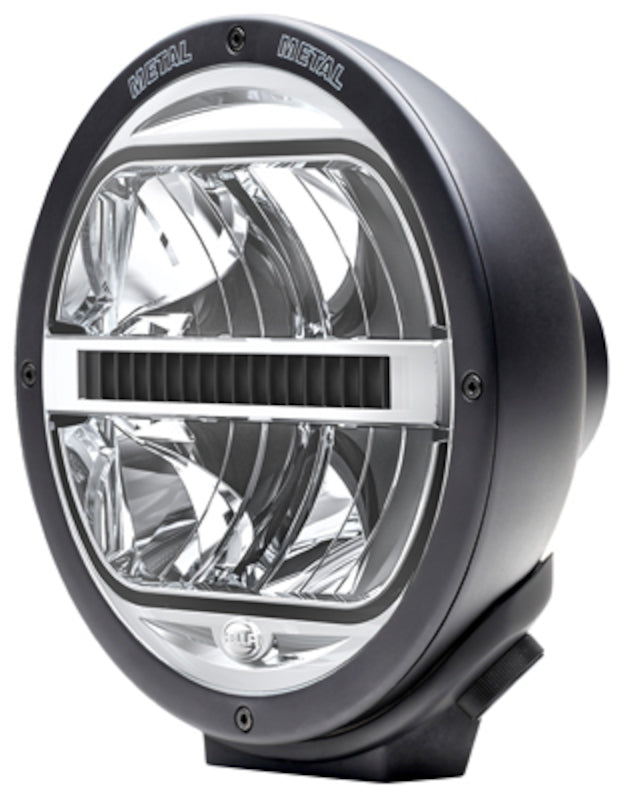

Hella 016560101 Auxiliary Light
Hella 016560101 Auxiliary Light
Regular price
$386.09 USD
Regular price
Sale price
$386.09 USD
⬡Mechanic Division pricing available
Shipping calculated at checkout.
10 in stock
Quantity
Couldn't load pickup availability
Description & Features
Hella 016560101 Auxiliary Light
Auxiliary headlights from HELLA are not only technical highlights, but also outstanding design elements that give every off-road vehicle an individual look. Reason enough to provide the headlights with special protection when they are switched off in order to preserve their function and appearance in the long term. With the precisely fitting protective caps with HELLA logo, you kill two birds with one stone: when switched off, they protect the headlights from dirt and thus serve safety, because the light output can be better brought onto the track later.
- LED Auxiliary Driving Lamp Rallye 4000 LED with distinctive LED position light in hexagonal contour design.
- Durable Construction: Built with rugged materials to withstand harsh weather and rough terrains.
- Long-Lasting Performance: Engineered to endure prolonged use without compromising on brightness.
- Versatile Application: Perfect for off-roading, towing, and any other demanding lighting needs.
- Easy Mounting: Designed for simple installation on a variety of vehicles, including trucks and off-road vehicles.

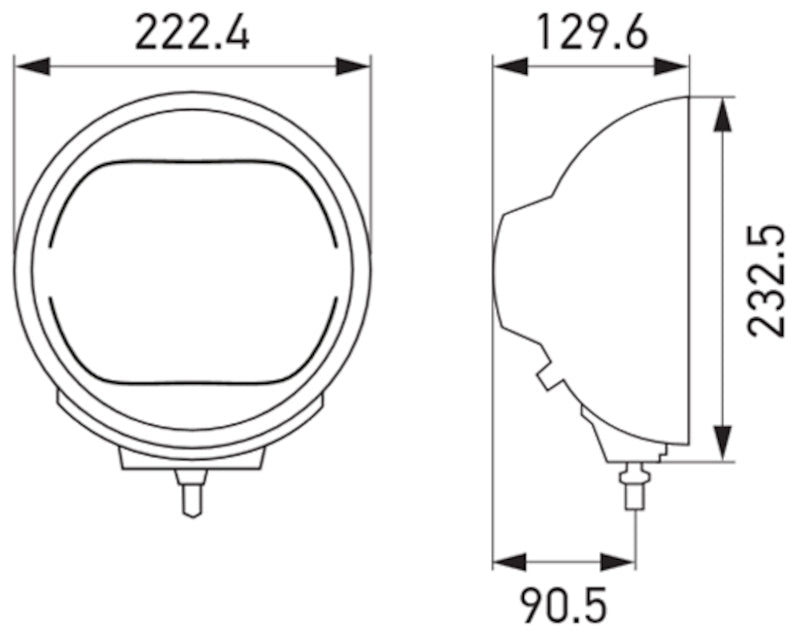

Specifications
| Voltage | 24.00 |
| Grade Type | Standard Replacement |
| Light Beam Pattern | Driving |
| Wattage | 30.00 |
| Base Length | 8.74 |
| Base Width | 8.74 |
| Bracket Color | Black |
| Bulb Type | LED |
| Bulb Technology | LED |
| Housing Finish | Powder Coated |
| Housing Shape | Round |
| Water Resistance | Yes |
| Lens Material | PC |
| Overall Height [in] | 9.13 |
| Fitting Depth [mm] | 90 |
| California Proposition 65 Required | No |
| LED Quantity | 3 |
| Fastening Type | Swivelling Mounting Bracket |
| Depth [in] | 5.16 |
| Number of light functions | 1 |
| Luminous Flux [lm] | 1800 |
| IP Rating | IPX9K/IP6K7 |
| Diffusing Lens Type | Clear Diffusing Lens |
| Fitting Depth [in] | 3.54 |
| Cable Length [in] | 15.75 |
| Mounting | Upright |
| Light Function | with High Beam (LED) |
| Light Design | LED |
| Lamp Type | LED |
| ECE Regulation | R10 |
| Supplementary Article/Supplementary Info | with LED |
| Lens Color | Crystal Clear |
| Connection | Wire Leads (800 mm - 31.5“) |
| Technology | LED Free-Form |
| Assy/Disassy by Qualified Personnel Required! | . |
| Mounting Bracket | Die-Cast Aluminum |
| Frame Color | Black |
| Housing Color | Black |
| Width [mm] | 222 |
| Height [mm] | 222 |
| Light Temperature | 6500 K |
| Certification | ECE R112 (High Beam) |
| Test Mark | ECE-R10 |
| Cable Length [mm] | 400 |
| Overall Height [mm] | 232 |
| Fitting Position | Right |
| Shape | Round |
| Voltage [VDC] | 24 |
| Single Lamp Includes | (1) Lamp, Universal Mounting Hardware, Step-by-Step Mounting Instructions |
| Width [in] | 8.74 |
| Height [in] | 8.74 |
| Supplementary Article/Supplementary Info 2 | without Cap |
| Housing Type | Metal Housing |
| Mounting Type | Mounting |
| Depth [mm] | 131 |
Packaging Information
Weight: 5.3041 lbs
Dimensions: 9.8425 x 6.2205 x 11.2205 IN
Warranty
12 Month Warranty
