HPS Performance HTHH-032-BLUEx100 Silicone Heater Hose Tubing,High Temp Reinforced,5/16" ID,100 Feet Roll,Blue
HPS Performance HTHH-032-BLUEx100 Silicone Heater Hose Tubing,High Temp Reinforced,5/16" ID,100 Feet Roll,Blue
Out of stock
Couldn't load pickup availability
Description & Features

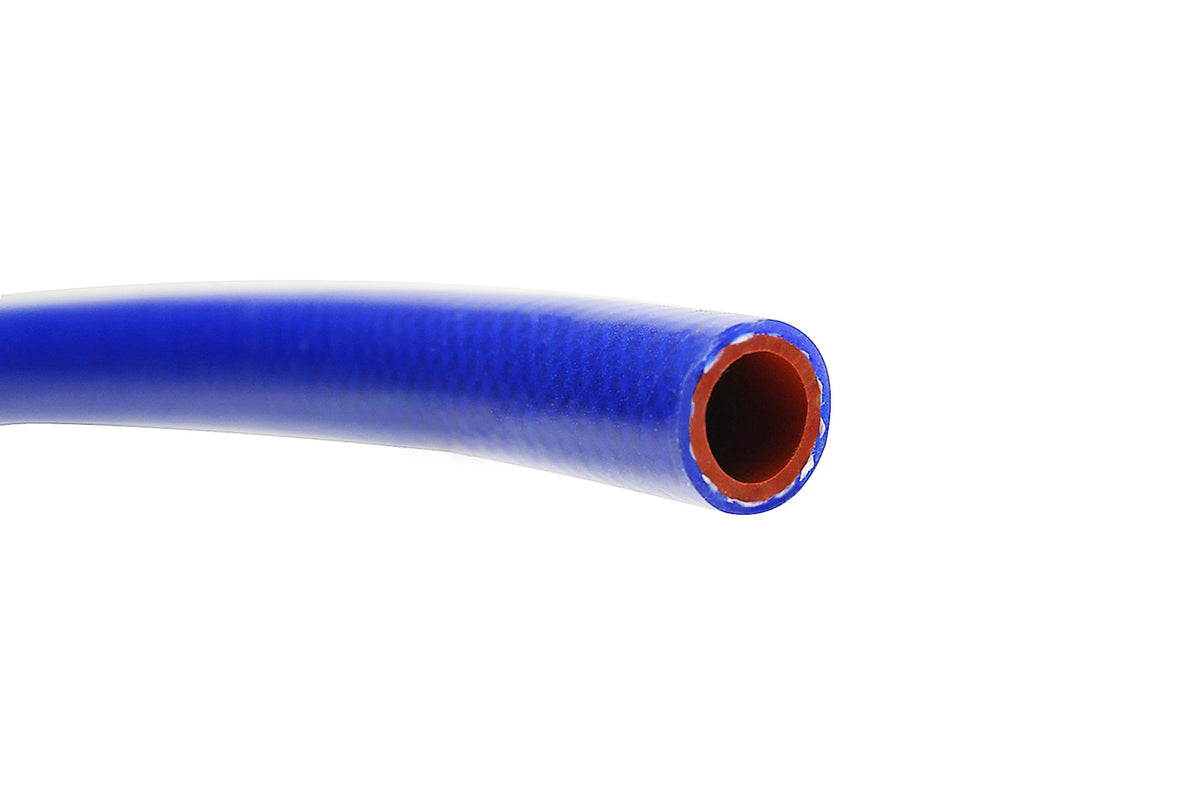

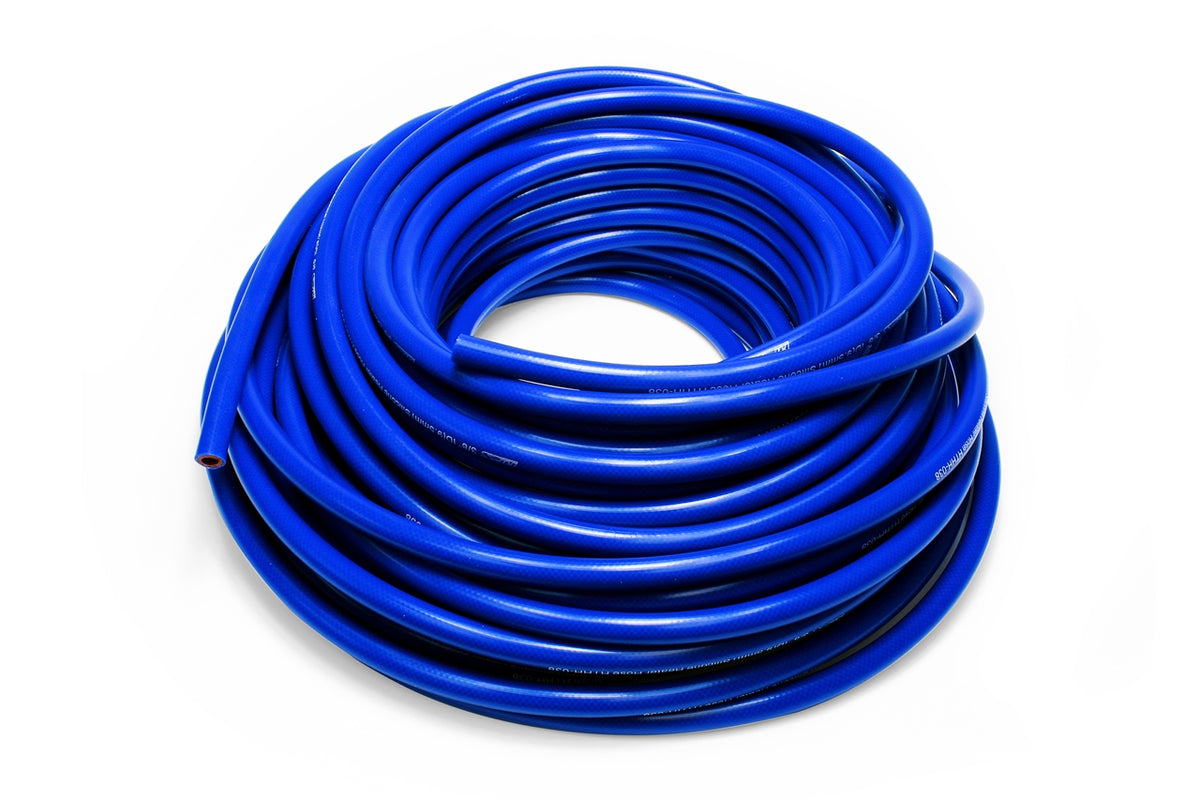

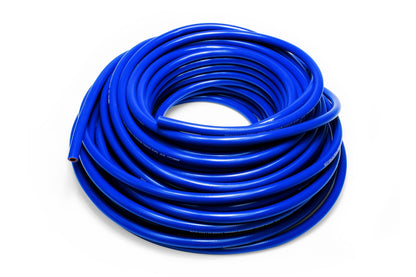

HPS Performance HTHH-032-BLUEx100 Silicone Heater Hose Tubing,High Temp Reinforced,5/16" ID,100 Feet Roll,Blue
HPS 5/16" (8mm) blue high temp reinforced silicone heater hose 100 feet roll meet and exceed SAEJ20 industry standards, ideal for heavy duty pressure connections and provides excellent resistance for high temperature applications. HPS performance silicone is designed and engineerd to meet high performance requirements specified in various industry standards, therefore make it great for marine and industrial use, custom turbo or intercooler piping fabrication, DIY intake or radiator cooling system. Key Features: Made of premium industrial grade high temp reinforced silicone. Heavy wall design gives it the ability to handle extreme pressure. Ultra flexible & Excellent tensile strength. Technical Specification: Product Type: Silicone . Temperature Range:- 65 deg. F to + 350 deg. F (177 deg. C). Hose Inside Diameter: 5/16" (8mm). Hose Outside Diameter: 35/64" (14mm). Max. Working Pressure: 85 psi. Bend Radius: 1-1/4". Wall Thickness: 3mm. Hose Length: 100 feet roll. Color: Blue. UV and ozone resistant. Remark: Silicone hose is NOT compatible with fuel or oil however, it is compatible with water and anti-freeze such as coolant. Silicone heater hose is shipped in one single continuous roll instead of multiple single foot section.
- Max Temperature Rating: 350F. Max Working Pressure: 85 psi. Bend Radius: 1-1/4"
- Meet and exceed SAEJ20 industry standards, great for marine and industrial use, custom turbo or radiator cooling system.
- Silicone hose is NOT compatible with fuel or oil
- however, it is compatible with water and anti-freeze such as coolant.
- High burst strength and excellent heat resistance.
- Resistant to coolants, cold leaks, cracking, peeling, aging and ozone.

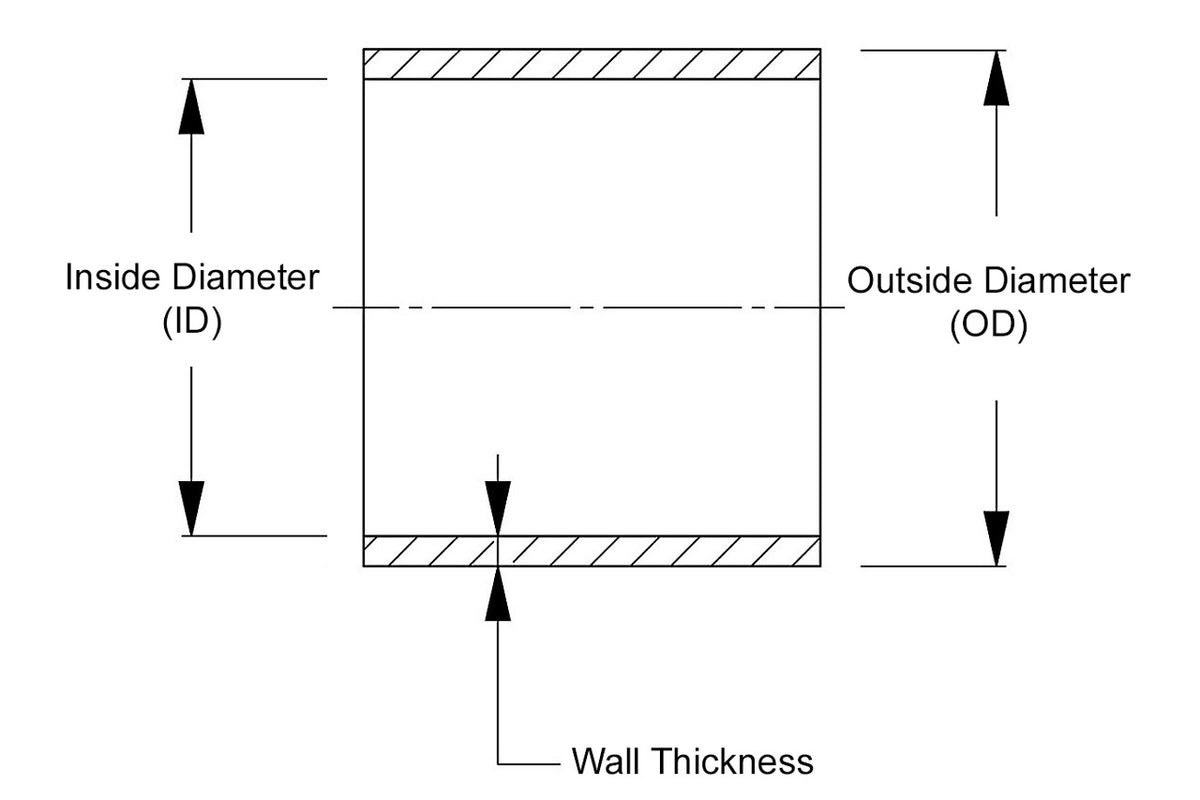

Specifications
| Clamps Included | No |
| Color | Blue |
| Material | Silicone |
| End 1 Inside Diameter | 8 |
| End 2 Inside Diameter | 8 |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| Length | 1200 |
| Wall Thickness | 3.5 |
| Working Pressure | 85 |
| Type | Heater Hose |
| Contains Spring | No |
| Molded | No |
| Hose Shape | Straight |
| Universal Or Specific Fit | Universal |
| Length (in feet) | 100 |
| Maximum Temperature Rating | 350 |
| Title 2 | HPS 5/16" 8mm ID blue high temp reinforced silicone heater hose tubing, 100 feet roll, Max Temperature Rating: 350F, Bend Radius: 1-1/4" |
Packaging Information
Weight: 10 lbs
Dimensions: 12 x 12 x 12 IN
Safety
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
2 Year Warranty
