MagnaFlow Exhaust Products 339202 California CARB Direct-Fit Catalytic Converter
MagnaFlow Exhaust Products 339202 California CARB Direct-Fit Catalytic Converter
Low stock: 1 left
Couldn't load pickup availability
Description & Features

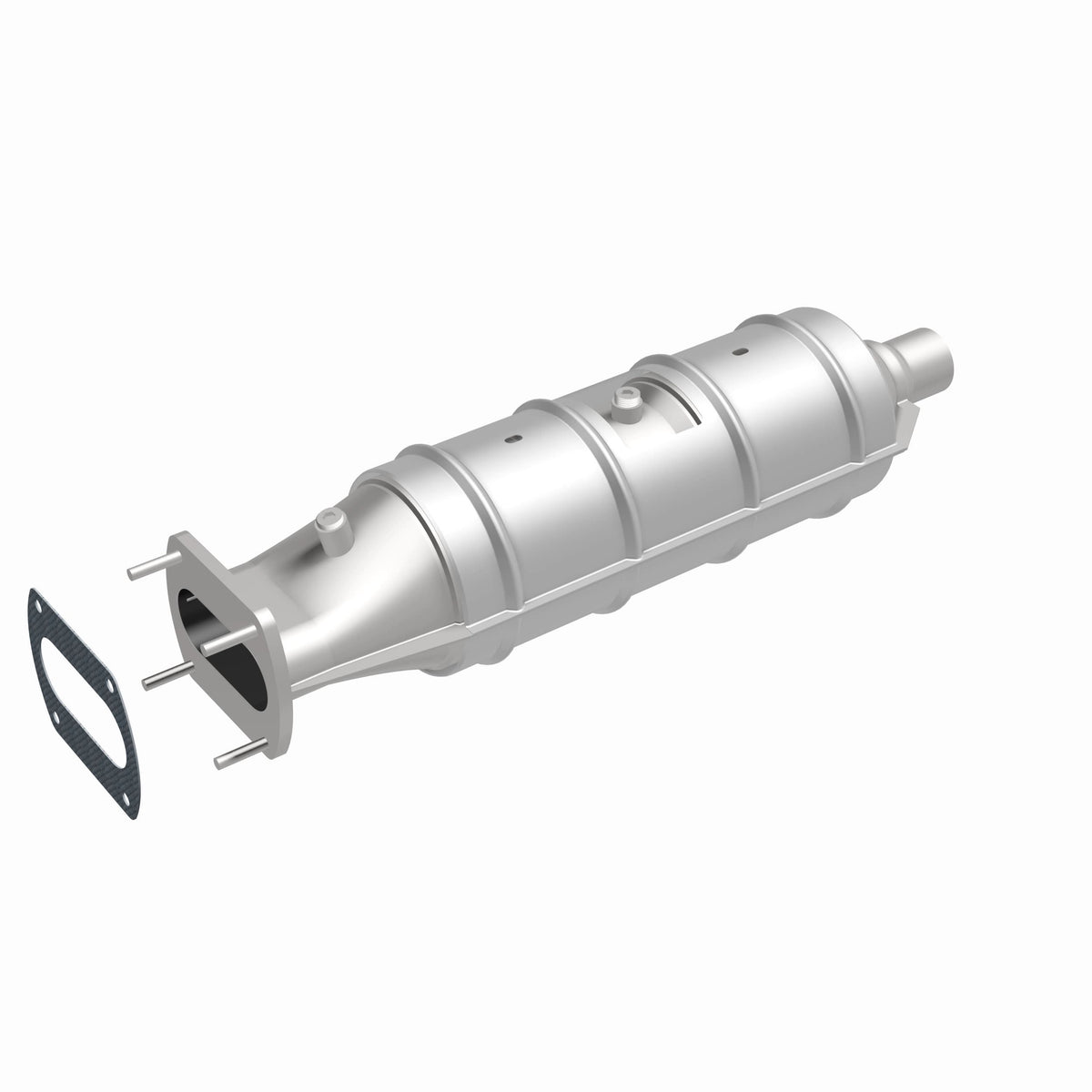

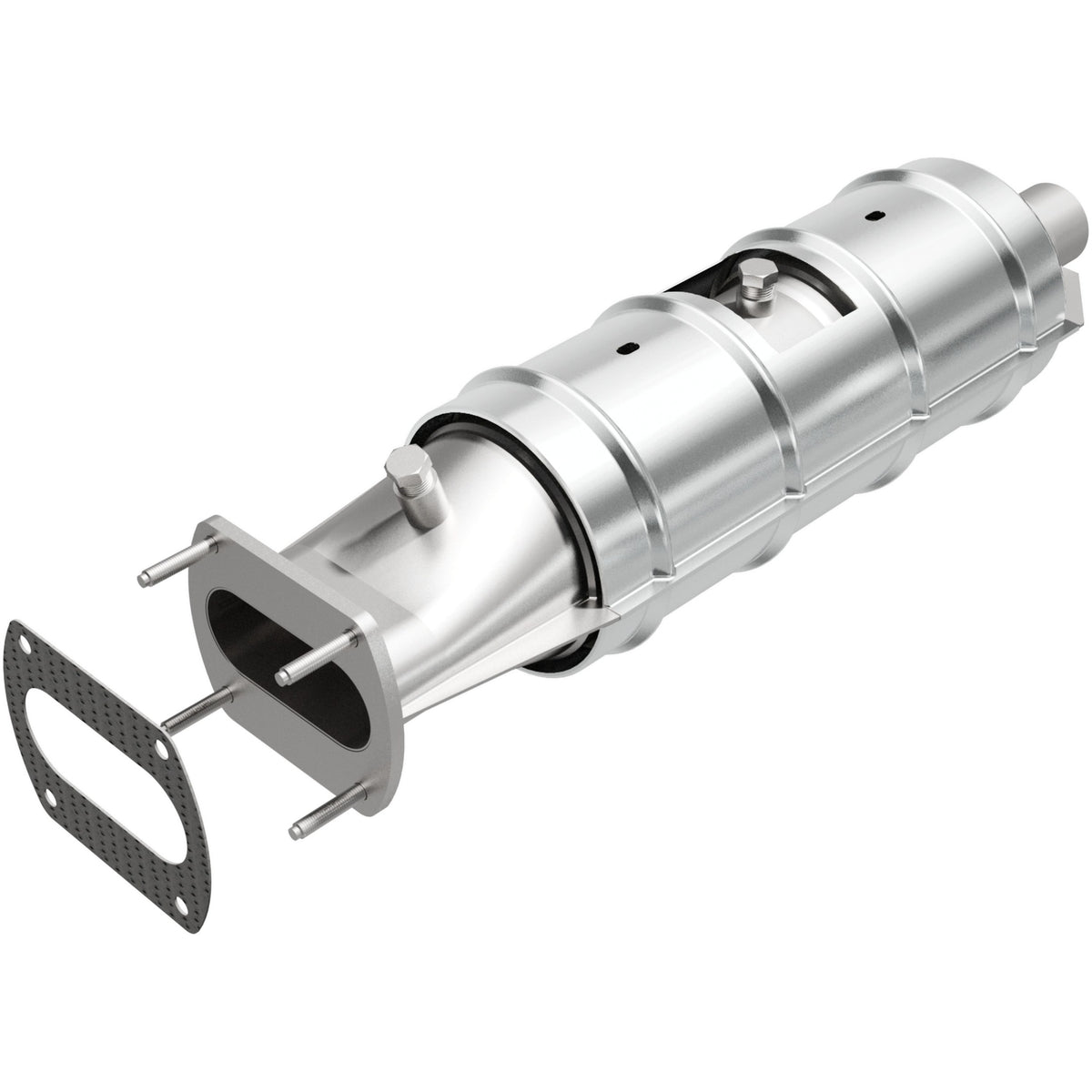

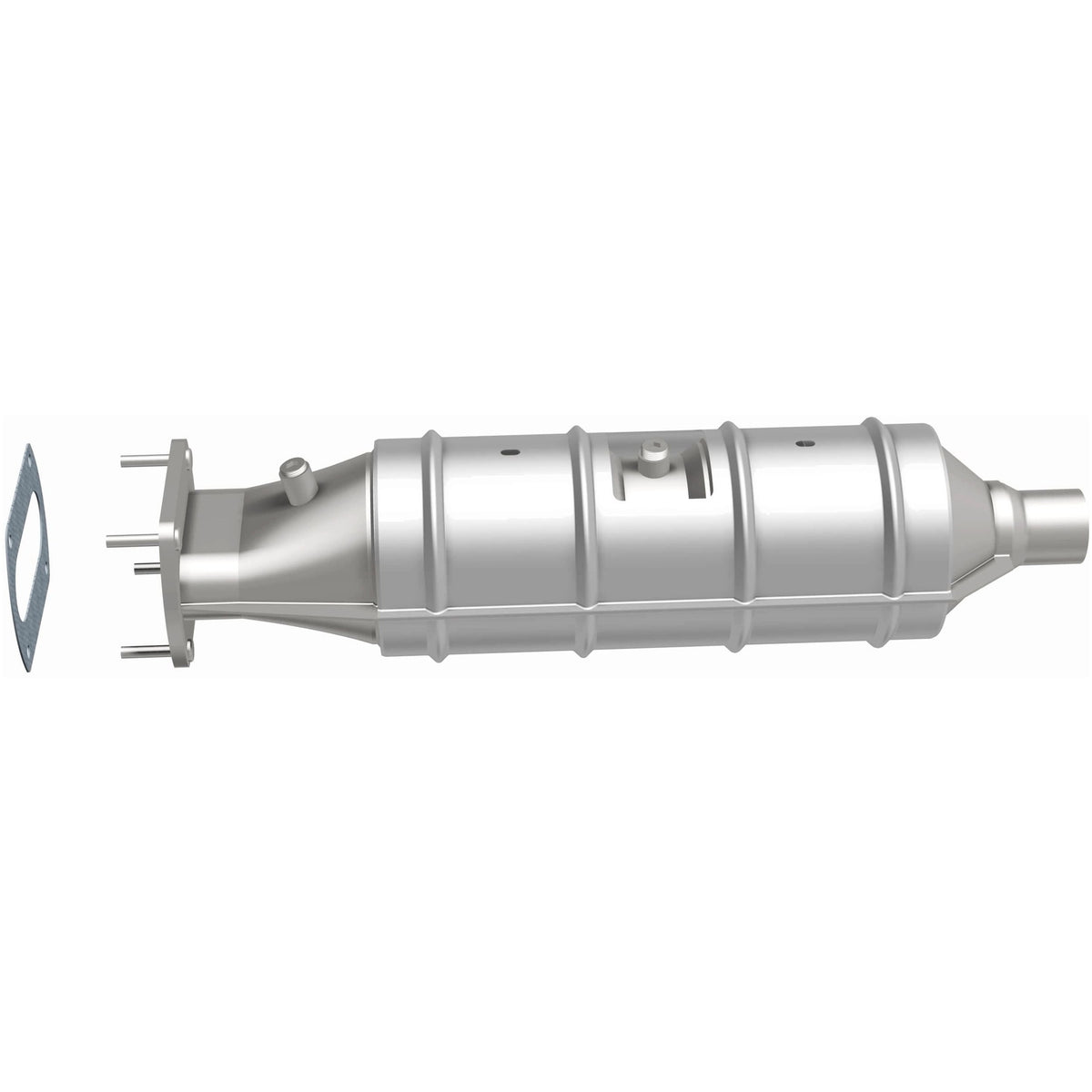

MagnaFlow Exhaust Products 339202 California CARB Direct-Fit Catalytic Converter
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 339202. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. MagnaFlow 339202 includes (1) Flange Gasket, (2) O2 Port Plugs. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
- Durable 308 stainless steel MIG welds
- Simplifies installation with essential gaskets and hardware being included in the box
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- High strength 16 gauge 409 stainless steel tubing for exceptional corrosion resistance and maximum service life
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
Specifications
| Air Tube Adaptable | No |
| Air Tube Count | 0 |
| Body Height | 7.5 |
| Body Length | 26.5 |
| Body Material | Stainless Steel |
| Body Shape | Round |
| Body Type | Clam-Shell |
| Body Width | 7.75 |
| California Air Resources Board (CARB) Certified | Yes |
| Clamps Included | No |
| Hangers Included | No |
| Heat Shield Attached | Yes |
| Heat Shield Material | Aluminized Steel |
| Inlet Gasket Included | Yes |
| Inlet Inside Diameter | 2.25 |
| Inlet Mounting Hardware Included | No |
| Inlet Quantity | 1 |
| Sensor Port Count | 0 |
| Outlet Quantity | 1 |
| Outlet Inside Diameter | 2.5 |
| Overall Length | 28.5 |
| Substrate Material | Ceramic |
| Outlet Gasket Included | No |
| Outlet Mounting Hardware Included | No |
| Finish | Stainless |
| Material | Stainless Steel |
| Tube Material | Stainless Steel |
| New York Certified | Yes |
| Inlet Type | Flange |
| Outlet Type | Pipe Connection |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Series | California |
| CARB Executive Order Number | D-193-163 |
Packaging Information
Weight: 19 lbs
Dimensions: 32.375 x 8 x 7.625 IN
Warranty
5 YR
Share
Vehicle Fitment
Vehicle Fitment
- 1988-1995 Ford E-250 Econoline BASE
- 1987-1991 Ford E-250 Econoline Club Wagon BASE
- 1987-1995 Ford E-350 Econoline BASE
- 1987-1995 Ford E-350 Econoline Club Wagon BASE
- 1987-1995 Ford F-250 BASE
- 1987-1995 Ford F-350 BASE
