Mishimoto MMBCC-F2D-08BE Baffled Oil Catch Can, CCV Side, fits Ford 6.4L Powerstroke 2008-2010
Mishimoto MMBCC-F2D-08BE Baffled Oil Catch Can, CCV Side, fits Ford 6.4L Powerstroke 2008-2010
Low stock: 1 left
Couldn't load pickup availability
Description & Features

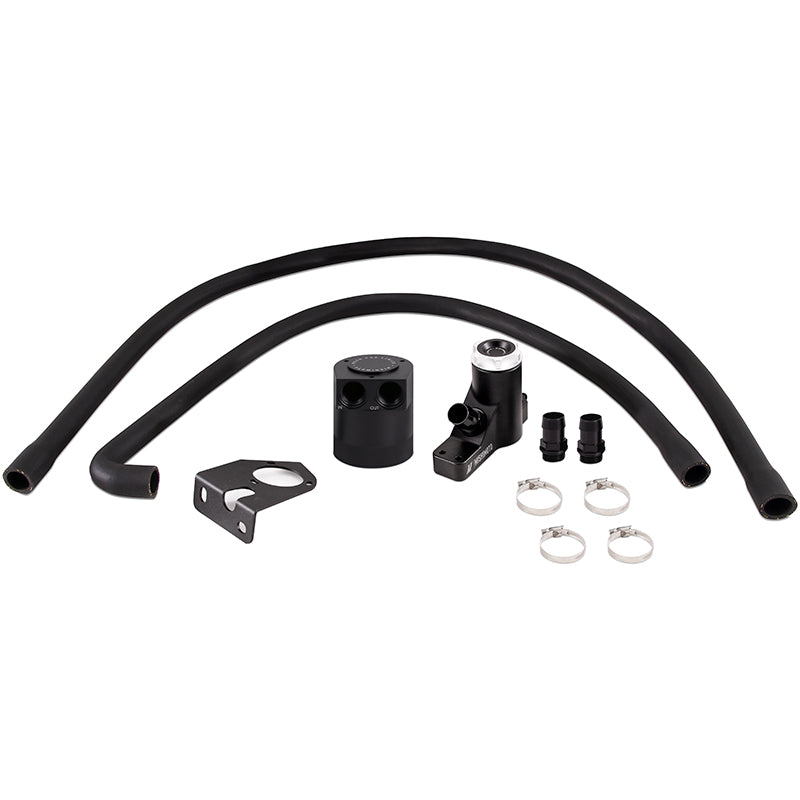

Mishimoto MMBCC-F2D-08BE Baffled Oil Catch Can, CCV Side, fits Ford 6.4L Powerstroke 2008-2010
High-output engines require high-flow crankcase ventilation. Our high-flow catch can utilizes a high-capacity bottom with a 5.3 fl. oz. capacity. The CNC-machined lid includes large, M27 x 2.0 inlets and outlets to let your crankcase breathe. Inside the can is a CNC-machined baffle with integrated filter that lets crankcase gases flow through while filtering out potentially harmful fuel, oil, and water vapors. Like our compact baffled oil catch can, our high-flow catch can and filter are fully serviceable for easy draining and cleaning.To make this kit a direct fit for your 2008-2010 Ford 6.4L Powerstroke, Mishimoto includes a custom-engineered, 3mm-thick steel bracket. This bracket mounts the can in an easy-to-access location under the truck using existing mounting holes. This mounting location allows for quick and easy servicing, without even opening the hood. The catch can bracket is powder-coated black to protect it from the elements and includes stainless steel hardware to withstand the test of time.Our kit also includes a CNC-machined, black anodized, aluminum oil fill neck and machined aluminum cap. This fill neck doesn't just improve your truck's under-hood aesthetics, it also eliminates the stock air-oil-separator that drains blow-by vapors back into the engine, keeping your engine running cleaner. The durable Mishimoto aluminum oil cap replaces the failure-prone ratcheting cap so you never have to worry about a stuck cap preventing you from adding oil.Also included with this kit is a set of direct-fit hoses to carry blow-by away from your engine and into the Mishimoto catch can. For even more protection, this 2008-2010 Ford 6.4L Powerstroke Baffled Oil Catch Can is backed by our Mishimoto Lifetime Warranty.
- Direct-fit for the 2008-2010 Ford 6.4L Powerstroke
- High-flow catch can allows your crankcase to breathe while filtering out harmful oil, fuel, and water vapors

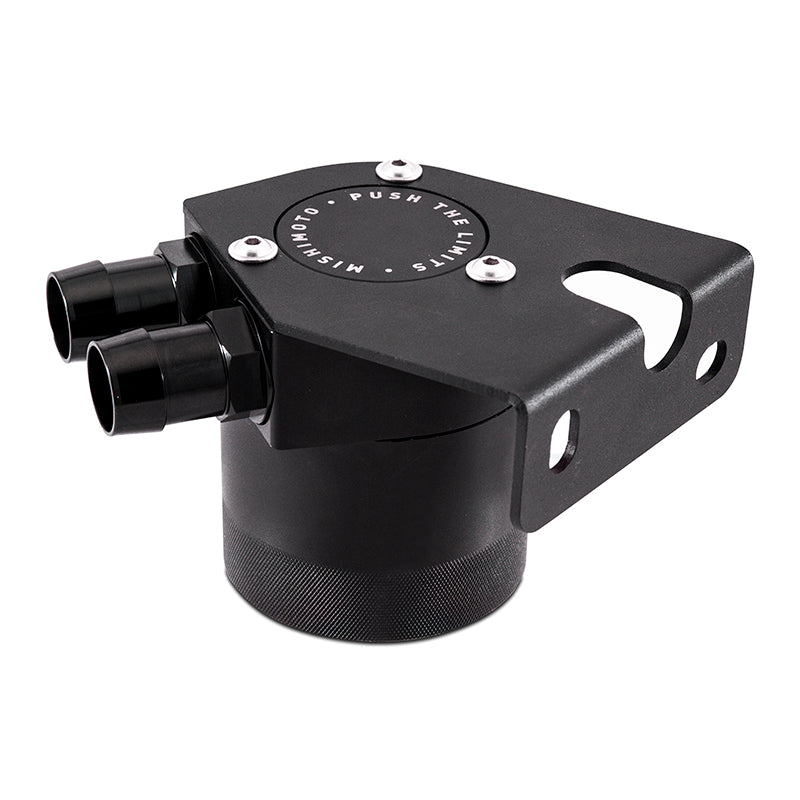

- Durable 3mm-thick steel bracket mounts catch can under truck for easy servicing in minutes
Specifications
| Can Finish | Anodized |
| Can Material | 6061-T6 Billet Aluminum |
| Can Outside Diameter | 3.5 |
| Can Type | Twist Off |
| Drain Plug Included | Yes |
| Finish | Anodized |
| Height | 3 |
| Hose Included | Yes |
| Inlet Port Inside Diameter | 1.1 |
| Inlet Port Quantity per Can | 1 |
| Interior Baffle | Yes |
| Maximum Can Capacity | 5.3 |
| Mounting Bracket Included | Yes |
| Outlet Port Inside Diameter | 1.1 |
| Outlet Port Quantity per Can | 1 |
| Color | Black |
| TechSpec Height (in) | N/A |
| TechSpec Catch Can Diameter (in) | N/A |
| TechSpec Inlet | N/A |
| TechSpec Outlet | N/A |
| TechSpec Drain Plug Thread Size | N/A |
| TechSpec Includes | N/A |
| TechSpec Applications | N/A |
| TechSpec Engine Codes | N/A |
| TechSpec Chassis Codes | N/A |
| TechSpec Material | N/A |
| TechSpec Installation Notes | N/A |
| TechSpec Note | N/A |
| SellingPoint01 | Direct-fit for the 2008-2010 Ford 6.4L Powerstroke |
| SellingPoint02 | High-flow catch can allows your crankcase to breathe while filtering out harmful oil, fuel, and water vapors |
| SellingPoint03 | Durable 3mm-thick steel bracket mounts catch can under truck for easy servicing in minutes |
| SellingPoint04 | Includes CNC-machined billet aluminum oil fill neck to replace the stock air-oil-separator |
| SellingPoint05 | Included Mishimoto oil fill cap replaces failure-prone stock cap |
| SellingPoint06 | Prevents blow-by from contaminating engine oil |
| SellingPoint07 | Includes durable, CNC-machined aluminum hose barb fittings |
| SellingPoint08 | 5.3 fl. oz. capacity for extended service intervals |
| SellingPoint09 | Powder coated bracket for maximum durability in all conditions |
| SellingPoint10 | Includes stainless steel mounting hardware |
| SellingPoint11 | Filter and can are fully serviceable |
| SellingPoint12 | Patent No. US D884,761 |
| SellingPoint13 | Mishimoto Lifetime Warranty |
| SellingPoint14 | N/A |
| SellingPoint15 | N/A |
| Install Difficulty | 2 |
Packaging Information
Weight: 11.03 lbs
Dimensions: 22.68 x 22.68 x 22.68 IN
Safety
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Share
Vehicle Fitment
Vehicle Fitment
- 2009-2010 Ford F-250 Super Duty Cabela's
- 2008-2010 Ford F-250 Super Duty FX4
- 2008-2010 Ford F-250 Super Duty Harley-Davidson Edition
- 2008-2010 Ford F-250 Super Duty King Ranch
- 2008-2010 Ford F-250 Super Duty Lariat
- 2008-2010 Ford F-250 Super Duty XL
- 2008-2010 Ford F-250 Super Duty XLT
- 2009-2010 Ford F-350 Super Duty Cabela's
- 2008-2009 Ford F-350 Super Duty FX4
- 2008-2010 Ford F-350 Super Duty Harley-Davidson Edition
- 2008-2010 Ford F-350 Super Duty King Ranch
- 2008-2010 Ford F-350 Super Duty Lariat
- 2008-2010 Ford F-350 Super Duty XL
- 2008-2010 Ford F-350 Super Duty XLT
- 2010 Ford F-450 Super Duty Base
- 2009-2010 Ford F-450 Super Duty Harley-Davidson Edition
- 2008-2010 Ford F-450 Super Duty King Ranch
- 2008-2010 Ford F-450 Super Duty Lariat
- 2008-2010 Ford F-450 Super Duty XL
- 2008-2010 Ford F-450 Super Duty XLT
- 2008 Ford F-550 Super Duty Base
- 2008-2010 Ford F-550 Super Duty Lariat
- 2008-2010 Ford F-550 Super Duty XL
- 2008-2010 Ford F-550 Super Duty XLT
