Mishimoto MMBCC-RAM-25 Baffled Oil Catch Can Kit, fits Ram 1500 3.0L Hurricane 2025+

$219.95 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Description & Features

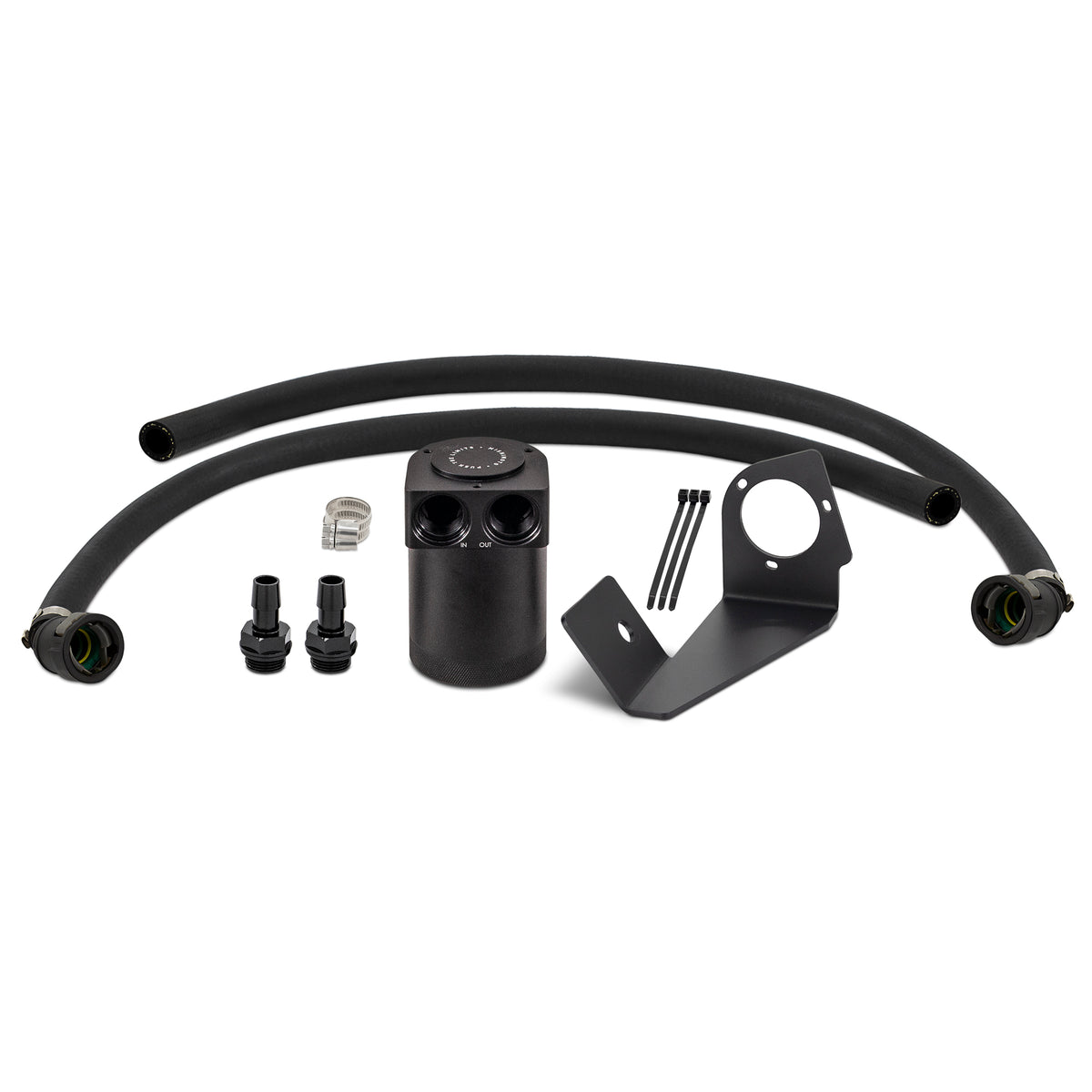

Mishimoto MMBCC-RAM-25 Baffled Oil Catch Can Kit, fits Ram 1500 3.0L Hurricane 2025+

Blow-by is inevitable on a high output truck like the Ram 1500 3.0L Hurricane, and every bit of oil carried through the PCV system ends up coating the intake tract, lowering octane, and adding stress to a powerplant built to work hard. Our Baffled Oil Catch Can Kit gives your Ram 1500 3.0L Hurricane a simple way to keep that contamination out of the turbo, intercooler, and cylinders by placing a single can in line with the PCV route to pull oily vapor out of circulation before it can settle anywhere it should not. As crankcase gases enter the can, they move through a 50-micron bronze filter and an internal diverter that holds the air in motion long enough for fine droplets to condense and fall into the canister. What returns to the intake is clean air that will not dilute octane or contribute to carbon buildup. This kit is engineered specifically for the 2025+ Ram 1500 3.0L Hurricane and was designed and tested in the USA. The billet 6061 aluminum can, CNC-machined fittings, and internal baffling provide reliable separation, while the robust bracket positions the can near the headlight to keep it isolated from engine vibration. The layout fits with the stock engine cover and tucks neatly into the bay for a factory quality appearance. Preformed hoses match the Hurricane's PCV routing for a straightforward install that takes less than half an hour and requires no trimming or modification. Servicing is just as simple thanks to the fully washable filter and easily accessible mounting location. This system is built for Ram 1500 3.0L Hurricane owners who want a dependable, direct fit solution that protects a serious investment. Cheap universal kits cannot offer the same precision or confidence. Our catch can is secure, serviceable, and crafted specifically for the Ram 1500 3.0L Hurricane, and every component is backed by the Mishimoto Lifetime Warranty.

Effectively prevents blow-by from entering the crankcase

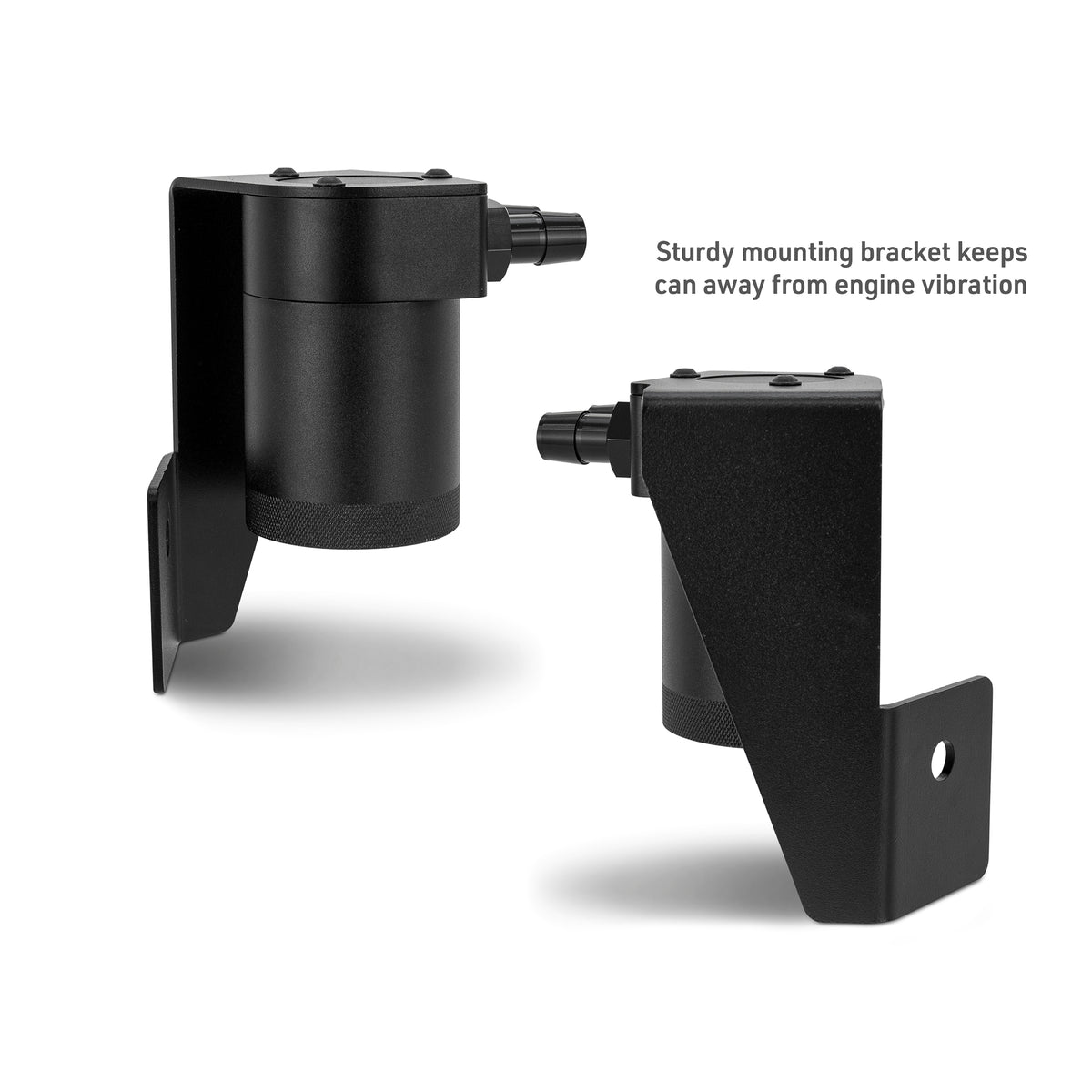

Sturdy mounting bracket keeps can away from engine vibration
Internal air diverter baffle creates air turbulence to aid in oil separation

Specifications

Can Finish	Anodized
Can Material	6061-T6 Billet Aluminum
Can Outside Diameter	2.5
Can Type	Twist Off
Drain Plug Included	Yes
Height	4
Hose Included	Yes
Inlet Port Inside Diameter	0.6
Inlet Port Quantity per Can	1
Interior Baffle	Yes
Maximum Can Capacity	3
Mounting Bracket Included	Yes
Outlet Port Inside Diameter	0.6
Outlet Port Quantity per Can	1
Color	Black
Finish	Powder Coat
Installation Difficulty	2
Material	6061 Aluminum
TechSpec Height (in)	5.71
TechSpec Catch Can Diameter (in)	2.5
TechSpec Inlet	M20X1.5
TechSpec Outlet	M20X1.5
TechSpec Drain Plug Thread Size	3/8-NPT
TechSpec Includes	(1) Compact Baffled Oil Catch Can--(2) Direct Fit Hoses--(1) Application-Specific Mounting Bracket--(2) 9/16-in Aluminum Fittings--(2) Worm Gear Clamps--(3) Double Loop Zip Tie--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Applications	2025+ Ram 1500 Big Horn--2025+ Ram 1500 Laramie--2025+ Ram 1500 Limited--2025+ Ram 1500 Limited Longhorn--2025+ Ram 1500 Lone Star--2025+ Ram 1500 RHO--2025+ Ram 1500 Rebel--2025 Ram 1500 Special Service--2025 Ram 1500 Sport--2025+ Ram 1500 Tradesman--2025 Ram 1500 Tradesman HFE--2025+ Ram 1500 Tungsten--2025+ Ram 1500 Warlock--2026+ Ram 1500 Express
TechSpec Engine Codes	GME-T6
TechSpec Chassis Codes	DT
TechSpec Material	N/A
TechSpec Installation Notes	22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs (3NM)
TechSpec Note	After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.
SellingPoint01	Stops blow-by from entering the air intake, preventing sludge build-up and preserving performance
SellingPoint02	Sturdy mounting bracket keeps can away from engine vibration
SellingPoint03	Internal air diverter baffle creates air turbulence to aid in oil separation
SellingPoint04	Installs in 30 minutes or less
SellingPoint05	Includes pre-cut hoses for a seamless installation
SellingPoint06	Designed, engineered, and tested in the USA on the Mishimoto Ram RHO
SellingPoint07	Patent No. US 966,372 S
SellingPoint08	Mishimoto Lifetime Warranty
SellingPoint09	N/A
SellingPoint10	N/A
SellingPoint11	N/A
SellingPoint12	N/A
SellingPoint13	N/A
SellingPoint14	N/A
SellingPoint15	N/A
Install Difficulty	2
OptionLabel	Black
