Mishimoto MMFS-XJ-89 Performance Aluminum Fan Shroud w/o Controller, fits Jeep Cherokee XJ 4.0 89-01

$453.95 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

Low stock: 4 left

Description & Features

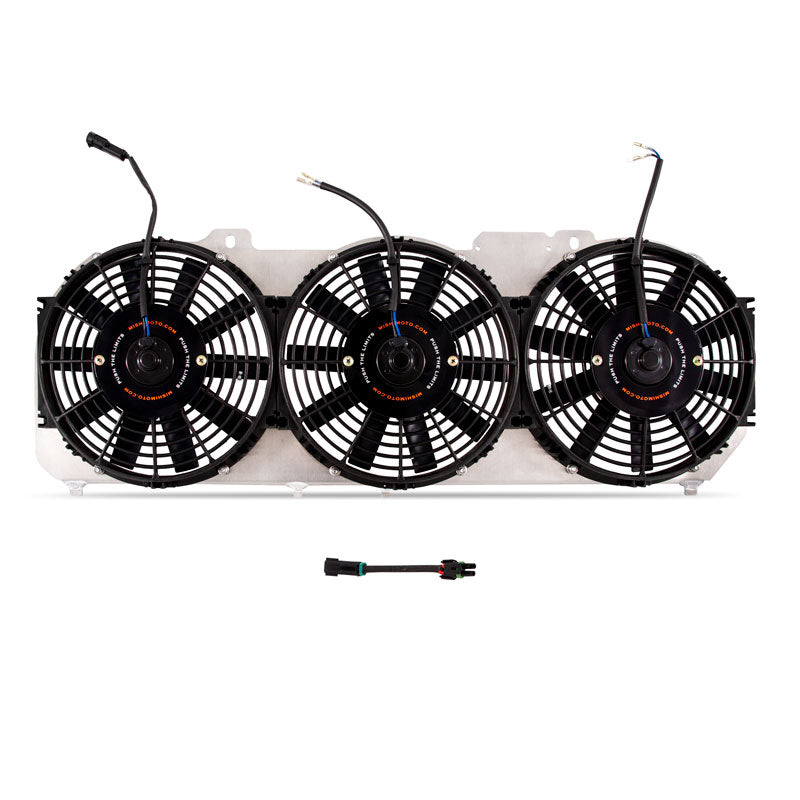

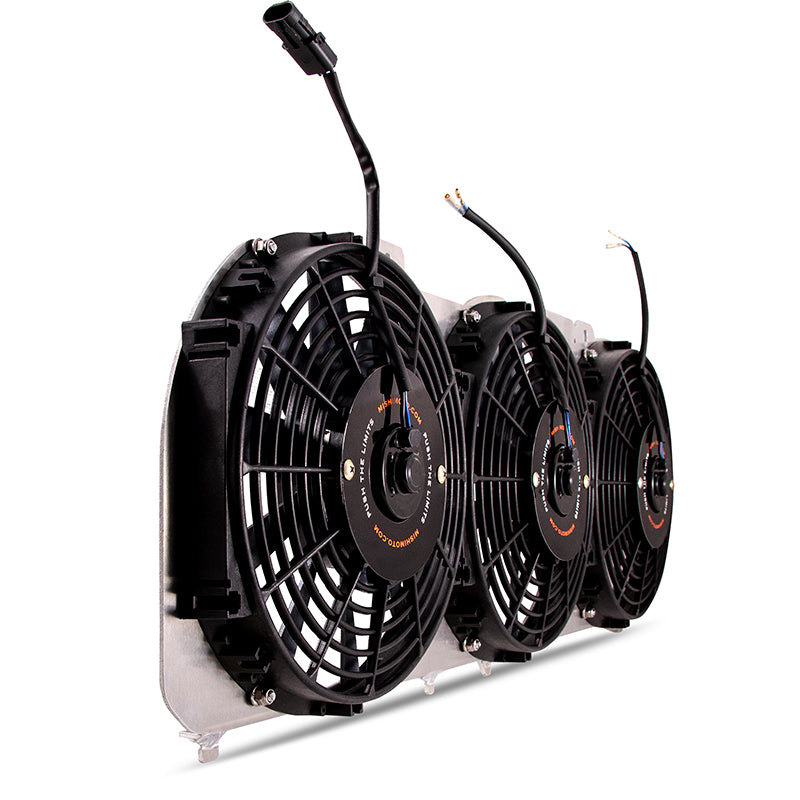

Mishimoto MMFS-XJ-89 Performance Aluminum Fan Shroud w/o Controller, fits Jeep Cherokee XJ 4.0 89-01

Crawling up steep rock faces, muddy hills, or narrow trails can put a lot of stress on your 1989-2001 Jeep Cherokee XJ 4.0L cooling system. The stock fan system on the 1989-2001 Jeep Cherokee XJ 4.0L is an archaic design that's powered by the vehicle's engine. It adds a lot of weight and drag to the engine, sucking horsepower and torque just to get it moving. Once it does start moving, the amount of air it moves is dependent on the engine speed. If the engine isn't turning fast, neither is the fan, and there's no air moving through your radiator. That's why Mishimoto is excited to announce our 1989-2001 Jeep Cherokee XJ 4.0L Performance Aluminum Fan Shroud. This fan shroud incorporates three Mishimoto high-flow 10-inch electric slim fans. Each of these fans moves a constant 950 CFM regardless of engine speed. One fan replaces the stock AC fan, while the other two fans are free to cool the radiator. The included AC fan jumper harness ensures proper AC function with 1997-2001 models. The lightweight aluminum fan shroud also covers more of the radiator than the stock fan shroud, meaning your entire radiator can benefit from the increase airflow. In our testing, we found that the Mishimoto XJ Fan shroud moved air 41.9-percent better than the stock fan shroud at idle and 22-percent better than the stock fans at 2,500 RPM. Our electric fan shroud also eliminates the heavy mechanical fan, reducing drag on the engine and freeing up horsepower and torque for your trail climbing enjoyment. The Mishimoto fans can be activated manually with a switch (sold separately) or by our available adjustable fan controller. The Mishimoto fan controller mounts conveniently on the Mishimoto fan shroud and can be set to activate the fans at any temperature from 150F to 240F

Direct-fit for 1989-2001 Jeep Cherokee XJ w/ 4.0L engine
Fits with stock and Mishimoto Radiator
Includes three Mishimoto high-flow 10-in slim fans

Specifications

Airflow Rate	950
Blade Color	Black
Blade Included	Yes
Blade Length	5
Blade Material	Plastic
Blade Quantity	10
Blade Type	Straight
Control Module Included	No
Control Unit Included	No
Depth	1
Electrical Or Mechanical	Electrical
Fan 1 Blade Quantity	10
Fan 1 Diameter	10
Fan 2 Blade Quantity	10
Fan 2 Diameter	10
Fan Clutch Mounted	No
Fan Quantity	3
Grade Type	Performance
Hardwired Or Plug-In	Plug-In
Height	1
Housing Finish	Aluminum
Maximum CFM	950
Motor Included	Yes
Mounting Hardware Included	Yes
Shroud Color	Silver
Shroud Included	Yes
Shroud Material	Aluminum
Width	1
SellingPoint12	Durable scratch-resistant powder coated finish provides unique engine bay styling
SellingPoint13	Mishimoto Lifetime Warranty
SellingPoint14	N/A
SellingPoint15	N/A
Install Difficulty	3
OptionLabel	Polished, Without Fan Controller
Installation Difficulty	3
TechSpec Width (in)	N/A
TechSpec Applications	1989-2001 Jeep Cherokee XJ 4.0L
TechSpec Engine Codes	N/A
TechSpec Chassis Codes	N/A
TechSpec Includes	(1) Mishimoto Fan Shroud--(3) Mishimoto High-Flow 10-in Slim Electric Fans--(1) Jumper Harness for 1997-2001 Models--Foam Weather Strip--Mishimoto Lifetime Warranty----Included with Fan Controller Kit (Optional):--(1) Adjustable Relay--(1) Push-In Radiator Temperature Probe--(1) 1/8-in NPT Temperature Sensor--(1) Wiring Harness--(16) Zip Ties--(4) Wire Straight Crimp Connectors--(1) Wire Butt Crimp Connector--(1) Wire Quick-Splice Connector--(4) Wire Ring Terminals--(2) Wire Spade Connectors--(1) In-line Mini Fuse Holder--(1) 40-in 10 AWG Wire--(1) 7-ft 12 AWG Wire--(1) 12-in Heat Shrink--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Weight (lbs)	N/A
TechSpec CFM (Each Fan)	950
TechSpec Note	Optional Fan Controller is Mishimoto MMFAN-CNTL-U and includes both NPT and Probe type sensors.
TechSpec Height (in)	N/A
TechSpec Length (in)	N/A
SellingPoint01	Direct-fit for 1989-2001 Jeep Cherokee XJ w/ 4.0L engine
SellingPoint02	Fits with stock and Mishimoto Radiator
SellingPoint03	Includes three Mishimoto high-flow 10-in slim fans
SellingPoint04	Available in polished, powder coated black, or powder coated gold finishes
SellingPoint05	Each fan flows 950 CFM
SellingPoint06	Increases airflow through the radiator by 41.9-percent over stock at idle
SellingPoint07	Eliminates heavy mechanical fan to improve low-speed airflow, reduce rotating mass, and free up power
SellingPoint08	Lightweight aluminum shroud improves airflow coverage across radiator core
SellingPoint09	Retains stock A/C fan control for proper A/C function
SellingPoint10	Includes A/C fan jumper to connect Mishimoto fan to 1997-2001 models
SellingPoint11	Available fan controller features adjustable activation temperature and includes wiring harness, NPT temperature sensor, and probe temperature sensor
