Mishimoto

Mishimoto MMINT-F150-11KPSL Intercooler Kit, Silver/Polished, fits Ford F-150 EcoBoost 2011-2014

$1,749.95 USD

Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Description & Features

Mishimoto MMINT-F150-11KPSL Intercooler Kit, Silver/Polished, fits Ford F-150 EcoBoost 2011-2014

Cool down those charge air temperatures with the Mishimoto direct-fit performance intercooler and pipe kit for the 2011-2014 Ford F-150 EcoBoost. The small, factory intercooler sits in the bottom part of a spacious and unconventionally shaped cavity behind the front bumper, which means There's a lot of wasted space there that could be used for cooling improvements. That?s why the Mishimoto intercooler has been cleverly engineered with a unique angled design to take full advantage of the space for maximum performance. This intercooler boasts an 88-percent increase in core size, 66-percent increase in internal core volume, and 40-percent increase in external fin surface area. The Mishimoto intercooler lowers intake temperatures by 50?F (28?C) compared to the factory part. But of course, no intercooler is complete without a set of pipes to complement it. This kit also includes Mishimoto 2011?2014 F?150 EcoBoost Intercooler Pipes which are an ideal upgrade in reliability and performance. Accompanied by silicone couplers with DuraCore? technology, Mishimoto's F?150 EcoBoost intercooler piping is engineered to eliminate restrictive bends while improving durability and airflow. Compared to normal silicone, DuraCore? provides superior resistance to heat, pressure, fuel, and oil. These pipes alone have been dyno proven to provide your truck with up to 15 more horsepower and 21 Ft/lbs more torque.Of course, this kit is backed by our Mishimoto Lifetime Warranty, so you never need to worry about buying another intercooler and pipe kit again.

50F (28C) reduction in AIT
88-percent increase in core size
66-percent increase in internal core volume and 40-percent increase in external fin surface area

Specifications

Cold Side Pipe Inside Diameter	3
Core Thickness	0
Core Length	0
Core Height	0
Core Color	Silver
Core Construction	Bar-and-Plate
Core Material	Aluminum
Coupler Color	Black
Coupler Material	Silicone
End Tank Construction	Cast
End Tank Material	Aluminum
Grade Type	Performance
Hose Clamps Included	Yes
Hot Side Pipe Inside Diameter	2.5
Inlet Diameter	2.5
Outlet Diameter	3
Intercooler Type	Air-to-Air
Maximum Boost Pressure	50
Maximum Horsepower	0
Pipe Color	Polished
Pipe Finish	Powder Coated
Pipe Material	Aluminum
Universal Or Specific Fit	Specific
TechSpec Note	N/A

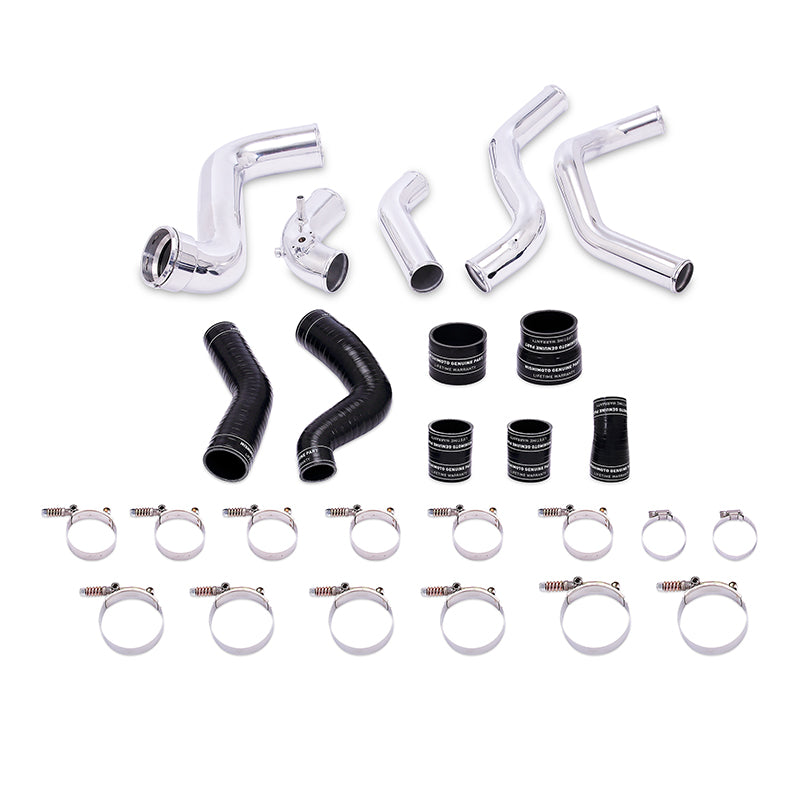

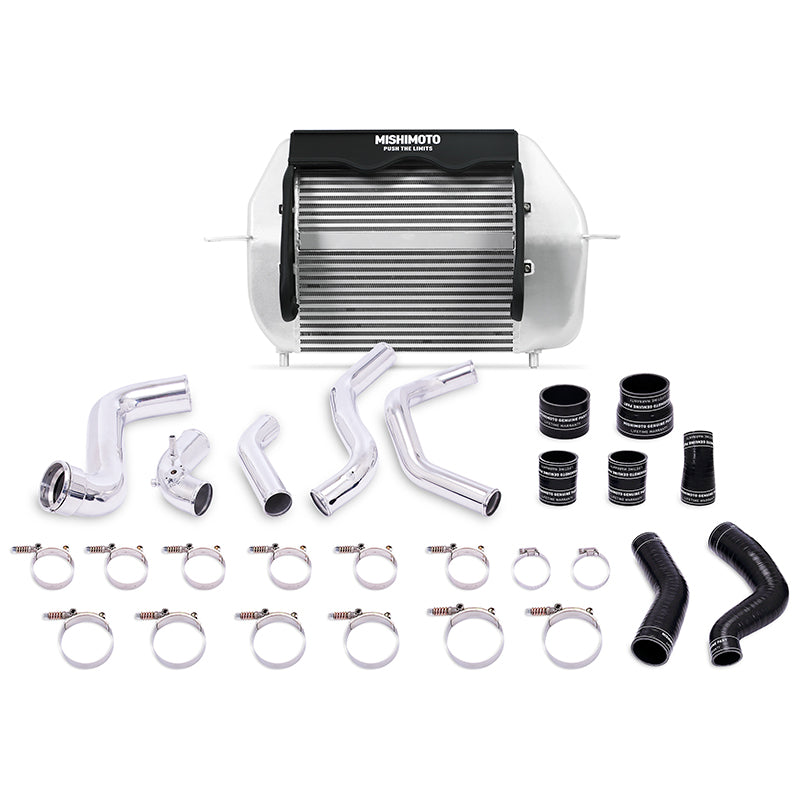

TechSpec Includes	(1) Aluminum Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Intercooler Pipe w/ CNC IAT Sensor Housing--(3) Aluminum Intercooler Pipes--(7) Silicone Boots w/ DuraCore Technology--(2) High-Torque Worm Gear Clamps--(12) Constant-Tension T-Bolt Clamps--Mishimoto Lifetime Warranty
TechSpec Installation Notes	27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).
TechSpec Pipe Shape	N/A
TechSpec Pipe Diameter	N/A
TechSpec Pipe Length	N/A
TechSpec Centerline Radius	N/A
SellingPoint01	Direct fit for the 2011-2014 Ford F-150 EcoBoost
SellingPoint02	50F (28C) reduction in AIT
SellingPoint03	88-percent increase in core size
SellingPoint04	66-percent increase in internal core volume and 40-percent increase in external fin surface area

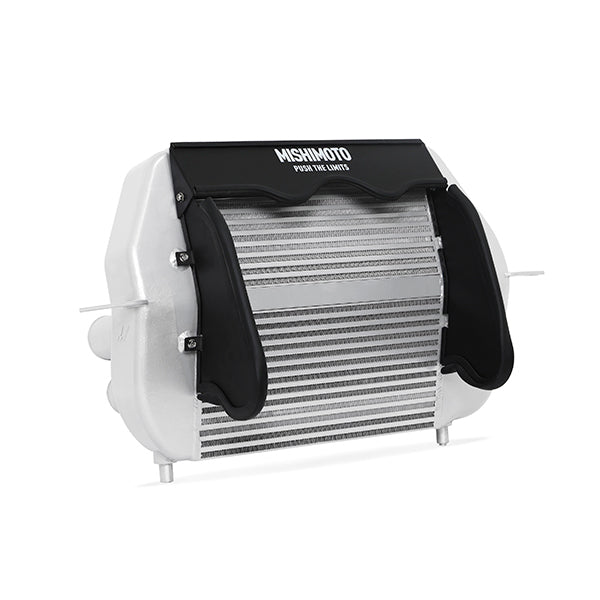

SellingPoint05	Includes air diversion plates to direct air through the intercooler core for maximum efficiency
SellingPoint06	Features CNC Bypass Plug for 2011-2012 models
SellingPoint07	1/4-in NPT drain plug incorporated into lower mount
SellingPoint08	2.5-in aluminum hot-side intercooler pipes replace stock plastic pipes
SellingPoint09	3-3.5-in aluminum cold-side intercooler pipes replace stock plastic pipes
SellingPoint10	Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
SellingPoint11	10-percent greater flow than stock
SellingPoint12	41-percent and 34-percent increase in internal volume for hot and cold-side pipes, respectively
SellingPoint13	CNC quick-disconnect for maximum durability, perfect fitment, and ease of installation on Mishimoto intercooler
SellingPoint14	Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
SellingPoint15	Mishimoto Lifetime Warranty
CARB EO Number	D-759-6
Install Difficulty	4
OptionLabel	Silver Intercooler, Polished Pipes
TechSpec Applications	2011-2014 Ford F-150 EcoBoost
TechSpec Engine Codes	3.5L V6 EcoBoost
TechSpec Chassis Codes	P415
TechSpec Maximum Recommended Boost Pressure (PSI)	50
TechSpec Maximum Recommended Horsepower	N/A
TechSpec Overall Length (in)	27.6
TechSpec Overall Height (in)	19
TechSpec Overall Width (in)	6.75
TechSpec Core Type	Bar-and-Plate
TechSpec Core Thickness (in)	N/A
TechSpec Core Length (in)	N/A
TechSpec Core Height (in)	N/A
TechSpec Inlet (in)	2.5
TechSpec Outlet (in)	3
TechSpec Weight (lbs)	N/A
