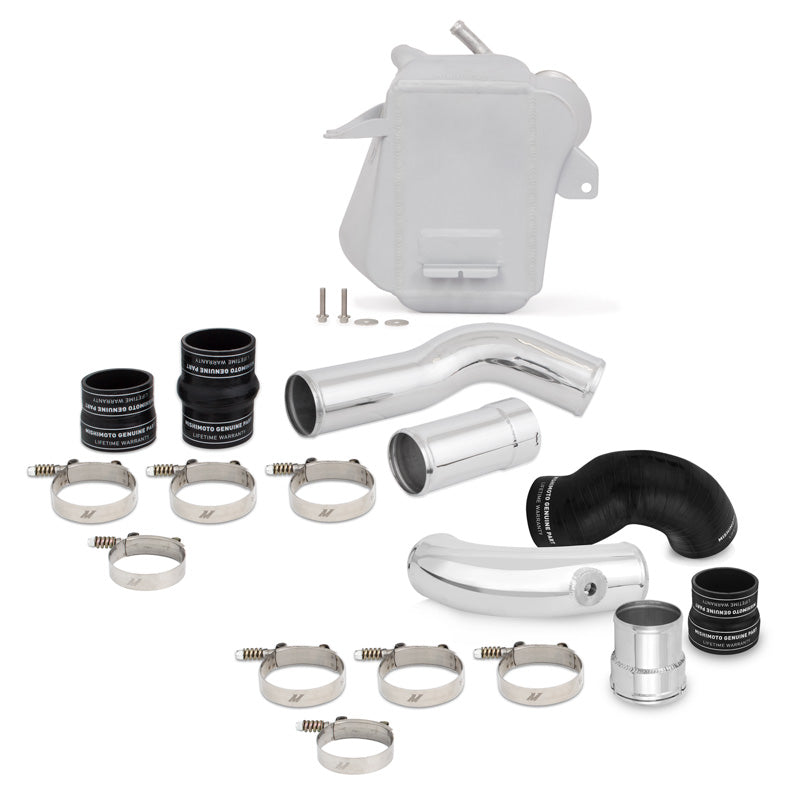

Mishimoto MMINT-F2D-11KSLP Air-to-Water Intercooler Kit, Silver/Polished, fits Ford 6.7L Powerstroke 2011+

Mishimoto MMINT-F2D-11KSLP Air-to-Water Intercooler Kit, Silver/Polished, fits Ford 6.7L Powerstroke 2011+

Regular price $1,899.95 USD
Regular price Sale price $1,899.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Quantity
Description & Features

Mishimoto MMINT-F2D-11KSLP Air-to-Water Intercooler Kit, Silver/Polished, fits Ford 6.7L Powerstroke 2011+

The 2011+ Ford Super Duty equipped with the 6.7L Powerstroke is one of the most capable and reliable trucks on the road today. But, when Mishimoto heard about 6.7L Powerstroke air-to-water intercoolers leaking internally, we set to work making the 6.7L Powerstroke even better. The Mishimoto 6.7L Powerstroke intercooler kit brings even more reliability to the 6.7L by ditching the stamped and stacked plate stock design. Instead, our intercooler is built with cast aluminum end tanks that are precision TIG welded to the robust bar-and-plate core. The cast end-tanks reduce potential failure points, making them more reliable than cut and welded tanks. Further durability is added by the inclusion of aluminum intercooler pipes and silicone couplers with Duracoreandtrade Technology. Aside from being more durable than stock, the Mishimoto 6.7L Powerstroke intercooler also flows better. Flow bench testing showed that the Mishimoto intercooler flowed 22-percent better than the stock cooler. On the dyno, that extra flow provided our stock 6.7L with 40 lb. ft. more torque. This kit is available with a powder coated sleek silver, stealthy micro-wrinkle black, or micro-wrinkle blue cooler and polished pipes to match any style. Like all Mishimoto products, our 2011+ Ford 6.7L Powerstroke Air-to-Water intercooler is covered by our Mishimoto Lifetime Warranty.

  • 22-percent Greater air flow than stock 6.7L Powerstroke intercooler
  • Dyno-proven 40 lb-ft torque gains without other modifications
  • Cast end tanks are more durable than brazed or welded end tanks, eliminating potential leak points
Specifications
Cold Side Pipe Inside Diameter 0
Core Thickness 4.48
Core Length 10.59
Core Height 6.69
Core Color Silver
Core Construction Bar-and-Plate
Core Material Aluminum
Coupler Color Black
Coupler Material Silicone
End Tank Construction Cast
End Tank Material Aluminum
Grade Type Performance
Hose Clamps Included Yes
Hot Side Pipe Inside Diameter 0
Inlet Diameter 0
Outlet Diameter 0
Intercooler Type Air-to-Air
Maximum Boost Pressure 0
Maximum Horsepower 0
Pipe Color Polished
Pipe Finish Powder Coated
Pipe Material Aluminum
Universal Or Specific Fit Specific
SellingPoint12 N/A
SellingPoint13 N/A
SellingPoint14 N/A
SellingPoint15 N/A
CARB EO Number D-759-4
Install Difficulty 3
OptionLabel Silver Cooler, Polished Pipes
TechSpec Applications 2011+ Ford Super Duty 6.7L Powerstroke
TechSpec Engine Codes N/A
TechSpec Chassis Codes N/A
TechSpec Maximum Recommended Boost Pressure (PSI) N/A
TechSpec Maximum Recommended Horsepower N/A
TechSpec Overall Length (in) N/A
TechSpec Overall Height (in) N/A
TechSpec Overall Width (in) N/A
TechSpec Core Type Bar-and-Plate
TechSpec Core Thickness (in) 4.48
TechSpec Core Length (in) 10.59
TechSpec Core Height (in) 6.69
TechSpec Inlet (in) N/A
TechSpec Outlet (in) N/A
TechSpec Weight (lbs) N/A
TechSpec Note Executive Order D-759-4 currently covers model years 2011-2018
TechSpec Includes (1) Mishimoto Air-to-Water Intercooler--(1) Mandrel-Bent Cold-Side Pipe--(1) Mandrel-Bent Hot-Side Pipe--(2) CNC-Machined Aluminum Quick-Disconnect Couplers--(4) Silicone Boots w/ Duracore Technology--(8) Constant-Tension Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Installation Notes 11 lb-ft (15NM) recommended for all constant-tension worm gear clamps. These clamps have an operating range of 11-14 lb-ft (15-20NM). Do not exceed the maximum torque rating of 14 lb-ft (20NM)
TechSpec Pipe Shape N/A
TechSpec Pipe Diameter N/A
TechSpec Pipe Length N/A
TechSpec Centerline Radius N/A
SellingPoint01 Direct fit for all 2011+ Ford 6.7L Powerstroke
SellingPoint02 22-percent Greater air flow than stock 6.7L Powerstroke intercooler
SellingPoint03 Dyno-proven 40 lb-ft torque gains without other modifications
SellingPoint04 Cast end tanks are more durable than brazed or welded end tanks, eliminating potential leak points
SellingPoint05 Bar-and-plate core for efficient cooling and unsurpassed strength
SellingPoint06 No tune required-Intercooler can be installed on a completely stock or modified truck
SellingPoint07 Includes Mishimoto mandrel-bent aluminum intercooler pipes for greater durability
SellingPoint08 Includes Mishimoto Silicone Boots with DuraCore technology and Constant Tension Worm Gear Clamps
SellingPoint09 Available in a Micro-Wrinkle Silver, Micro-Wrinkle Black, or Micro-Wrinkle Blue powder coated finish
SellingPoint10 Patent No. US D907,063
SellingPoint11 Mishimoto Lifetime Warranty
Packaging Information

Weight: 27.73 lbs
Dimensions: 16.35 x 16.35 x 16.35 IN

Safety

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

For more information visit www.P65Warnings.ca.gov

⚠ Fitment Notes
  • EO D-759-4
  • EO Status Pending

Vehicle Fitment

  • 2015-2016 Ford F-250 Super Duty Base
  • 2011-2014 Ford F-250 Super Duty FX4
  • 2011-2026 Ford F-250 Super Duty King Ranch
  • 2011-2026 Ford F-250 Super Duty Lariat
  • 2018-2024 Ford F-250 Super Duty Limited
  • 2013-2026 Ford F-250 Super Duty Platinum
  • 2025-2026 Ford F-250 Super Duty Platinum Plus
  • 2011-2026 Ford F-250 Super Duty XL
  • 2011-2026 Ford F-250 Super Duty XLT
  • 2011-2026 Ford F-350 Super Duty King Ranch
  • 2011-2026 Ford F-350 Super Duty Lariat
  • 2018-2024 Ford F-350 Super Duty Limited
  • 2013-2026 Ford F-350 Super Duty Platinum
  • 2011-2026 Ford F-350 Super Duty XL
  • 2011-2026 Ford F-350 Super Duty XLT
  • 2011-2016 Ford F-450 Super Duty Base
  • 2011-2019 Ford F-450 Super Duty King Ranch
  • 2011-2019 Ford F-450 Super Duty Lariat
  • 2018-2019 Ford F-450 Super Duty Limited
  • 2013-2019 Ford F-450 Super Duty Platinum
  • 2011-2019 Ford F-450 Super Duty XL
  • 2011-2019 Ford F-450 Super Duty XLT
  • 2011-2016 Ford F-550 Super Duty Base
  • 2011-2019 Ford F-550 Super Duty Lariat
  • 2011-2019 Ford F-550 Super Duty XL
  • 2011-2019 Ford F-550 Super Duty XLT
