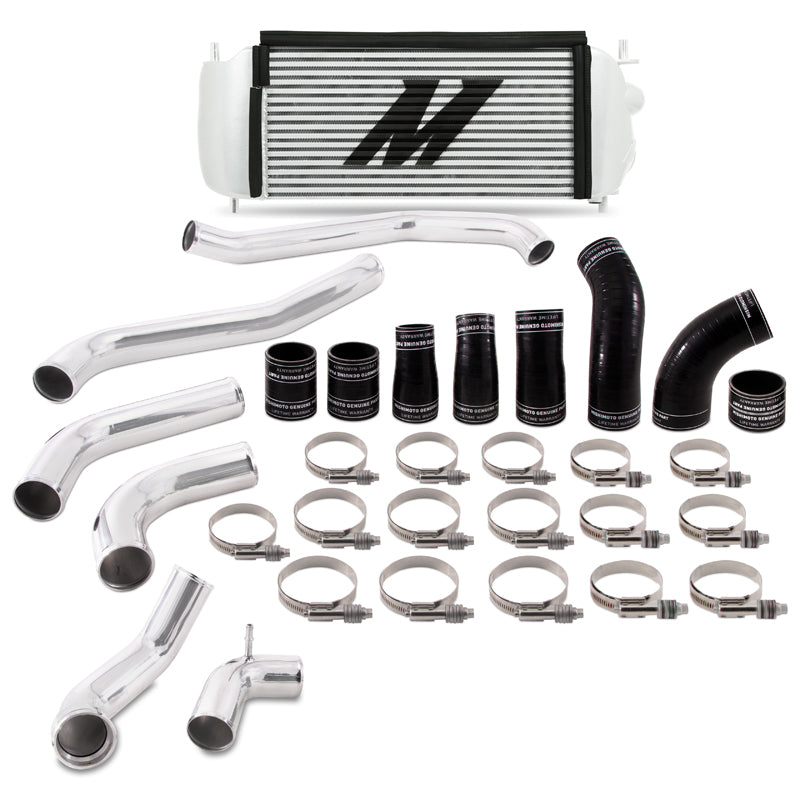

Mishimoto MMINT-F35T-17KPSL Intercooler Kit, Silver/Polished, fits Ford F-150 3.5L EcoBoost 2017-2020
Mishimoto MMINT-F35T-17KPSL Intercooler Kit, Silver/Polished, fits Ford F-150 3.5L EcoBoost 2017-2020
Low stock: 1 left
Couldn't load pickup availability
Description & Features
Mishimoto MMINT-F35T-17KPSL Intercooler Kit, Silver/Polished, fits Ford F-150 3.5L EcoBoost 2017-2020
Mishimoto has developed a direct-fit 2017-2020 3.5L F-150 EcoBoost Intercooler & Pipe kit that allows owners to maximize the performance potential of their F-150 or second-gen Raptor. ---- Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore(TM) technology. The larger volume of our pipes allows your 2017-2020 3.5L EcoBoost to breathe free and make the most of its two turbochargers. DuraCore(TM) boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination. ---- Combine our piping with the Mishimoto 2015+ F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. Our intercooler increases core volume by 77% over stock and external fin surface area by 163%. With cast end tanks and a bar-and-plate construction, our intercooler combines strength and power for an all-around upgrade over stock. ---- This kit is available with a black or silver intercooler and wrinkle black or polished pipes. As with all Mishimoto products, this 2017-2020 3.5L F-150 EcoBoost Intercooler & Pipe kit is backed by our Lifetime Warranty.
- Increased intercooler pipe volume allows for better flow and power potential
- Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
- Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
Specifications
| Pipe Finish | Powder Coated |
| Pipe Material | Aluminum |
| Universal Or Specific Fit | Specific |
| Cold Side Pipe Inside Diameter | 3 |
| Core Thickness | 4.7 |
| Core Length | 19.6 |
| Core Height | 9.4 |
| Core Color | Silver |
| Core Construction | Bar-and-Plate |
| Core Material | Aluminum |
| Coupler Color | Black |
| Coupler Material | Silicone |
| End Tank Construction | Cast |
| End Tank Material | Aluminum |
| Grade Type | Performance |
| Hose Clamps Included | Yes |
| Hot Side Pipe Inside Diameter | 2.5 |
| Inlet Diameter | 2.5 |
| Outlet Diameter | 3 |
| Intercooler Type | Air-to-Air |
| Maximum Boost Pressure | 50 |
| Maximum Horsepower | 0 |
| Pipe Color | Polished |
| TechSpec Pipe Diameter | N/A |
| TechSpec Pipe Length | N/A |
| TechSpec Centerline Radius | N/A |
| SellingPoint01 | Direct fit for 2017-2020 Ford F-150 3.5L EcoBoost |
| SellingPoint02 | Increased intercooler pipe volume allows for better flow and power potential |
| SellingPoint03 | Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation |
| SellingPoint04 | Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors |
| SellingPoint05 | Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil |
| SellingPoint06 | Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract |
| SellingPoint07 | 10F (5.5C) reduction in intake air temp |
| SellingPoint08 | 77-percent increase in intercooler internal core volume |
| SellingPoint09 | 163-percent increase in external fin surface area |
| SellingPoint10 | All-aluminum, TIG-welded construction |
| SellingPoint11 | Fits with stock intercooler fans without modification |
| SellingPoint12 | Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish |
| SellingPoint13 | Mishimoto Lifetime Warranty |
| SellingPoint14 | N/A |
| SellingPoint15 | N/A |
| Install Difficulty | N/A |
| OptionLabel | Silver Intercooler, Polished Pipes |
| TechSpec Applications | 2017-2020 Ford F-150 3.5L V6 EcoBoost--2017-2020 Ford Raptor 3.5L V6 EcoBoost |
| TechSpec Engine Codes | 3.5L V6 EcoBoost |
| TechSpec Chassis Codes | N/A |
| TechSpec Maximum Recommended Boost Pressure (PSI) | 50 |
| TechSpec Maximum Recommended Horsepower | N/A |
| TechSpec Overall Length (in) | 29 |
| TechSpec Overall Height (in) | 9.5 |
| TechSpec Overall Width (in) | 7 |
| TechSpec Core Type | Bar-and-Plate |
| TechSpec Core Thickness (in) | 4.7 |
| TechSpec Core Length (in) | 19.6 |
| TechSpec Core Height (in) | 9.4 |
| TechSpec Inlet (in) | 2.5 |
| TechSpec Outlet (in) | 3 |
| TechSpec Weight (lbs) | N/A |
| TechSpec Note | N/A |
| TechSpec Includes | (1) Mishimoto Intercooler w/ Assembled Rubber Trim--(1) Bypass Valve Bracket--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange--(1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing--(4) Aluminum Hot-Side Intercooler Pipes--(8) Silicone Boots w/ DuraCore Technology--(16) Constant-Tension Worm Gear Clamps--Mounting Hardware--Bypass Valve Hardware--Mishimoto Lifetime Warranty |
| TechSpec Installation Notes | 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM). |
| TechSpec Pipe Shape | N/A |
Packaging Information
Weight: 42.02 lbs
Dimensions: 24.94 x 24.94 x 24.94 IN
Safety
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
⚠ Fitment Notes
- EO D-759-6
- EO Status Pending
Share
Vehicle Fitment
Vehicle Fitment
- 2017-2020 Ford F-150 King Ranch
- 2017-2020 Ford F-150 Lariat
- 2017-2020 Ford F-150 Limited
- 2017-2020 Ford F-150 Platinum
- 2018-2020 Ford F-150 Police Responder
- 2017-2020 Ford F-150 Raptor
- 2017-2020 Ford F-150 SSV
- 2017-2020 Ford F-150 XL
- 2017-2020 Ford F-150 XLT
