Mishimoto MMOP-SPT Oil Sandwich Plate, Gold, Thermostatic
Mishimoto MMOP-SPT Oil Sandwich Plate, Gold, Thermostatic
Low stock: 4 left
Couldn't load pickup availability
Description & Features

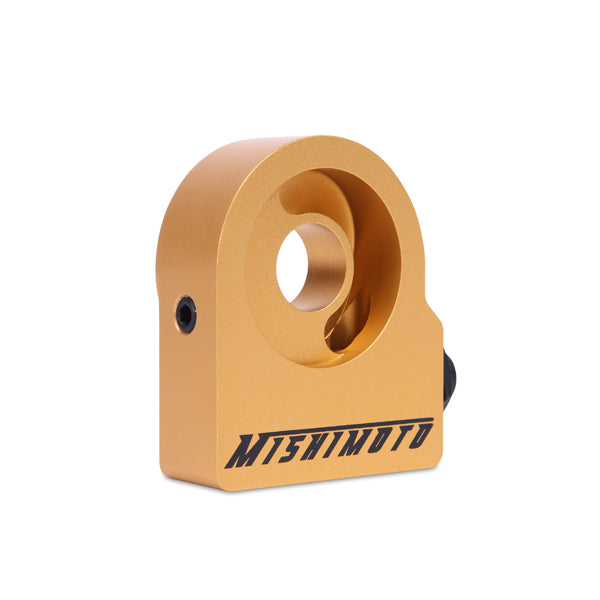

Mishimoto MMOP-SPT Oil Sandwich Plate, Gold, Thermostatic
This Mishimoto Thermostatic Oil Sandwich Plate is a lightweight, high-flow sandwich plate built from 6061 Aluminum.The built-in thermostat prevents oil flow to the cooler until the engine oil reaches activating temperature, allowing for both a faster warmup at startup and extra oil system protection in cold climates.The included 185 degree Fahrenheit thermostat can be changed with a 160 or 200 degree unit, adding unparalleled control over your desired engine oil operating temperature.
- 6061 aluminum, CNC-machined
- 1/8-in NPT port (with plug) for sensors/oil feed/etc.
- Built-in thermostat (185F / 85C)
Specifications
| Thickness | 1 |
| Port Quantity | 2 |
| Material | 6061 Aluminum |
| Color | Gold |
| Gasket Or Seal Included | Yes |
| TechSpec Rows | N/A |
| TechSpec Core Construction | N/A |
| TechSpec Core Length (in) | N/A |
| TechSpec Core Height (in) | N/A |
| TechSpec Core Thickness (in) | N/A |
| TechSpec Engine Codes | N/A |
| TechSpec Chassis Codes | N/A |
| TechSpec Installation Notes | N/A |
| TechSpec Caution | It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team. |
| TechSpec Overall Height (in) | 4.02 |
| TechSpec Overall Length (in) | 3.11 |
| TechSpec Overall Width (in) | 1.18 |
| TechSpec Inlet | N/A |
| TechSpec Outlet | N/A |
| TechSpec Includes | Thermostatic Oil Sandwich Plate--Rubber O-ring--Built-in Thermostat--Black 1/8-in NPT Plug--Mishimoto Lifetime Warranty |
| TechSpec Applications | N/A |
| TechSpec Fluid Capacity (qts) | N/A |
| TechSpec Note | N/A |
| SellingPoint01 | 6061 aluminum, CNC-machined |
| SellingPoint02 | 1/8-in NPT port (with plug) for sensors/oil feed/etc. |
| SellingPoint03 | Built-in thermostat (185F / 85C) |
| SellingPoint04 | Square O-ring design |
| SellingPoint05 | Mishimoto Lifetime Warranty |
| SellingPoint06 | N/A |
| SellingPoint07 | N/A |
| SellingPoint08 | N/A |
| SellingPoint09 | N/A |
| SellingPoint10 | N/A |
| SellingPoint11 | N/A |
| SellingPoint12 | N/A |
| SellingPoint13 | N/A |
| SellingPoint14 | N/A |
| SellingPoint15 | N/A |
| Install Difficulty | 2 |
Packaging Information
Weight: 1.01 lbs
Dimensions: 5.5 x 4 x 2.5 IN
