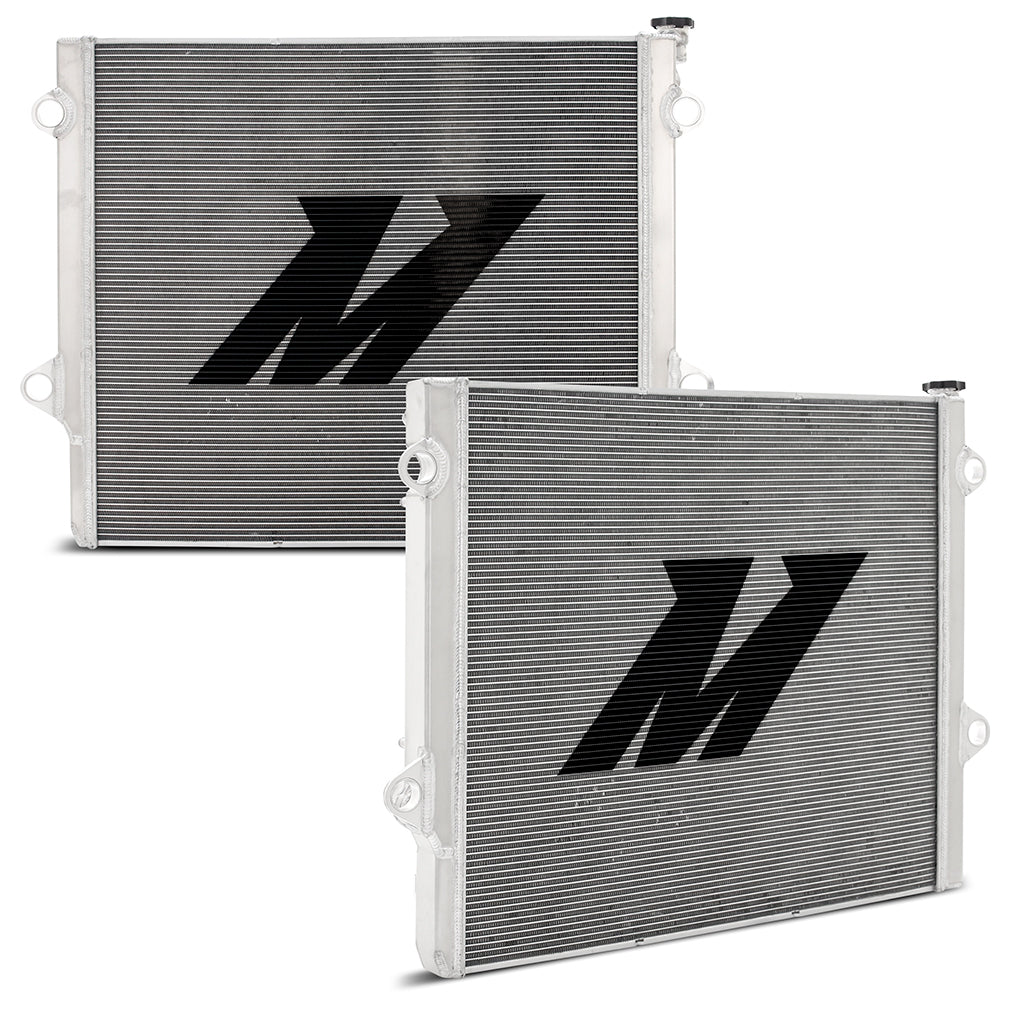

Mishimoto MMRAD-4RUN-03 Performance Aluminum Radiator, fits Toyota 4Runner V8 2003-2009

$649.95 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Description & Features

Mishimoto MMRAD-4RUN-03 Performance Aluminum Radiator, fits Toyota 4Runner V8 2003-2009

The 2003-2009 Toyota 4Runner V8 is known for its ruggedness, reliability, and off-road capability, but as they grow older the stock parts are starting to show their age. Over time, the factory radiator can develop issues such as leaks, corrosion, or clogging. Upgrading to a new Mishimoto performance aluminum radiator can prevent these problems before they occur, saving you from potential breakdowns on the trail. For those who use their 2003-2009 Toyota 4Runner for off-roading, this radiator can handle the additional strain and heat generated during these activities, providing better reliability and performance in rugged conditions. Our direct-fit radiator features a 40mm thick core for increased cooling capacity. Constructed entirely from aluminum with durable, TIG-welded end tanks, it includes an efficient in-tank liquid-to-liquid stacked plate transmission cooler for optimal transmission fluid temperature control. The radiator also comes with a magnetic drain plug to capture metallic debris in your cooling system and is backed by the Mishimoto Lifetime Warranty for peace of mind.

40mm thick core provides increased cooling capacity

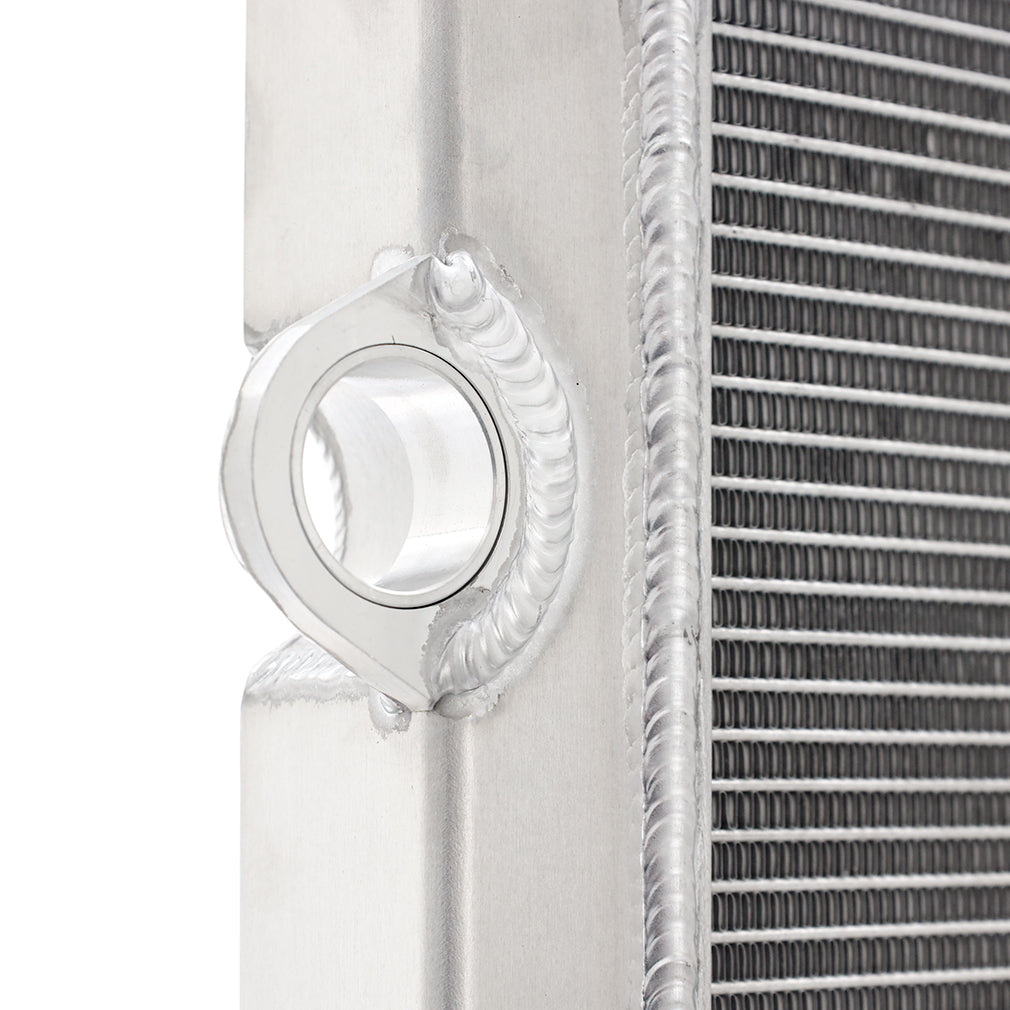

Full aluminum construction with durable, TIG-welded end tanks
Efficient in-tank liquid-to-liquid stacked plate transmission cooler provides optimal control of transmission fluid temperatures

Specifications

Core Row Quantity	1
Inlet Diameter	1.5
Outlet Diameter	1.5
Core Thickness	1.57
Core Height	23.5
Overall Height	25.11
Core Length	25.59
Overall Length	32.66
Overall Width	4.04
Fluid Capacity	4.1
Outlet Location	Bottom Right
Down Flow Or Cross Flow Type	Cross Flow
Drain Plug Thread Size	M12 - 1.5
Transmission Oil Cooler Fitting Type	N/A
Inlet Location	Top Left
Core Finish	Uncoated
Drain Plug Included	Yes
Transmission Oil Cooler Included	Yes
Radiator Cap Included	Yes
Core Material	Aluminum
TechSpec Overall Height (in)	25.11
TechSpec Overall Length (in)	32.66
TechSpec Overall Width (in)	4.04
TechSpec Core Length (in)	25.59
TechSpec Core Height (in)	23.5
TechSpec Fluid Capacity (gal)	4.2
TechSpec Rows	1
TechSpec Inlet (in)	1.5
TechSpec Outlet (in)	1.5
TechSpec Core Thickness (in)	1.57
TechSpec Drain Plug Thread Size	M12x1.5
TechSpec DPI	2581
TechSpec Material	Aluminium
TechSpec Applications	2003-2009 Toyota 4-Runner V8 4.7L--2003-2009 Lexus GX470
TechSpec Engine Codes	2UZ-FE
TechSpec Chassis Codes	N210
TechSpec Note	N/A
TechSpec Includes	(1) Aluminum Radiator-- (1) 1.3 Bar Radiator Cap-- (3) M6 X 1.0 X 12 Hex Head Bolts-- (6) M6 Clip Nuts-- (1) M5 X 0.8 X 14 Hex Head Bolt-- Mishimoto Lifetime Warranty
Install Difficulty	3
SellingPoint01	Direct Fit for Toyota 4Runner/Lexus GX470 4.7L V8, 2003-2009
SellingPoint02	40mm thick core provides increased cooling capacity
SellingPoint03	Full aluminum construction with durable, TIG-welded end tanks
SellingPoint04	Efficient in-tank liquid-to-liquid stacked plate transmission cooler provides optimal control of transmission fluid temperatures
SellingPoint05	Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint06	Includes adhesive-backed EPDM foam ensuring an efficient airflow seal between the radiator and radiator support
SellingPoint07	Mishimoto Lifetime Warranty
