Mishimoto

Mishimoto MMRAD-4RUN-10 Performance Aluminum Radiator, fits Toyota 4Runner 2010-2024

$594.95 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

Low stock: 2 left

Description & Features

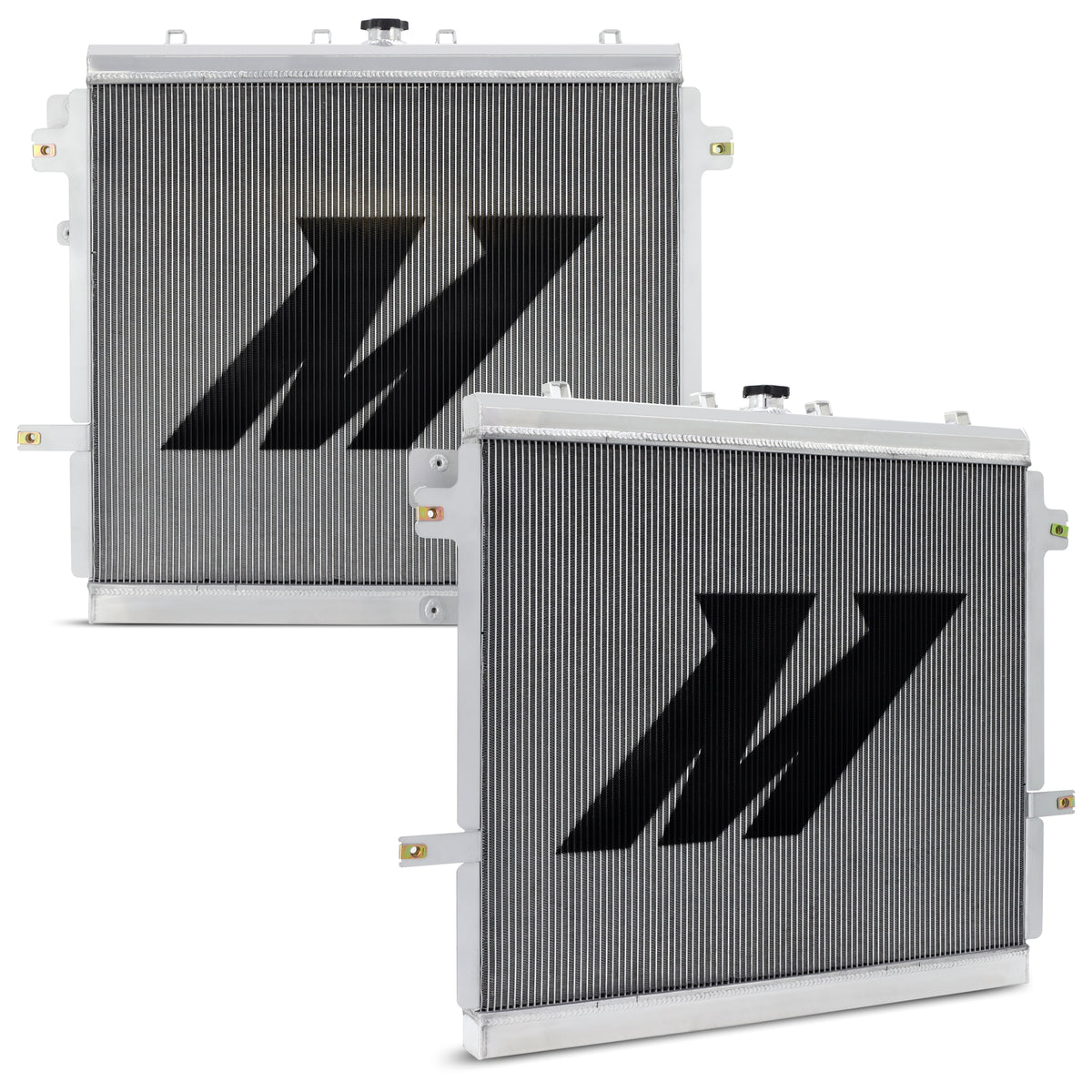

Mishimoto MMRAD-4RUN-10 Performance Aluminum Radiator, fits Toyota 4Runner 2010-2024

Upgrade your 2010-2024 Toyota 4Runner with a radiator built to match its legendary durability. Constructed from TIG-welded aluminum with robust aluminum side brackets, this radiator eliminates the brittle plastic components found in the stock unit, preventing cracks and leaks while ensuring a secure fit. A 60% increase in core volume and 120% increase in internal tube area paired with an oversized 7-row in-tank automatic transmission cooler provide superior cooling capacity, keeping temperatures under control whether you're towing heavy loads or tackling demanding trails. -- For added protection and efficiency, the radiator includes a magnetic drain plug to capture debris and a 1.3 bar high-pressure radiator cap that raises the coolant's boiling point for improved system performance. Backed by the Mishimoto Lifetime Warranty, this radiator is a true two-for-one upgrade that delivers unmatched reliability and cooling power for your 4Runner.

TIG-welded aluminum construction for maximum durability and reliability
Oversized 7-row in-tank transmission cooler for improved towing and off-roading capability
60% increased core volume over stock offers more efficient cooling in demanding conditions

Specifications

Inlet Diameter	1.22
Outlet Diameter	1.26
Fluid Capacity	1.42
Core Thickness	1.7
Core Row Quantity	2
Core Height	22.5
Core Length	22.5
Overall Height	27.4
Overall Width	32.1
Overall Length	4.8
Core Material	Aluminum
Outlet Location	Bottom Left
Down Flow Or Cross Flow Type	Down Flow
Drain Plug Thread Size	M12 - 1.5
Transmission Oil Cooler Fitting Type	N/A
Inlet Location	Top Right
Core Finish	Uncoated
Drain Plug Included	Yes
Transmission Oil Cooler Included	Yes
Radiator Cap Included	Yes
SellingPoint01	TIG-welded aluminum construction for maximum durability and reliability
SellingPoint02	Oversized 7-row in-tank transmission cooler for improved towing and off-roading capability
SellingPoint03	60% increased core volume over stock offers more efficient cooling in demanding conditions
SellingPoint04	Durable aluminum side brackets offer secure and dependable mounting
SellingPoint05	Replaces brittle plastic stock components with robust aluminum to prevent cracks and leaks
SellingPoint06	Includes magnetic drain plug to capture debris and fragments in your cooling system

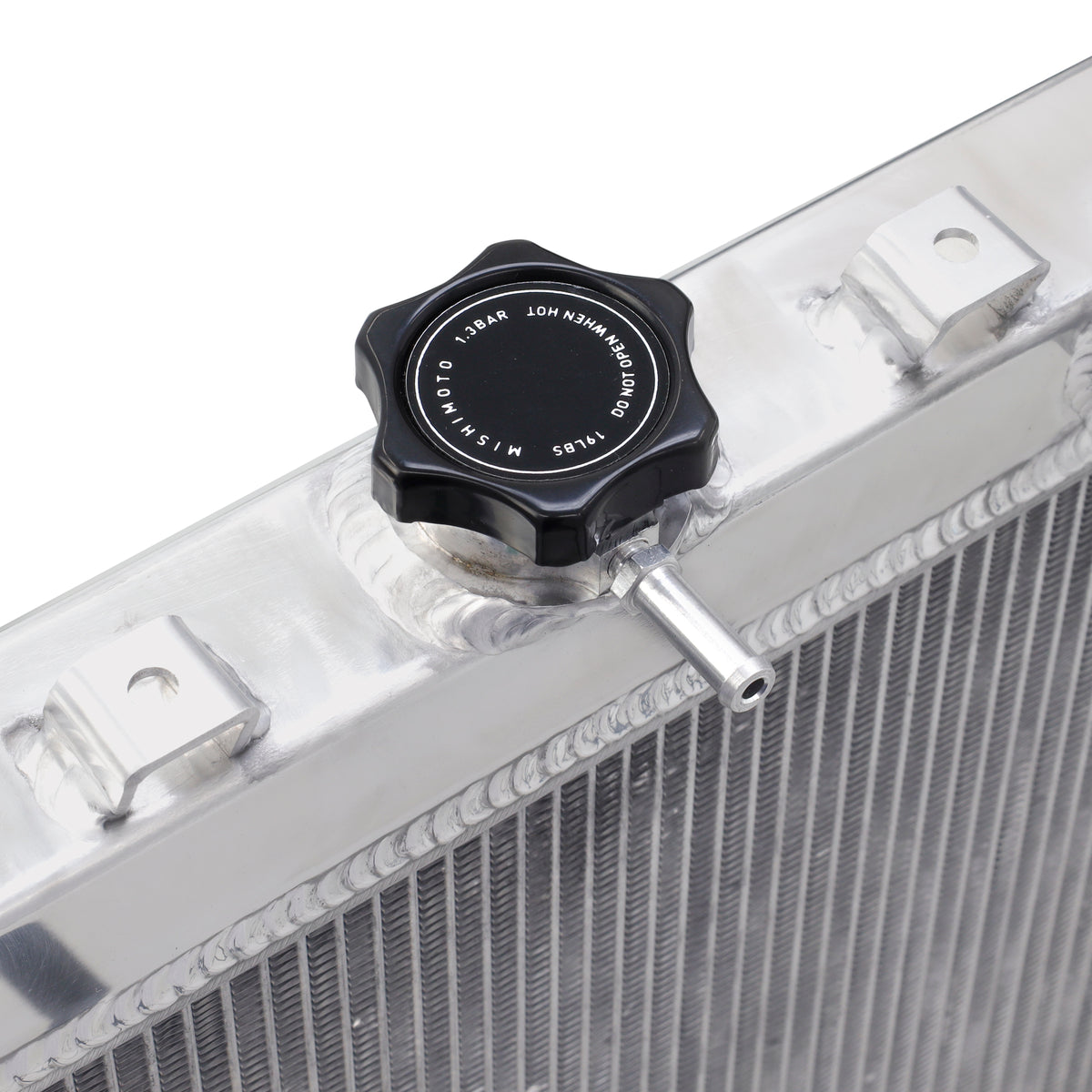

SellingPoint07	Includes 1.3 bar high-pressure radiator cap to raise coolant boiling point and increase cooling system efficiency
SellingPoint08	Mishimoto Lifetime Warranty
SellingPoint09	N/A
SellingPoint10	N/A
SellingPoint11	N/A
SellingPoint12	N/A
SellingPoint13	N/A
SellingPoint14	N/A
SellingPoint15	N/A
TechSpec Overall Height (in)	27.4
TechSpec Overall Length (in)	4.8
TechSpec Overall Width (in)	32.1
TechSpec Core Length (in)	22.5
TechSpec Core Height (in)	22.5
TechSpec Fluid Capacity (gal)	1.5
TechSpec Rows	2
TechSpec Inlet (in)	1.22
TechSpec Outlet (in)	1.26
TechSpec Core Thickness (in)	1.7
TechSpec Drain Plug Thread Size	M12X1.5
TechSpec DPI	N/A
TechSpec Material	Aluminum
TechSpec Applications	2010-2024 Toyota 4Runner
TechSpec Note	N/A
TechSpec Engine Codes	4.0L 1GR-FE V6
TechSpec Chassis Codes	N280
TechSpec Includes	(1) Mishimoto Performance Radiator--(1) Magnetic Drain Plug--(1) Mishimoto Performance Radiator Cap--(1) Mishimoto Lifetime Warranty
Install Difficulty	3
