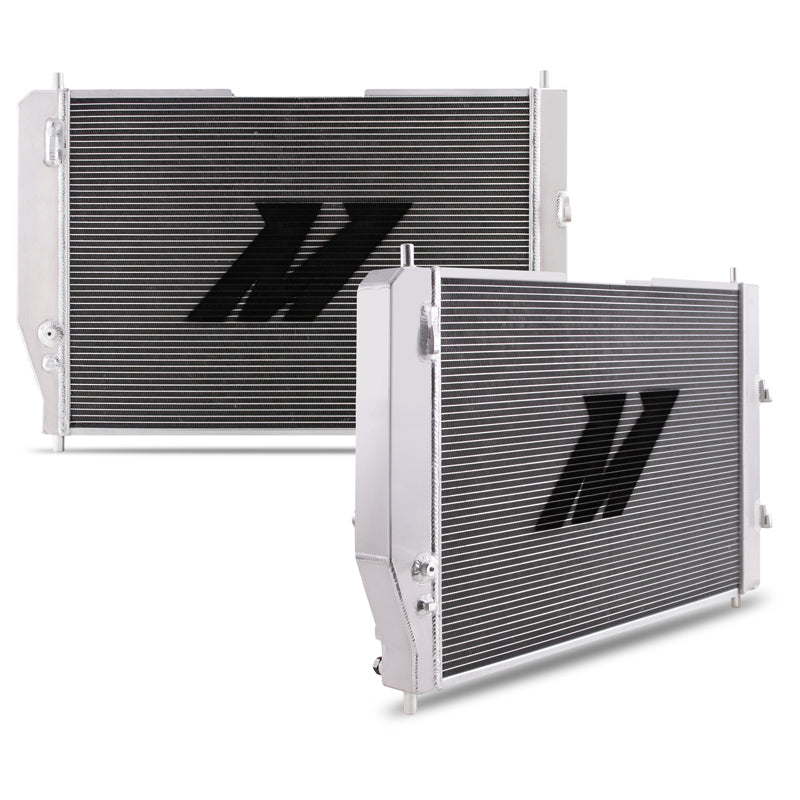

Mishimoto MMRAD-C6-05 Performance Aluminum Radiator, fits Chevrolet Corvette 2005-2013

$749.95 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Description & Features

Mishimoto MMRAD-C6-05 Performance Aluminum Radiator, fits Chevrolet Corvette 2005-2013

Keep your C6 on the track longer with the Mishimoto 2005-2013 Chevrolet Corvette Performance Aluminum Radiator. It's no secret that Chevy throttled the C6 Corvette?s cooling system with the limited airflow, and undersized radiator equipped from the factory. There's no way to bring your track day to a screeching halt like an overheated LS engine. Mishimoto is here to help by way of swapping out ill-equipped stock plastic radiator with our all aluminum performance radiator. We started by ditching the plastic in the end-tanks for TIG-welded aluminum, both increasing the size, and improving the longevity. Our improvements didn?t? stop at the end tanks either. Our engineer redesigned the core with two rows of coolant passages and bumped the thickness to two inches. This new design equates to a 56-percent increase in fin surface area, 45-percent increase in volume contributing to improved cooling properties.The Mishimoto 2005-2013 Chevrolet Corvette Performance Aluminum Radiator also features engine oil and automatic transmission coolers integrated into the end tanks, ensuring that It's a direct fit for your C6 no matter the cooling package equipped. The Mishimoto C6 Performance Radiator also includes the Mishimoto Lifetime Warranty.

Full aluminum construction with durable, TIG-welded end tanks
Integrated end-tank oil and automatic transmission coolers
Drops outlet temperature by 5F across powerband

Specifications

Overall Height	0
Inlet Diameter	0
Outlet Diameter	0
Fluid Capacity	0
Overall Length	0
Overall Width	0
Core Height	18
Core Thickness	2
Core Row Quantity	2
Core Length	24
Core Material	Aluminum
Outlet Location	Bottom Right
Down Flow Or Cross Flow Type	Cross Flow
Drain Plug Thread Size	M12 - 1.5
Transmission Oil Cooler Fitting Type	N/A
Radiator Cap Included	No
Inlet Location	Top Left
Core Finish	Uncoated
Drain Plug Included	Yes
Transmission Oil Cooler Included	Yes
TechSpec Note	N/A
TechSpec Includes	Aluminum Radiator--Mishimoto Lifetime Warranty
SellingPoint01	Direct fit for the 2005-2013 C6 Chevrolet Corvette
SellingPoint02	Full aluminum construction with durable, TIG-welded end tanks
SellingPoint03	Integrated end-tank oil and automatic transmission coolers
SellingPoint04	Drops outlet temperature by 5F across powerband
SellingPoint05	Features a two-row 2-in thick brazed aluminum core, providing ideal fluid temperatures on the street and at the track
SellingPoint06	56-percent increase in fin surface area for optimal cooling properties
SellingPoint07	Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint08	Patent numberD905,759
SellingPoint09	Mishimoto Lifetime Warranty
SellingPoint10	N/A
SellingPoint11	N/A
SellingPoint12	N/A
SellingPoint13	N/A
SellingPoint14	N/A
SellingPoint15	N/A
Install Difficulty	3
TechSpec Overall Height (in)	N/A
TechSpec Overall Length (in)	N/A
TechSpec Overall Width (in)	N/A
TechSpec Core Length (in)	24
TechSpec Core Height (in)	18
TechSpec Fluid Capacity (gal)	N/A
TechSpec Rows	2
TechSpec Inlet (in)	N/A
TechSpec Outlet (in)	N/A
TechSpec Core Thickness (in)	2
TechSpec Drain Plug Thread Size	M12 x 1.5
TechSpec DPI	N/A
TechSpec Material	Aluminum
TechSpec Applications	2005-2013 Chevrolet Corvette--2006-2009 Chevrolet Corvette Z51--2006-2013 Chevrolet Corvette Z06--2010-2013 Chevrolet Corvette Grand Sport
TechSpec Engine Codes	LS2--LS3--LS7
TechSpec Chassis Codes	C6
