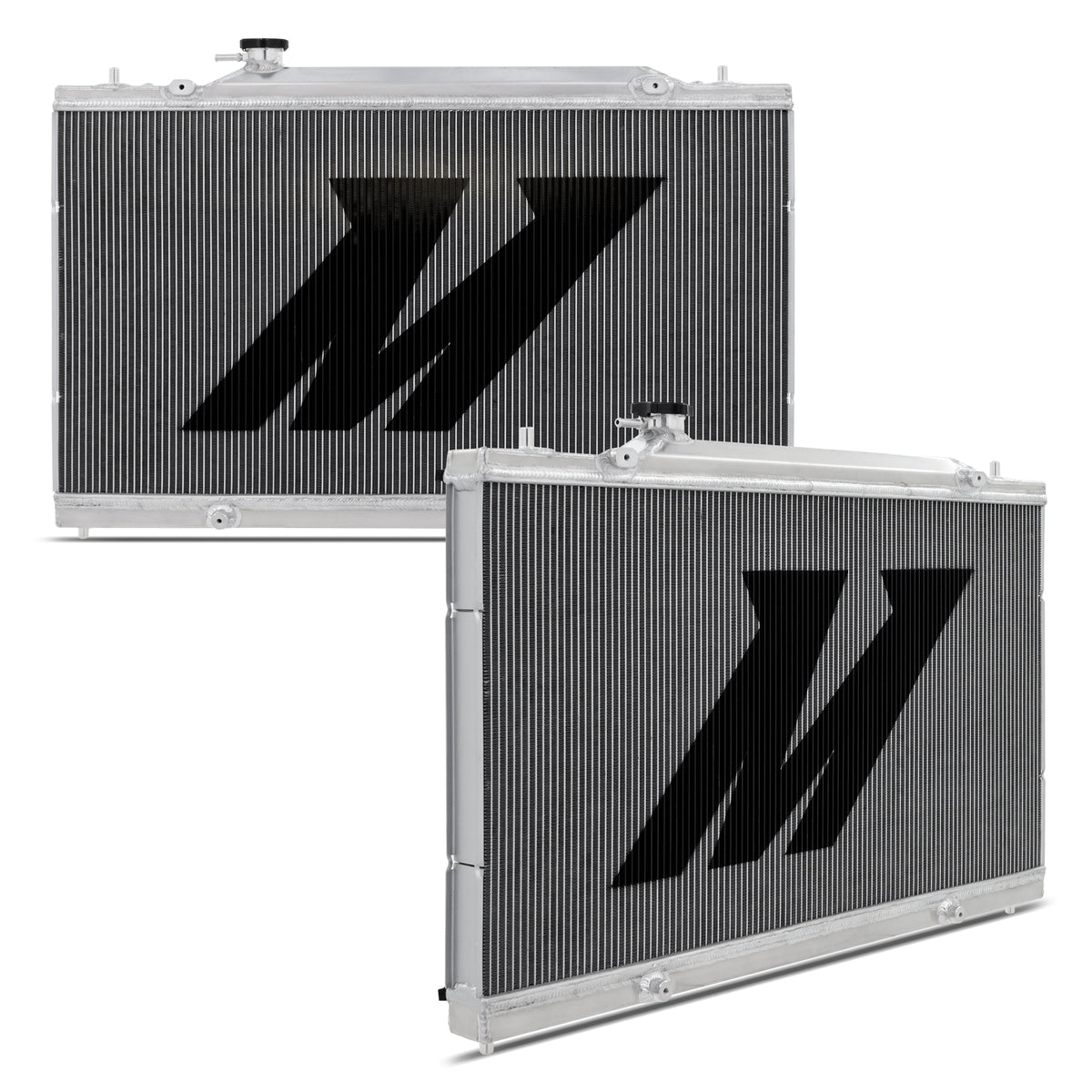

Mishimoto MMRAD-CIV-22 Performance Aluminum Radiator, fits Honda Civic 1.5T 2022+

$699.95 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

Low stock: 3 left

Description & Features

Mishimoto MMRAD-CIV-22 Performance Aluminum Radiator, fits Honda Civic 1.5T 2022+

Upgrade the cooling system of your 2022+ Honda Civic 1.5T with the Mishimoto Performance Radiator, engineered for maximum efficiency and durability. The all-aluminum construction features precision TIG-welded end tanks and a robust 40mm thick strutted tube core that's designed to resist chassis flex during intense driving. With a 44% increase in core volume, a 53% larger external fin area, and an 85% boost in internal tube area, this radiator ensures efficient heat transfer and dissipation to keep your engine cool in the most demanding of conditions. -- Designed as a direct-fit upgrade, this radiator offers plug-and-play installation without the need for bumper removal. It's also fully compatible with both stock hoses and the Mishimoto Silicone Coolant Hose Kit, making it an easy addition to your Civic. The included magnetic drain plug helps protect your cooling system by capturing metallic debris, and this radiator comes backed by the Mishimoto Lifetime Warranty.

All-aluminum design with precision TIG-welded end tanks
Plug-and-play installation without need for bumper removal
44% increase in core volume for improved cooling capacity

Specifications

Fluid Capacity	0.87
Core Row Quantity	1
Inlet Diameter	1.26
Outlet Diameter	1.26
Core Thickness	1.57
Core Height	15.82
Overall Height	20.92
Core Length	29.81
Overall Length	30.44
Overall Width	4.38
Core Material	Aluminum
Outlet Location	Bottom Left
Down Flow Or Cross Flow Type	Down Flow
Drain Plug Thread Size	M12 - 1.5
Transmission Oil Cooler Fitting Type	N/A
Transmission Oil Cooler Included	No
Inlet Location	Top Left
Core Finish	Uncoated
Drain Plug Included	Yes
Radiator Cap Included	Yes
SellingPoint01	Direct fit for the 2022+ Honda Civic 1.5T
SellingPoint02	All-aluminum design with precision TIG-welded end tanks
SellingPoint03	Plug-and-play installation without need for bumper removal
SellingPoint04	44% increase in core volume for improved cooling capacity
SellingPoint05	53% increase in external fin area to efficiently transfer heat from coolant
SellingPoint06	85% increase in internal tube area for improved heat dissipation
SellingPoint07	Sturdy 40mm thick strutted tube core resists chassis flex
SellingPoint08	Includes Mishimoto Magnetic Drain Plug to capture metallic debris within cooling system
SellingPoint09	Compatible with Mishimoto Silicone Coolant Hose Kit [HYPERLINK TO MMHOSE-CIV-22] and stock
SellingPoint10	Includes 1.3 bar high-pressure radiator cap
SellingPoint11	Mishimoto Lifetime Warranty
SellingPoint12	N/A
SellingPoint13	N/A
SellingPoint14	N/A
SellingPoint15	N/A
TechSpec Overall Height (in)	20.92
TechSpec Overall Length (in)	30.44
TechSpec Overall Width (in)	4.38
TechSpec Core Length (in)	29.81
TechSpec Core Height (in)	15.82
TechSpec Fluid Capacity (gal)	0.9
TechSpec Rows	1
TechSpec Inlet (in)	1.26
TechSpec Outlet (in)	1.26
TechSpec Core Thickness (in)	1.57
TechSpec Drain Plug Thread Size	M12 X 1.5
TechSpec DPI	13938
TechSpec Material	Aluminum
TechSpec Applications	Honda Civic Sedan (EX-L, Sport Touring) 1.5L L4 2022+--Honda Civic Si 1.5L L4 2022+--Acura Integra (Base, A-Spec) 1.5L L4 2023+--Honda Accord 1.5L L4 2023+--Honda Accord 2.0L L4 2023+
TechSpec Engine Codes	L15B7--L15C--L15BJ--L15BG--L15CA--L15BE-LFC5
TechSpec Chassis Codes	FE1--FE2--FE4--FL1--FL2--FL4--DE4--CY1--CY2
TechSpec Note	N/A
TechSpec Includes	(1) Mishimoto Performance Radiator--(1) Fan Shroud/ AC condenser hardware kit--Mishimoto Lifetime Warranty
Install Difficulty	3
