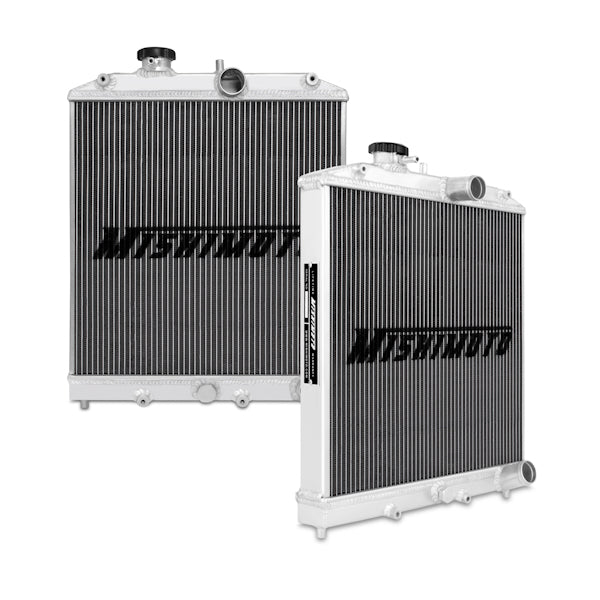

Mishimoto MMRAD-CIV-92 Performance Aluminum Radiator, fits Honda Civic 1992-2000

$261.95 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

Mishimoto MMRAD-CIV-92 Performance Aluminum Radiator, fits Honda Civic 1992-2000

Whether you drive a stock EG or a boosted EK, coolant temperatures are key to a reliable, efficient engine. The Mishimoto Honda Civic Performance Aluminum Radiator is an ideal upgrade for achieving optimal coolant temperatures on and off the track. This radiator is precision engineered to retain factory fitment for a painless installation. To provide additional cooling efficiency this radiator is constructed using a 100-percent brazed aluminum core with TIG-welded aluminum end tanks for superior heat dissipation, reliability, and strength. Turbocharged, high-powered, naturally aspirated applications can produce substantial under-hood temperatures that can accelerate wear or cause engine damage if not properly regulated. Protect your investment with the Mishimoto Honda Civic Performance Aluminum Radiator. This performance radiator includes a high-pressure 1.3 bar radiator cap that effectively raises the boiling point of coolant to create a safer and more efficient system. The Mishimoto Honda Civic aluminum radiator features an efficient dual-core design, which provides maximum cooling while maintaining a compact size, making this the perfect radiator for custom applications. Whether you need to replace that leaking factory radiator or provide additional cooling for your track car, the Mishimoto Honda Civic aluminum radiator is an ideal upgrade. As with all our products, this radiator includes the Mishimoto Lifetime Warranty.

Full aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
Manufactured with robust TIG-welded end tanks for improved strength
100-percent brazed aluminum core for maximum reliability

Specifications

Inlet Diameter	1.25
Outlet Diameter	1.25
Fluid Capacity	1.49
Core Thickness	1.65
Core Length	13.78
Core Height	14.09
Overall Length	14.6
Overall Height	18.5
Core Row Quantity	2
Overall Width	2.15
Core Material	Aluminum
Outlet Location	Bottom Right
Down Flow Or Cross Flow Type	Down Flow
Drain Plug Thread Size	M12 - 1.5
Transmission Oil Cooler Fitting Type	N/A
Transmission Oil Cooler Included	No
Inlet Location	Top Right
Core Finish	Uncoated
Drain Plug Included	Yes
Radiator Cap Included	Yes
SellingPoint03	100-percent brazed aluminum core for maximum reliability
SellingPoint04	Increased coolant capacity directly results in improved cooling efficiency and engine temperature reduction
SellingPoint05	Included 1.3 bar radiator cap raises the boiling point of engine coolant to provide a safer and more efficient system
SellingPoint06	Designed to original equipment specifications for the 1992-2000 Honda Civic
SellingPoint07	Mishimoto Lifetime Warranty ensures product quality and craftsmanship
SellingPoint08	N/A
SellingPoint09	N/A
SellingPoint10	N/A
SellingPoint11	N/A
SellingPoint12	N/A
SellingPoint13	N/A
SellingPoint14	N/A
SellingPoint15	N/A
Install Difficulty	3
TechSpec Overall Height (in)	18.5
TechSpec Overall Length (in)	14.6
TechSpec Overall Width (in)	2.15
TechSpec Core Length (in)	13.78
TechSpec Core Height (in)	14.09
TechSpec Fluid Capacity (gal)	1.5
TechSpec Rows	2
TechSpec Inlet (in)	1.25
TechSpec Outlet (in)	1.25
TechSpec Core Thickness (in)	1.65
TechSpec Drain Plug Thread Size	M12 x 1.5
TechSpec DPI	1290
TechSpec Material	N/A
TechSpec Applications	1992-2000 Honda Civic (All)--1993-1997 Honda Civic Del Sol
TechSpec Engine Codes	D15b1, D15b7, D15b8, D15z1, D16z6, D16y5, D16y7, D16y8, B16a2, B16a3
TechSpec Chassis Codes	EG1, EH6, EG2, EH2, EH3, EH9, EJ1, EJ2, EJ6, EJ7, EJ8, EM1
TechSpec Note	This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Includes	Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
SellingPoint01	Full aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
SellingPoint02	Manufactured with robust TIG-welded end tanks for improved strength
