Mishimoto MMRAD-CTR-23 Performance Aluminum Radiator, fits Honda Civic Type R 2023+

$749.95 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Description & Features

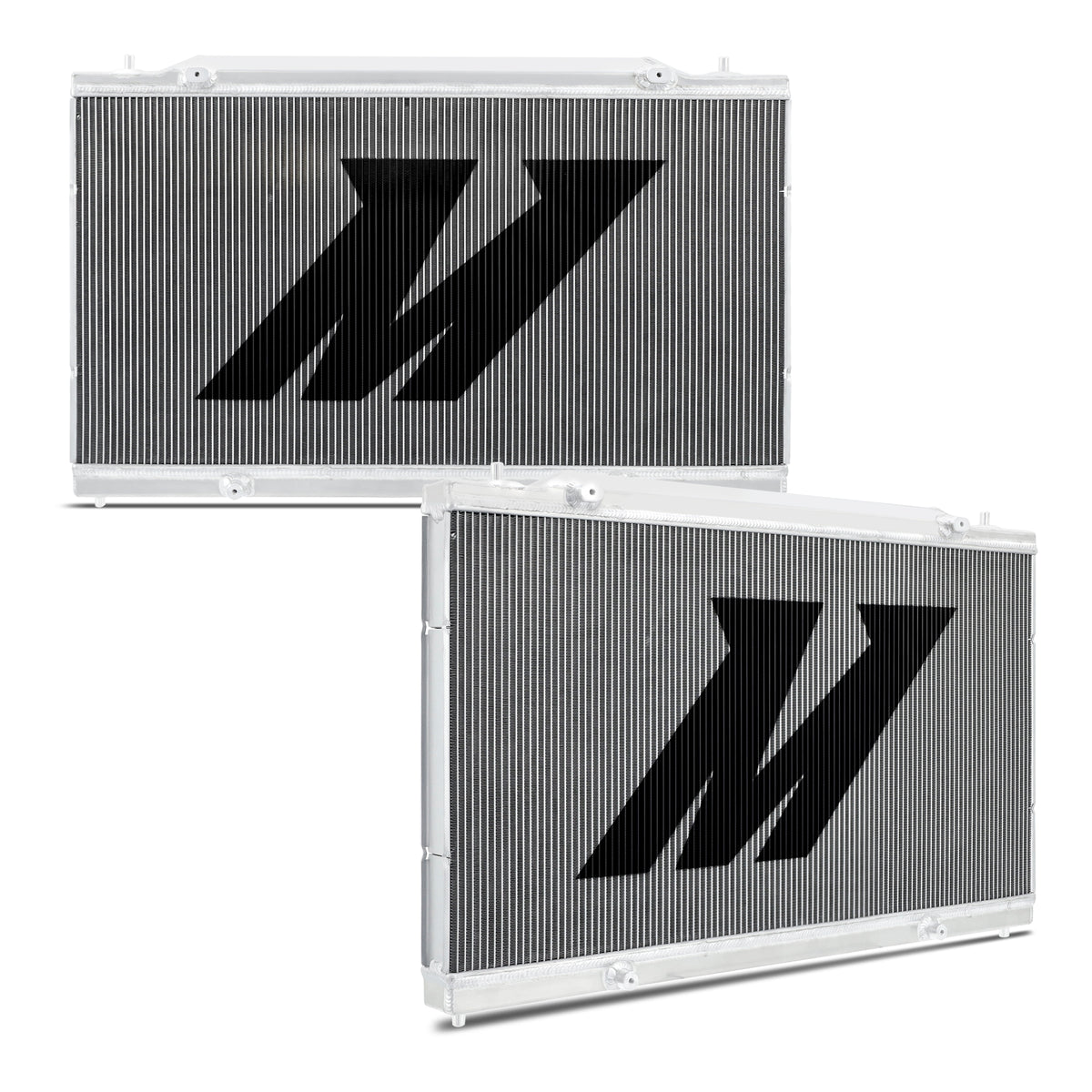

Mishimoto MMRAD-CTR-23 Performance Aluminum Radiator, fits Honda Civic Type R 2023+

Upgrade the cooling system of your 2023+ Honda Civic Type R with the Mishimoto Performance Radiator, engineered to utilize every millimeter possible for maximum efficiency and durability with a 17% heat rejection lowering temps on average between five to ten degrees. The all-aluminum construction features precision TIG-welded end tanks and a robust 40mm thick strutted tube core that's designed to resist chassis flex during intense driving. With a 49% increase in core volume, a 31% larger external fin area, and a 31% boost in internal tube area, this radiator ensures efficient heat transfer and dissipation to keep your engine cool in the most demanding of conditions. -- Designed as a direct-fit upgrade, this radiator offers plug-and-play installation without the need for bumper removal. Radiator include foam seals to fan shroud for optimal airflow and is also fully compatible with stock hoses making it an easy addition to your Civic. The included magnetic drain plug helps protect your cooling system by capturing metallic debris, and this radiator comes backed by the Mishimoto Lifetime Warranty.

All-aluminum design with precision TIG-welded end tanks
Plug-and-play installation without need for bumper removal
Pair with MMHOSE-CTR-23 for a complete cooling system

Specifications

Fluid Capacity	0.87
Core Row Quantity	1
Inlet Diameter	1.26
Outlet Diameter	1.26
Core Thickness	1.5
Core Height	15.8
Overall Height	19.8
Core Length	29.8
Overall Length	30.4
Overall Width	4.5
Core Material	Aluminum
Outlet Location	Bottom Left
Down Flow Or Cross Flow Type	Down Flow
Drain Plug Thread Size	M12 - 1.5
Transmission Oil Cooler Fitting Type	N/A
Transmission Oil Cooler Included	No
Radiator Cap Included	No
Inlet Location	Top Left
Core Finish	Uncoated
Drain Plug Included	Yes
TechSpec Applications	Acura Integra Type S 2 L4 2024+--Honda Civic Type R 2 L4 2023+
TechSpec Engine Codes	K20C1
TechSpec Chassis Codes	FL5--DE5
TechSpec Note	N/A
TechSpec Includes	(1) Mishimoto Performance Radiator--Mishimoto Lifetime Warranty
Install Difficulty	3
SellingPoint01	Direct fit for the 2023+ Honda Civic Type R
SellingPoint02	All-aluminum design with precision TIG-welded end tanks
SellingPoint03	Plug-and-play installation without need for bumper removal
SellingPoint04	Pair with MMHOSE-CTR-23 for a complete cooling system
SellingPoint05	17% increase in heat rejection, creating on average a 5 – 10 degree drop in outlet temperatures
SellingPoint06	49% increase in core volume for improved cooling capacity
SellingPoint07	31% increase in external fin area to efficiently transfer heat from coolant
SellingPoint08	31% increase in internal tube area for improved heat dissipation
SellingPoint09	Sturdy 40mm thick strutted tube single row core resists chassis flex
SellingPoint10	Includes Mishimoto Magnetic Drain Plug to capture metallic debris within cooling system

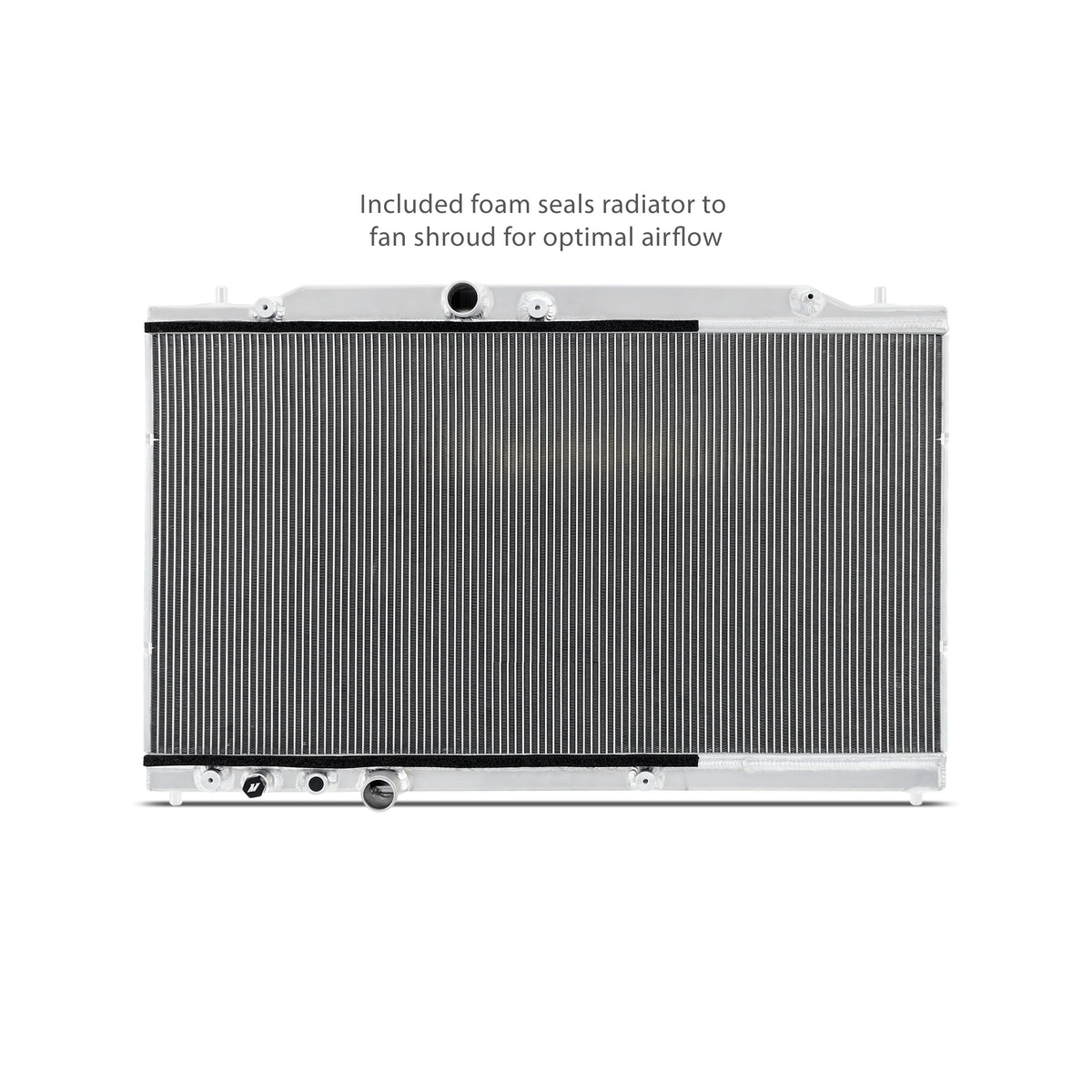

SellingPoint11	Included foam seals radiator to fan shroud for optimal airflow
SellingPoint12	Mishimoto Lifetime Warranty
SellingPoint13	N/A
SellingPoint14	N/A
SellingPoint15	N/A
TechSpec Overall Height (in)	19.8
TechSpec Overall Length (in)	30.4
TechSpec Overall Width (in)	4.5
TechSpec Core Length (in)	29.8
TechSpec Core Height (in)	15.8
TechSpec Fluid Capacity (gal)	0.9
TechSpec Rows	1
TechSpec Inlet (in)	1.26
TechSpec Outlet (in)	1.26
TechSpec Core Thickness (in)	1.5
TechSpec Drain Plug Thread Size	M12 X 1.5
TechSpec DPI	7221
TechSpec Material	Aluminum
