Mishimoto

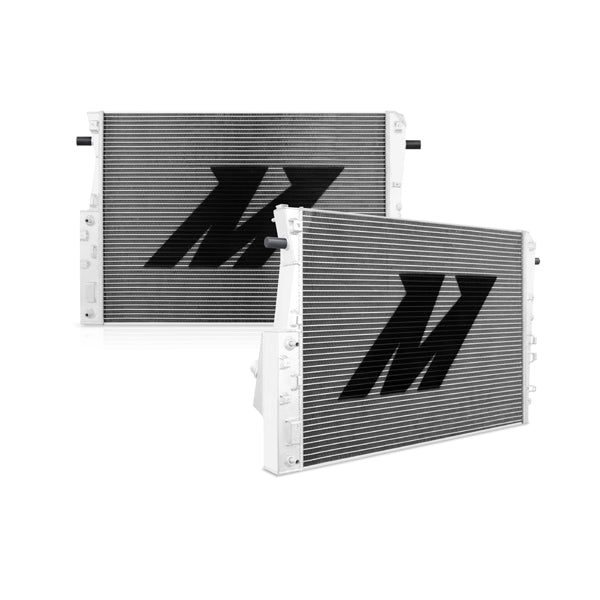

Mishimoto MMRAD-F2D-08V2 Performance Aluminum Radiator, fits Ford 6.4L Powerstroke 2008-2010

$1,095.95 USD

Sale Sold out

Shipping calculated at checkout.

Low stock: 2 left

Description & Features

Mishimoto MMRAD-F2D-08V2 Performance Aluminum Radiator, fits Ford 6.4L Powerstroke 2008-2010

The 2008-2010 6.4L Ford Powerstroke is plagued with radiator and cooling issues with no effective solution available—until now. Upgrade your truck with the Mishimoto 6.4L Powerstroke aluminum radiator to put an end to puddles of coolant under your truck. Mishimoto radiators are constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core. Our 6.4L radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your Powerstroke on the road and out of the shop. The Mishimoto performance radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. As with all our products, this radiator is protected by the Mishimoto Lifetime Warranty.

Enhanced second generation product design
Dual-molded aluminum/rubber mounting pegs to reduce torque transfer to the radiator
Internally strutted tubes for increased strength against high pressure and temperature

Specifications

Inlet Diameter	0
Outlet Diameter	0
Core Row Quantity	2
Core Thickness	2.76
Core Length	27.48
Overall Height	28.7
Core Height	37.01
Overall Length	45.7
Fluid Capacity	8.36
Overall Width	8.9
Core Material	Aluminum
Outlet Location	Bottom Right
Down Flow Or Cross Flow Type	Cross Flow
Drain Plug Thread Size	M12 - 1.5
Transmission Oil Cooler Fitting Type	N/A
Transmission Oil Cooler Included	No
Radiator Cap Included	No
Inlet Location	Top Left
Core Finish	Uncoated
Drain Plug Included	Yes
TechSpec Overall Height (in)	28.7
TechSpec Overall Length (in)	45.7
TechSpec Overall Width (in)	8.9
TechSpec Core Length (in)	27.48
TechSpec Core Height (in)	37.01
TechSpec Fluid Capacity (gal)	8.4
TechSpec Rows	2
TechSpec Inlet (in)	N/A
TechSpec Outlet (in)	N/A
TechSpec Core Thickness (in)	2.76
TechSpec Drain Plug Thread Size	M12 x 1.5
TechSpec DPI	13022
TechSpec Material	Aluminum
TechSpec Applications	2008-2010 Ford F-250 w/ 6.4L Powerstroke--2008-2010 Ford F-350 w/ 6.4L Powerstroke--2008-2010 Ford F-450 w/ 6.4L Powerstroke--2008-2010 Ford F-550 w/ 6.4L Powerstroke
TechSpec Engine Codes	N/A
TechSpec Chassis Codes	N/A
TechSpec Note	N/A
TechSpec Includes	Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(2) Rubber Mounting Pegs--(8) M6 x 1.0 x 14mm Bolts--Mishimoto Lifetime Warranty
SellingPoint01	Enhanced second generation product design
SellingPoint02	Direct fit for the 2008-2010 Ford 6.4L Powerstroke
SellingPoint03	Dual-molded aluminum/rubber mounting pegs to reduce torque transfer to the radiator
SellingPoint04	Internally strutted tubes for increased strength against high pressure and temperature
SellingPoint05	Strengthened top and bottom core support plates prevent core torquing and bending
SellingPoint06	Inlet and outlet have CNC-machined OEM-style quick-disconnects
SellingPoint07	100-percent brazed aluminum core
SellingPoint08	TIG-welded to perfection
SellingPoint09	Includes magnetic drain plug
SellingPoint10	US Patent Numbers D717,702, ZL 201430130878.8
SellingPoint11	Mishimoto Lifetime Warranty
SellingPoint12	N/A
SellingPoint13	N/A
SellingPoint14	N/A
SellingPoint15	N/A
Install Difficulty	3
