Mishimoto

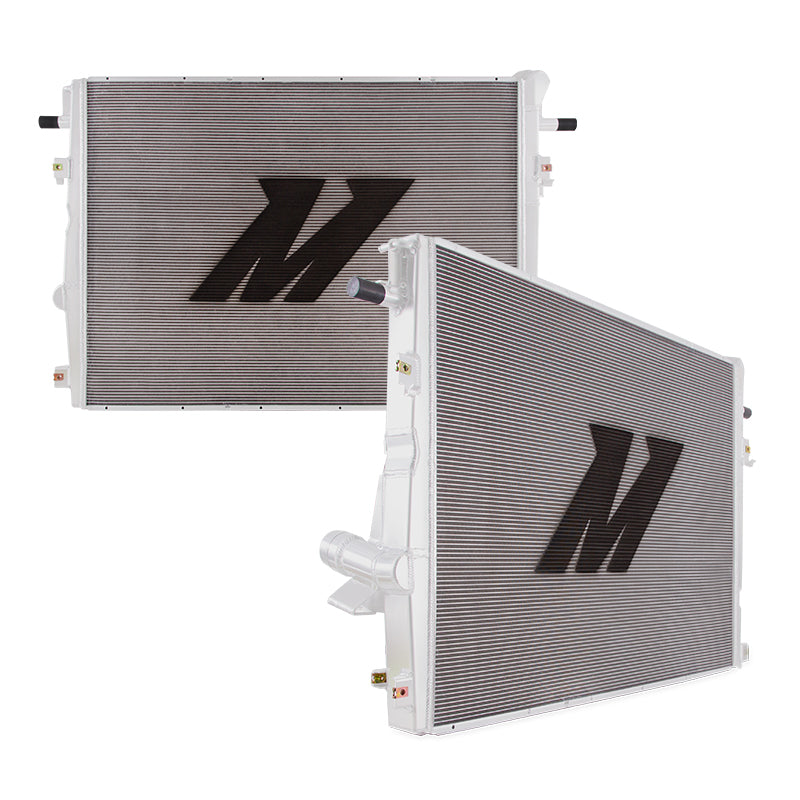

Mishimoto MMRAD-F2D-11V2 Performance Aluminum Radiator, Primary, fits Ford 6.7L Powerstroke 2011-2016

$1,199.95 USD

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

Mishimoto MMRAD-F2D-11V2 Performance Aluminum Radiator, Primary, fits Ford 6.7L Powerstroke 2011-2016

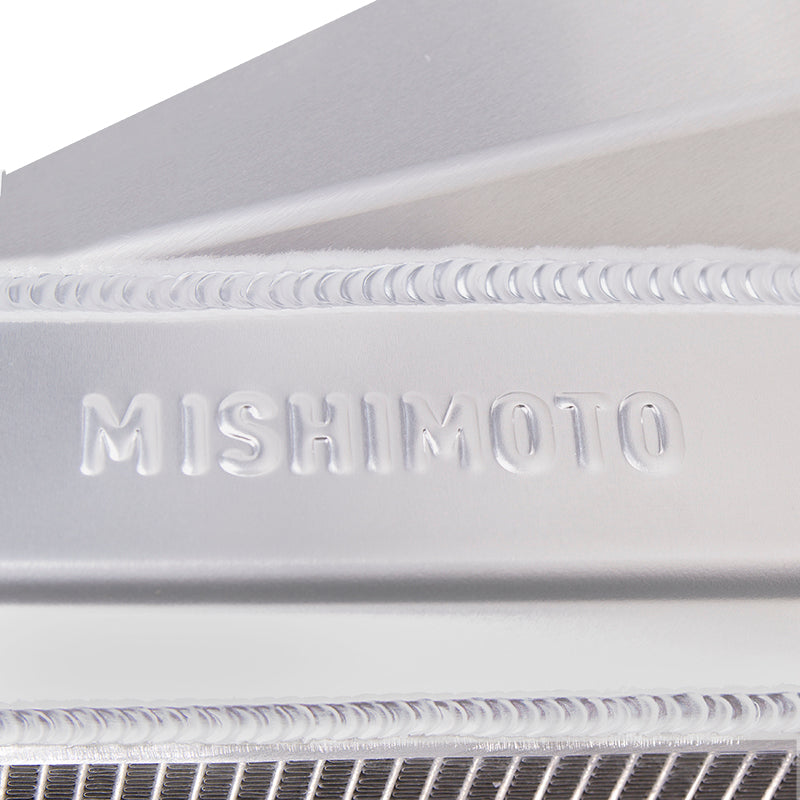

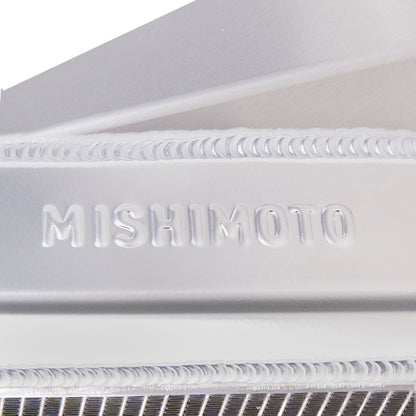

The 6.7L Ford Powerstroke is plagued with radiator and cooling issues, with no effective solution available. Upgrade your truck with the Mishimoto 6.7L Powerstroke Aluminum Primary Radiator to put an end to puddles of coolant under your truck. Mishimoto radiators are constructed from high-quality aircraft-grade aluminum with a 100-percent brazed aluminum core. Our 6.7L radiator features strong TIG-welded aluminum end tanks for superior durability and longevity that will keep your Powerstroke on the road and out of the shop. The Mishimoto Ford 6.7L Powerstroke Aluminum Primary Radiator retains factory fitment for an easy installation process and includes a magnetic drain plug to catch any debris in your cooling system. As with all our products, this radiator is protected by the Mishimoto Lifetime Warranty.

37-percent increase in coolant capacity
20-percent increase in fin area
10-percent thicker core than factory

Specifications

Inlet Diameter	0
Outlet Diameter	0
Core Thickness	1.89
Fluid Capacity	11.61
Core Row Quantity	2
Core Length	27.76
Overall Height	30.2
Core Height	38.39
Overall Length	48.9
Overall Width	8
Core Material	Aluminum
Outlet Location	Bottom Right
Down Flow Or Cross Flow Type	Cross Flow
Drain Plug Thread Size	M12 - 1.5
Transmission Oil Cooler Fitting Type	N/A
Transmission Oil Cooler Included	No
Radiator Cap Included	No
Inlet Location	Top Left
Core Finish	Uncoated
Drain Plug Included	Yes
SellingPoint15	N/A
Install Difficulty	4
TechSpec Overall Height (in)	30.2
TechSpec Overall Length (in)	48.9
TechSpec Overall Width (in)	8
TechSpec Core Length (in)	27.76
TechSpec Core Height (in)	38.39
TechSpec Fluid Capacity (gal)	11.7
TechSpec Rows	2
TechSpec Inlet (in)	N/A
TechSpec Outlet (in)	N/A
TechSpec Core Thickness (in)	1.89
TechSpec Drain Plug Thread Size	M12 x 1.5
TechSpec DPI	13230
TechSpec Material	Aluminum
TechSpec Applications	2011-2016 Ford F-250 w/ 6.7L Powerstroke--2011-2016 Ford F-350 w/ 6.7L Powerstroke--2011-2016 Ford F-450 w/ 6.7L Powerstroke--2011-2016 Ford F-550 w/ 6.7L Powerstroke
TechSpec Engine Codes	N/A
TechSpec Chassis Codes	N/A
TechSpec Note	N/A
TechSpec Includes	Mishimoto Radiator--Magnetic Drain Plug w/ Dowty Oil Seal--(4) M6 x 1.0 x 16mm Bolts--(12) Black Plastic Tree Clips--Mishimoto Lifetime Warranty
SellingPoint01	Direct fit for the 6.7L Powerstroke, 2011-2016
SellingPoint02	37-percent increase in coolant capacity
SellingPoint03	20-percent increase in fin area
SellingPoint04	10-percent thicker core than factory
SellingPoint05	100-percent brazed aluminum core
SellingPoint06	CNC-machined, factory-style, quick-disconnect inlet and outlet
SellingPoint07	TIG-welded to perfection
SellingPoint08	Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint09	Patent numberD717,218
SellingPoint10	Mishimoto Lifetime Warranty
SellingPoint11	N/A
SellingPoint12	N/A
SellingPoint13	N/A
SellingPoint14	N/A
