Mishimoto

Mishimoto MMRAD-F2D-99 Performance Aluminum Radiator, fits Ford F-Series 5.4/6.8/7.3L 1999-2005

$999.95 USD

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

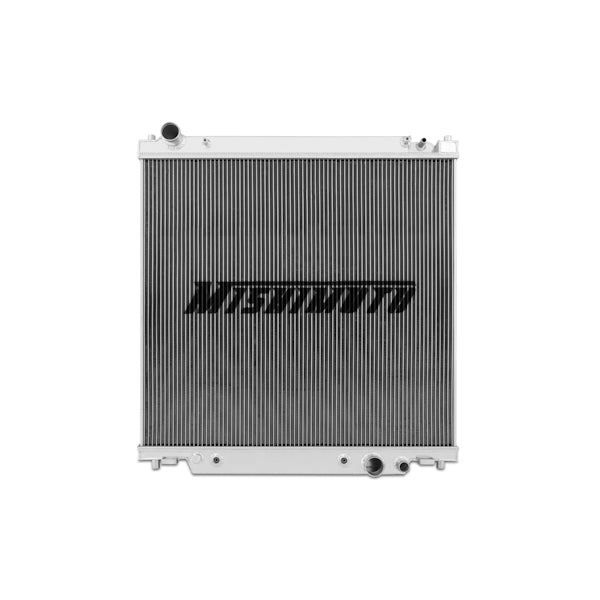

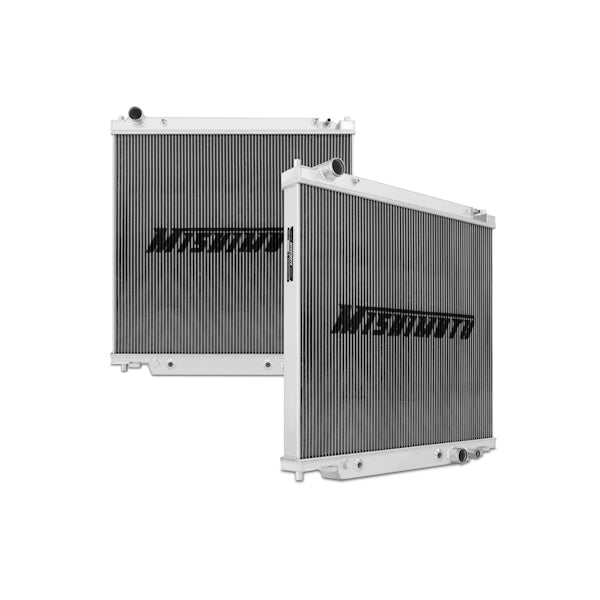

Mishimoto MMRAD-F2D-99 Performance Aluminum Radiator, fits Ford F-Series 5.4/6.8/7.3L 1999-2005

The 7.3 Powerstroke is well known for its reliability and longevity, so why not pair an amazing engine with a radiator that can keep up! Mishimoto has released a performance aluminum radiator for the 1999-2003 Ford 7.3L Powerstroke. The Mishimoto Powerstroke aluminum radiator is an ideal upgrade for your work truck, mud truck, or modified pull truck. Whatever the use of your truck, the Mishimoto radiator will keep your engine cool with its brazed aluminum core and TIG-welded end tanks for superior reliability and performance. The Mishimoto 7.3L radiator is precision-engineered for exact factory fitment it bolts right up to the stock fan shroud, allowing for easy installation. Have a gas-powered Super Duty or Excursion in your fleet? We've got you covered, too, as this radiator is a direct replacement for the 5.4L and 6.8L Triton models as well! Included with the Mishimoto Powerstroke aluminum radiator is our magnetic drain plug and signature Lifetime Warranty.

Full aluminum construction with durable, TIG-welded end tanks
Features a two-row, 2.2-in thick brazed aluminum core, providing ideal fluid temperature regulation
Increased fluid capacity and superior heat dissipation

Specifications

Inlet Diameter	1.77
Outlet Diameter	1.77
Core Row Quantity	2
Core Thickness	2.2
Core Height	26.5
Core Length	29.4
Overall Height	30
Overall Length	31.7
Overall Width	4.7
Fluid Capacity	9.25
Core Material	Aluminum
Outlet Location	Bottom Right
Down Flow Or Cross Flow Type	Down Flow
Drain Plug Thread Size	M12 - 1.5
Transmission Oil Cooler Fitting Type	N/A
Transmission Oil Cooler Included	No
Radiator Cap Included	No
Inlet Location	Top Left
Core Finish	Uncoated
Drain Plug Included	Yes
TechSpec Overall Height (in)	31.73
TechSpec Overall Length (in)	30.21
TechSpec Overall Width (in)	4.69
TechSpec Core Length (in)	26.46
TechSpec Core Height (in)	29.84
TechSpec Fluid Capacity (gal)	9.3
TechSpec Rows	2
TechSpec Inlet (in)	1.77
TechSpec Outlet (in)	1.77
TechSpec Core Thickness (in)	2.2
TechSpec Drain Plug Thread Size	M12 x 1.5
TechSpec DPI	2171
TechSpec Material	Aluminum
TechSpec Applications	1999-2004 Ford F-250 w/ 5.4L/6.8L/7.3L--1999-2004 Ford F-350 w/ 5.4L/6.8L/7.3L--1999-2004 Ford F-450 w/ 6.8L/7.3L--1999-2003 Ford F-550 w/ 6.8L/7.3L--2000-2005 Ford Excursion w/ 5.4L/6.8L/7.3
TechSpec Engine Codes	N/A
TechSpec Chassis Codes	N/A
TechSpec Note	The transmission cooler fittings are: 1/2”-20 SAE and 5/8”-18 SAE female flare fittings. This product comes with two adapters of each size to ensure fitment with your vehicle
TechSpec Includes	Mishimoto Radiator-- Magnetic Drain Plug--(4) Transmission Adapters--Mishimoto Lifetime Warranty
SellingPoint01	Direct fit for 1999-2005 F-250, 350, 450, 550 and Excursion with the 5.4L, 6.8L, and 7.3L
SellingPoint02	Full aluminum construction with durable, TIG-welded end tanks
SellingPoint03	Features a two-row, 2.2-in thick brazed aluminum core, providing ideal fluid temperature regulation
SellingPoint04	Increased fluid capacity and superior heat dissipation
SellingPoint05	Perfect upgrade to the stock plastic end tank radiator
SellingPoint06	Ideal for trucks transporting heavy loads, towing, and/or driving in extreme environments
SellingPoint07	Included magnetic drain plug captures harmful metal debris to safeguard cooling system performance
SellingPoint08	Mishimoto Lifetime Warranty
SellingPoint09	N/A
SellingPoint10	N/A
SellingPoint11	N/A
SellingPoint12	N/A
SellingPoint13	N/A
SellingPoint14	N/A
SellingPoint15	N/A
Install Difficulty	3
