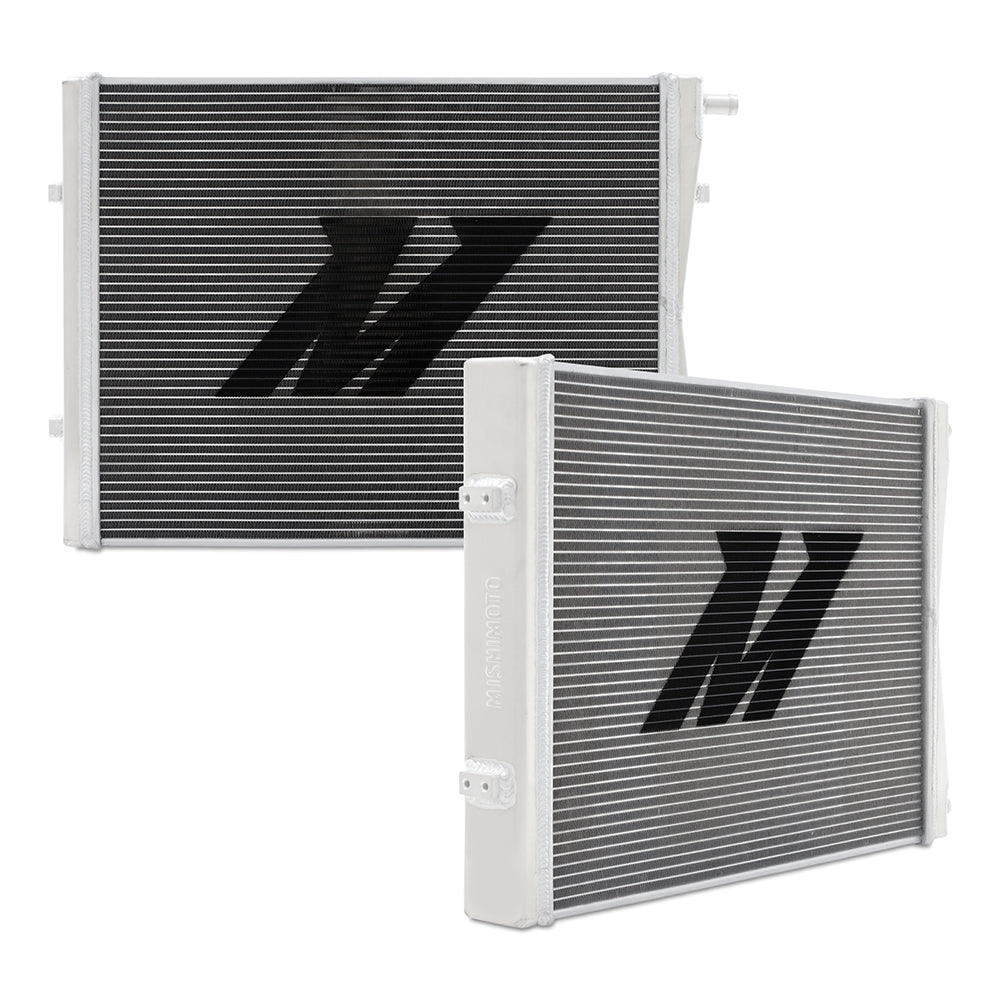

Mishimoto MMRAD-HE-03 Air-to-Water Heat Exchanger, Dual Pass 19.68in x 15.98in x 1.88in Core, 1000HP
Mishimoto MMRAD-HE-03 Air-to-Water Heat Exchanger, Dual Pass 19.68in x 15.98in x 1.88in Core, 1000HP
Low stock: 4 left
Couldn't load pickup availability
Description & Features
Mishimoto MMRAD-HE-03 Air-to-Water Heat Exchanger, Dual Pass 19.68in x 15.98in x 1.88in Core, 1000HP
There are some aspects of a build where corners can be cut, but your charge-air cooling system shouldn't be one of them. Big turbochargers make big power, and big power often results in high temperatures. Within the last decade, we've seen many turbocharged vehicles transitioning to liquid-to-air intercooling systems. The air-to-water heat exchanger plays a vital role in these systems by reducing coolant temperatures before entering the intercooler. If you're planning a forced induction build and need a charge-air cooling solution, Mishimoto's new air-to-water heat exchangers are an ideal choice. Mishimoto has designed four universal heat exchangers to support any build up to 1,500 hp, each precisely engineered for optimal flow and heat dissipation to meet your horsepower goals. Our heat exchanger options include multiple core sizes in single or dual pass configurations and your choice of two or three-row cores. In addition, the Mishimoto Universal Air-to-Water Heat Exchangers feature all-aluminum TIG-welded construction, making them extremely robust. For ease of installation, we've included half-inch thick threaded mounting bosses on each end tank. Mishimoto offers a complete line of air-to-water products along with our selection of air-to-water heat exchangers , making us your one-stop shop for building the perfect air-to-water intercooler system. As with all our products, this Mishimoto Universal Air-to-Water Heat Exchanger includes the signature Mishimoto Lifetime Warranty.
- Universal heat exchanger for use with air-to-water intercooler systems
- Provides effective cooling support for charge-air cooling systems up to 1000 hp
- Strategically designed dual pass 2-row core offers maximum flow and heat dissipation
Specifications
| Inlet Diameter | 0 |
| Outlet Diameter | 0 |
| Fluid Capacity | 0 |
| Core Thickness | 1.88 |
| Core Height | 15.98 |
| Overall Height | 16.85 |
| Core Length | 19.68 |
| Core Row Quantity | 2 |
| Overall Width | 2.51 |
| Overall Length | 24.46 |
| Core Material | Aluminum |
| Outlet Location | Bottom Right |
| Down Flow Or Cross Flow Type | Cross Flow |
| Transmission Oil Cooler Fitting Type | N/A |
| Drain Plug Included | No |
| Transmission Oil Cooler Included | No |
| Radiator Cap Included | No |
| Inlet Location | Top Right |
| Core Finish | Uncoated |
| Drain Plug Thread Size | M12 - 1.5 |
| TechSpec Note | Mounting point thread size is M6x1.0 |
| TechSpec Includes | Mishimoto Heat Exchanger--Mishimoto Lifetime Warranty |
| SellingPoint01 | Universal heat exchanger for use with air-to-water intercooler systems |
| SellingPoint02 | Provides effective cooling support for charge-air cooling systems up to 1000 hp |
| SellingPoint03 | Strategically designed dual pass 2-row core offers maximum flow and heat dissipation |
| SellingPoint04 | Core Size: 19.68 in X 15.98 in X 1.88 in |
| SellingPoint05 | Overall Size: 24.46 in X 16.85 in X 2.51 in |
| SellingPoint06 | All-aluminum construction yields superior strength and durability |

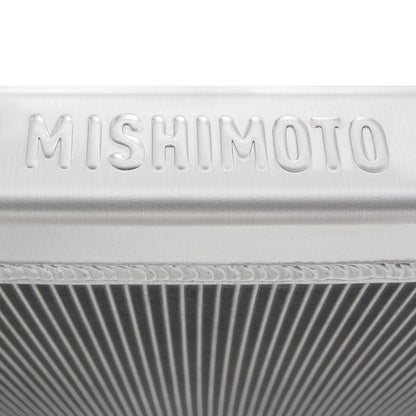

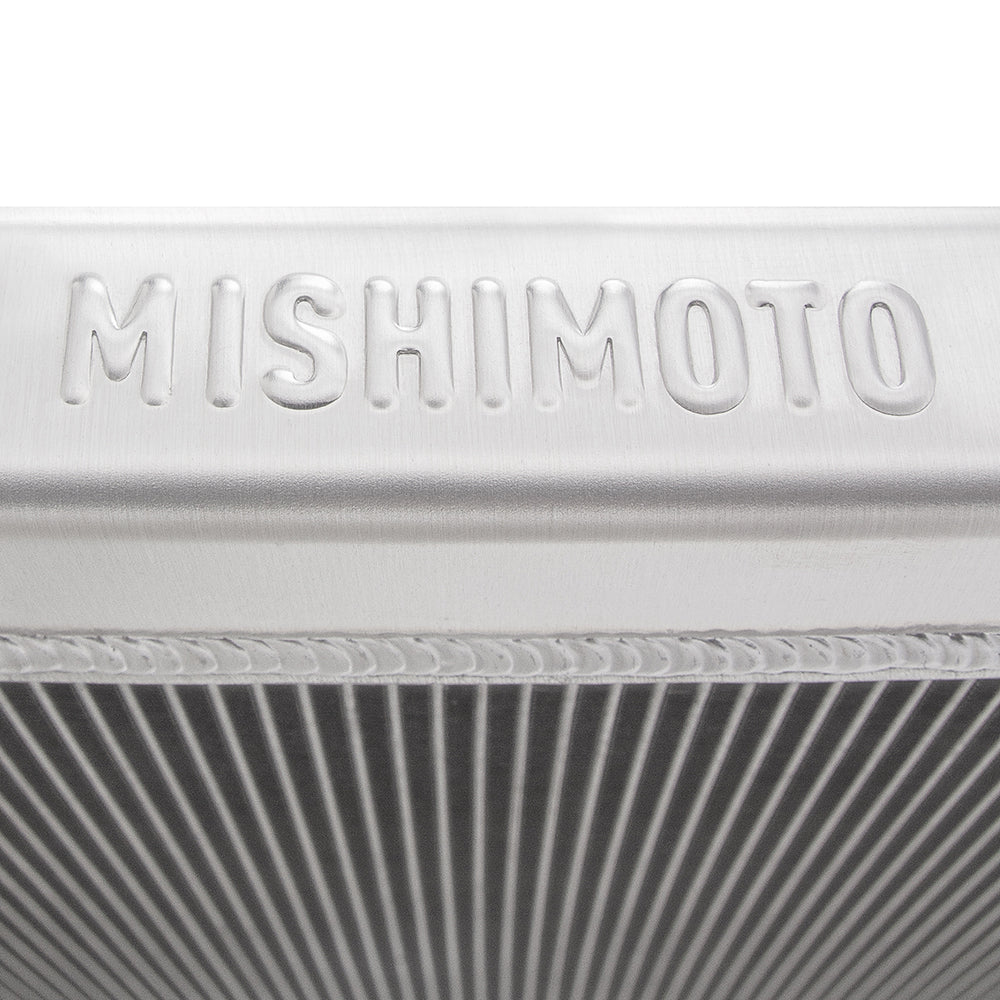

| SellingPoint07 | Precision TIG-welded end tanks for improved durability and pressure tolerance |
| SellingPoint08 | Robust 1/2-in thick universal mounting bosses on each end tank |
| SellingPoint09 | Bead rolled ¾-in inlet and outlet provide a leak-free connection |
| SellingPoint10 | Multiple sizes to choose from to fit the needs of your project |
| SellingPoint11 | Mishimoto Lifetime Warranty |
| SellingPoint12 | N/A |
| SellingPoint13 | N/A |
| SellingPoint14 | N/A |
| SellingPoint15 | N/A |
| Install Difficulty | N/A |
| TechSpec Overall Height (in) | 16.85 |
| TechSpec Overall Length (in) | 24.46 |
| TechSpec Overall Width (in) | 2.51 |
| TechSpec Core Length (in) | 19.68 |
| TechSpec Core Height (in) | 15.98 |
| TechSpec Fluid Capacity (gal) | 0.7 |
| TechSpec Rows | 2 |
| TechSpec Inlet (in) | N/A |
| TechSpec Outlet (in) | N/A |
| TechSpec Core Thickness (in) | 1.88 |
| TechSpec Drain Plug Thread Size | N/A |
| TechSpec DPI | N/A |
| TechSpec Material | Aluminum |
| TechSpec Applications | N/A |
| TechSpec Engine Codes | N/A |
| TechSpec Chassis Codes | N/A |
Packaging Information
Weight: 18 lbs
Dimensions: 6.3 x 21.6 x 30.9 IN
