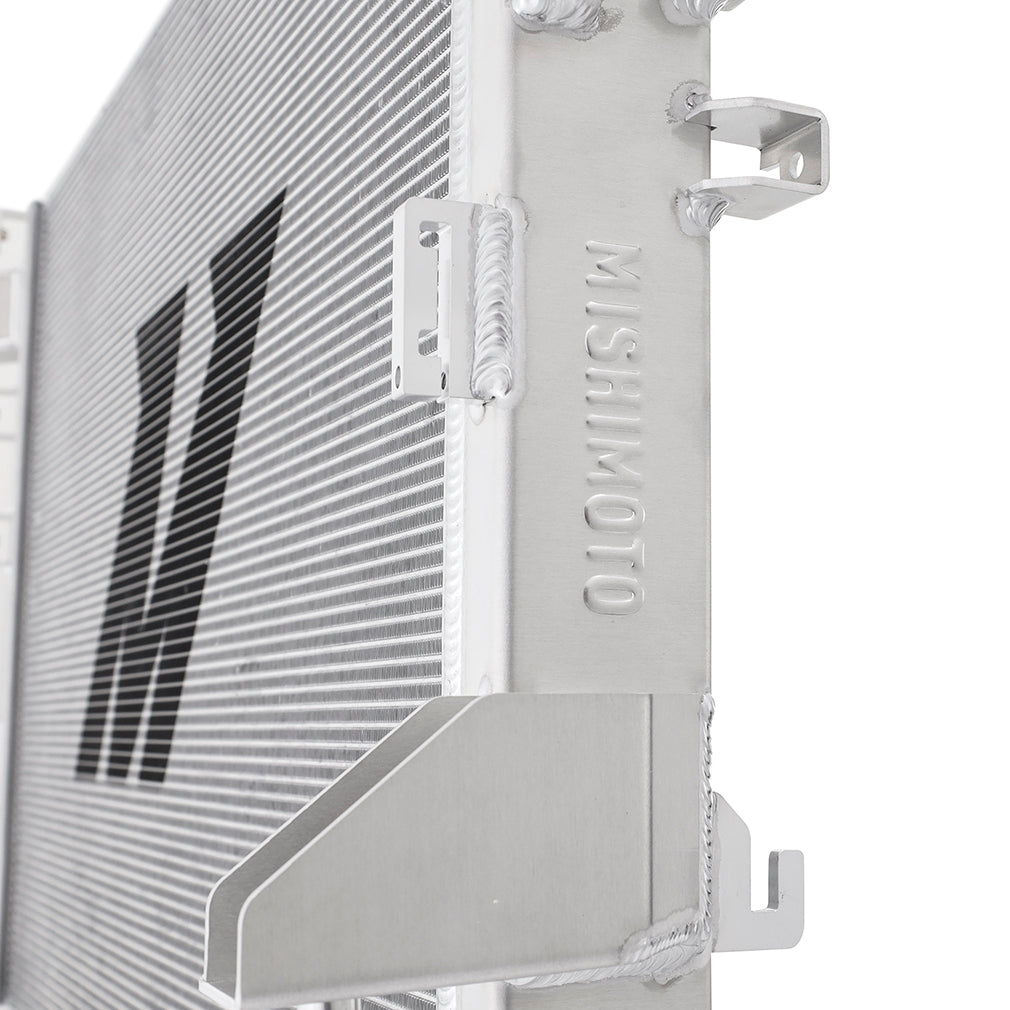

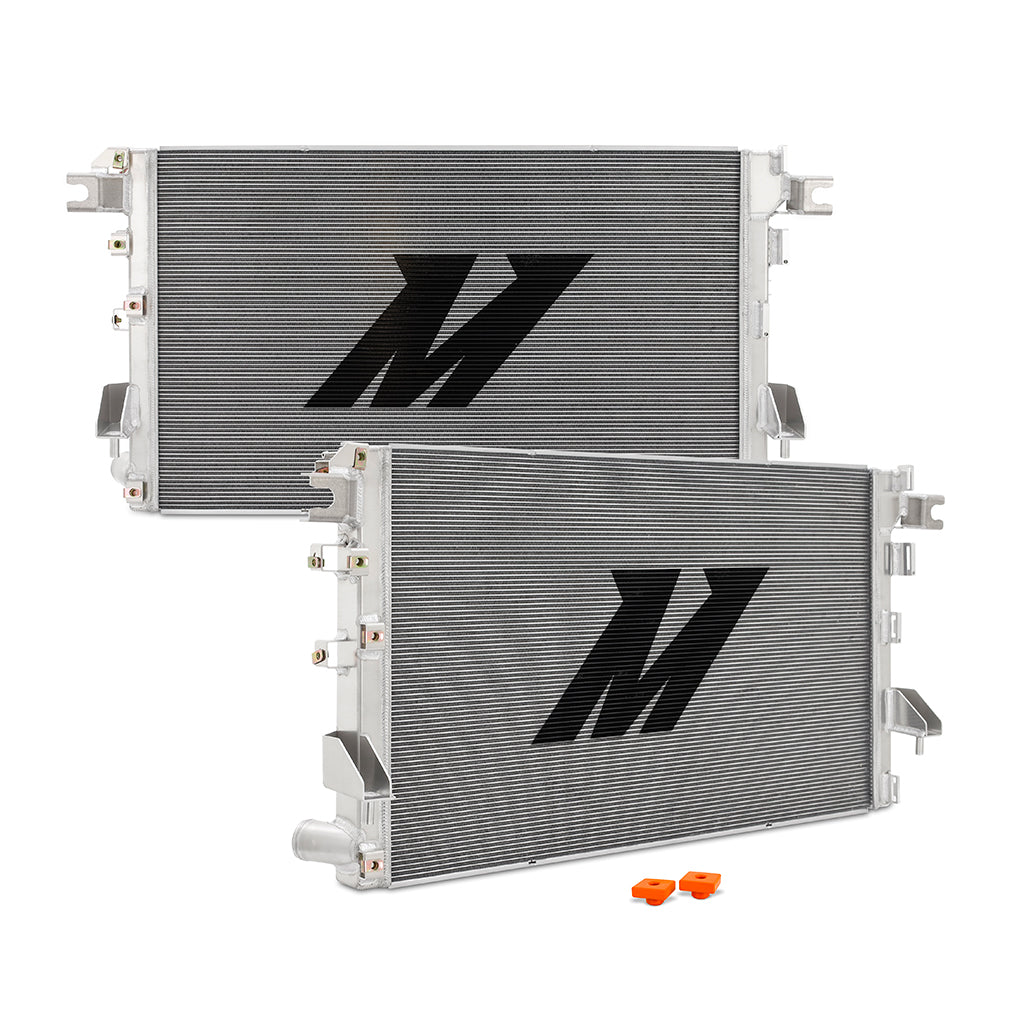

Mishimoto MMRAD-RAM-19 Performance Aluminum Radiator, fits Ram 6.7L Cummins 2019-2024

$1,049.95 USD

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

Mishimoto MMRAD-RAM-19 Performance Aluminum Radiator, fits Ram 6.7L Cummins 2019-2024

The legendary reliability and power of the 6.7L Cummins equipped Dodge Ram has solidified it as one of the most popular trucks in the world for getting work done. But every legend has its weakness, and for the Dodge Ram, the stock radiator is one of them. The plastic end-tanks of the stock Ram radiator are prone to cracking and leaking over time. Add the increased stress and heat created by hauling heavy workloads, and you have a recipe for disaster. But that's where Mishimoto can help. Our new 2019-2024 Ram 2500/3500 radiator is the ideal upgrade for any workhorse Cummins powered Ram. With a fully aluminum, TIG-welded construction, the Mishimoto radiator is as tough as your truck. A 28% increase in fluid capacity means you can pile on the power and never worry about the heat. As with all our products, this radiator is backed up by Mishimoto's Lifetime Warranty. Doesn't your Ram deserve a radiator worthy of legend?

Increases fluid capacity by 28% to maximize cooling
Durable fully aluminum construction with TIG-welded end tanks and fittings
Includes bushing replacements for old or worn out bushings

Specifications

Fluid Capacity	1.2
Core Thickness	1.57
Inlet Diameter	2
Outlet Diameter	2
Core Height	20.76
Overall Height	21.48
Core Length	33.39
Overall Length	43.3
Overall Width	7.04
Core Material	Aluminum
Outlet Location	Bottom Right
Down Flow Or Cross Flow Type	Cross Flow
Transmission Oil Cooler Fitting Type	N/A
Drain Plug Included	No
Transmission Oil Cooler Included	No
Radiator Cap Included	No
Inlet Location	Top Left
Core Finish	Uncoated
Core Row Quantity	1
Drain Plug Thread Size	M12 - 1.5
SellingPoint01	Direct fit for the 2019-2024 Ram 6.7L Cummins
SellingPoint02	Increases fluid capacity by 28% to maximize cooling
SellingPoint03	Durable fully aluminum construction with TIG-welded end tanks and fittings
SellingPoint04	Includes bushing replacements for old or worn out bushings
SellingPoint05	Strutted tubes throughout for maximum rigidity and durability
SellingPoint06	Louvered fins for improved heat dissipation
SellingPoint07	Pair with Mishimoto Silicone Coolant Hose Kit for even greater cooling system protection
SellingPoint08	Mishimoto Lifetime Warranty
SellingPoint09	N/A
SellingPoint10	N/A
SellingPoint11	N/A
SellingPoint12	N/A
SellingPoint13	N/A
SellingPoint14	N/A
SellingPoint15	N/A
TechSpec Overall Height (in)	21.48
TechSpec Overall Length (in)	43.3
TechSpec Overall Width (in)	7.04
TechSpec Core Length (in)	33.39
TechSpec Core Height (in)	20.76
TechSpec Fluid Capacity (gal)	1.2
TechSpec Inlet (in)	2
TechSpec Outlet (in)	2
TechSpec Core Thickness (in)	1.57
TechSpec Material	Aluminum
TechSpec Rows	N/A
TechSpec Applications	Ram 2500 6.7L L6 2019-2024--Ram 3500 6.7L L6 2019-2024--Ram 4500 6.7L L6 2019-2024--Ram 5500 6.7L L6 2019-2024
TechSpec Engine Codes	N/A
TechSpec Chassis Codes	N/A
TechSpec Note	Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system--Will not fit HO models. Core fitment is designed for a 34” radiator core; if your vehicle has a 39” wide core, this radiator will not be compatible.
TechSpec Drain Plug Thread Size	N/A
TechSpec Includes	(1) Mishimoto Performance Radiator--(2) Replacement Lower Radiator Bushings-- Mishimoto Lifetime Warranty
TechSpec DPI	N/A
Install Difficulty	5
