Mishimoto MMRAD-UNI-DRGBK Universal 9in Drag Race Performance Aluminum Radiator, Black
Mishimoto MMRAD-UNI-DRGBK Universal 9in Drag Race Performance Aluminum Radiator, Black
Low stock: 1 left
Couldn't load pickup availability
Description & Features
Mishimoto MMRAD-UNI-DRGBK Universal 9in Drag Race Performance Aluminum Radiator, Black
Upgrade to the Mishimoto radiator to maximize cooling efficiency, durability, and performance for your drag car, ensuring you stay ahead of the competition with superior cooling capabilities and robust design. The Mishimoto Universal Drag Race Performance Aluminum Radiator is engineered for peak performance on the track. It features convenient threaded adapters for easy hose installation, along with threaded inlet and outlet options for optional -16AN fittings, ensuring flexibility in setup. Magnetic drain plugs enhance durability and maintenance ease, while multiple mounting points and universal brackets cater to various installation preferences. Backed by Mishimoto's Lifetime Warranty, this radiator guarantees reliability and peace of mind.
- Includes two 1 1/4" barbed adapters for slip-on hoses
- Threaded 16ORB inlet and outlet accommodate a multitude of -16AN fittings (sold separately)
- Magnetic drain plugs on both end tanks ensure easy draining, no matter the mounting setup
Specifications
| Fluid Capacity | 0.68 |
| Inlet Diameter | 1 |
| Outlet Diameter | 1 |
| Overall Height | 10.16 |
| Overall Length | 14.7 |
| Core Row Quantity | 2 |
| Core Thickness | 2.68 |
| Overall Width | 3.52 |
| Core Height | 9.37 |
| Core Length | 9.37 |
| Outlet Location | Bottom Center |
| Down Flow Or Cross Flow Type | Down Flow |
| Drain Plug Thread Size | M12 - 1.5 |
| Transmission Oil Cooler Fitting Type | N/A |
| Transmission Oil Cooler Included | No |
| Radiator Cap Included | No |
| Inlet Location | Top Center |
| Core Finish | Uncoated |
| Drain Plug Included | Yes |
| Core Material | Aluminum |
| TechSpec Overall Length (in) | 14.7 |
| TechSpec Overall Width (in) | 3.52 |
| TechSpec Core Length (in) | 9.37 |
| TechSpec Core Height (in) | 9.37 |
| TechSpec Fluid Capacity (gal) | 0.7 |
| TechSpec Rows | 2 |
| TechSpec Inlet (in) | -16 ORB |
| TechSpec Outlet (in) | -16 ORB |
| TechSpec Core Thickness (in) | 2.68 |
| TechSpec Drain Plug Thread Size | M12x1.5 |
| TechSpec DPI | N/A |
| TechSpec Material | 3A21-Aluminum |
| TechSpec Applications | N/A |
| TechSpec Engine Codes | N/A |
| TechSpec Chassis Codes | N/A |
| TechSpec Note | N/A |

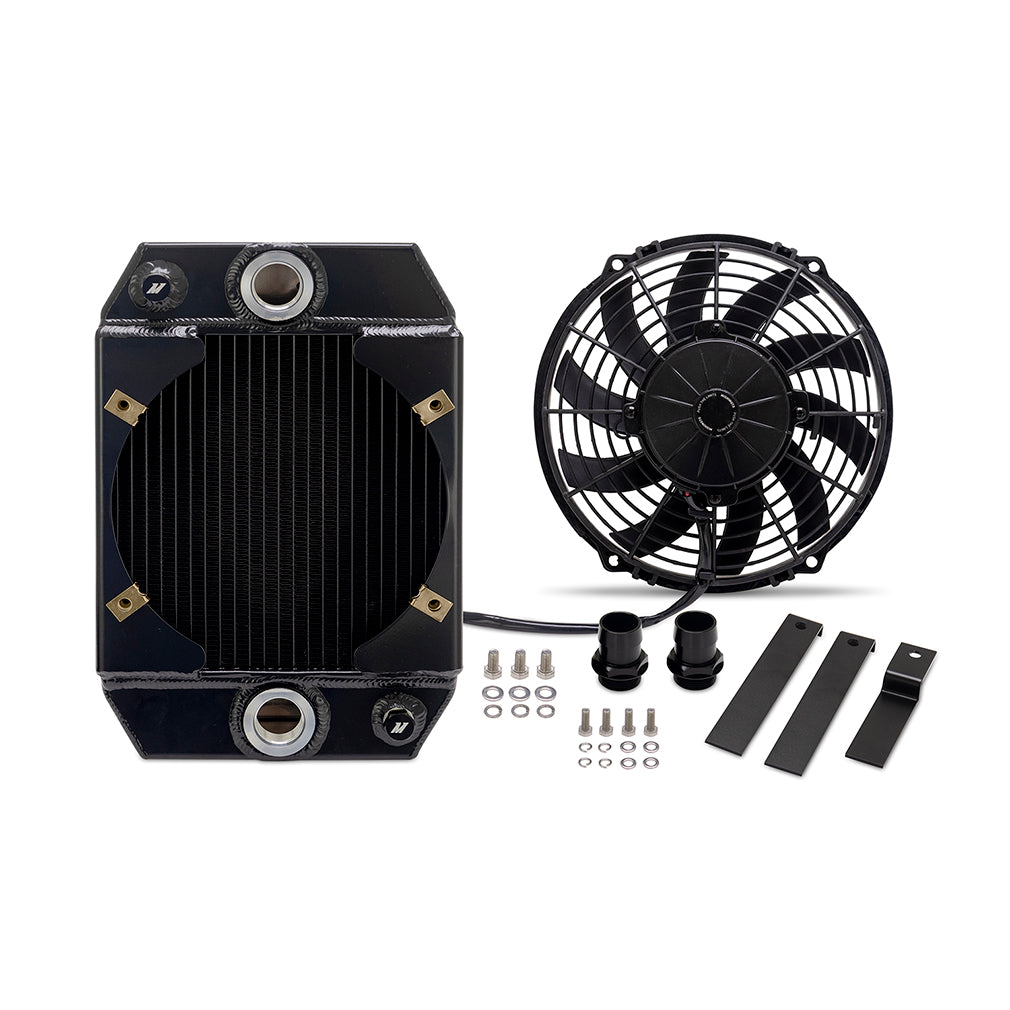

| TechSpec Includes | (1) Mishimoto Performance Radiator--(2) -16 ORB To 1-1/4" Hose Barb Fittings--(2) Magnetic Slotted Drain Plugs--(1) 9" HD Fan--(3) Universal Mounting Brackets--Mounting Hardware--Mishimoto Lifetime Warranty |
| Install Difficulty | 2 |
| SellingPoint01 | Includes two 1 1/4" barbed adapters for slip-on hoses |
| SellingPoint02 | Threaded 16ORB inlet and outlet accommodate a multitude of -16AN fittings (sold separately) |
| SellingPoint03 | Magnetic drain plugs on both end tanks ensure easy draining, no matter the mounting setup |
| SellingPoint04 | Massive 2.7" (68mm) thick two-row core for superior heat rejection |
| SellingPoint05 | 9" fan draws 700CFM, complementing our optimized core |
| SellingPoint06 | Multiple mounting points available to fit any custom build |
| SellingPoint07 | Includes 1/8" (3mm) thick powder-coated steel mounting brackets |
| SellingPoint08 | Available in both natural or stealth black powder coat finishes |
| SellingPoint09 | Mishimoto Lifetime Warranty |
| SellingPoint10 | N/A |
| SellingPoint11 | N/A |
| SellingPoint12 | N/A |
| SellingPoint13 | N/A |
| SellingPoint14 | N/A |
| SellingPoint15 | N/A |
| TechSpec Overall Height (in) | 10.16 |
Packaging Information
Weight: 14.4 lbs
Dimensions: 17 x 9.6 x 13.1 IN
