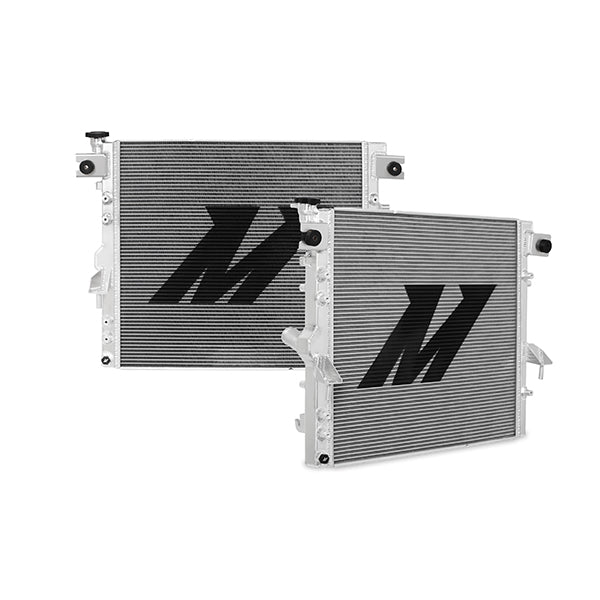

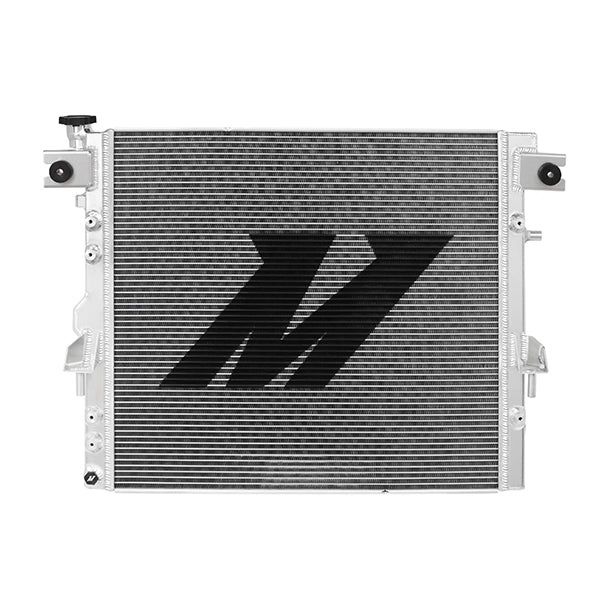

Mishimoto MMRAD-WRA-07V2 Performance Aluminum Radiator, fits Jeep Wrangler JK 2007-2018

$695.95 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

Mishimoto MMRAD-WRA-07V2 Performance Aluminum Radiator, fits Jeep Wrangler JK 2007-2018

Performance Jeeps deserve performance Jeep parts. That's why We've developed an update for our 2007-2018 Jeep Wrangler JK radiator. Mishimoto's V1 JK radiator has served as a substantial upgrade over the stock plastic radiator, but after hearing feedback from our customers, we wanted to push the limits even further. With the off-road enthusiast in mind, Mishimoto has developed the V2 2007-2018 Jeep Wrangler JK radiator. This new radiator incorporates several updates that bolster the performance and durability of the Wrangler's cooling system. As with many of our radiators, this updated radiator provides a substantial size increase over stock. An 18-percent greater core volume, fin area, and external tube area, along with a 13-percent increase in coolant capacity, allow MMRAD-WRA-07V2 to keep up with the cooling needs of even the most demanding off-road machine. Of course, reliability is also a major concern for any Wrangler owner. Mishimoto has devoted countless hours of RandD to bring the JK market a stronger, more reliable radiator. Our V2 radiator features extruded, internally strutted tubes to help combat flex within the core. These strutted tubes provide the radiator with greater rigidity and durability, reducing the potential for cracks and leaks. As with all our products, MMRAD-WRA-07V2 is backed by Mishimoto's Lifetime Warranty for unparalleled peace of mind.

Extruded tubes with internal struts for increased strength and pressure tolerance
18-percent increase in core volume, fin area, and external tube area
13-percent increase in coolant capacity

Specifications

Core Row Quantity	1
Core Thickness	1.26
Inlet Diameter	1.5
Outlet Diameter	1.5
Core Height	20.66
Core Length	22
Overall Height	22.1
Overall Length	29.6
Overall Width	6.4
Core Material	Aluminum
Outlet Location	Bottom Right
Down Flow Or Cross Flow Type	Cross Flow
Drain Plug Thread Size	M12 - 1.5
Transmission Oil Cooler Fitting Type	N/A
Transmission Oil Cooler Included	No
Inlet Location	Top Left
Core Finish	Uncoated
Drain Plug Included	Yes
Radiator Cap Included	Yes
Fluid Capacity	0.62
TechSpec Overall Height (in)	22.1
TechSpec Overall Length (in)	29.6
TechSpec Overall Width (in)	6.4
TechSpec Core Length (in)	22
TechSpec Core Height (in)	20.66
TechSpec Fluid Capacity (gal)	0.7
TechSpec Rows	1
TechSpec Inlet (in)	1.5
TechSpec Outlet (in)	1.5
TechSpec Core Thickness (in)	1.26
TechSpec Drain Plug Thread Size	M12 x 1.5
TechSpec DPI	N/A
TechSpec Material	Aluminum
TechSpec Applications	2007-2018 Jeep Wrangler JK
TechSpec Engine Codes	EGH (3.8L)--Pentastar V6 (3.6L)
TechSpec Chassis Codes	JK
TechSpec Note	N/A
TechSpec Includes	Mishimoto Radiator--Magnetic Drain Plug--Additional Mounting Hardware--Rubber Isolator Bushings--Mishimoto Lifetime Warranty
SellingPoint01	Direct fit for the 2007-2018 Jeep Wrangler JK
SellingPoint02	Extruded tubes with internal struts for increased strength and pressure tolerance
SellingPoint03	18-percent increase in core volume, fin area, and external tube area
SellingPoint04	13-percent increase in coolant capacity
SellingPoint05	100-percent brazed aluminum core
SellingPoint06	TIG-welded to perfection
SellingPoint07	Includes 19 PSI high-pressure radiator cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint08	Includes magnetic drain plug to capture any metallic debris/fragments in your cooling system
SellingPoint09	Mishimoto Lifetime Warranty
SellingPoint10	N/A
SellingPoint11	N/A
SellingPoint12	N/A
SellingPoint13	N/A
SellingPoint14	N/A
SellingPoint15	N/A
Install Difficulty	3
