Mishimoto

Mishimoto MMRAD-WRX-01 Performance Aluminum Radiator, fits Subaru WRX/STI 2001-2007

$339.95 USD

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

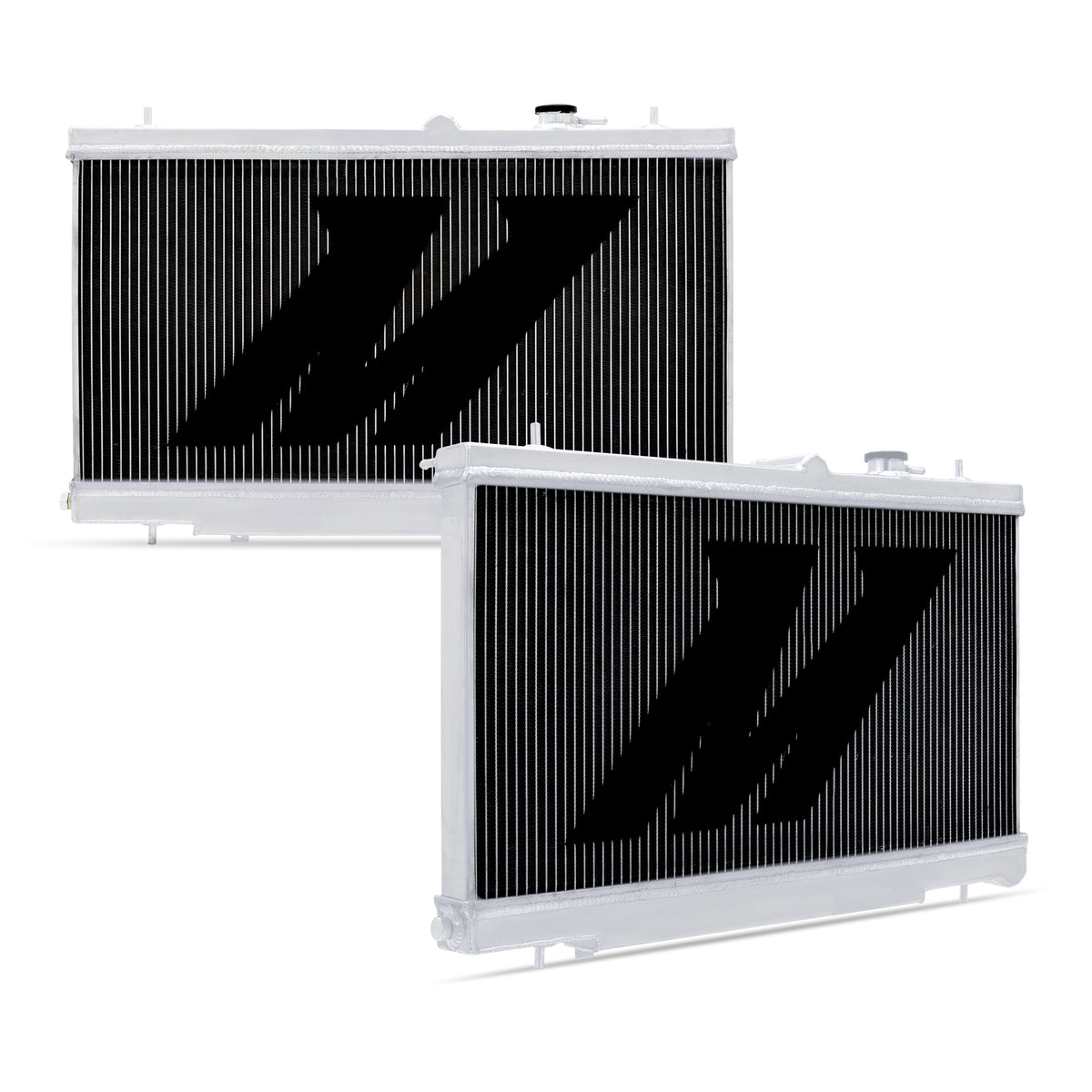

Mishimoto MMRAD-WRX-01 Performance Aluminum Radiator, fits Subaru WRX/STI 2001-2007

Whether you daily drive a stock STI or rallycross a modified WRX, an efficient cooling system is key to extending the life of your flat-four. The plastic end tanks of the stock radiator are especially prone to cracking from years of constant variation in temperature. A radiator failure can result in overheating, head gasket failure, and other engine damage that can quickly put an end to a fun day at the track. Protect your investment with the Mishimoto Performance Radiator, engineered specifically for the 2001-2007 Subaru WRX and STI. After identifying the radiator in these vehicles as a weak point, our engineers set out to provide an efficient, durable radiator that can take the abuse of competitive driving and provide the reliability you need for daily commuting. -- The Mishimoto Subaru radiator features all-aluminum construction, which provides increased heat and pressure tolerance, improved heat dissipation, and improved cooling efficiency. The 100% brazed aluminum core and TIG-welded end tanks provide optimal durability and years of efficient and reliable service. This radiator is a complete bolt-in unit that replaces the factory radiator without requiring any modification to your Subaru. The Mishimoto Subaru Performance Aluminum Radiator includes a high-pressure 1.3 bar radiator cap. This cap effectively raises the boiling point of the coolant, thus providing a higher threshold for safe temperatures and resulting in a more efficient cooling system. Additionally, a second radiator cap is included for use on the expansion tank. This radiator provides a significant increase in coolant capacity, which allows for aggressive driving while retaining safe coolant temperatures. Keep your Subaru on the street and out of the shop with the Mishimoto Subaru WRX and STI Performance Aluminum Radiator. As with all our products, this radiator includes the Mishimoto Lifetime Warranty.

Full aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
Manufactured with robust TIG-welded end tanks for improved strength and extended longevity
100% brazed aluminum core for maximum reliability

Specifications

Inlet Diameter	1.5
Outlet Diameter	1.5
Core Thickness	1.65
Core Height	13.54
Overall Height	17.2
Core Row Quantity	2
Overall Width	2.15
Fluid Capacity	2.3
Core Length	27.24
Overall Length	28.4
Core Material	Aluminum
Outlet Location	Bottom Left
Down Flow Or Cross Flow Type	Down Flow
Drain Plug Thread Size	M12 - 1.5
Transmission Oil Cooler Fitting Type	N/A
Transmission Oil Cooler Included	No
Inlet Location	Top Left
Core Finish	Uncoated
Drain Plug Included	Yes
Radiator Cap Included	Yes
TechSpec Overall Height (in)	17.2
TechSpec Overall Length (in)	28.4
TechSpec Overall Width (in)	2.15
TechSpec Core Length (in)	27.24
TechSpec Core Height (in)	13.54
TechSpec Fluid Capacity (gal)	2.3
TechSpec Rows	2
TechSpec Inlet (in)	1.5
TechSpec Outlet (in)	1.5
TechSpec Core Thickness (in)	1.65
TechSpec Drain Plug Thread Size	M12 x 1.5
TechSpec DPI	2703
TechSpec Material	N/A
TechSpec Applications	Saab 9-2X H4 (2.0L) 2005--Saab 9-2X H4 (2.5L) 2006--Subaru WRX H4 (2.0) 2002-2005--Subaru WRX H4 (2.5) 2006-2007--Subaru WRX STI H4 (2.5) 2004-2007
TechSpec Engine Codes	EJ205--EJ255--EJ257
TechSpec Chassis Codes	GD
TechSpec Note	This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.--Caution--The provided Mishimoto two-way cap (six-sided design) should replace the stock cap located on the expansion tank. The Mishimoto Performance Aluminum Radiator should utilize the included one-way cap (circular design with non-directional sticker).--It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact [email protected].
TechSpec Includes	(1) Mishimoto Radiator--(1) Mishimoto Two-Way Radiator Cap--(1) Mishimoto One-Way Radiator Cap--(1)1/16-inch NPT Plug--(1) Magnetic Drain Plug--Fan Mounting Hardware--Mishimoto Lifetime Warranty
SellingPoint01	Full aluminum construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
SellingPoint02	Manufactured with robust TIG-welded end tanks for improved strength and extended longevity
SellingPoint03	100% brazed aluminum core for maximum reliability
SellingPoint04	Increased coolant capacity directly results in improved cooling efficiency
SellingPoint05	Now includes two 1.3 bar high-pressure caps, raising the boiling point of engine coolant to provide a safer, more efficient system
SellingPoint06	Two-way expansion tank cap and one-way radiator cap ensure proper flow and function of cooling system to avoid overheating
SellingPoint07	Designed to original equipment specifications for the 2001-2007 WRX and STI
SellingPoint08	Includes magnetic drain plug to prevent metal fragments and debris from circulating in coolant system
SellingPoint09	Mishimoto Lifetime Warranty
SellingPoint10	N/A
SellingPoint11	N/A
SellingPoint12	N/A
SellingPoint13	N/A
SellingPoint14	N/A
SellingPoint15	N/A
Install Difficulty	3
