Mishimoto MMTC-DMAX-03SL Transmission Cooler, Silver, fits Chevrolet/GMC 6.6L Duramax LB7/LLY 2003-2005
Mishimoto MMTC-DMAX-03SL Transmission Cooler, Silver, fits Chevrolet/GMC 6.6L Duramax LB7/LLY 2003-2005
Low stock: 2 left
Couldn't load pickup availability
Description & Features

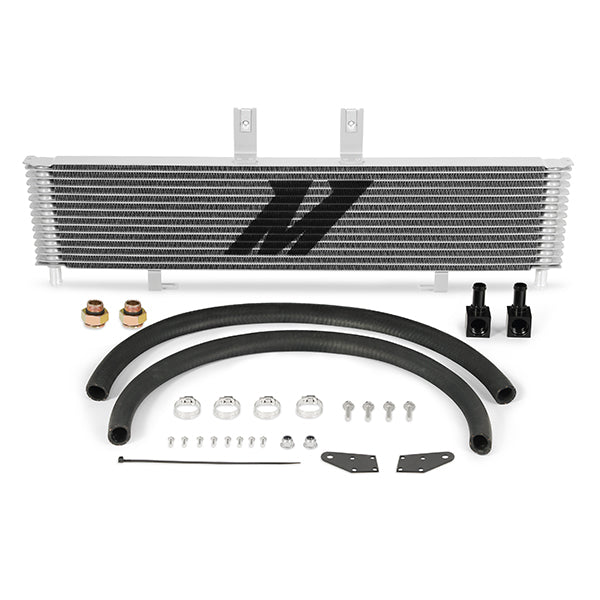

Mishimoto MMTC-DMAX-03SL Transmission Cooler, Silver, fits Chevrolet/GMC 6.6L Duramax LB7/LLY 2003-2005
There's no greater enemy for a transmission than heat. Whether your 2003-2005 Chevy/GMC 6.6L Duramax is a dedicated tow vehicle, hardworking fleet truck, or a daily driver with a liking for the drag-strip, you need to ensure that your transmission runs cool. Luckily, Mishimoto has developed a direct-fit transmission cooler to do just that. Our 2003-2005 Chevy/GMC 6.6L Duramax transmission cooler utilizes a stacked-plate design for maximum durability and powerful cooling. Aside from It's durable construction, this transmission cooler is significantly larger than the stock core. The Mishimoto transmission cooler boasts a 174-percent greater core volume, and 192-percent greater fin surface area than the stock 2003-2005 Duramax transmission cooler. The included CNC-machined adapters connect directly to the stock transmission cooler lines for leak-free cooling. Direct-fit brackets and tailor-made hoses make installation easy. Like all Mishimoto products, this transmission cooler is backed up by our Lifetime Warranty with Accident Protection for worry free cooling as long as you own it.
- Direct-fit for all 2003-2005 Chevrolet/GMC with Allison transmission (LB7/LLY)
- Stacked-plate construction for maximum durability and superior cooling
- CNC-machined adapters make it easy to connect Mishimoto cooler to stock fluid lines or AN lines
Specifications
| Core Height | 5.78 |
| Core Material | Aluminum |
| Core Thickness | 1.25 |
| Core Width | 27.95 |
| Electric Fan | No |
| Finish | Natural Aluminum |
| Grade Type | Performance |
| Height | 0 |
| Inlet Diameter | 1 |
| Line Included | Yes |
| Mounting Hardware Included | Yes |
| Outlet Diameter | 1 |
| Thickness | 0 |
| Width | 0 |
| TechSpec Rows | 13 |
| TechSpec Core Construction | N/A |
| TechSpec Core Length (in) | 27.95 |
| TechSpec Core Height (in) | 5.78 |
| TechSpec Core Thickness (in) | 1.25 |
| TechSpec Engine Codes | 6.6L Duramax |
| TechSpec Chassis Codes | LB7--LLY |
| TechSpec Transmission Codes | Allison 1000 |
| TechSpec Installation Notes | N/A |
| TechSpec Caution | N/A |
| TechSpec Overall Height (in) | N/A |
| TechSpec Overall Length (in) | N/A |
| TechSpec Overall Width (in) | N/A |
| TechSpec Inlet | N/A |
| TechSpec Outlet | N/A |

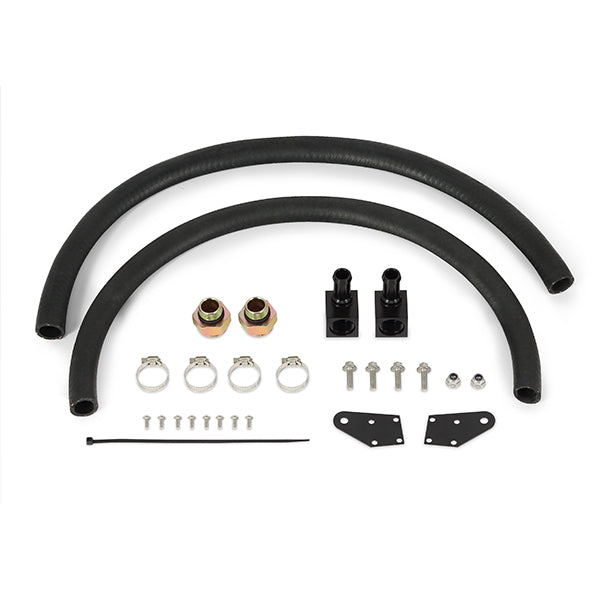

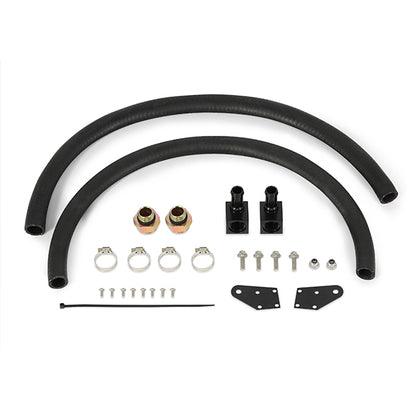

| TechSpec Includes | Mishimoto Stacked Plate Transmission Cooler--CNC-Machined Quick-Disconnect to Hose Barb Adapters--Stock-style Quick-Disconnect Fittings--Transmission Hoses--Mounting Brackets--Worm Gear Clamps--Zip Tie--Mounting Hardware--Includes durable SAE J1532 hose designed specifically for use with transmission fluid |
| TechSpec Applications | N/A |
| TechSpec Fluid Capacity (qts) | N/A |
| TechSpec Note | This kit fits with late 2003 trucks with purple clips. Early 2003 trucks with orange clips should use MMTC-DMAX-01. |
| SellingPoint01 | Direct-fit for all 2003-2005 Chevrolet/GMC with Allison transmission (LB7/LLY) |
| SellingPoint02 | Stacked-plate construction for maximum durability and superior cooling |
| SellingPoint03 | CNC-machined adapters make it easy to connect Mishimoto cooler to stock fluid lines or AN lines |
| SellingPoint04 | 174-percent greater core volume than stock cooler |
| SellingPoint05 | 192-percent greater external fin surface area over stock cooler |
| SellingPoint06 | Patent No. US D900,161 |
| SellingPoint07 | Includes durable SAE J1532 hose designed specifically for use with transmission fluid |
| SellingPoint08 | Mishimoto Lifetime Warranty |
| SellingPoint09 | N/A |
| SellingPoint10 | N/A |
| SellingPoint11 | N/A |
| SellingPoint12 | N/A |
| SellingPoint13 | N/A |
| SellingPoint14 | N/A |
| SellingPoint15 | N/A |
| Install Difficulty | 2 |
Packaging Information
Weight: 9.3 lbs
Dimensions: 29 x 4 x 14 IN
Safety
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Share
Vehicle Fitment
Vehicle Fitment
- 2003-2005 Chevrolet Silverado 2500 HD Base
- 2003-2005 Chevrolet Silverado 2500 HD LS
- 2003-2005 Chevrolet Silverado 2500 HD LT
- 2003-2005 Chevrolet Silverado 2500 HD WT
- 2003-2005 Chevrolet Silverado 3500 Base
- 2003-2005 Chevrolet Silverado 3500 LS
- 2003-2005 Chevrolet Silverado 3500 LT
- 2004 Chevrolet Silverado 3500 WT
- 2003-2005 GMC Sierra 2500 HD Base
- 2003-2005 GMC Sierra 2500 HD SLE
- 2003-2005 GMC Sierra 2500 HD SLT
- 2003-2005 GMC Sierra 2500 HD WT
- 2003-2005 GMC Sierra 3500 Base
- 2003-2005 GMC Sierra 3500 SLE
- 2003-2005 GMC Sierra 3500 SLT
- 2004-2005 GMC Sierra 3500 WT
