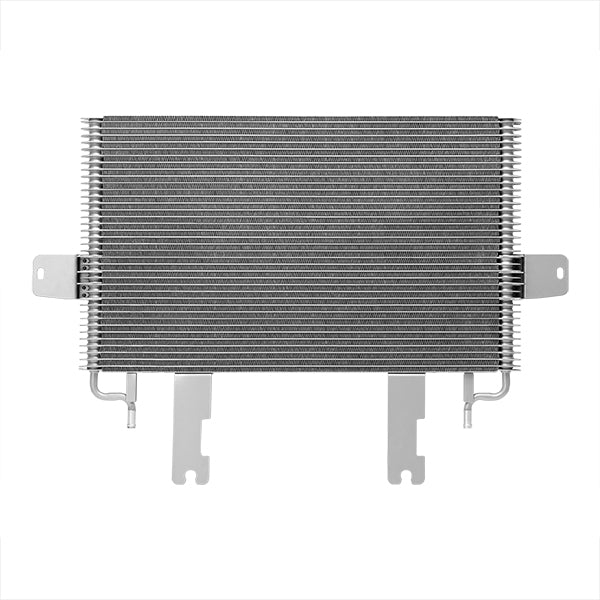

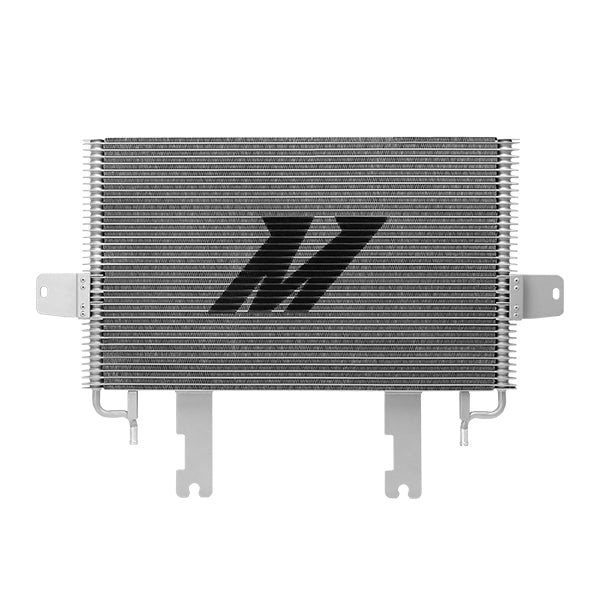

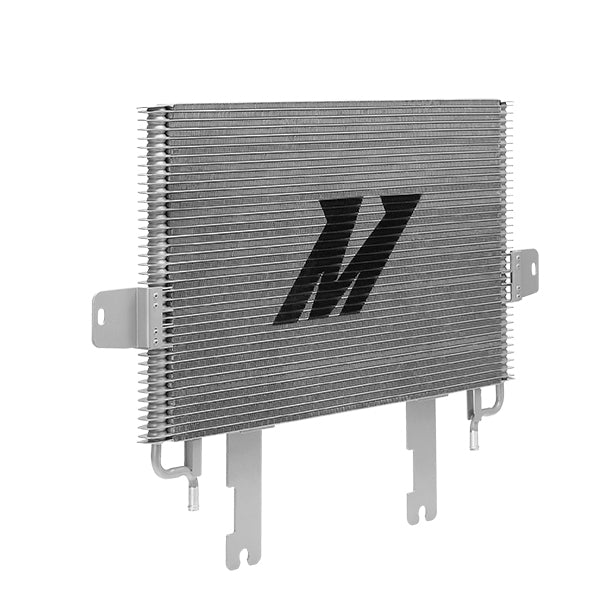

Mishimoto MMTC-F2D-03SL Transmission Cooler, Silver, fits Ford 6.0L Powerstroke 2003-2007
Mishimoto MMTC-F2D-03SL Transmission Cooler, Silver, fits Ford 6.0L Powerstroke 2003-2007
Low stock: 1 left
Couldn't load pickup availability
Description & Features
Mishimoto MMTC-F2D-03SL Transmission Cooler, Silver, fits Ford 6.0L Powerstroke 2003-2007
Heavy loads are no match for a 2003-2007 6.0L Powerstroke equipped with the Mishimoto 6.0 transmission cooler. Complement your cooling system with the latest addition to Mishimoto's 6.0 Powerstroke performance parts, the all-new 6.0 transmission cooler. The stock 6.0 Powerstroke transmission cooler does an ample job of keeping temperatures down, but as the loads increase, so do transmission temps. The 37-row Mishimoto's stacked plate cooler provides a larger surface area over both of the stock coolers. Core volume is increased by a whopping 21-percent, and fluid capacity is increased by 1/3 qt. With the Mishimoto 6.0 transmission cooler, high transmission fluid temperatures will be the least of your worries. The increased size of this 6.0L transmission cooler provides a proven 10+ F drop in transmission fluid temperature! No modifications are necessary for installation, and, just like all Mishimoto 6.0 Powerstroke parts, this cooler comes with the Mishimoto Lifetime Warranty.
- Proven 10F (5.6C) drop in transmission fluid temperature with no additional fluid pressure drop
- No modification necessary for installation, functions with all stock equipment

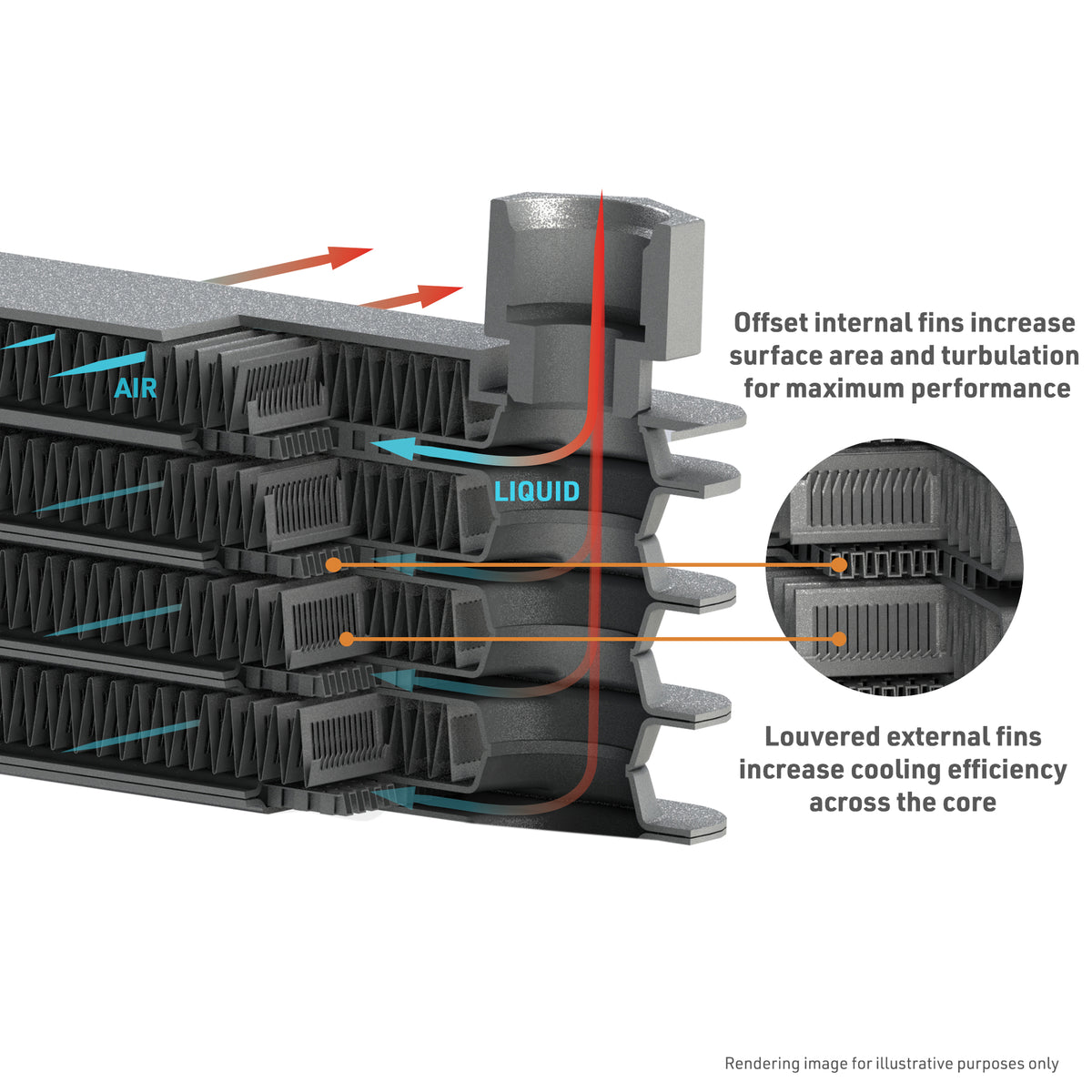

- 37-row stacked-plate fluid cooler provides larger surface area over even the largest stock 31-row transmission cooler
Specifications
| Core Height | 16.13 |
| Core Material | Aluminum |
| Core Thickness | 1.25 |
| Core Width | 25.25 |
| Electric Fan | No |
| Finish | Natural Aluminum |
| Grade Type | Performance |
| Height | 23.5 |
| Inlet Diameter | 0.5 |
| Line Included | No |
| Mounting Hardware Included | Yes |
| Outlet Diameter | 0.5 |
| Thickness | 1.34 |
| Width | 0 |
| SellingPoint04 | 37-row stacked-plate fluid cooler provides larger surface area over even the largest stock 31-row transmission cooler |
| SellingPoint05 | Transmisson cooler core has a 21-percent increase in core volume compared to the factory 31-row transmission cooler |
| SellingPoint06 | Increases transmission fluid capacity by 1/3 qt |
| SellingPoint07 | Includes durable SAE J1532 hose designed specifically for use with transmission fluid |
| SellingPoint08 | Mishimoto Lifetime Warranty |
| SellingPoint09 | N/A |
| SellingPoint10 | N/A |
| SellingPoint11 | N/A |
| SellingPoint12 | N/A |
| SellingPoint13 | N/A |
| SellingPoint14 | N/A |
| SellingPoint15 | N/A |
| Install Difficulty | 3 |
| TechSpec Rows | 37 |
| TechSpec Core Construction | N/A |
| TechSpec Core Length (in) | 25.25 |
| TechSpec Core Height (in) | 16.13 |
| TechSpec Core Thickness (in) | 1.25 |
| TechSpec Engine Codes | 6.0L Powerstroke |
| TechSpec Chassis Codes | N/A |
| TechSpec Transmission Codes | 5R110--5R110W |
| TechSpec Installation Notes | N/A |
| TechSpec Caution | N/A |
| TechSpec Overall Height (in) | 23.5 |
| TechSpec Overall Length (in) | 34 |
| TechSpec Overall Width (in) | 1.34 |
| TechSpec Inlet | N/A |
| TechSpec Outlet | N/A |
| TechSpec Includes | Mishimoto Stacked-Plate Transmission Cooler--Mounting Hardware--Mishimoto Lifetime Warranty |
| TechSpec Applications | 2003-2007 Ford F-250 w/ 6.0L Powerstroke--2003-2007 Ford F-350 w/ 6.0L Powerstroke--2003-2007 Ford F-450 w/ 6.0L Powerstroke----Also fits 1999-2003 Ford Superduty trucks with the 7.3 engine, however, the transmission cooler lines must be changed to ½" OD prior to installation. |
| TechSpec Fluid Capacity (qts) | N/A |
| TechSpec Note | Will not work with vehicles that came equipped with a high mounted power steering cooler. These vehicles will need to relocate the power steering cooler to the lower mounting location. |
| SellingPoint01 | Direct fit for the 2003-2007 Ford 6.0L Powerstroke |
| SellingPoint02 | Proven 10F (5.6C) drop in transmission fluid temperature with no additional fluid pressure drop |
| SellingPoint03 | No modification necessary for installation, functions with all stock equipment |
Packaging Information
Weight: 17.76 lbs
Dimensions: 36 x 25.2 x 5 IN
Safety
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Share
Vehicle Fitment
Vehicle Fitment
- 2003-2005 Ford Excursion Eddie Bauer
- 2003-2005 Ford Excursion Limited
- 2004-2005 Ford Excursion XLS
- 2003-2005 Ford Excursion XLT
- 2004-2007 Ford F-250 Super Duty Harley-Davidson Edition
- 2004-2007 Ford F-250 Super Duty King Ranch
- 2003-2007 Ford F-250 Super Duty Lariat
- 2003-2007 Ford F-250 Super Duty XL
- 2003-2007 Ford F-250 Super Duty XLT
- 2004-2007 Ford F-350 Super Duty Harley-Davidson Edition
- 2003-2007 Ford F-350 Super Duty King Ranch
- 2003-2007 Ford F-350 Super Duty Lariat
- 2003-2007 Ford F-350 Super Duty XL
- 2003-2007 Ford F-350 Super Duty XLT
- 2003-2004 Ford F-450 Super Duty Base
- 2003-2007 Ford F-450 Super Duty Lariat
- 2003-2007 Ford F-450 Super Duty XL
- 2003-2007 Ford F-450 Super Duty XLT
- 2003-2007 Ford F-550 Super Duty Base
- 2003-2007 Ford F-550 Super Duty Lariat
- 2003-2007 Ford F-550 Super Duty XL
- 2003-2007 Ford F-550 Super Duty XLT
