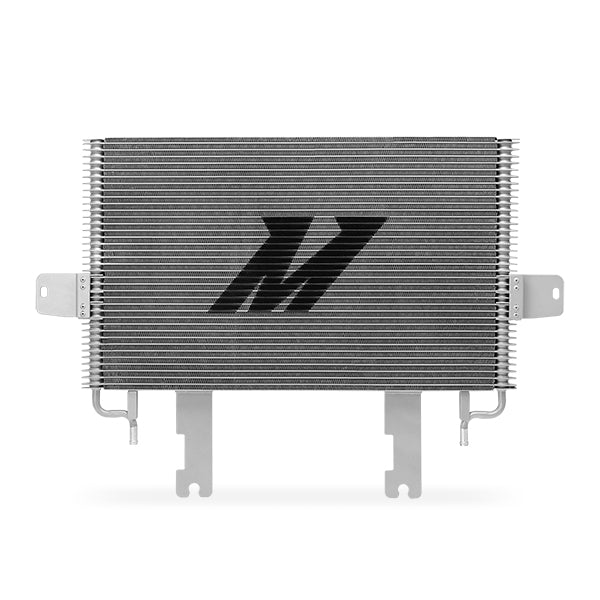

Mishimoto MMTC-F2D-99SL Transmission Cooler, Silver, fits Ford 7.3L Powerstroke 1999-2003

$469.95 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

Mishimoto MMTC-F2D-99SL Transmission Cooler, Silver, fits Ford 7.3L Powerstroke 1999-2003

Heavy loads are no match for a 1999-2003 7.3L Powerstroke equipped with the Mishimoto 7.3L Transmission Cooler. The stock 7.3L Powerstroke transmission cooler can come up short of providing sufficient cooling, and with more weight in the truck bed, transmission temperatures tend to rise. Avoid those high temperatures and complement your cooling system with the latest addition to Mishimoto's 7.3L Powerstroke performance parts, the all-new 7.3L transmission cooler. With the Mishimoto 7.3L Transmission Cooler, high transmission fluid temperatures will be the least of your worries. The 37-row Mishimoto's stacked plate cooler provides a larger surface area over both of the stock coolers. Core volume is increased by a whopping 265-percent, and fluid capacity is increased by 1.0 qt. The increased size of this 7.3L transmission cooler provides a proven 10+ F drop in transmission fluid temperature. No modifications are necessary for installation, and, just like all Mishimoto 7.3L Powerstroke parts, this cooler comes with the Mishimoto Lifetime Warranty.

Proven 10F (5.6C) drop in transmission fluid temperature with no additional fluid pressure drop
No modification necessary for installation, functions with all stock equipment

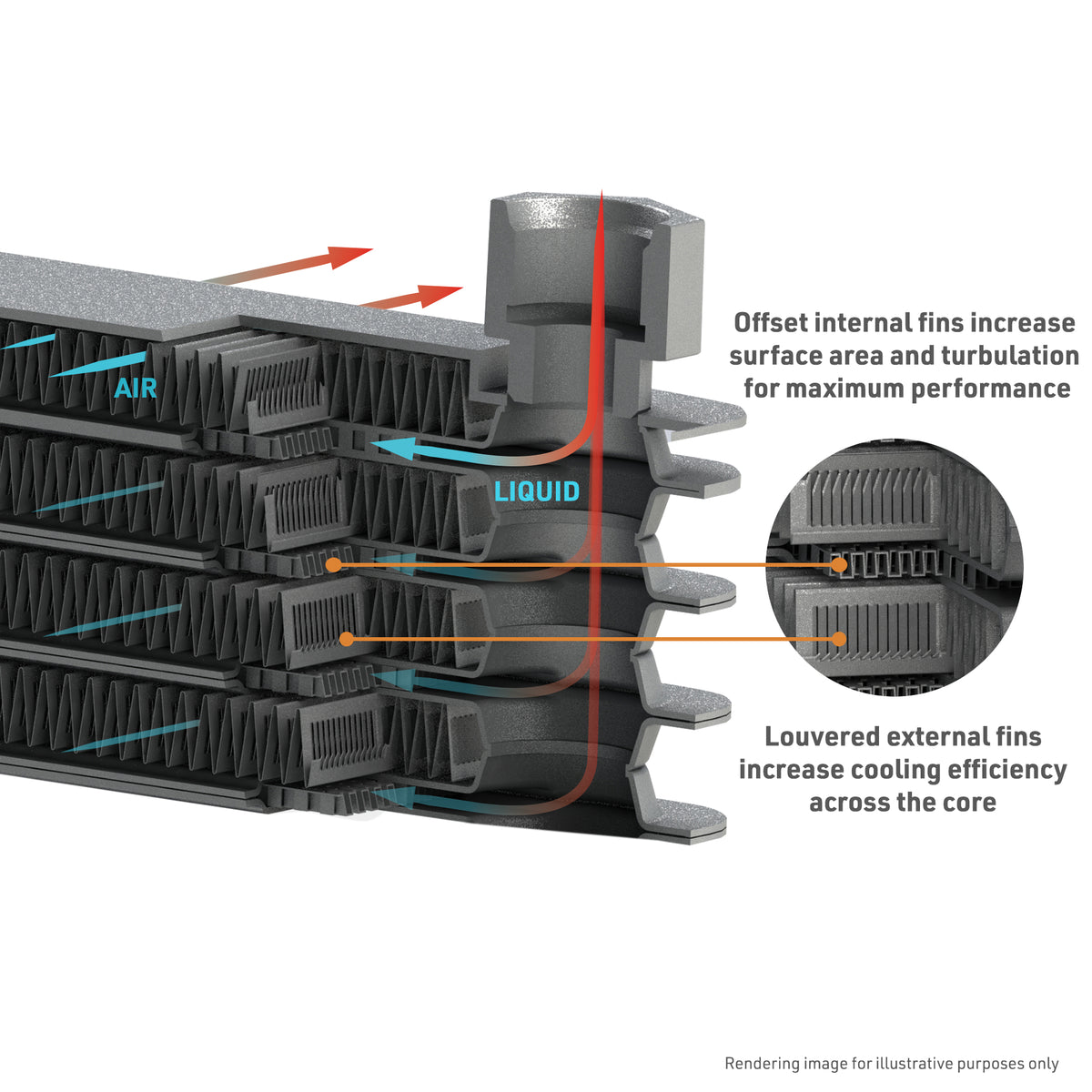

37-row stacked-plate fluid cooler provides larger surface area over the stock 9-row transmission cooler

Specifications

Mounting Hardware Included	Yes
Outlet Diameter	0.375
Thickness	1.34
Width	0
Core Height	16.13
Core Material	Aluminum
Core Thickness	1.25
Core Width	25.25
Electric Fan	No
Finish	Natural Aluminum
Grade Type	Performance
Height	23.5
Inlet Diameter	0.375
Line Included	Yes
TechSpec Rows	37
TechSpec Core Construction	N/A
TechSpec Core Length (in)	25.25
TechSpec Core Height (in)	16.13
TechSpec Core Thickness (in)	1.25
TechSpec Engine Codes	7.3L Powerstroke
TechSpec Chassis Codes	N/A
TechSpec Transmission Codes	4R100
TechSpec Installation Notes	N/A
TechSpec Caution	N/A
TechSpec Overall Height (in)	23.5
TechSpec Overall Length (in)	34
TechSpec Overall Width (in)	1.34
TechSpec Inlet	N/A
TechSpec Outlet	N/A

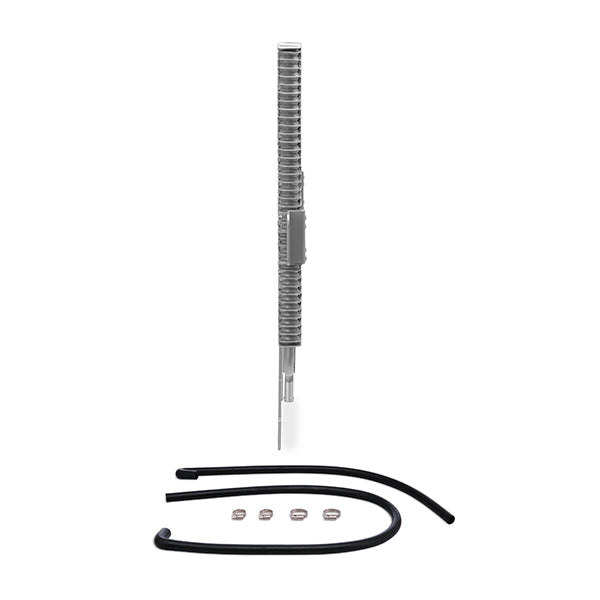

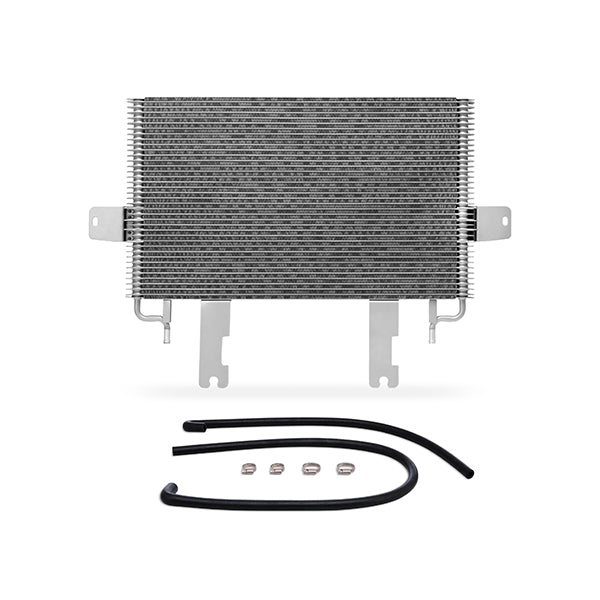

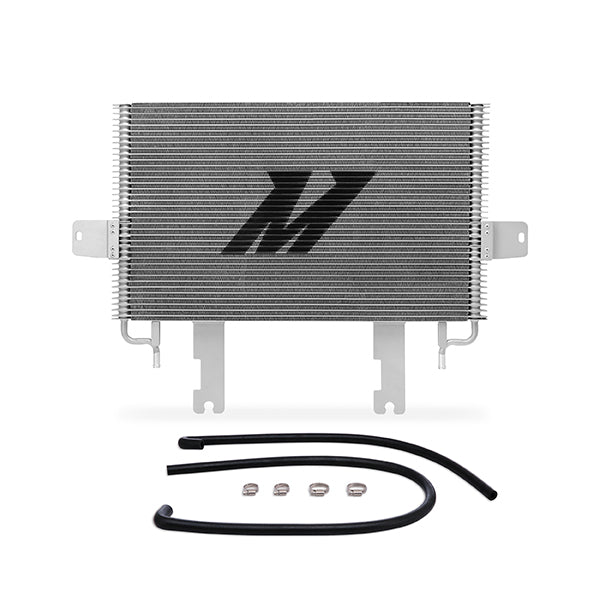

TechSpec Includes	Mishimoto Stacked-Plate Transmission Cooler--High-Pressure Transmission Lines--Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Applications	1999-2003 Ford F-250 w/ 7.3L Powerstroke--1999-2003 Ford F-350 w/ 7.3L Powerstroke--1999-2003 Ford F-450 w/ 7.3L Powerstroke
TechSpec Fluid Capacity (qts)	N/A
TechSpec Note	N/A
SellingPoint01	Direct fit for the 1999-2003 Ford 7.3L Powerstroke
SellingPoint02	Proven 10F (5.6C) drop in transmission fluid temperature with no additional fluid pressure drop
SellingPoint03	No modification necessary for installation, functions with all stock equipment
SellingPoint04	37-row stacked-plate fluid cooler provides larger surface area over the stock 9-row transmission cooler
SellingPoint05	Transmisson cooler core has a 265-percent increase in core volume compared to the factory 9-row transmission cooler
SellingPoint06	Increases transmission fluid capacity by 1.0 qt
SellingPoint07	Includes durable SAE J1532 hose designed specifically for use with transmission fluid
SellingPoint08	Mishimoto Lifetime Warranty
SellingPoint09	N/A
SellingPoint13	N/A
SellingPoint14	N/A
SellingPoint15	N/A
Install Difficulty	3
