Mishimoto

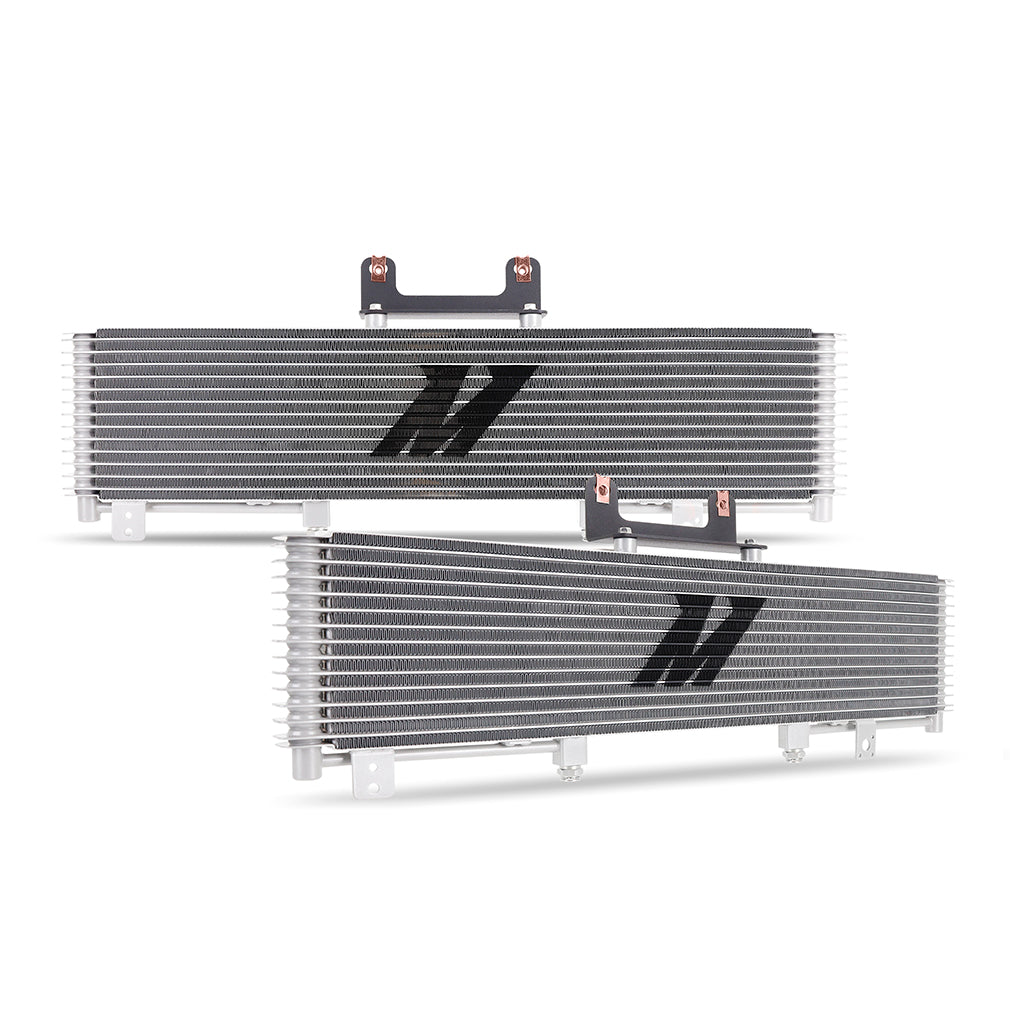

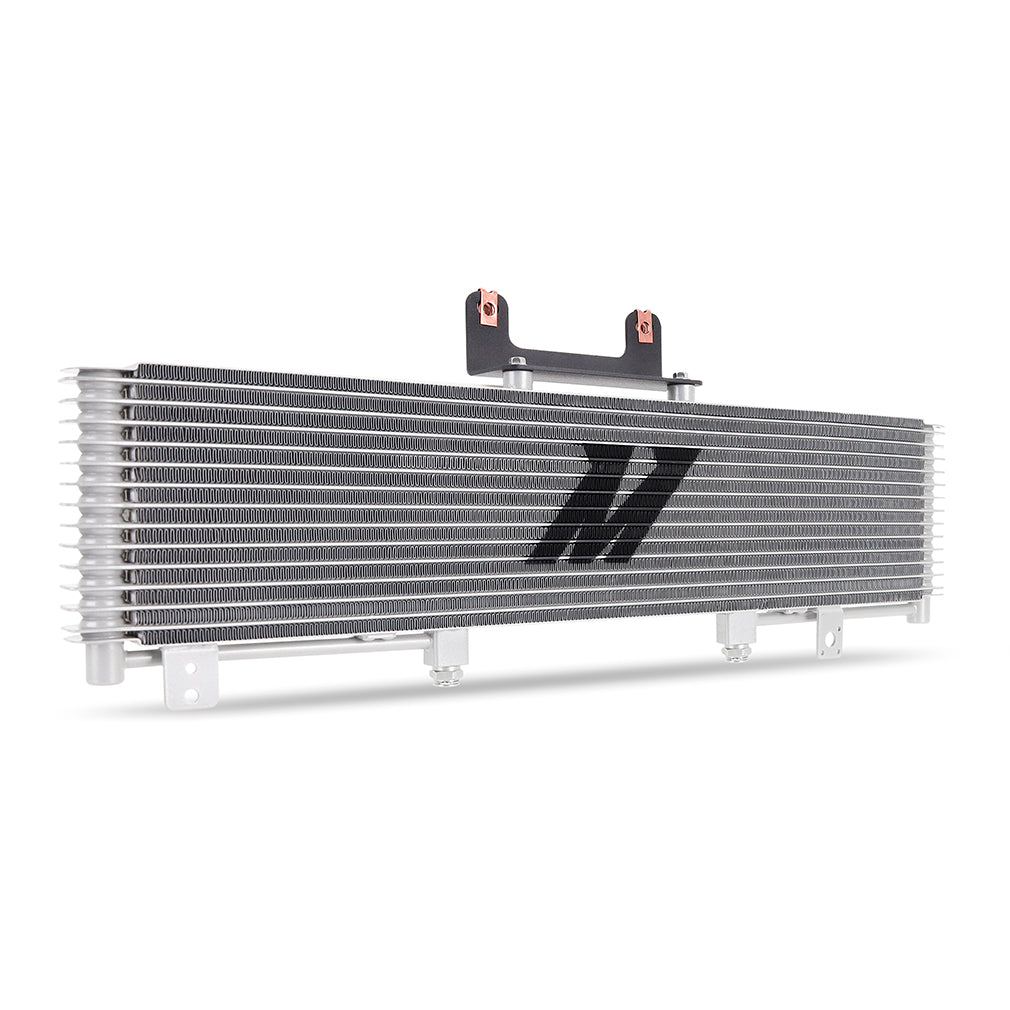

Mishimoto MMTC-GMT-99 Transmission Cooler, Silver, fits Chevrolet/GMC Truck 4LXX/6L80 Gas 1999-2013

Mishimoto MMTC-GMT-99 Transmission Cooler, Silver, fits Chevrolet/GMC Truck 4LXX/6L80 Gas 1999-2013

Regular price $399.95 USD
Regular price Sale price $399.95 USD
Mechanic Division pricing available
Sale Sold out
Shipping calculated at checkout.

10 in stock

Quantity
Description & Features

Mishimoto MMTC-GMT-99 Transmission Cooler, Silver, fits Chevrolet/GMC Truck 4LXX/6L80 Gas 1999-2013

There's no greater enemy for a transmission than heat. Whether your 1999-2013 GMT800 or 900 Chevy Silverado/GMC Sierra is a dedicated tow vehicle, hardworking fleet truck, or a daily driver, you need to ensure that your transmission runs cool. Luckily, Mishimoto has developed a cooler to do just that.----Our 1999-2013 Chevy Silverado/GMC Sierra performance transmission cooler utilizes a stacked-plate design for maximum durability and powerful cooling. With a massive core that's 521% larger than stock, and a 278% increase in frontal area, the Mishimoto transmission cooler adds significant cooling capacity to your truck whether you're towing a heavy load, or low-speed driving on the trail. Internal fins and louvered external fins circulate cool air and fluid throughout the core for optimal heat transfer.----Included with the Mishimoto transmission cooler are precision-machined -6ORB quick-disconnects that connect directly to the stock lines, or can be removed allow the use of -6AN lines. We also include a relocation bracket for the ambient air temperature sensor to keep full functionality of your truck. An adjustable mounting bracket makes installing this transmission cooler a breeze in an hour or less.--Like all Mishimoto products, our 1999-2013 Chevy Silverado/GMC Sierra transmission cooler is backed by our Lifetime Warranty with Accident Protection for worry-free cooling as long as you own it.

  • 521% increase in core volume for vastly improved cooling capacity
  • 278% increase in frontal surface area transfers more heat at any speed
  • -6ORB quick-disconnects can easily be swapped for -6AN fittings
Specifications
Core Material Aluminum
Core Thickness 1.25
Core Width 27
Electric Fan No
Core Height 6
Finish Natural Aluminum
Grade Type Performance
Height 0
Inlet Diameter 0.5625
Line Included No
Mounting Hardware Included No
Outlet Diameter 0.5625
Thickness 0
Width 0
TechSpec Fluid Capacity (qts) 0.7 (total cooler capacity including lines where applicable)
TechSpec Applications Cadillac Escalade ESV 6.2 V8 2007-2014--Cadillac Escalade ESV 6.0 V8 2003-2006--Cadillac Escalade EXT 6.2 V8 2007-2013--Cadillac Escalade EXT 6.0 V8 2002-2006--Cadillac Escalade 5.3 V8 2002-2005--Cadillac Escalade 6.2 V8 2007-2014--Cadillac Escalade 6.0 V8 2002-2006--Chevrolet Avalanche 1500 5.3 V8 2002-2006--Chevrolet Avalanche 5.3 V8 2007-2013--Chevrolet Avalanche 6.0 V8 2007-2009--Chevrolet Silverado 1500 Classic 4.3 V6 2007-2007--Chevrolet Silverado 1500 Classic 4.8 V8 2007-2007--Chevrolet Silverado 1500 Classic 5.3 V8 2007-2007--Chevrolet Silverado 1500 Classic 6.0 V8 2007-2007--Chevrolet Silverado 1500 HD Classic 6.0 V8 2007-2007--Chevrolet Silverado 1500 HD 6.0 V8 2001-2006--Chevrolet Silverado 1500 4.3 V6 1999-2013--Chevrolet Silverado 1500 4.8 V8 1999-2013--Chevrolet Silverado 1500 5.3 V8 1999-2013--Chevrolet Silverado 1500 6.2 V8 2009-2013--Chevrolet Silverado 1500 6.0 V8 2003-2013--Chevrolet Silverado 2500 HD Classic 6.0 V8 2007-2007--Chevrolet Silverado 2500 HD 6.0 V8 2001-2013--Chevrolet Silverado 2500 5.3 V8 1999-2000--Chevrolet Silverado 2500 6.0 V8 1999-2004--Chevrolet Silverado 3500 Classic 6.0 V8 2007-2007--Chevrolet Silverado 3500 HD 6.0 V8 2007-2010--Chevrolet Silverado 3500 6.0 V8 2001-2006--Chevrolet Suburban 1500 5.3 V8 2000-2014--Chevrolet Suburban 1500 6.0 V8 2006-2009--Chevrolet Suburban 2500 6.0 V8 2000-2013--Chevrolet Tahoe 4.8 V8 2000-2009--Chevrolet Tahoe 5.3 V8 2000-2014--Chevrolet Tahoe 6.2 V8 2008-2009--GMC Sierra 1500 Classic 4.3 V6 2007-2007--GMC Sierra 1500 Classic 4.8 V8 2007-2007--GMC Sierra 1500 Classic 5.3 V8 2007-2007--GMC Sierra 1500 Classic 6.0 V8 2007-2007--GMC Sierra 1500 HD Classic 6.0 V8 2007-2007--GMC Sierra 1500 HD 6.0 V8 2001-2006--GMC Sierra 1500 4.3 V6 1999-2013--GMC Sierra 1500 4.8 V8 1999-2013--GMC Sierra 1500 5.3 V8 1999-2013--GMC Sierra 1500 6.2 V8 2007-2013
Cooler Fluid Capacity 0.7
TechSpec Note This product does not fit trucks with Allison transmissions. For transmission coolers which fit Allison transmissions, click here.
Install Difficulty 3
SellingPoint01 Direct fit for 1999-2013 Chevrolet Silverado and GMC Sierra with 4LXX or 6L80 transmissions
SellingPoint02 521% increase in core volume for vastly improved cooling capacity
SellingPoint03 278% increase in frontal surface area transfers more heat at any speed
SellingPoint04 -6ORB quick-disconnects can easily be swapped for -6AN fittings
SellingPoint08 Includes ambient air temperature sensor relocation bracket
SellingPoint09 Patent Pending
SellingPoint10 Mishimoto Lifetime Warranty
SellingPoint11 N/A
SellingPoint07 Adjustable bracket makes installation fast and easy
SellingPoint06 Internal fins and external louvered fins maximize heat transfer
SellingPoint05 Stacked-plate core balances flow with effective cooling
SellingPoint12 N/A
SellingPoint13 N/A
SellingPoint14 N/A
SellingPoint15 N/A
TechSpec Rows 14
TechSpec Core Construction Stacked-Plate
TechSpec Core Length (in) 27
TechSpec Core Height (in) 6
TechSpec Core Thickness (in) 1.25
TechSpec Engine Codes N/A
TechSpec Chassis Codes GMT800--GMT900
TechSpec Installation Notes N/A
TechSpec Transmission Codes 4L60E--4L80E--6L80E--6L90E
TechSpec Caution N/A
TechSpec Overall Height (in) N/A
TechSpec Overall Length (in) N/A
TechSpec Overall Width (in) N/A
TechSpec Inlet -6ORB
TechSpec Outlet -6ORB
TechSpec Includes (1) Transmission Cooler--(2) Quick-Disconnect Fittings--(1) Ambient Air Temp Sensor Bracket--(1) Mounting Bracket--Mishimoto Lifetime Warranty
Packaging Information

Weight: 9.97 lbs
Dimensions: 37.5 x 17.5 x 4.6 IN

Safety

WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov

For more information visit www.P65Warnings.ca.gov

Vehicle Fitment

  • 2002-2014 Cadillac Escalade
  • 2003-2014 Cadillac Escalade ESV
  • 2002-2013 Cadillac Escalade EXT
  • 2007-2013 Chevrolet Avalanche
  • 2002-2006 Chevrolet Avalanche 1500
  • 1999-2013 Chevrolet Silverado 1500
  • 2007 Chevrolet Silverado 1500 Classic
  • 2001-2003 Chevrolet Silverado 1500 HD
  • 2005-2006 Chevrolet Silverado 1500 HD
  • 2007 Chevrolet Silverado 1500 HD Classic
  • 1999-2004 Chevrolet Silverado 2500
  • 2001-2010 Chevrolet Silverado 2500 HD
  • 2007 Chevrolet Silverado 2500 HD Classic
  • 2001-2006 Chevrolet Silverado 3500
  • 2007 Chevrolet Silverado 3500 Classic
  • 2007-2010 Chevrolet Silverado 3500 HD
  • 2000-2014 Chevrolet Suburban 1500
  • 2000-2013 Chevrolet Suburban 2500
  • 2000-2014 Chevrolet Tahoe
  • 1999-2013 GMC Sierra 1500
  • 2007 GMC Sierra 1500 Classic
  • 2001-2003 GMC Sierra 1500 HD
  • 2005-2006 GMC Sierra 1500 HD
  • 2007 GMC Sierra 1500 HD Classic
  • 1999-2004 GMC Sierra 2500
  • 2001-2010 GMC Sierra 2500 HD
  • 2007 GMC Sierra 2500 HD Classic
  • 2001-2006 GMC Sierra 3500
  • 2007 GMC Sierra 3500 Classic
  • 2007-2010 GMC Sierra 3500 HD
  • 2000-2014 GMC Yukon
  • 2000-2014 GMC Yukon XL 1500
  • 2000-2013 GMC Yukon XL 2500
