Mishimoto

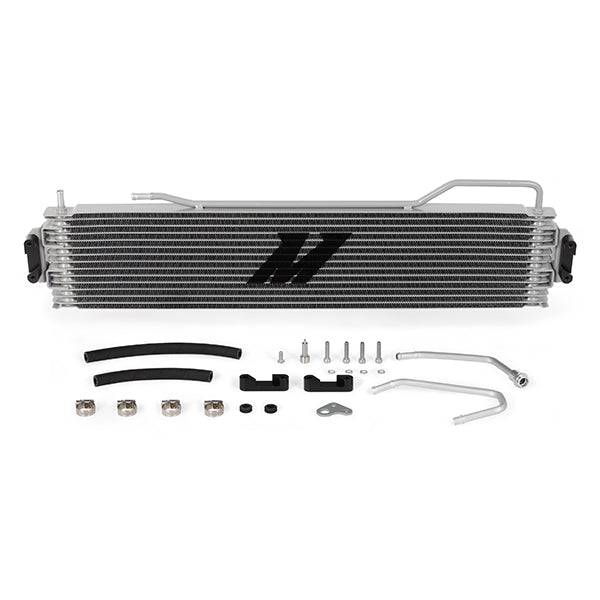

Mishimoto MMTC-K2-14 Transmission Cooler, Silver, fits Chevrolet Silverado 1500 V8 2014-2019
Mishimoto MMTC-K2-14 Transmission Cooler, Silver, fits Chevrolet Silverado 1500 V8 2014-2019
10 in stock
Couldn't load pickup availability
Description & Features
Mishimoto MMTC-K2-14 Transmission Cooler, Silver, fits Chevrolet Silverado 1500 V8 2014-2019
There's no greater enemy for a transmission than heat. Whether your 2014-2019 Chevy Silverado/GMC Sierra 1500 V8 is a dedicated tow vehicle, hardworking fleet truck, or a daily driver, you need to ensure that your transmission runs cool. Luckily, Mishimoto has developed a cooler to do just that. Our 2014-2019 Chevy Silverado/GMC Sierra 1500 V8 transmission cooler utilizes a stacked-plate design for maximum durability and powerful cooling. The Mishimoto transmission cooler mounts inline with the factory cooling system to add an extra 0.65 quarts of transmission fluid and over 3,000 square-inches of surface area for a significant increase in cooling potential. Included with the Mishimoto transmission cooler are adapter lines that connect directly to the stock cooling system and a relocation bracket for the ambient air temperature sensor. CNC-machined mounting brackets and high-grade transmission cooler hoses make installing this transmission cooler a breeze. Also provided with this kit is a thermal bypass valve delete that allows fluid to flow to the cooler at all times making this cooler ideal for drivers in hot climates. Like all Mishimoto products, our 2014-2019 Chevy Silverado/GMC Sierra 1500 V8 transmission cooler is backed up by our Lifetime Warranty with Accident Protection for worry-free cooling as long as you own it.
- Fits all 2014-2019 Chevrolet Silverado and GMC Sierra 1500 V8

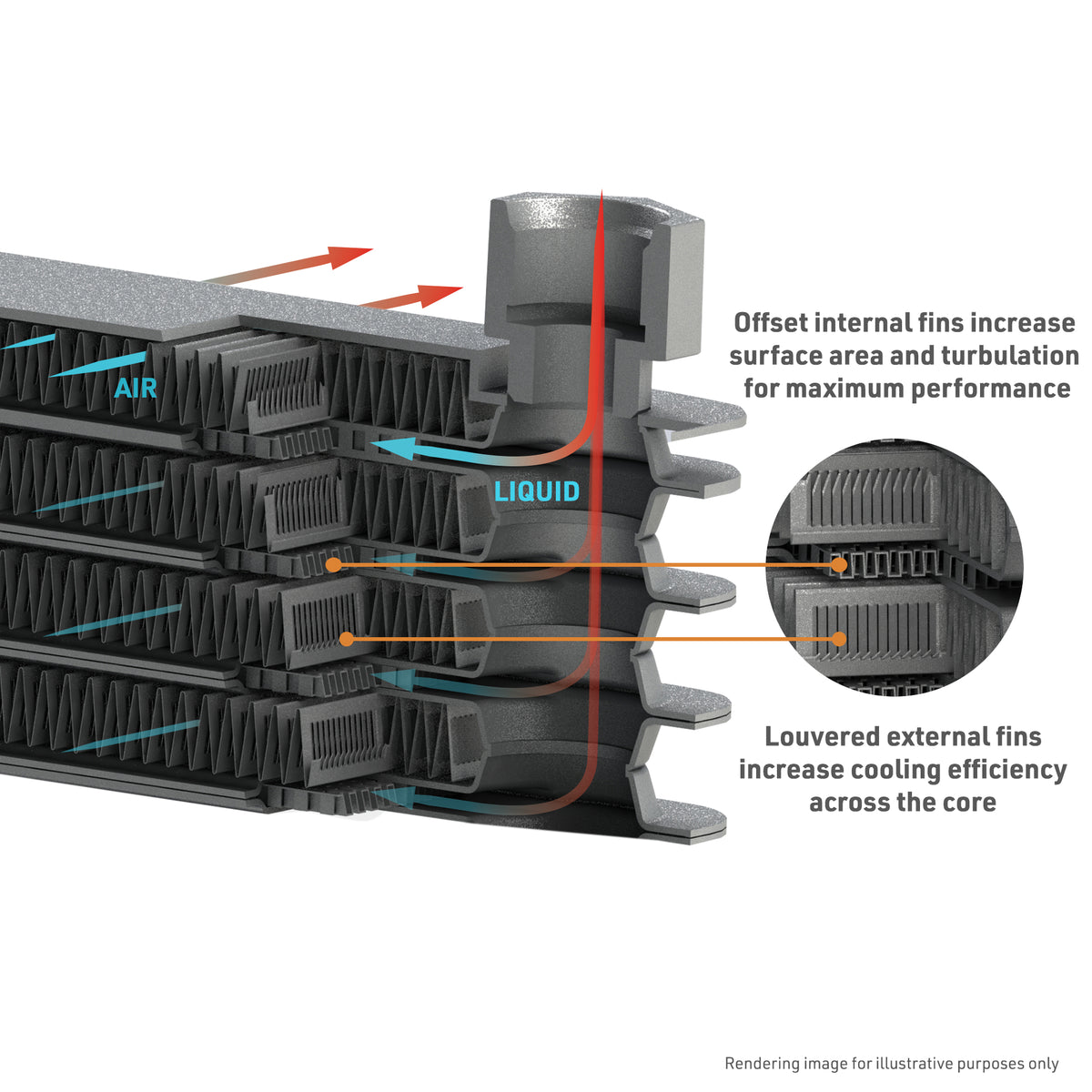

- Stacked-plate construction for maximum durability and superior cooling
- Adds an extra 0.65 quarts of transmission fluid and over 3,000 square-inches of cooling surface area
Specifications
| Core Height | 6 |
| Core Material | Aluminum |
| Core Thickness | 1.25 |
| Core Width | 27 |
| Electric Fan | No |
| Finish | Natural Aluminum |
| Grade Type | Performance |
| Height | 0 |
| Inlet Diameter | 0.5625 |
| Line Included | Yes |
| Mounting Hardware Included | Yes |
| Outlet Diameter | 0.5625 |
| Thickness | 0 |
| Width | 0 |
| TechSpec Fluid Capacity (qts) | 0.7 (total cooler capacity including lines where applicable) |
| TechSpec Rows | 14 |
| TechSpec Core Construction | N/A |
| TechSpec Core Length (in) | 27 |
| TechSpec Core Height (in) | 6 |
| TechSpec Core Thickness (in) | 1.25 |
| TechSpec Engine Codes | LV3--L83--L8B--L86 |
| TechSpec Chassis Codes | K2 |
| TechSpec Installation Notes | N/A |
| TechSpec Transmission Codes | 6L90--8L90 |
| TechSpec Caution | N/A |
| TechSpec Overall Height (in) | N/A |
| TechSpec Overall Length (in) | N/A |
| TechSpec Overall Width (in) | N/A |
| TechSpec Inlet | N/A |
| TechSpec Outlet | N/A |
| TechSpec Includes | Mishimoto Stacked-Plate Transmission Cooler--High-Pressure Transmission Cooler Lines--High-Strength Aluminum Transmission Cooler Adapter Lines--Pre-Installed CNC-Machined Aluminum Mounting Brackets--CNC-Machined Aluminum Mounting Brackets--Removable Thermal Bypass Valve Delete--Ambient Air Temperature Sensor Relocation Bracket--Stick-On Drilling Template--Installation Note Card--Mounting Hardware--Mishimoto Lifetime Warranty |
| TechSpec Applications | Cadillac Escalade ESV 6.2L V8 2017-2019•Cadillac Escalade 6.2L V8 2017-2019•Chevrolet Silverado 1500 4.3L V6 2014-2018•Chevrolet Suburban 5.3L V8 2017-2019•Chevrolet Suburban 6.2L V8 2019-2019•Chevrolet Tahoe 5.3L V8 2017-2019•Chevrolet Tahoe 6.2L V8 2018-2019•GMC Sierra 1500 4.3L V6 2014-2018•GMC Yukon XL 5.3L V8 2017-2019•GMC Yukon XL 6.2L V8 2017-2019•GMC Yukon 5.3L V8 2017-2019•GMC Yukon 6.2L V8 2017-2019 |
| Cooler Fluid Capacity | 0.7 |
| TechSpec Note | Minor drilling is required to install the adapter lines for this cooler. Please see the included drilling template and installation instructions for a detailed guide.----2014 model year vehicles require relocation of the ambient air temperature sensor. Please see the included installation note card for detailed instructions.----For 2019 model year trucks, double check engine and transmission codes before purchasing. If you have any questions, please contact our Customer Service Team. |
| SellingPoint01 | Fits all 2014-2019 Chevrolet Silverado and GMC Sierra 1500 V8 |
| SellingPoint02 | Stacked-plate construction for maximum durability and superior cooling |
| SellingPoint03 | Adds an extra 0.65 quarts of transmission fluid and over 3,000 square-inches of cooling surface area |
| SellingPoint04 | Durable aluminum adapter lines and CNC-machined brackets make installation easy |
| SellingPoint05 | Includes ambient air temp sensor relocation bracket for 2014 models |
| SellingPoint06 | Included thermal bypass valve delete allows fluid flow to the cooler at all times for vehicles in hot climates |
| SellingPoint07 | Patent numberD905,116 |
| SellingPoint08 | Includes durable SAE J1532 hose designed specifically for use with transmission fluid |
| SellingPoint09 | Mishimoto Lifetime Warranty |
| SellingPoint10 | N/A |
| SellingPoint11 | N/A |
| SellingPoint12 | N/A |
| SellingPoint13 | N/A |
| SellingPoint14 | N/A |
| SellingPoint15 | N/A |
| Install Difficulty | 3 |
Packaging Information
Weight: 8.3 lbs
Dimensions: 35 x 4 x 17 IN
Safety
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Share
Vehicle Fitment
Vehicle Fitment
- 2017-2019 Cadillac Escalade
- 2017-2019 Cadillac Escalade ESV
- 2014-2018 Chevrolet Silverado 1500
- 2017-2019 Chevrolet Suburban
- 2017-2019 Chevrolet Tahoe
- 2014-2018 GMC Sierra 1500
- 2017-2019 GMC Yukon
- 2017-2019 GMC Yukon XL
