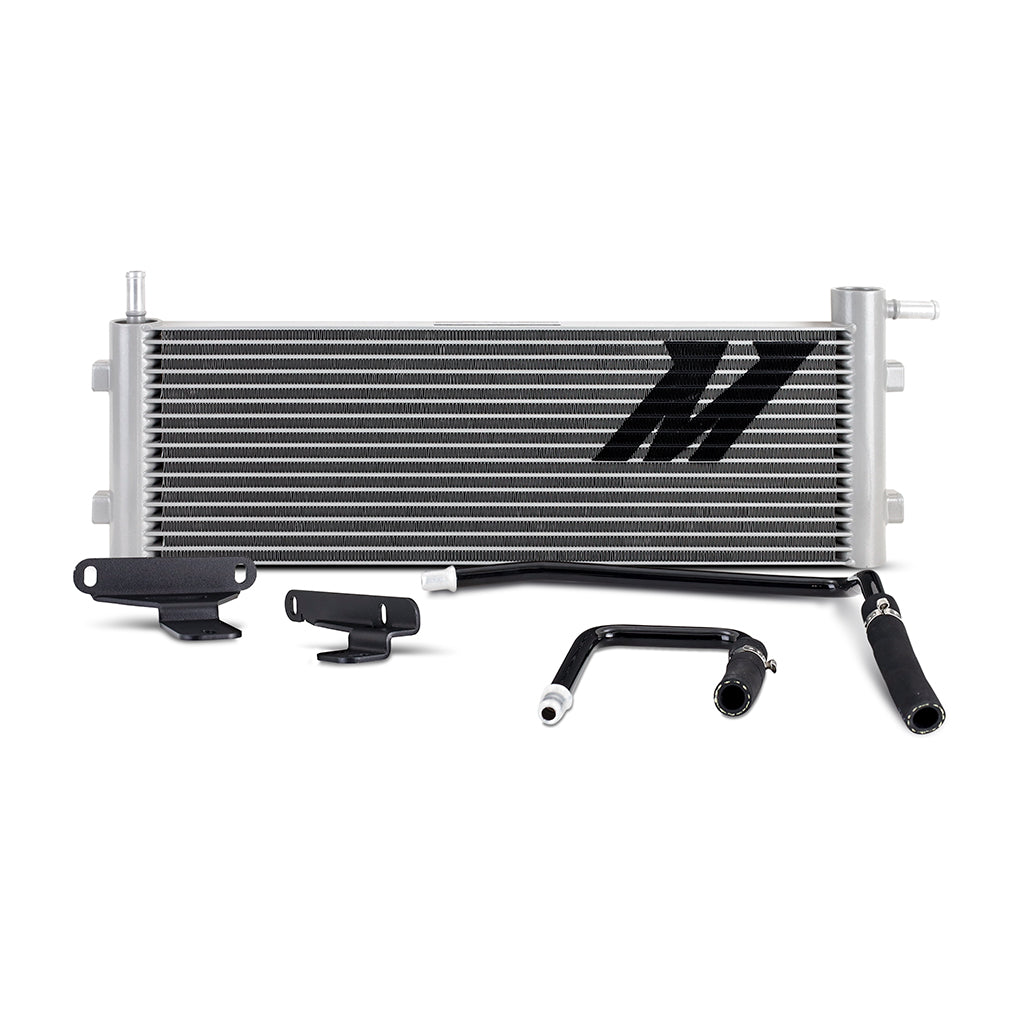

Mishimoto MMTC-RAM-10 Transmission Cooler, Silver, fits Dodge Ram 2500/3500 6.7L Cummins 2010-2012

$571.95 USD

⬡Mechanic Division pricing available

Sale Sold out

Shipping calculated at checkout.

10 in stock

Description & Features

Mishimoto MMTC-RAM-10 Transmission Cooler, Silver, fits Dodge Ram 2500/3500 6.7L Cummins 2010-2012

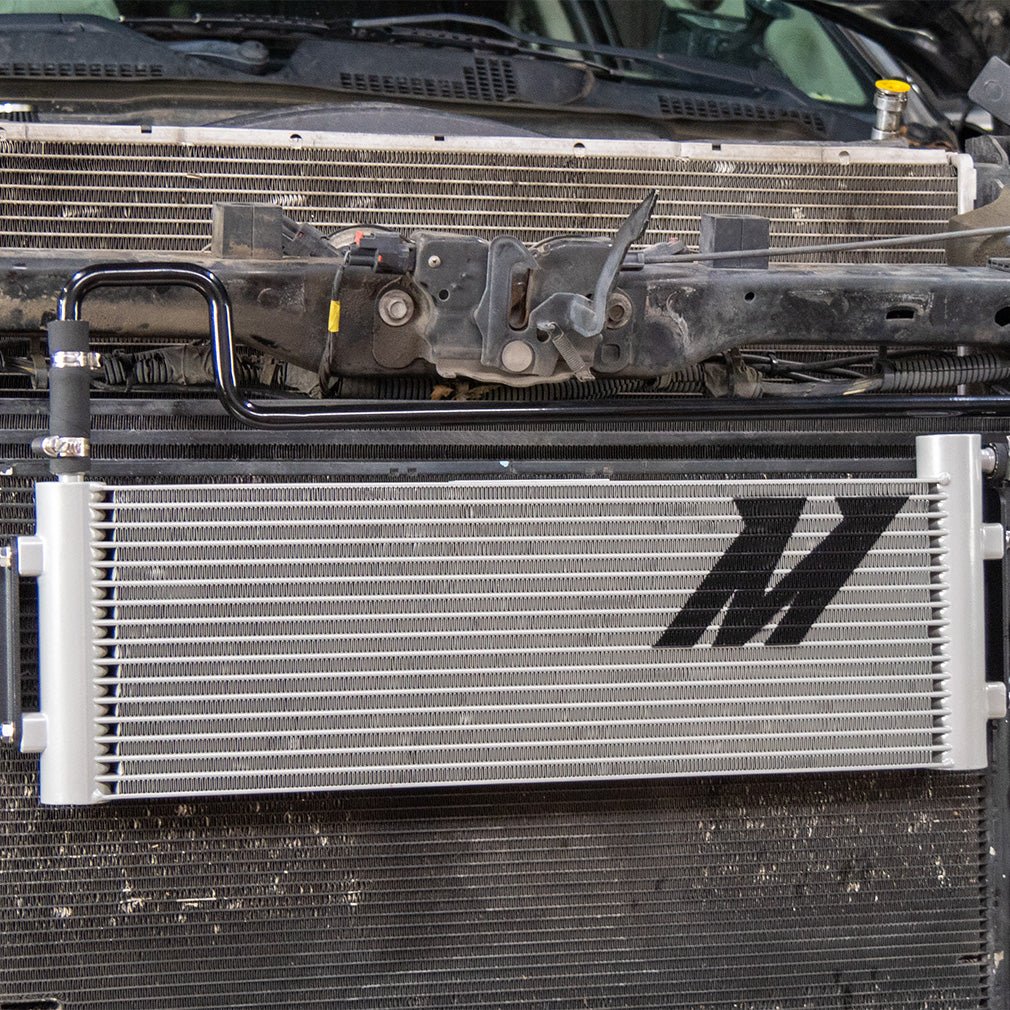

Mishimoto's transmission cooler is designed to be a direct fit for the 2010-2012 Dodge 2500/3500 6.7L Cummins and features a tube and fin design optimal for heavy load towing and rapid load changes. This transmission cooler boasts a 60% increase in core volume and an 86% increase in external fin area for superior cooling and heat dissipation. It also pairs with an optional line kit that helps bypass the factory transmission cooler, as a transmission failure can contaminate that.

Available optional line kit to bypass OEM cooler and integrated A/C condenser
60% increase in core volume for superior cooling capability
Works with stock and Mishimoto transmission coolers

Specifications

Core Height	6.18
Core Material	Aluminum
Core Thickness	1.26
Core Width	19.29
Electric Fan	No
Finish	Natural Aluminum
Grade Type	Performance
Height	7.87
Inlet Diameter	0.5
Line Included	Yes
Mounting Hardware Included	Yes
Outlet Diameter	0.5
Thickness	1.54
Width	0
TechSpec Fluid Capacity (qts)	0.7 (total cooler capacity including lines where applicable)
SellingPoint15	N/A
TechSpec Rows	15
TechSpec Core Construction	Tube-And-Fin
TechSpec Core Length (in)	19.29
TechSpec Core Height (in)	6.18
TechSpec Core Thickness (in)	1.26
TechSpec Engine Codes	6.7L Cummins
TechSpec Chassis Codes	N/A
TechSpec Transmission Codes	68RFE--AS68RC
TechSpec Installation Notes	N/A
TechSpec Caution	N/A
TechSpec Overall Height (in)	7.87
TechSpec Overall Length (in)	22.48
TechSpec Overall Width (in)	1.54
TechSpec Inlet	1/2"
TechSpec Outlet	1/2"
TechSpec Includes	(1) Mishimoto Transmission Cooler--(1) Mounting Bracket & Hardware Kit--(1) Line Kit--Mishimoto Lifetime Warranty
Cooler Fluid Capacity	0.7
TechSpec Note	Available optional line kit to bypass OEM cooler and integrated A/C condenser: MMTC-RAM-10LK
Install Difficulty	2
TechSpec Applications	Dodge Ram 2500 5.7L V8 2010--Dodge Ram 2500 6.7L L6 2010--Dodge Ram 3500 6.7L L6 2010--Ram 2500 6.7L L6 2011-2013--Ram 2500 5.7L V8 2011-2012--Ram 3500 6.7L L6 2011-2013--Ram 3500 5.7L V8 2011-2012
SellingPoint01	Direct fit for the 2010-2012 Dodge 2500/3500 6.7L Cummins
SellingPoint05	86% increase in external fin area for improved heat dissipation
SellingPoint06	Tube and fin design perfect for heavy towing and rapid load changes
SellingPoint07	Mishimoto Lifetime Warranty
SellingPoint08	N/A
SellingPoint02	Available optional line kit to bypass OEM cooler and integrated A/C condenser [HYPERLINK TO MMTC-RAM-10LK]
SellingPoint03	60% increase in core volume for superior cooling capability
SellingPoint04	Works with stock and Mishimoto transmission coolers
SellingPoint09	N/A
SellingPoint10	N/A
SellingPoint11	N/A
SellingPoint12	N/A
SellingPoint13	N/A
SellingPoint14	N/A
