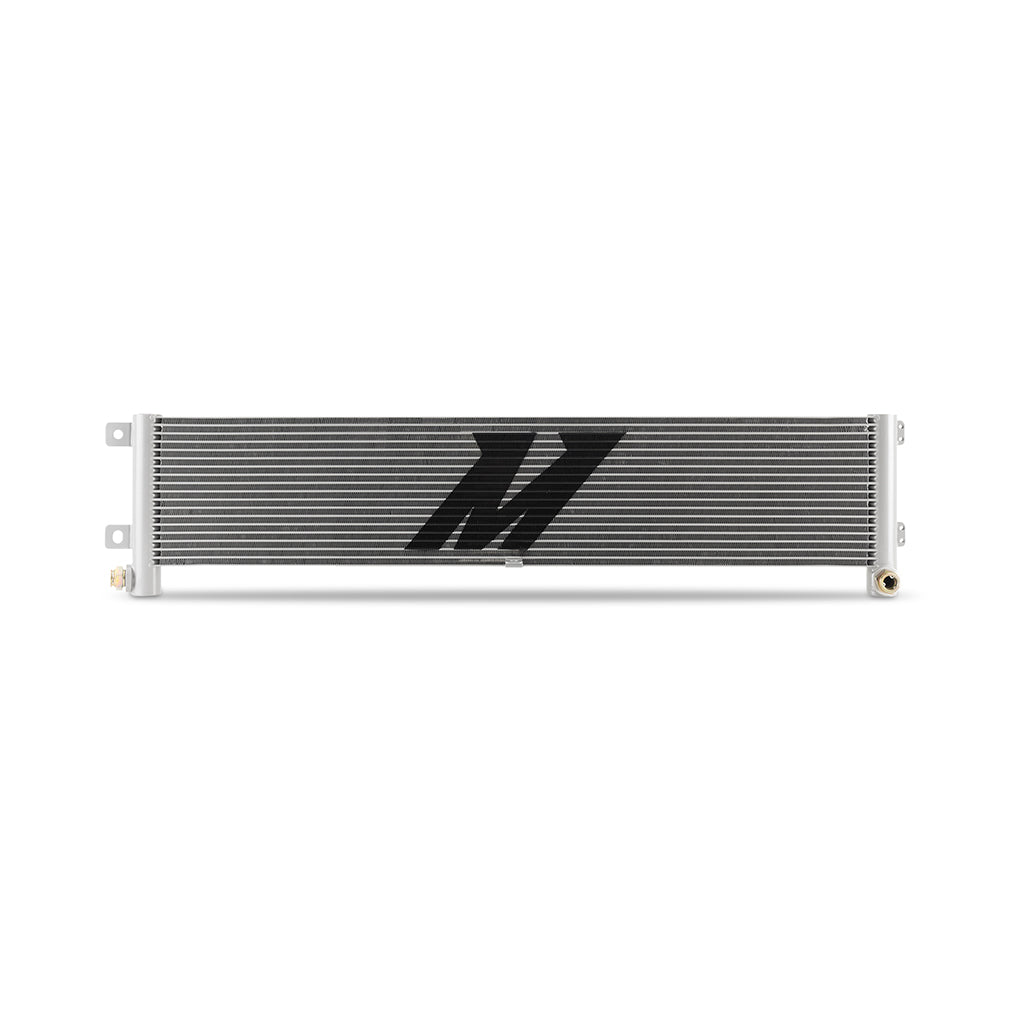

Mishimoto MMTC-RAM-19 Transmission Cooler, Silver, fits RAM 6.7L Cummins 2019-2024, 6.4L Gas 2019+
Mishimoto MMTC-RAM-19 Transmission Cooler, Silver, fits RAM 6.7L Cummins 2019-2024, 6.4L Gas 2019+
Low stock: 1 left
Couldn't load pickup availability
Description & Features
Mishimoto MMTC-RAM-19 Transmission Cooler, Silver, fits RAM 6.7L Cummins 2019-2024, 6.4L Gas 2019+
There's no greater enemy for a transmission than heat. Whether your 2019-2024 RAM 6.7L Cummins is a dedicated tow vehicle, hardworking fleet truck, or a daily driver with a liking for the dragstrip, you need to ensure that your transmission runs cool. Luckily, Mishimoto has developed a direct-fit transmission cooler to do just that. ---- Our 2019-2024 RAM 6.7L Cummins transmission cooler utilizes a tube-and-fin core with internal fins to balance flow with efficient cooling. Our transmission cooler reduces restriction over stock, while adding cooling performance. With a massive 64 percent thicker core and an additional 3 rows of fins, this trans cooler is a huge improvement over the stock unit. To make even better use of that enlarged core, the Mishimoto transmission cooler utilizes fins within the tubes to not only add more cooling surface area, but also ensure more of the fluid contacts the tube, leading to better cooling efficiency. All these improvements translate to lower inlet temperatures over stock for a cooler transmission when you need it most. ---- Installation of the Mishimoto 2019-2024 RAM 6.7L Cummins transmission cooler requires no cutting or other modifications and, thanks to the bolt-on mounting tabs, your radiator and A/C condenser can stay in place, reducing the time and cost of installation. Like all Mishimoto products, this transmission cooler is backed up by our Lifetime Warranty with Accident Protection for worry free cooling as long as you own it.
- 64% thicker core with 3 additional rows for maximum efficiency
- Tube-and-fin core optimizes cooling while reducing restriction
- High-efficiency internal fins maximize cooling for lower system temps
Specifications
| Core Height | 7.13 |
| Core Material | Aluminum |
| Core Thickness | 1.26 |
| Core Width | 34.65 |
| Electric Fan | No |
| Finish | Natural Aluminum |
| Grade Type | Performance |
| Height | 8.58 |
| Inlet Diameter | 0.5 |
| Line Included | No |
| Mounting Hardware Included | Yes |
| Outlet Diameter | 0.5 |
| Thickness | 2.36 |
| Width | 0 |
| TechSpec Fluid Capacity (qts) | 1.4 (total cooler capacity including lines where applicable) |
| SellingPoint01 | Direct fit for 2019-2024 RAM 6.7L Cummins, 2019+ Gas 6.4L |
| SellingPoint02 | 64% thicker core with 3 additional rows for maximum efficiency |
| SellingPoint03 | Tube-and-fin core optimizes cooling while reducing restriction |
| SellingPoint04 | High-efficiency internal fins maximize cooling for lower system temps |

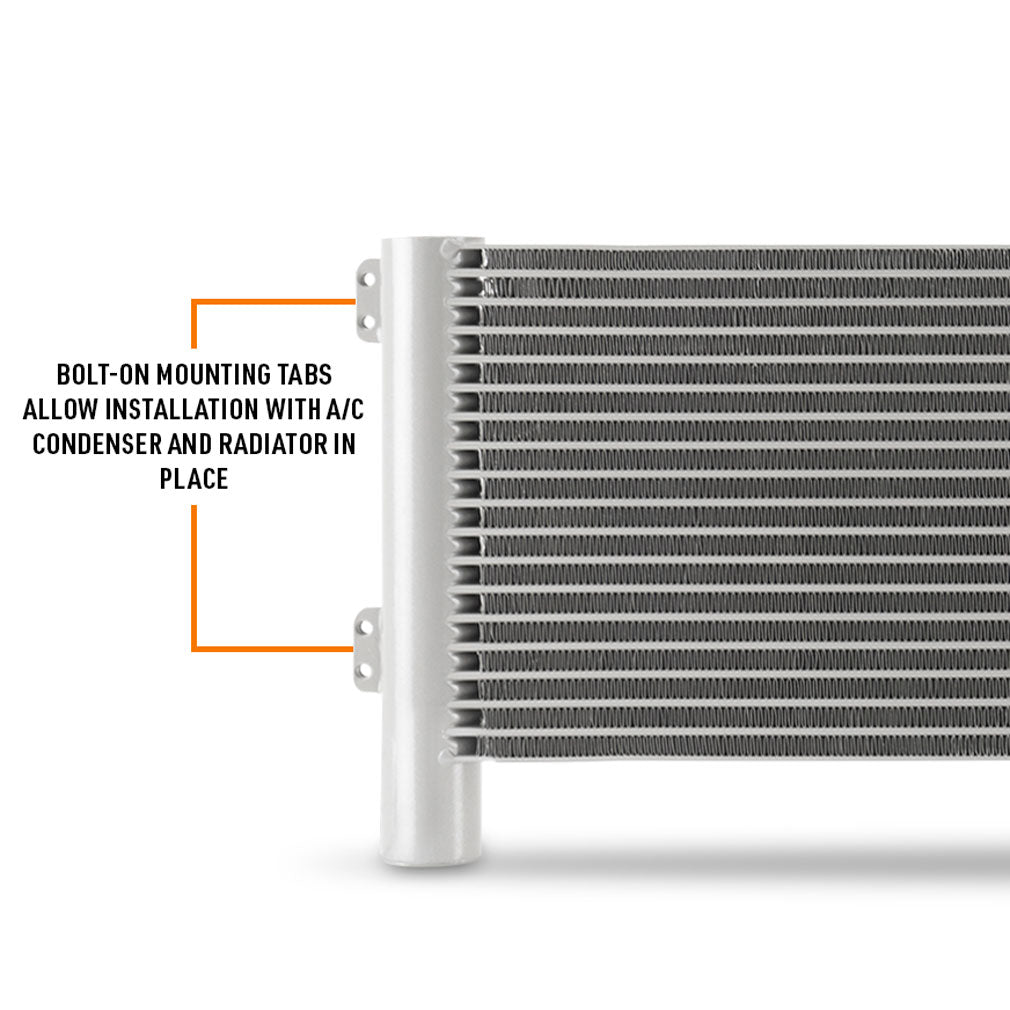

| SellingPoint05 | Bolt-on mounting tabs allow installation with radiator and A/C condenser in place |
| SellingPoint06 | Includes OEM-quality quick-disconnect fittings for easy install |
| SellingPoint07 | Patent Pending |
| SellingPoint08 | Mishimoto Lifetime Warranty |
| SellingPoint09 | N/A |
| SellingPoint10 | N/A |
| SellingPoint11 | N/A |
| SellingPoint12 | N/A |
| SellingPoint13 | N/A |
| SellingPoint14 | N/A |
| SellingPoint15 | N/A |
| TechSpec Rows | 17 |
| TechSpec Core Construction | Tube-And-Fin |
| TechSpec Core Length (in) | 34.65 |
| TechSpec Core Height (in) | 7.13 |
| TechSpec Core Thickness (in) | 1.26 |
| TechSpec Engine Codes | 6.7L Cummins--6.4L Hemi |
| TechSpec Chassis Codes | N/A |
| TechSpec Transmission Codes | 68RFE--8HP75 |
| TechSpec Installation Notes | N/A |
| TechSpec Caution | N/A |
| TechSpec Overall Height (in) | 8.58 |
| TechSpec Overall Length (in) | 38.78 |
| TechSpec Overall Width (in) | 2.36 |
| TechSpec Inlet | N/A |
| TechSpec Outlet | N/A |
| TechSpec Includes | (1) Mishimoto Performance Transmission Cooler--(2) Quick-Disconnect Fittings--(2) Mounting Tabs--Mounting Hardware--Mishimoto Lifetime Warranty |
| TechSpec Applications | Ram 2500 6.4L V8 2019+--Ram 3500 6.4L V8 2019+--Ram 2500 6.7L L6 2019-2024--Ram 3500 6.7L L6 2019-2024 |
| Cooler Fluid Capacity | 1.4 |
| TechSpec Note | This product is not compatible with Ram 3500 HO trucks equipped with an Aisin transmission. |
| Install Difficulty | 2 |
Packaging Information
Weight: 10.09 lbs
Dimensions: 40.25 x 10.5 x 4.5 IN
Safety
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Share
Vehicle Fitment
Vehicle Fitment
- 2019-2026 Ram 2500 Big Horn
- 2026 Ram 2500 Black Express
- 2020-2024 Ram 2500 HD Limited
- 2020 Ram 2500 HD Limited Rambox
- 2024 Ram 2500 HD Power Wagon
- 2019-2026 Ram 2500 Laramie
- 2019-2020 Ram 2500 Laramie Limited
- 2019-2021 Ram 2500 Laramie Longhorn
- 2019-2026 Ram 2500 Limited
- 2021-2026 Ram 2500 Limited Longhorn
- 2019-2026 Ram 2500 Lone Star
- 2020-2024 Ram 2500 Power Wagon
- 2023-2026 Ram 2500 Rebel
- 2020-2023 Ram 2500 SLT HD
- 2024-2026 Ram 2500 Special Service
- 2019-2026 Ram 2500 Tradesman
- 2026 Ram 2500 Warlock
- 2019-2026 Ram 3500 Big Horn
- 2019-2026 Ram 3500 Laramie
- 2019-2020 Ram 3500 Laramie Limited
- 2019-2020 Ram 3500 Laramie Longhorn
- 2019-2026 Ram 3500 Limited
- 2021-2026 Ram 3500 Limited Longhorn
- 2019-2022 Ram 3500 Lone Star
- 2019-2024 Ram 3500 SLT
- 2024-2026 Ram 3500 Special Service
- 2019-2026 Ram 3500 Tradesman
