Mishimoto

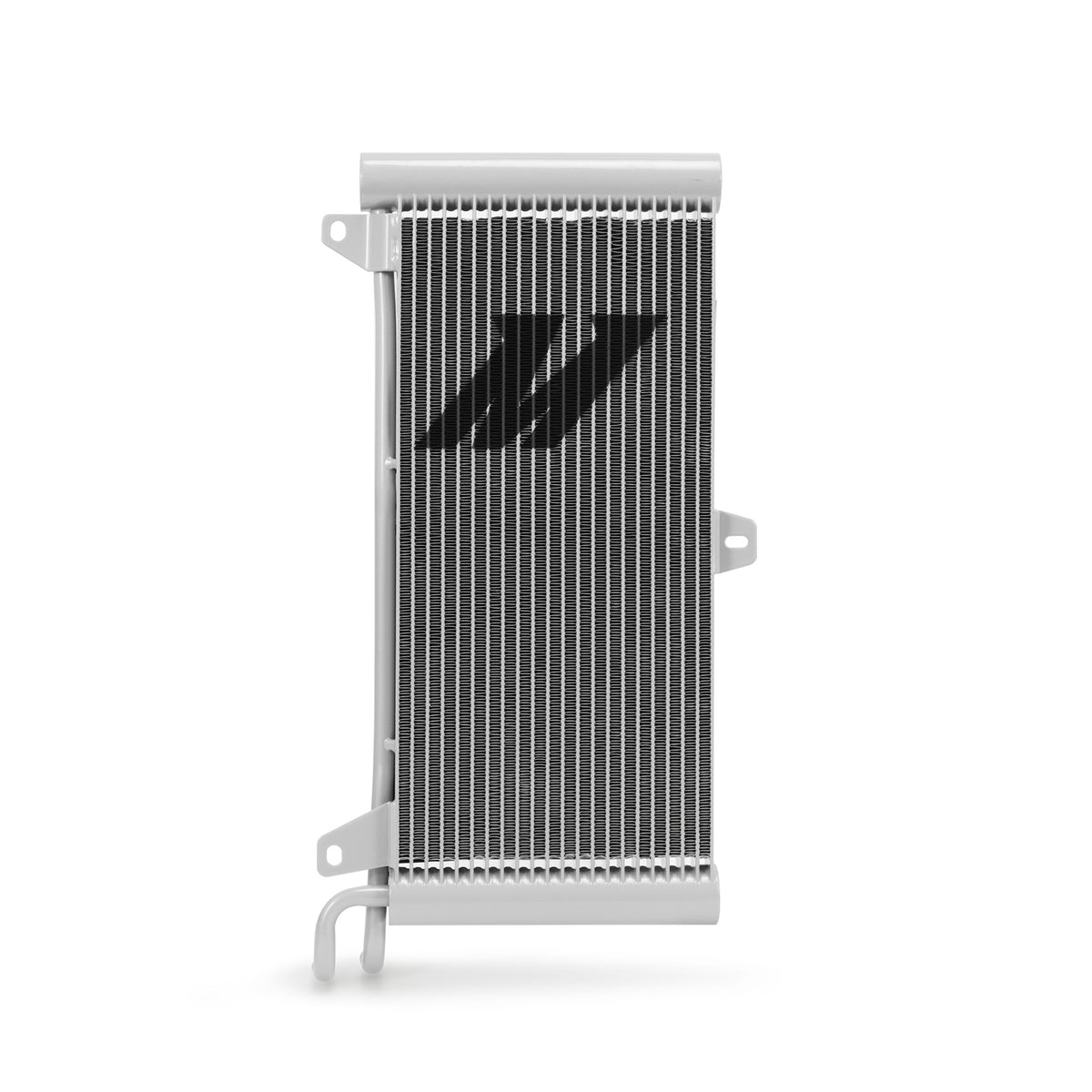

Mishimoto MMTC-RAM-94SL Transmission Cooler, Silver, fits Dodge Ram 5.9L Cummins 1994-2002
Mishimoto MMTC-RAM-94SL Transmission Cooler, Silver, fits Dodge Ram 5.9L Cummins 1994-2002
Low stock: 3 left
Couldn't load pickup availability
Description & Features
Mishimoto MMTC-RAM-94SL Transmission Cooler, Silver, fits Dodge Ram 5.9L Cummins 1994-2002
There's no greater enemy for a transmission than heat. Whether your 1994-2002 Dodge Ram 5.9L Cummins is a dedicated tow vehicle, hardworking fleet truck, or a daily driver with a liking for the drag-strip, you need to ensure that your transmission runs cool. Luckily, Mishimoto has developed a direct-fit transmission cooler to do just that. Our 1994-2002 Dodge Ram 5.9L Cummins transmission cooler utilizes a tube-and-fin core for reliable and powerful cooling. The Mishimoto transmission cooler boasts a 116-percent greater core volume, 141-percent increase in fluid capacity, and 134-percent greater fin surface area than the stock 1994-2002 Dodge Ram 5.9L Cummins transmission cooler. If you've ever removed the stock transmission cooler from a 2nd Gen Ram, you probably know that the quick-disconnect fittings are usually not quick anymore. To save you the hassle of removing seized fittings, Mishimoto provides two CNC-machined, stainless steel hose barb fittings so you can cut to the chase, literally. These fittings and the supplied transmission fluid hose allow you to remove the quick-disconnect fittings and connect the stock soft-line to the Mishimoto cooler. Like all Mishimoto products, this transmission cooler is backed up by our Lifetime Warranty with Accident Protection for worry free cooling as long as you own it.
- Fits all 1994-2002 Dodge Ram 5.9L Cummins
- 116-percent Increase in core volume
- 141-percent Increase in fluid capacity
Specifications
| Core Height | 8.5 |
| Core Material | Aluminum |
| Core Thickness | 1.4 |
| Core Width | 16.8 |
| Electric Fan | No |
| Finish | Natural Aluminum |
| Grade Type | Performance |
| Height | 0 |
| Inlet Diameter | 0.5 |
| Line Included | Yes |
| Mounting Hardware Included | Yes |
| Outlet Diameter | 0.5 |
| Thickness | 0 |
| Width | 0 |
| TechSpec Fluid Capacity (qts) | 0.7 (total cooler capacity including lines where applicable) |
| TechSpec Rows | 22 |
| TechSpec Core Construction | N/A |
| TechSpec Core Length (in) | 16.8 |
| TechSpec Core Height (in) | 8.5 |
| TechSpec Core Thickness (in) | 1.4 |
| TechSpec Engine Codes | 5.9L Cummins |
| TechSpec Chassis Codes | N/A |
| TechSpec Transmission Codes | 47RE |
| TechSpec Installation Notes | N/A |
| TechSpec Caution | N/A |
| TechSpec Overall Height (in) | N/A |
| TechSpec Overall Length (in) | N/A |
| TechSpec Overall Width (in) | N/A |
| TechSpec Inlet | N/A |
| TechSpec Outlet | N/A |

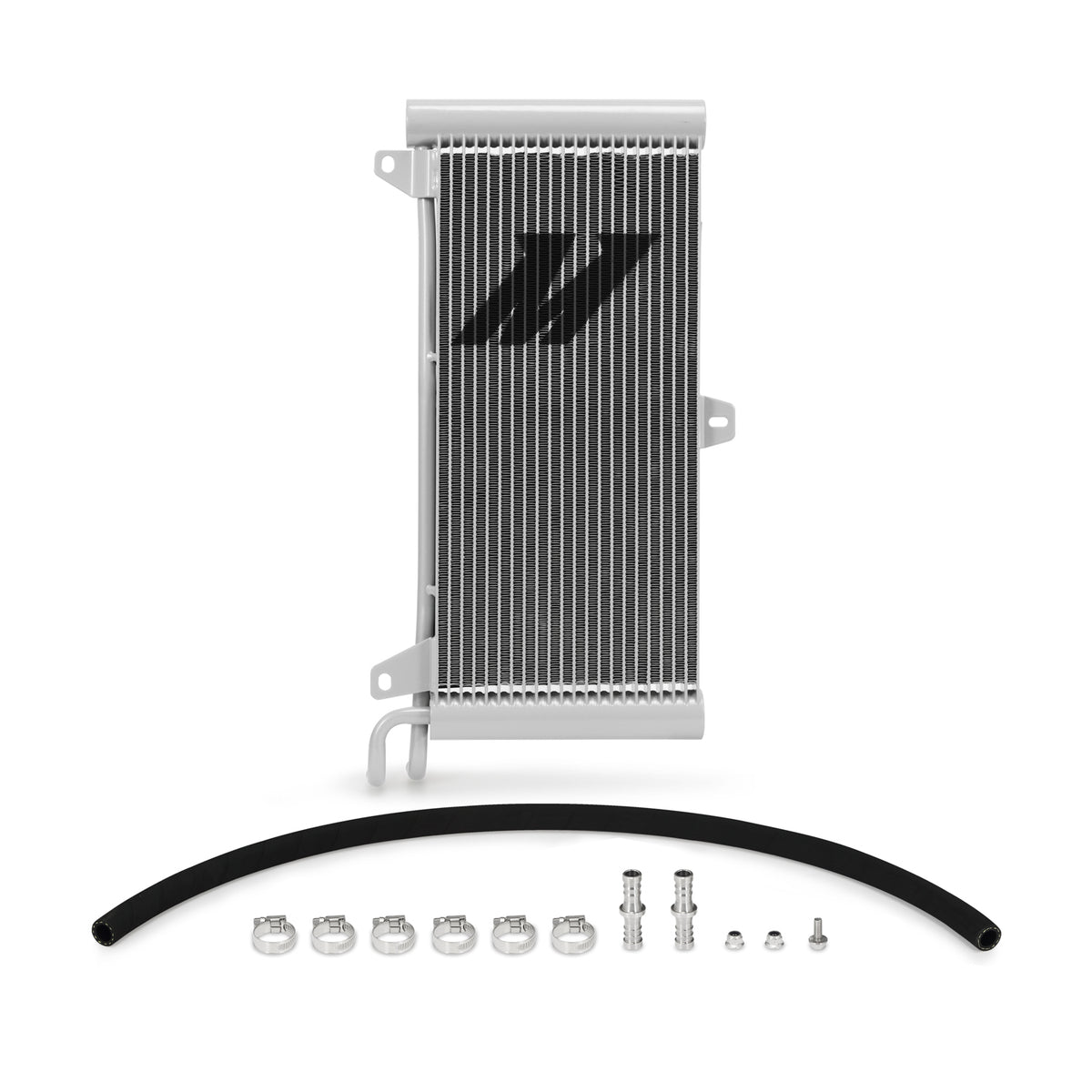

| TechSpec Includes | Mishimoto Tube-and-Fin Transmission Cooler--CNC-Machined Stainless Steel Hose Barb Fittings--29.5-in Transmission Hose--Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty |
| TechSpec Applications | N/A |
| Cooler Fluid Capacity | 0.7 |
| TechSpec Note | This kit requires cutting of the stock transmission cooler lines to remove the quick-disconnect fittings. Mishimoto provides CNC-machined stainless steel hose barb fittings to splice the supplied transmission cooler line with the stock soft-lblines. Please see installation instructions for more details.----Vehicles equipped with aftermarket intercoolers may require slight trimming of the bumper to fit this transmission cooler. |
| SellingPoint01 | Fits all 1994-2002 Dodge Ram 5.9L Cummins |
| SellingPoint02 | 116-percent Increase in core volume |
| SellingPoint06 | Eliminates corrosion-prone quick-disconnect fittings |
| SellingPoint07 | Patent numberD905,115 |
| SellingPoint08 | Mishimoto Lifetime Warranty |
| SellingPoint09 | N/A |
| SellingPoint05 | Tube-and-fin design for tough and reliable cooling |
| SellingPoint04 | 134-percent Increase in fin surface area |
| SellingPoint03 | 141-percent Increase in fluid capacity |
| SellingPoint10 | N/A |
| SellingPoint11 | N/A |
| SellingPoint12 | N/A |
| SellingPoint13 | N/A |
| SellingPoint14 | N/A |
| SellingPoint15 | N/A |
| Install Difficulty | 4 |
Packaging Information
Weight: 22.6 lbs
Dimensions: 14.15 x 6.9 x 24.9 IN
Safety
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Share
Vehicle Fitment
Vehicle Fitment
- 1994-2002 Dodge Ram 2500 Base
- 1995-2002 Dodge Ram 2500 Custom
- 1996-1997 Dodge Ram 2500 Laramie
- 1995-1998 Dodge Ram 2500 Limited
- 1995-1998 Dodge Ram 2500 Lujo
- 1995-1997 Dodge Ram 2500 Runner
- 1999-2002 Dodge Ram 2500 SLT
- 1994-2002 Dodge Ram 3500 Base
- 1995-2002 Dodge Ram 3500 Custom
- 1999 Dodge Ram 3500 SLT
