Monroe

Monroe 34530 Suspension Shock Absorber

Monroe 34530 Suspension Shock Absorber

Regular price $64.30 USD
Regular price $69.25 USD Sale price $64.30 USD
Mechanic Division pricing available
Sale Sold out
Shipping calculated at checkout.

10 in stock

Quantity
Description & Features

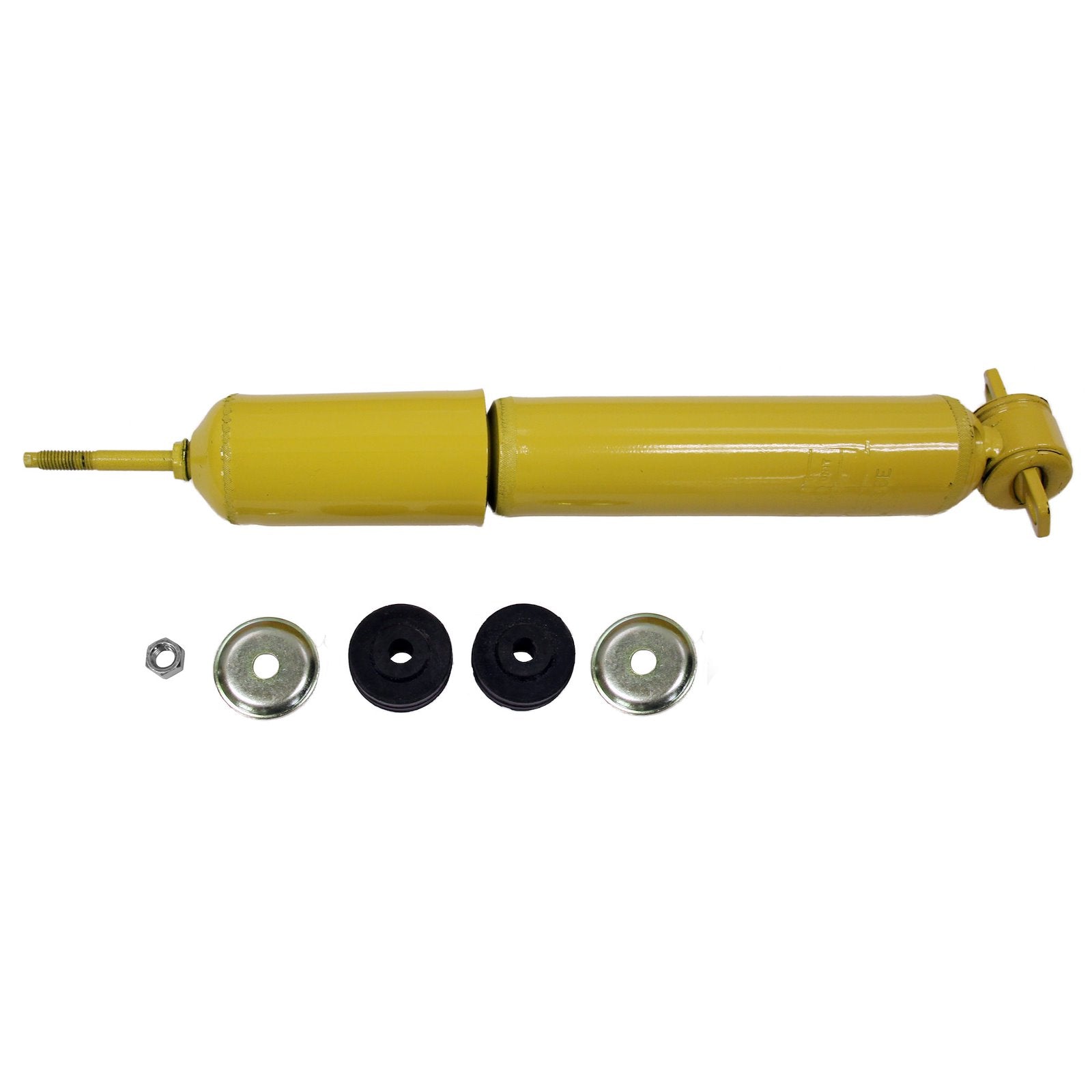

Monroe 34530 Suspension Shock Absorber

Designed for midsize and full-size trucks and vans, Monroe® Gas-Magnum® shock absorbers provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1-in. bore shocks, Gas-Magnum shocks work more efficiently with less effort.

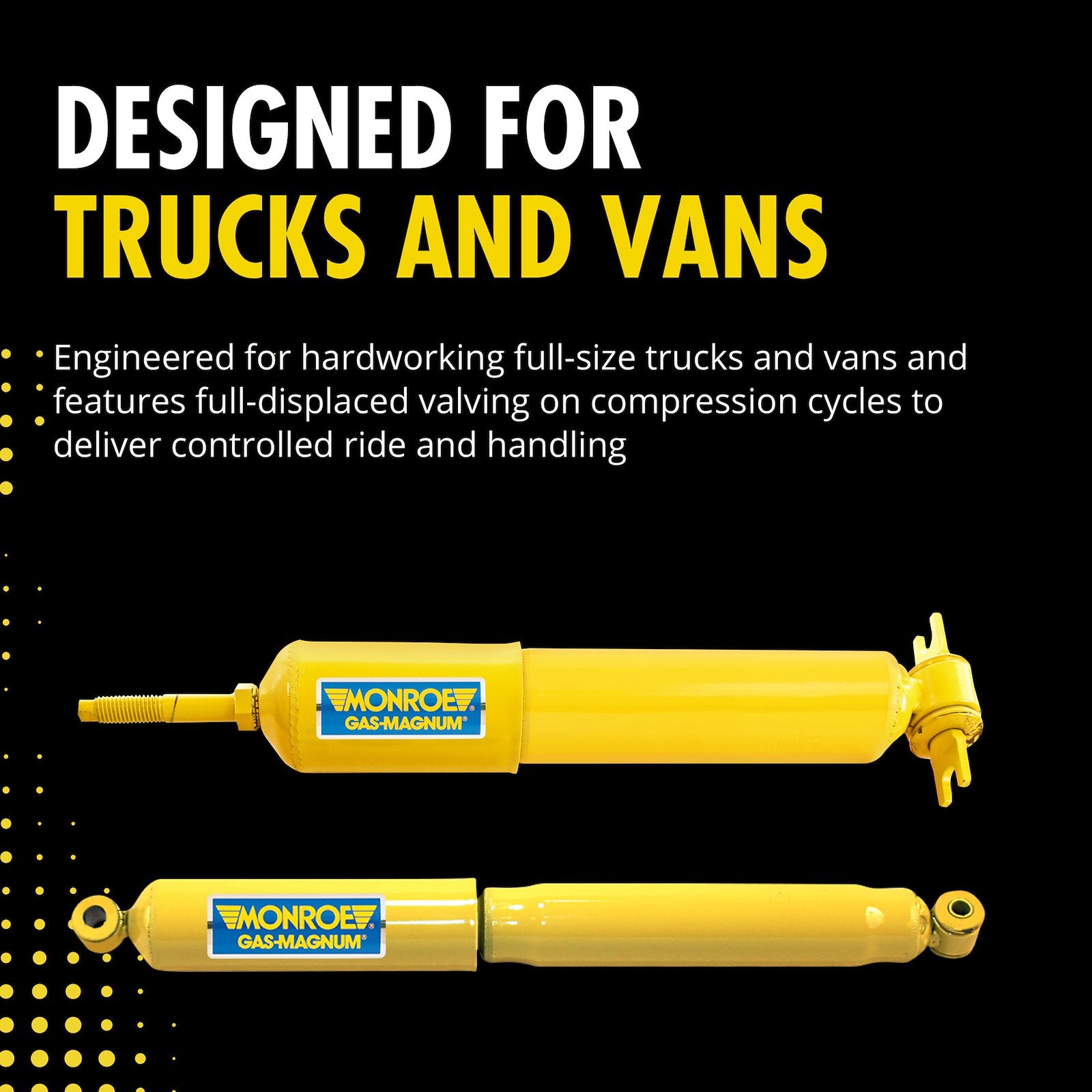

  • DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
  • BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear

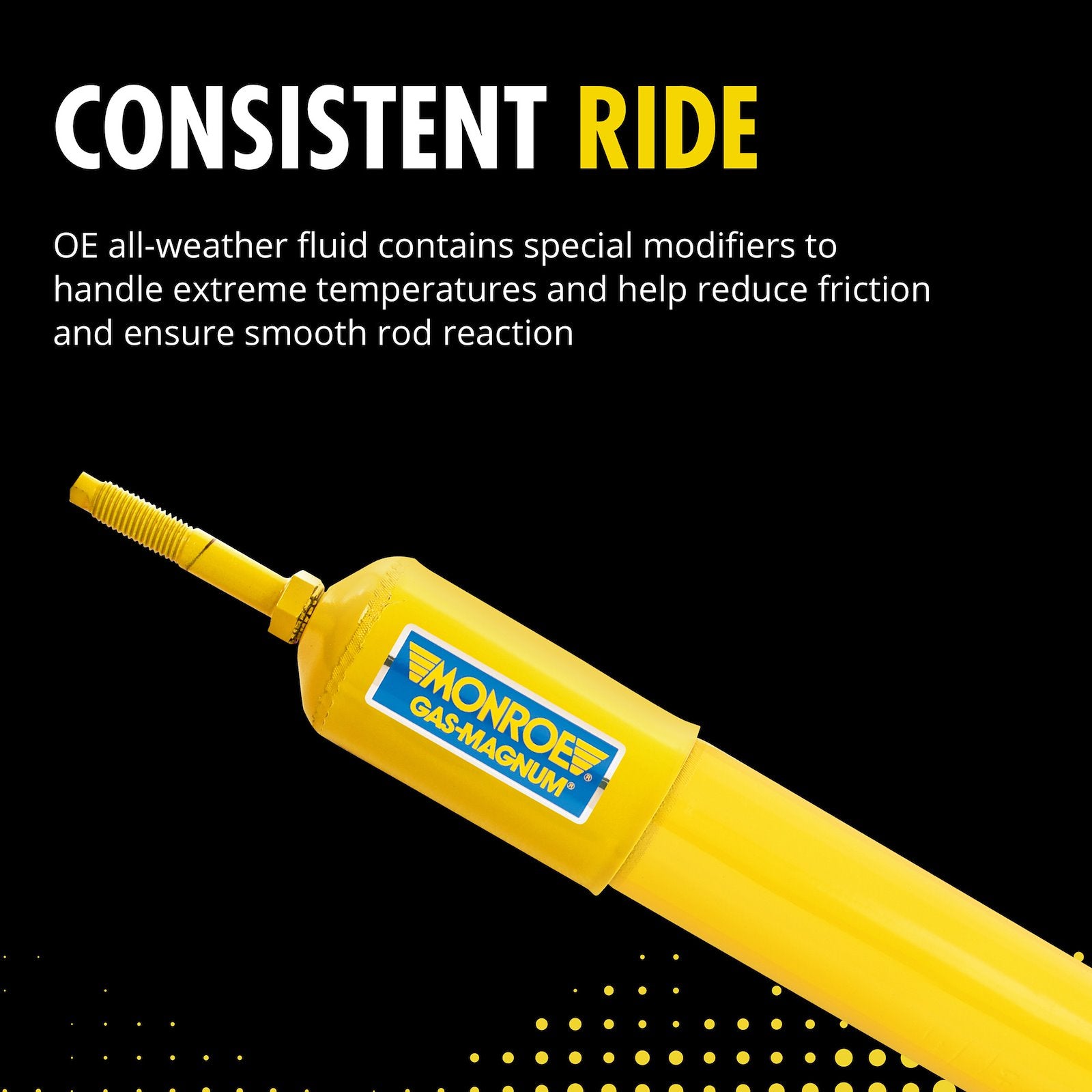

  • CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction

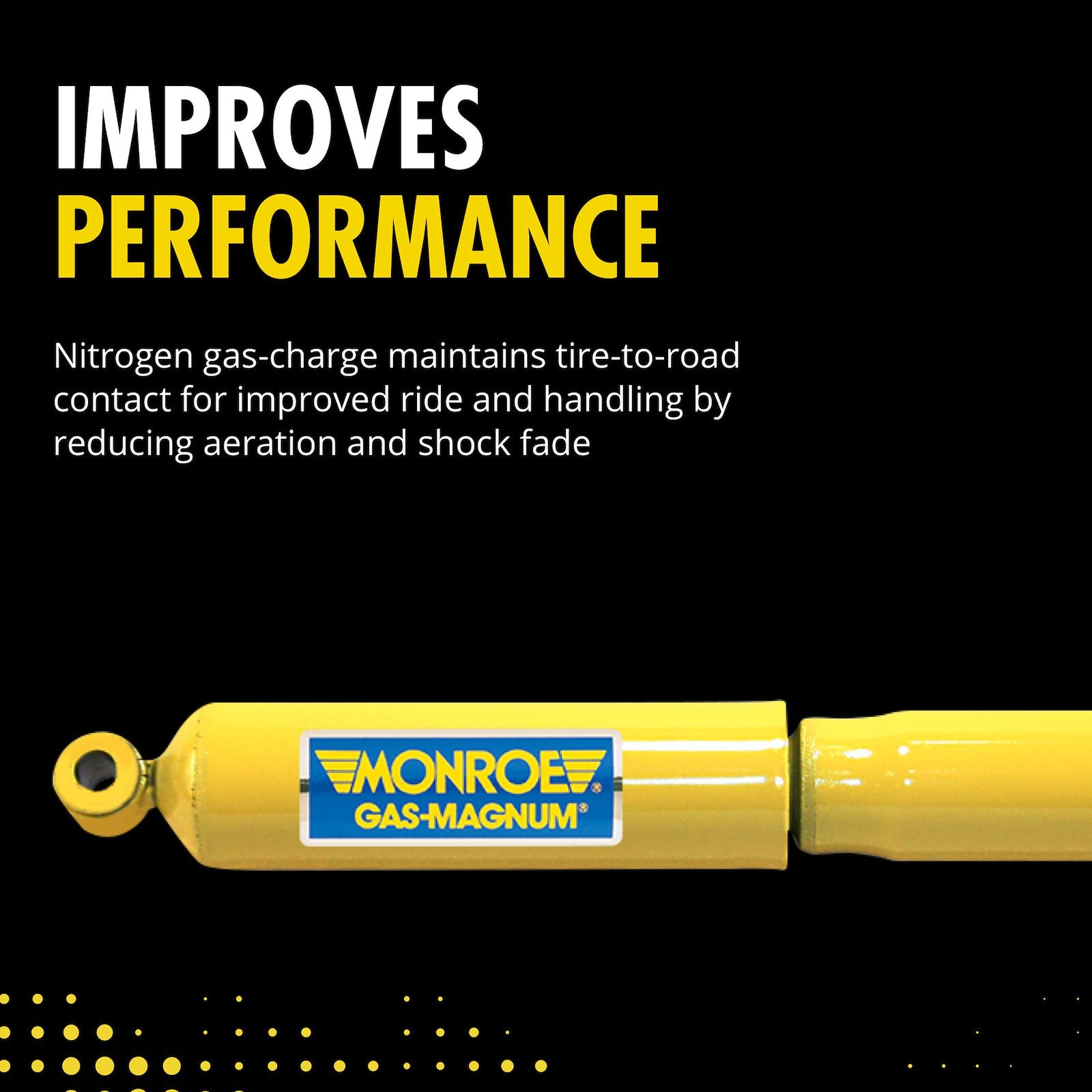

  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade

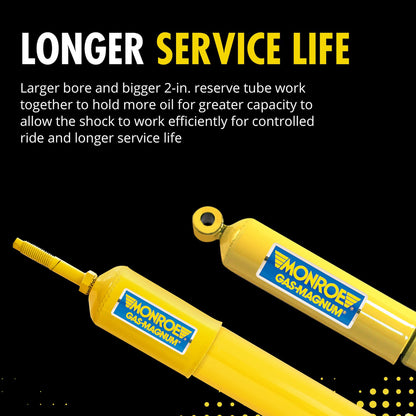

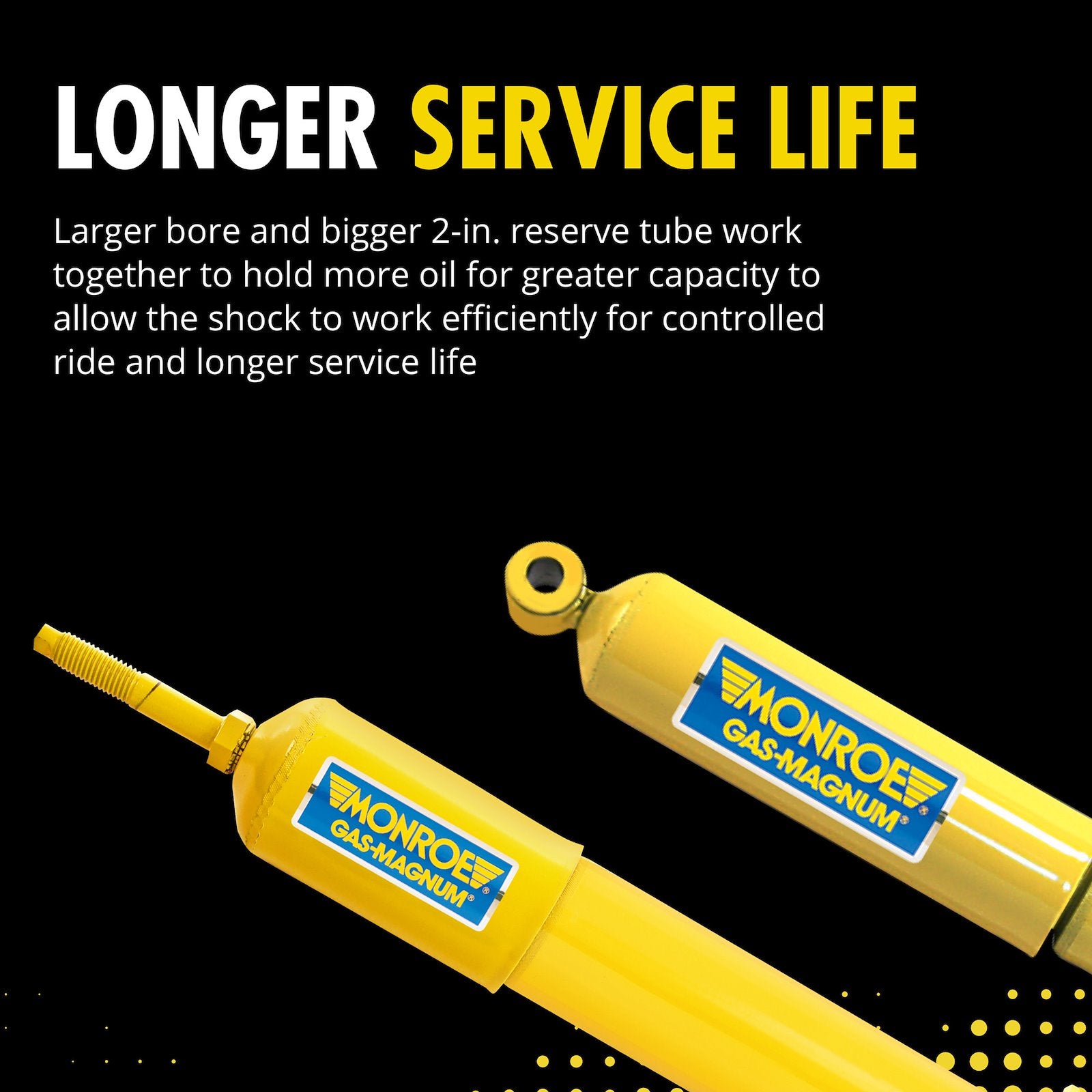

  • LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
  • BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
Specifications
Compressed Length 9.75 in / 247.6 mm
Extended Length 14.02 in / 356.1 mm
Travel Length 4.27 in / 108.5 mm
Lower Mount Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2-7/16" Pin Length
Upper Mount Type Stem Mount - 2-3/8" Stem Length X 3/8"-16 Thread Pitch
Gas Charged Yes
Mounting Hardware Included Yes
Body Color Yellow
Cylinder Color Yellow
Dust Shield Included No
Includes Bump Stop No
Internal Rebound Bumper Yes
Hydraulic Lockout No
Grade Type Premium
Active or Passive Suspension Passive
Adjustable Compression No
Adjustable Rebound No
Adjustable Ride Height No
Internal Design Monotube
Rod Diameter 5/8 Inch
Rod Material Iron
Body Material OEM
Valving Type Application Specific Valving
With Reservoir No

Vehicle Fitment

  • 2003-2020 Chevrolet Express 2500
  • 2022-2026 Chevrolet Express 2500
  • 2003-2020 Chevrolet Express 3500
  • 2022-2026 Chevrolet Express 3500
  • 2009-2020 Chevrolet Express 4500
  • 2003-2020 GMC Savana 2500
  • 2022-2026 GMC Savana 2500
  • 2003-2020 GMC Savana 3500
  • 2022-2026 GMC Savana 3500
  • 2009-2020 GMC Savana 4500
