Monroe

Monroe 34532 Shock Absorber

Monroe 34532 Shock Absorber

Regular price $72.24 USD
Regular price $77.80 USD Sale price $72.24 USD
Mechanic Division pricing available
Sale Sold out
Shipping calculated at checkout.

10 in stock

Quantity
Description & Features

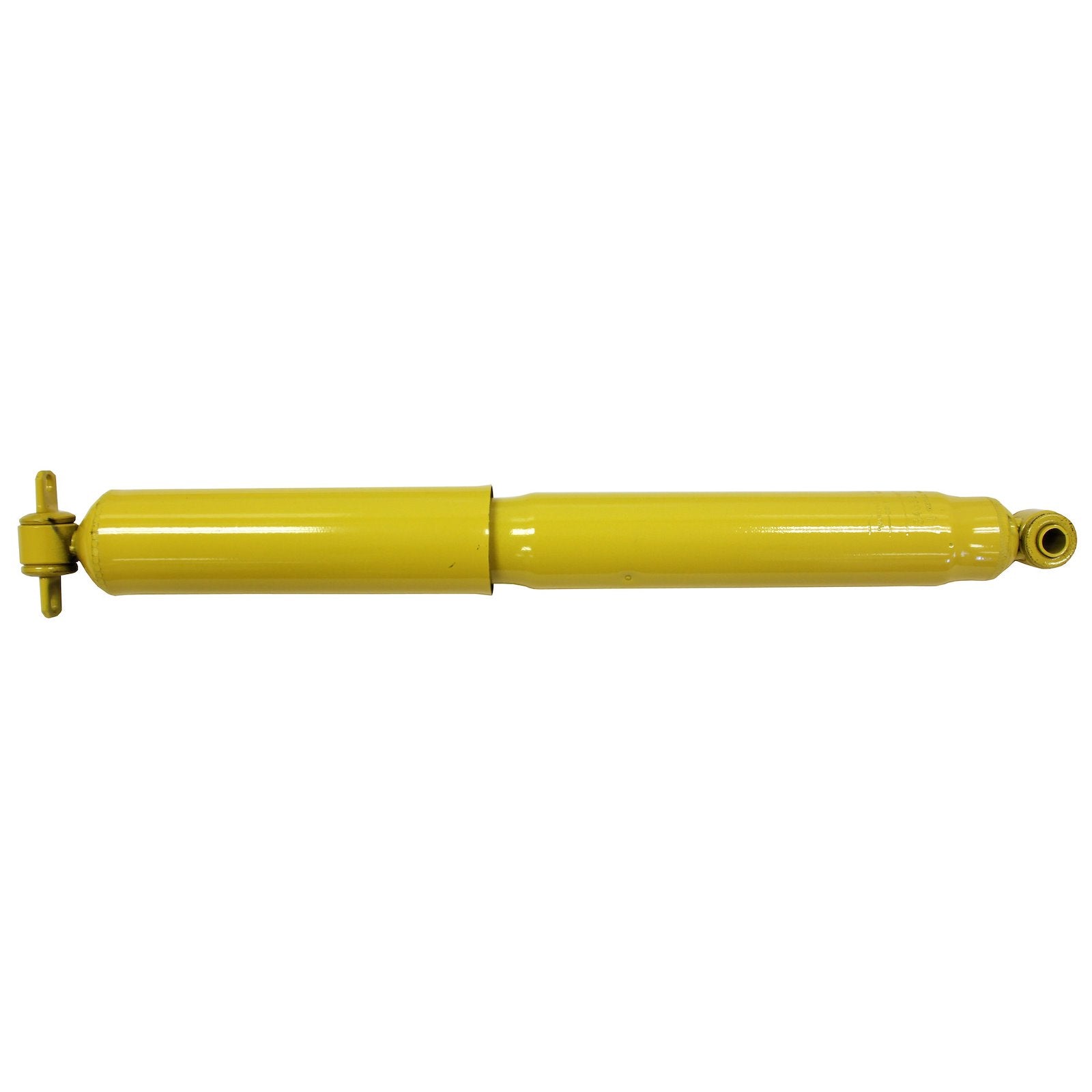

Monroe 34532 Shock Absorber

Designed for midsize and full-size trucks and vans, Monroe® Gas-Magnum® shock absorbers provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1-in. bore shocks, Gas-Magnum shocks work more efficiently with less effort.

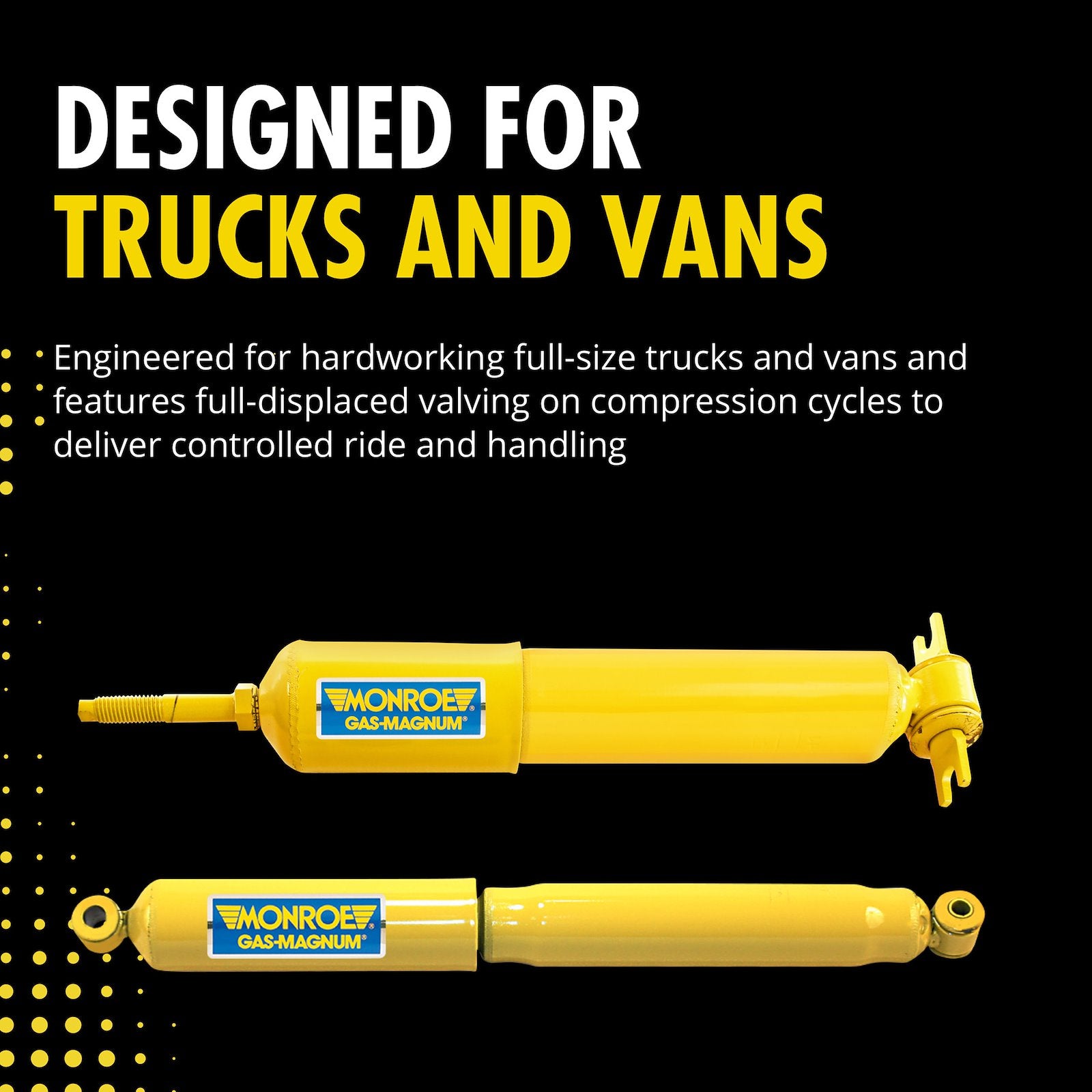

  • DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
  • BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear

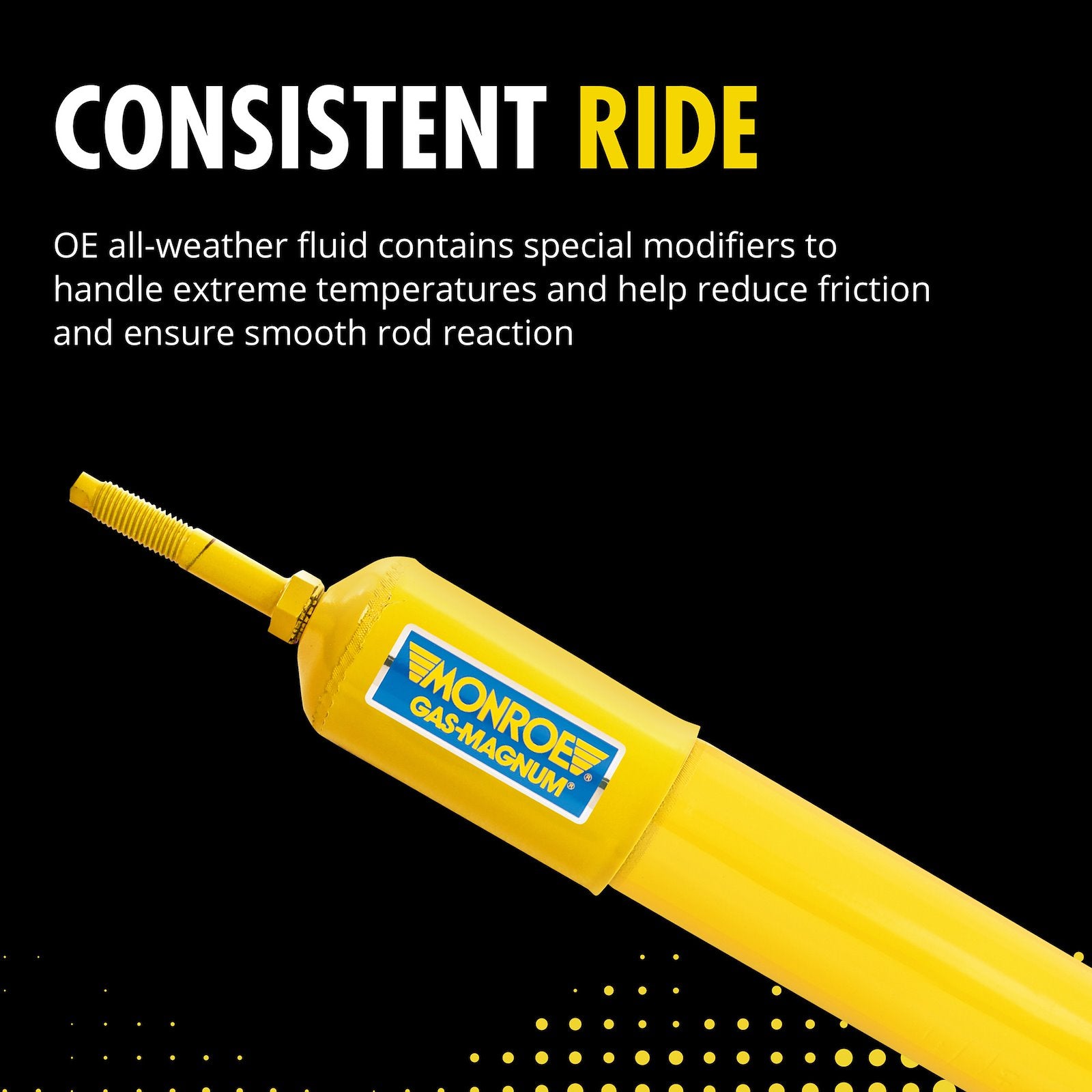

  • CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction

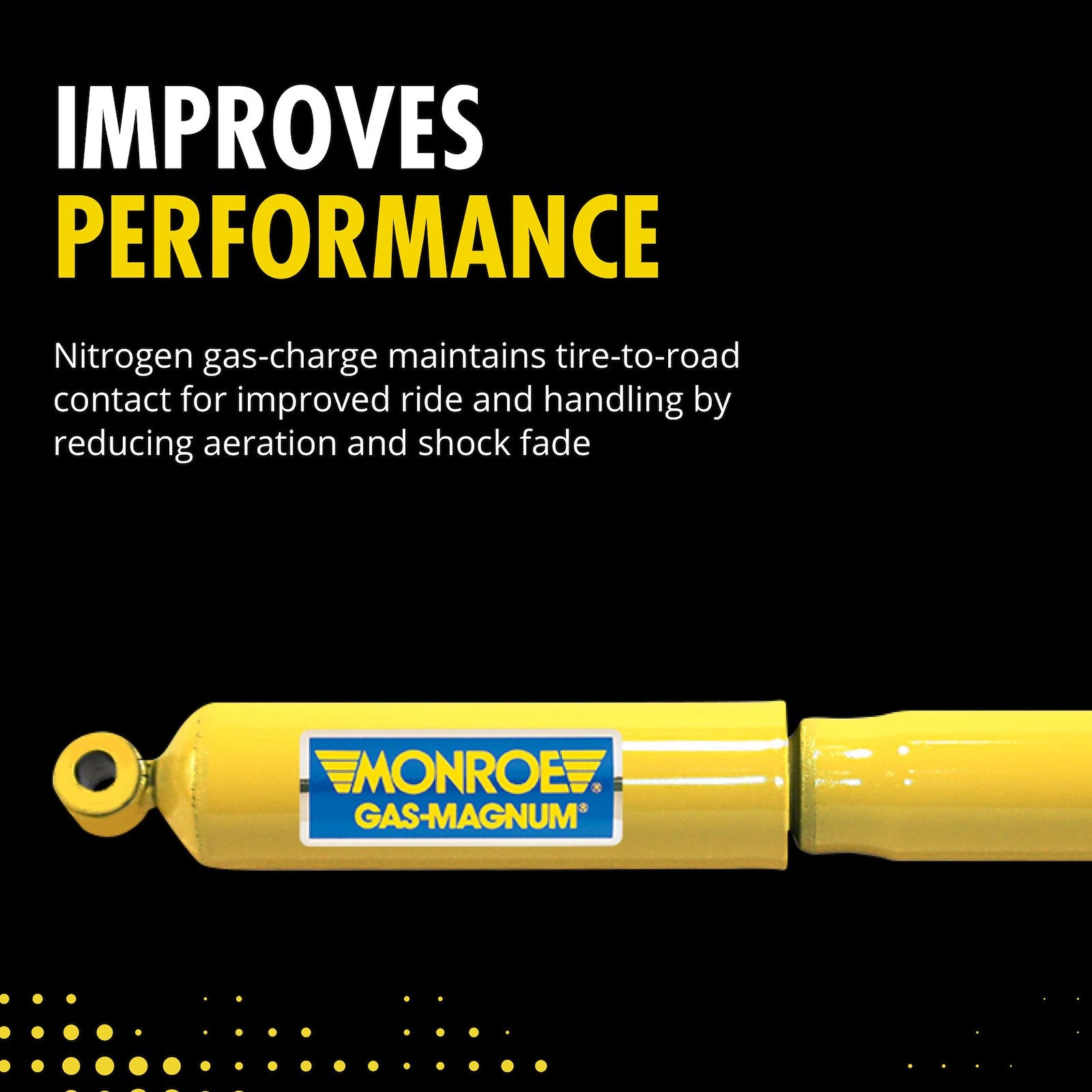

  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade

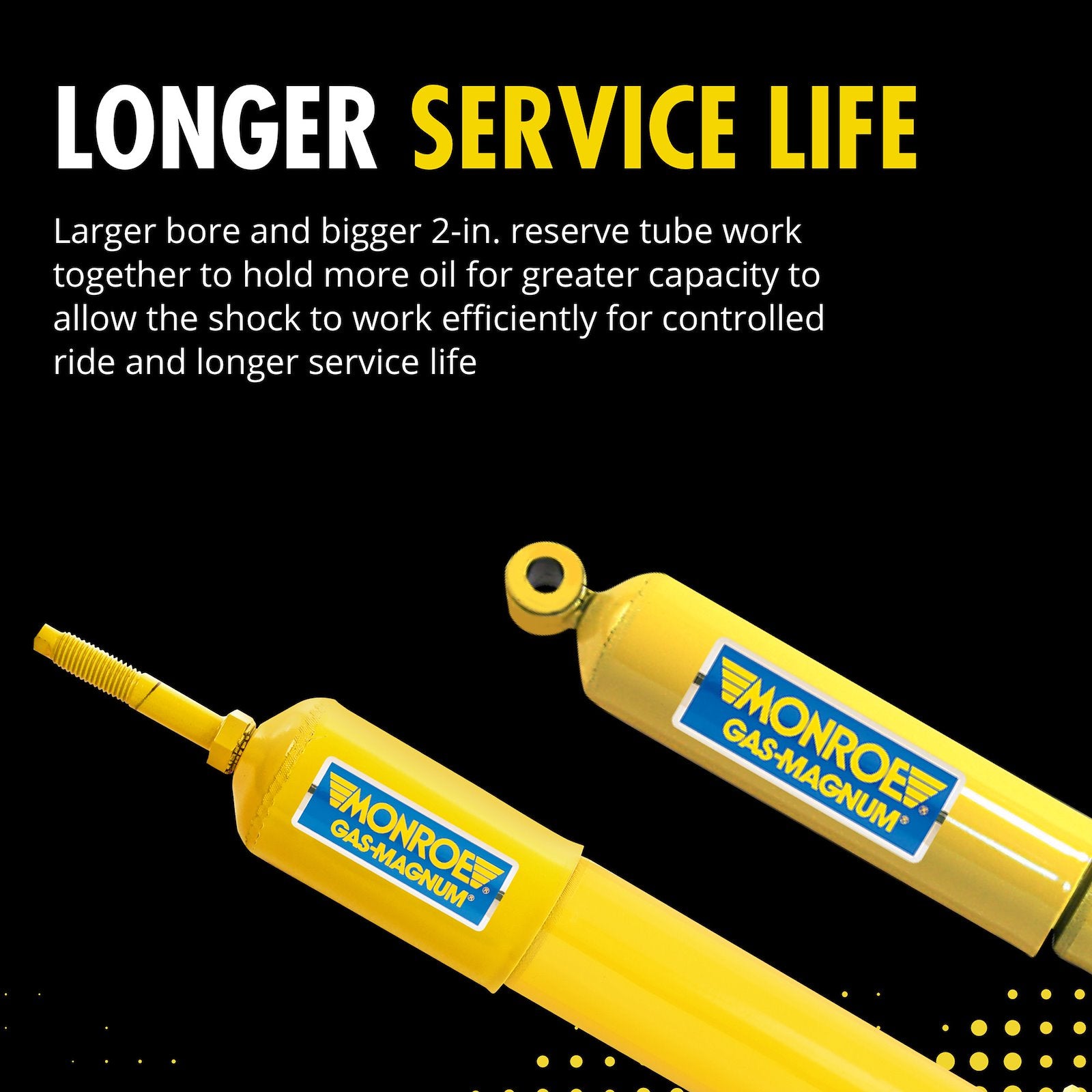

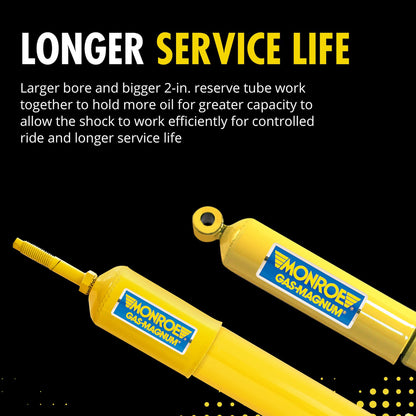

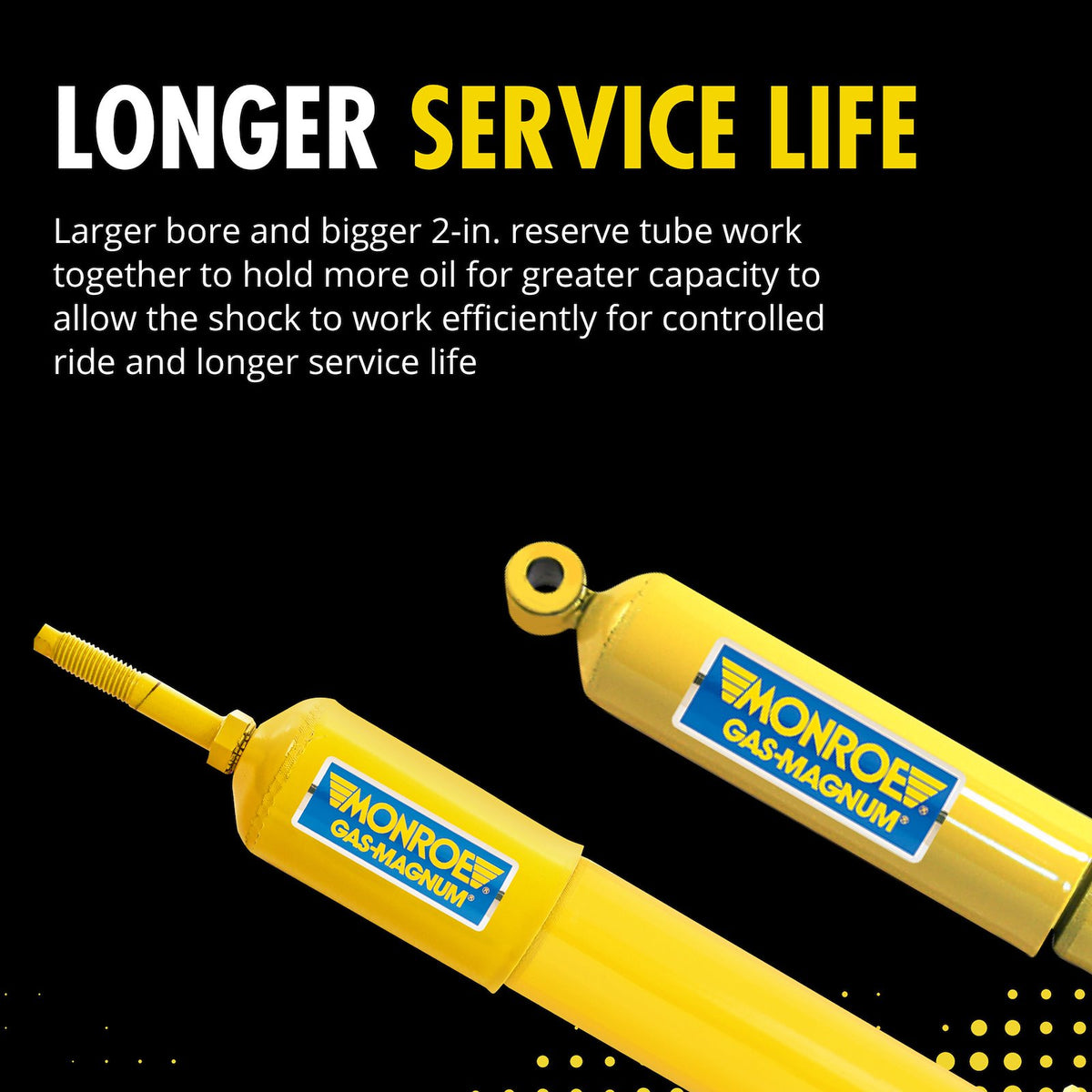

  • LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
  • BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
Specifications
Compressed Length 15.19 in (385.8 mm)
Extended Length 24.32 in (617.7 mm)
Travel Length 9.13 in (231.9 mm)
Lower Mount Type Loop Bushing and Sleeve Mount - 1/2" Sleeve ID X 1.5/8" Sleeve OAL (Code LS39)
Upper Mount Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/16" Pin Length (Code XP4)
Gas Charged Yes
Body Color Yellow
Cylinder Color Yellow
Cylinder Finish Painted
Dust Shield Included No
Grade Type Premium
Active or Passive Suspension Passive
Adjustable Compression/Rebound/Ride Height No
Rod Diameter 5/8 Inch
Rod Material Iron
Internal Design Monotube
Valving Type Application Specific Valving
With Coil Spring No
With Reservoir No
Includes Hardware No
Includes Boot No
Estimated Install Time 0.5 Hours

Vehicle Fitment

  • 2016 Chevrolet Express 3500 Base; Cutaway Van — Rear
  • 2020 Chevrolet Express 3500 Base; Cutaway Van — Rear
  • 2003-2015 Chevrolet Express 3500 Cutaway Van — Rear
  • 2017-2019 Chevrolet Express 3500 Cutaway Van — Rear
  • 2022-2026 Chevrolet Express 3500 Cutaway Van — Rear
  • 2009-2020 Chevrolet Express 4500 — Rear
  • 2019-2020 GMC Savana 3500 Base; Cutaway Van — Rear
  • 2009-2018 GMC Savana 3500 Cutaway Van — Rear
  • 2022-2026 GMC Savana 3500 Cutaway Van — Rear
  • 2009-2020 GMC Savana 4500 — Rear
View full details
