Monroe 66458 Shock Absorber
Monroe 66458 Shock Absorber
Regular price
$63.76 USD
Regular price
$68.66 USD
Sale price
$63.76 USD
⬡Mechanic Division pricing available
Shipping calculated at checkout.
10 in stock
Quantity
Couldn't load pickup availability
Description & Features

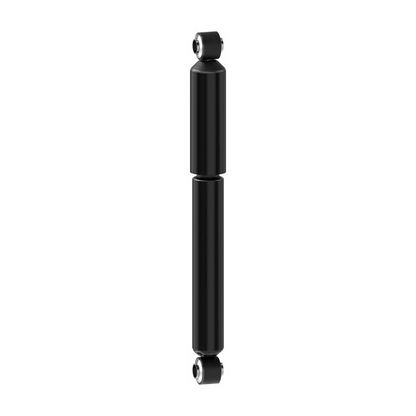

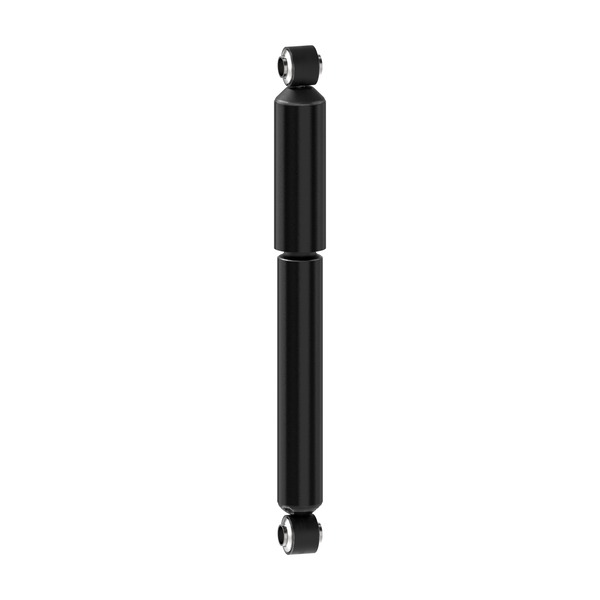

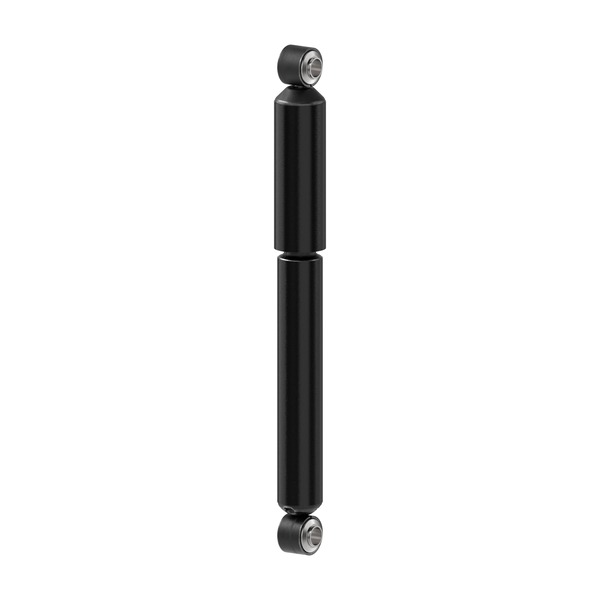

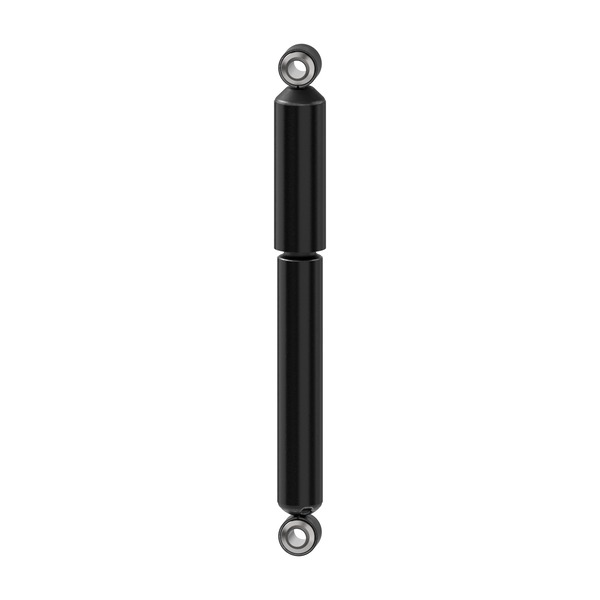

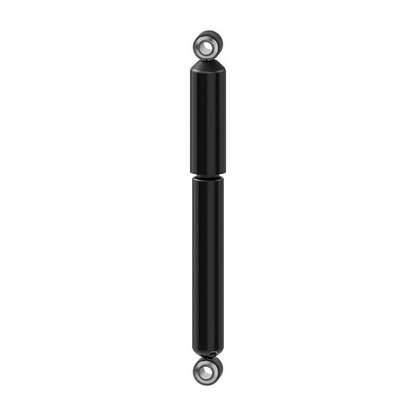

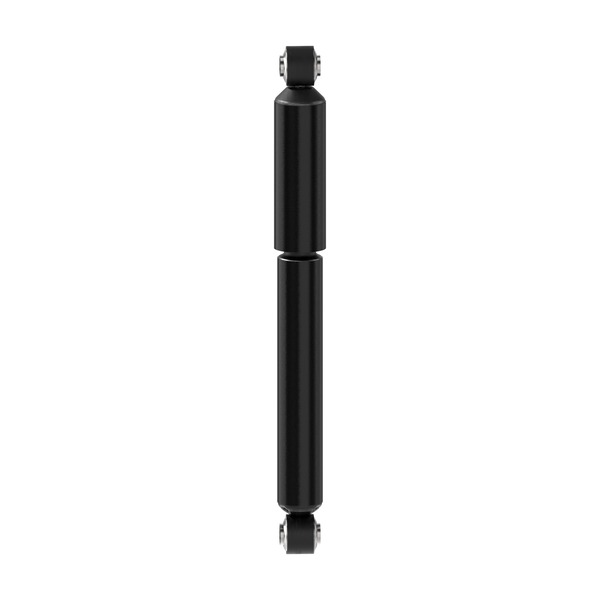

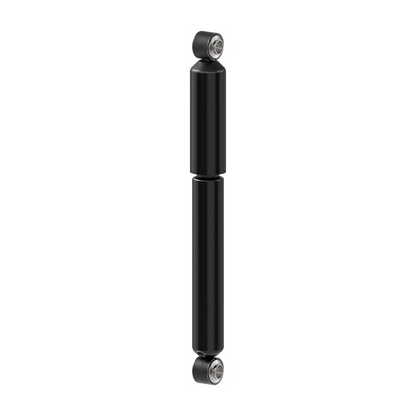

Monroe 66458 Shock Absorber
The Monroe® Magnum® shock absorber for class 3-6 vehicles is gas-charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replace worn-out units with Magnum® shocks to help reduce excessive vibration.
- INSTALLERS ADVANTAGE -- Designed to save time, simplify the job, fix OE design issues, solve customer complaints or enhances durability and longevity
- FOR HARDWORKING COMMERCIAL VEHICLES -- Designed to handle the demands of high mileage and severe use class 3-6 trucks and buses
- CONSISTENT RIDE -- All-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while 2-in. or 2-1/4-in. reserve tube holds more fluid to improve performance (when required)
- EXCEPTIONAL HANDLING -- 10-Stage valving, tuned specifically to each vehicle, adjusts to road extremes while the larger 1-3/8-in. bore provides more efficient damping control to provide consistency and a smooth ride (most applications)
- STRONG AND DURABLE -- Shouldered bushing and bonded bushing with sleeve protects from bushing walkout for improved quality; arc welds up to 360° for durability
- BUILT TO LAST -- Robust hydraulic lock-out prevents over extension of air bags, top-out of the piston and averts damage to seal assembly (on most applications)
- LONGER SERVICE LIFE -- Bearing with PTFE coating reduces friction between rod and rod guide combined with nitrocarburized piston rod provides durability and longer service life (most applications)
- REDUCED NOISE, VIBRATION AND HARSHNESS -- Delivers exceptional control and isolates impact-related noise, vibration, and harshness under most driving conditions
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- BUY WITH CONFIDENCE -- Comes with Monroe’s 90-day Risk Free Ride Offer and Limited Commercial Warranty
Specifications
| Type | Nitrogen Gas Charged |
| Compressed Length | 13.89 in (352.8 mm) |
| Extended Length | 20.74 in (526.8 mm) |
| Travel Length | 6.85 in (174 mm) |
| Lower Mount Type | Loop Bushing and Sleeve Mount - 20MM Sleeve ID X 1.3/4" Sleeve OAL |
| Upper Mount Type | Loop Bushing and Sleeve Mount - 20MM Sleeve ID X 44.45MM Sleeve OAL |
| Body Diameter | 50.5 mm (1.988 in) |
| Body Color | Black |
| Cylinder Finish | Painted |
| Dust Shield Included | Yes |
| Grade Type | Premium |
| Internal Design | Twin Tube |
| Valving Type | 10 Stage Full Displaced Valving |
| With Coil Spring | No |
| With Reservoir | No |
| Includes Hardware | No |
| Includes Boot | No |
| Adjustable Suspension | No |
| Estimated Install Time | 0.5 hours |
Share
No reviews
Vehicle Fitment
Vehicle Fitment
- 2018-2024 Freightliner Cascadia — Front
