Oracle Lighting 2009-001 Lighting Pre-Wired Power Symbol On/Off Flush Mount LED Switch
Oracle Lighting 2009-001 Lighting Pre-Wired Power Symbol On/Off Flush Mount LED Switch
Low stock: 1 left
Couldn't load pickup availability
Description & Features

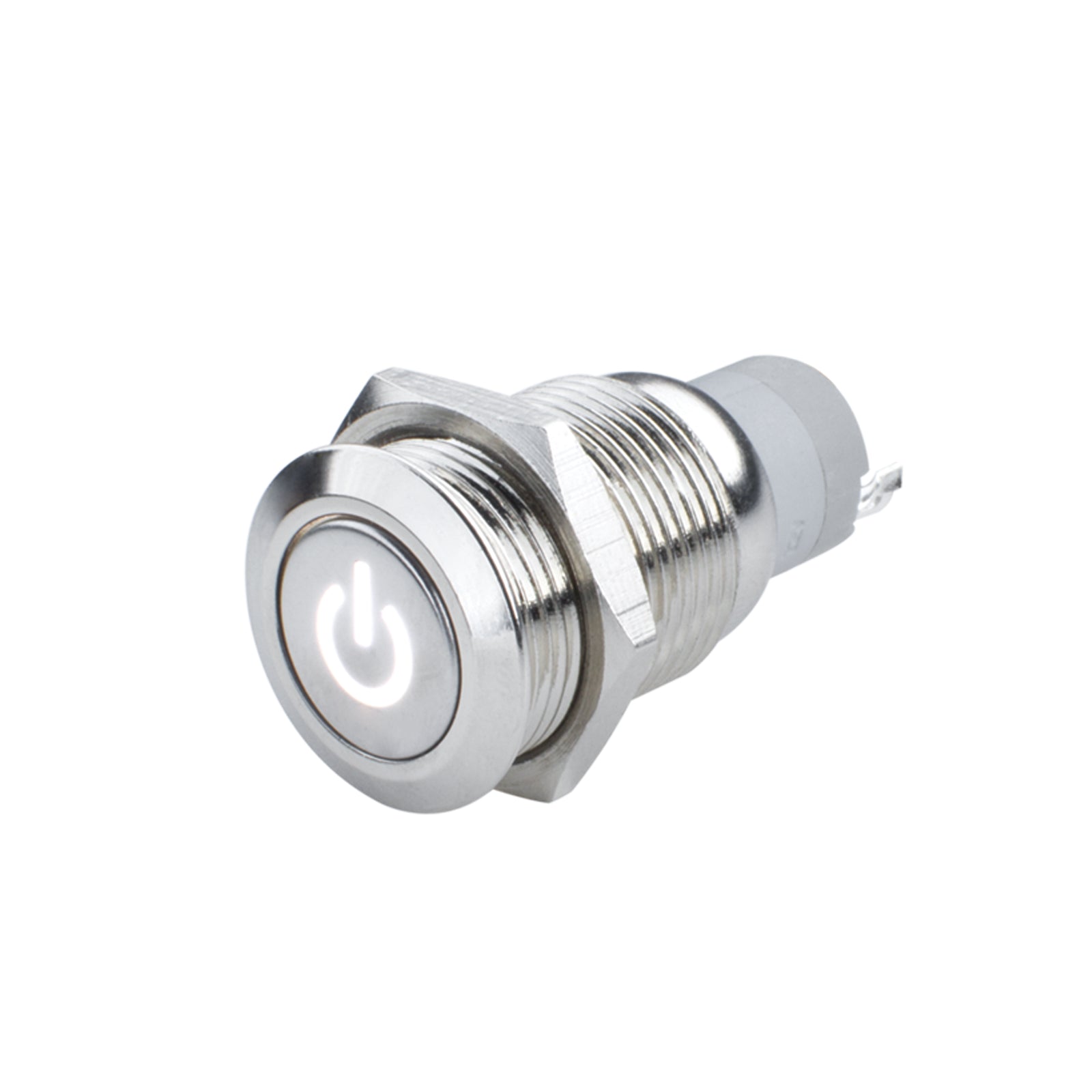

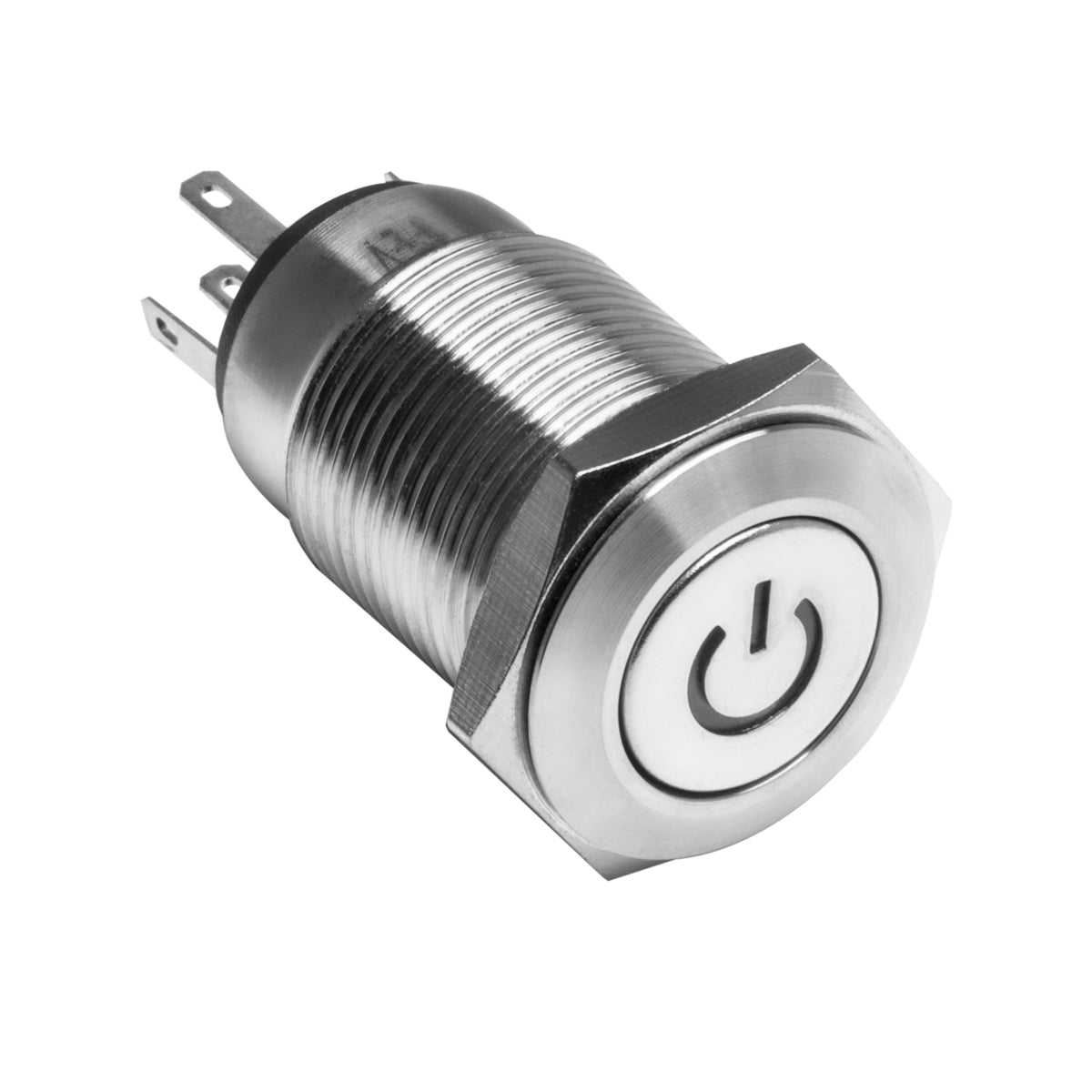

Oracle Lighting 2009-001 Lighting Pre-Wired Power Symbol On/Off Flush Mount LED Switch

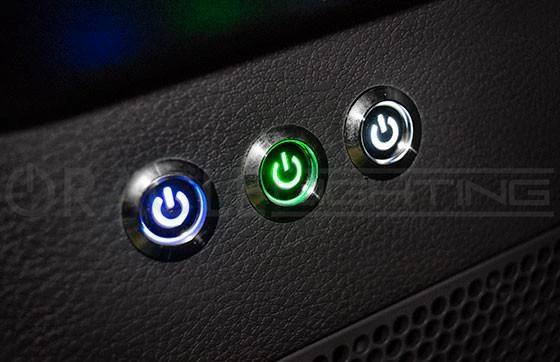

Take your interior to the next level with ORACLE Illuminated Flush Switches! The NEW flush mount LED switches now incorporate the power (ORACLE) symbol on each switch to give you a sophisticated style. Each switch features heavy-duty brass assemblies and durable nickel-plated finishes and the metal housings have a definitive click you can feel when engaged.
- Requires 16MM Mounting Hole
Specifications
| 29 | Blade Pin |
| 30 | No |
| 42 | 5 |
| 43 | Male |
| 44 | Male |
| 338 | 5 |
| 342 | 5 |
| 488 | Yes |
| 2087 | 5 |
| 2095 | 20 |
| 2163 | Spring Tension |
| 2170 | Nickel Plated Silver |
| 3145 | Universal |
| 4692 | Yes |
| 5008 | White |
| Wire Gauge Measurement | 20 |
| Wiring Harness Length | 5 |
| Wire Quantity | 5 |
| Connector Quantity | 5 |
| Terminal Quantity | 5 |
| Terminal Type | Blade Pin |
| Connector Gender | Male |
| Terminal Gender | Male |
| Connector Color | Nickel Plated Silver |
| Mounting Hardware Included | No |
| Switch Type | Spring Tension |
| Universal Or Specific Fit | Universal |
| Indicator Markings Color | White |
| Indicator Markings | Yes |
| Wiring Harness Included | Yes |
| LED Color | White |
| Prop 65 (C, R or CR) | CR |
| Voltage | 12V |
| Add-On | N/A |
| Body Material | Heavy Duty Brass |
| Contents | (1x) ORACLE Power Symbol Flush Mount Switch |
| Finish | Nickel Plated |
