Oracle Lighting 5769-123 Lighting 2007-2018 Jeep Wrangler JK Switchback LED Halo Headlights
Oracle Lighting 5769-123 Lighting 2007-2018 Jeep Wrangler JK Switchback LED Halo Headlights
10 in stock
Couldn't load pickup availability
Description & Features

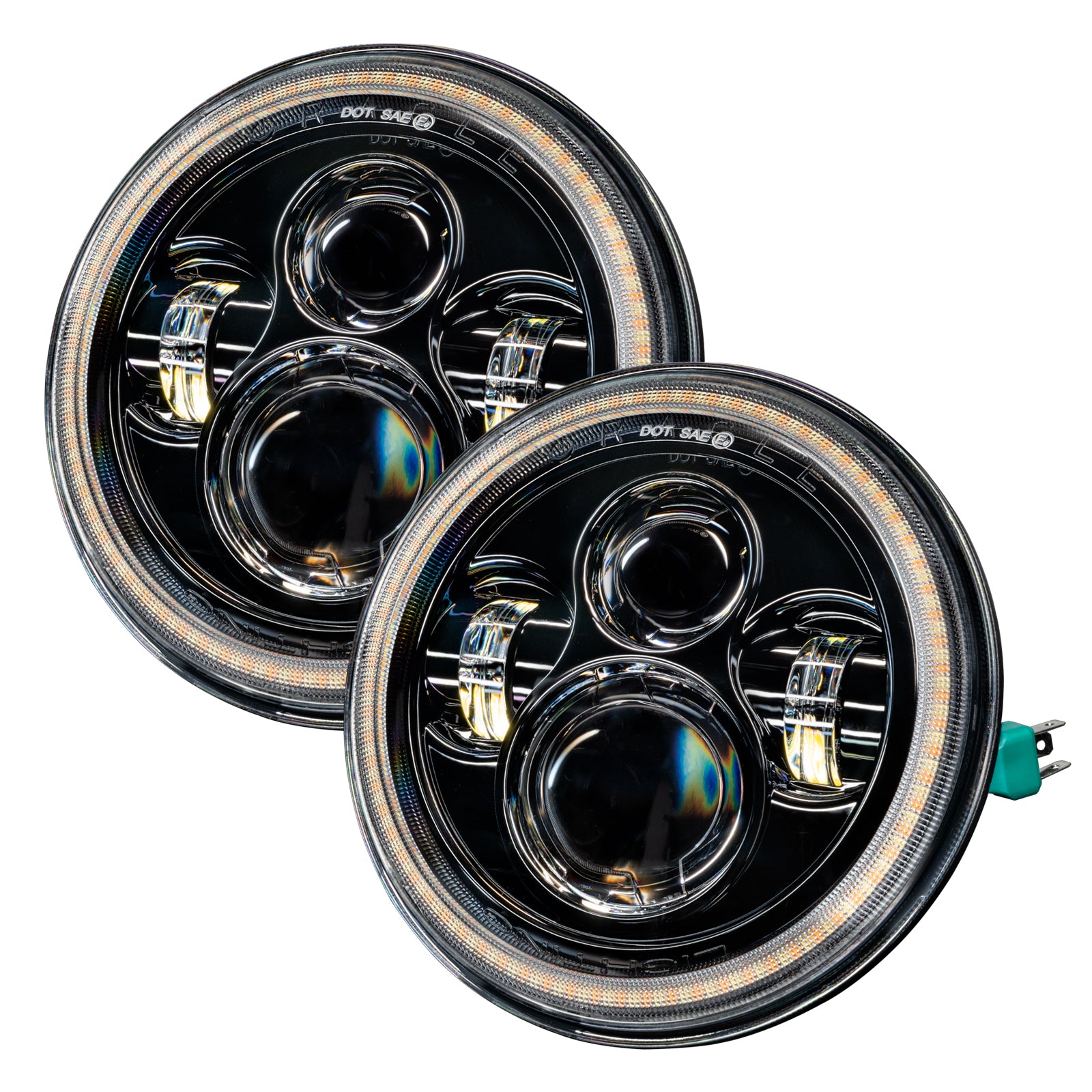

Oracle Lighting 5769-123 Lighting 2007-2018 Jeep Wrangler JK Switchback LED Halo Headlights
The Ultimate LED replacement Halo Headlight for the Jeep Wrangler JK NOW with an Integrated Amber Switchback Turn Signal! Increase night time visibility with high-quality LED illumination focused through advanced precision optics. Upgraded internal LED driver components allow the LED Low Beam to work with your JK Wrangler without the use of "flicker" adapters or other additional devices. Latest Improvements include: Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board. Increased Reliability of the overall lifespan of the LEDS. Wider Input Voltage Range: The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs. Brighter/ More Even Light- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues. LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip.
- Wide Beam Pattern with Sharp Cut-Off Line
Specifications
| 29 | Blade |
| 30 | No |
| 89 | 2.5 |
| 123 | 12 |
| 357 | Cast Aluminum |
| 532 | Black |
| 975 | 48 W |
| 1268 | Yes |
| 1270 | High Beam Low Beam |
| 1271 | Yes |
| 1272 | 6,000K |
| 1274 | Yes |
| 1279 | Clear |
| 1822 | H4/H13 |
| 2563 | PC (Polycarbonate) |
| 2786 | 60000 |
| 4591 | Sealed Beam |
| 5025 | Black |
| 5121 | 4 |
| 8363 | 3600 |
| 9042 | 48 |
| 9082 | 1.3 |
| 9086 | LED |
| 9130 | No |
| 9483 | Yes |
| 9497 | Black |
| 9576 | No |
| 9580 | No |
| 9581 | Yes |
| 9583 | No |
| 9584 | No |
| 9585 | Yes |
| 9586 | Yes |
| 9587 | Projector |
| 9613 | No |
| 9693 | Yes |
| 10668 | LED |
| Secondary Amperage Rating | 1.3 |
| Voltage | 12 |
| Amperage Rating | 2.5 |
| Brightness | 3600 |
| Bulb Quantity | 4 |
| Wattage | 48 W |
| Bulb Material Color | 6,000K |
| Average Rated Life | 60000 |
| Bezel Color | Black |
| Housing Color | Black |
| Background Color | Black |
| Terminal Type | Blade |
| Housing Material | Cast Aluminum |
| Lens Color | Clear |
| Bulb Type | H4/H13 |
| Beam Type | High Beam Low Beam |
| Low Beam Bulb Technology | LED |
| Bulb Technology | LED |
| Mounting Hardware Included | No |
| Ballast Included | No |
| Automatic Leveling Included | No |
| Adaptive Headlight | No |
| Adaptive High Beam | No |
| Emergency Warning Lights Included | No |
| Night Vision Included | No |
| Lens Material | PC (Polycarbonate) |
| Headlight Light Projection Technology | Projector |
| Headlight Type | Sealed Beam |
| DOT Approved | Yes |
| Street Legal | Yes |
| Bulbs Included | Yes |
| Adjusting Screw Included | Yes |
| Turn Signal Included | Yes |
| Daytime Running Light Included | Yes |
| Automatic On/Off Light | Yes |
| LED Accent Included | Yes |
| Contents | (2x) ORACLE 7 in. High Powered LED Headlights - Black Bezel, (2x) Plug & Play Wiring Adapters |
| Amp Draw | 2.50 Amps at 12V DC / 1.30 Amps at 24V DC |
| Add-On | N/A |
| Warranty | 2 Year |
| Low Beam Wattage | 30W Normal/36W Max |
| Prop 65 (C, R or CR) | CR |
| High Beam Wattage | 40W Normal/48W Max |
| Low Beam Lumens | 2200 |
| LED Color | White/Amber |
| Kelvin Temperature | 6000K |
| Input Voltage | 12V - 24V DC |
| High Beam Lumens | 3600 |
