Oracle Lighting 5885-001 Lighting 2019-2024 RAM Rebel/TRX Front Bumper Flush LED Light Bar System
Oracle Lighting 5885-001 Lighting 2019-2024 RAM Rebel/TRX Front Bumper Flush LED Light Bar System
10 in stock
Couldn't load pickup availability
Description & Features
Oracle Lighting 5885-001 Lighting 2019-2024 RAM Rebel/TRX Front Bumper Flush LED Light Bar System

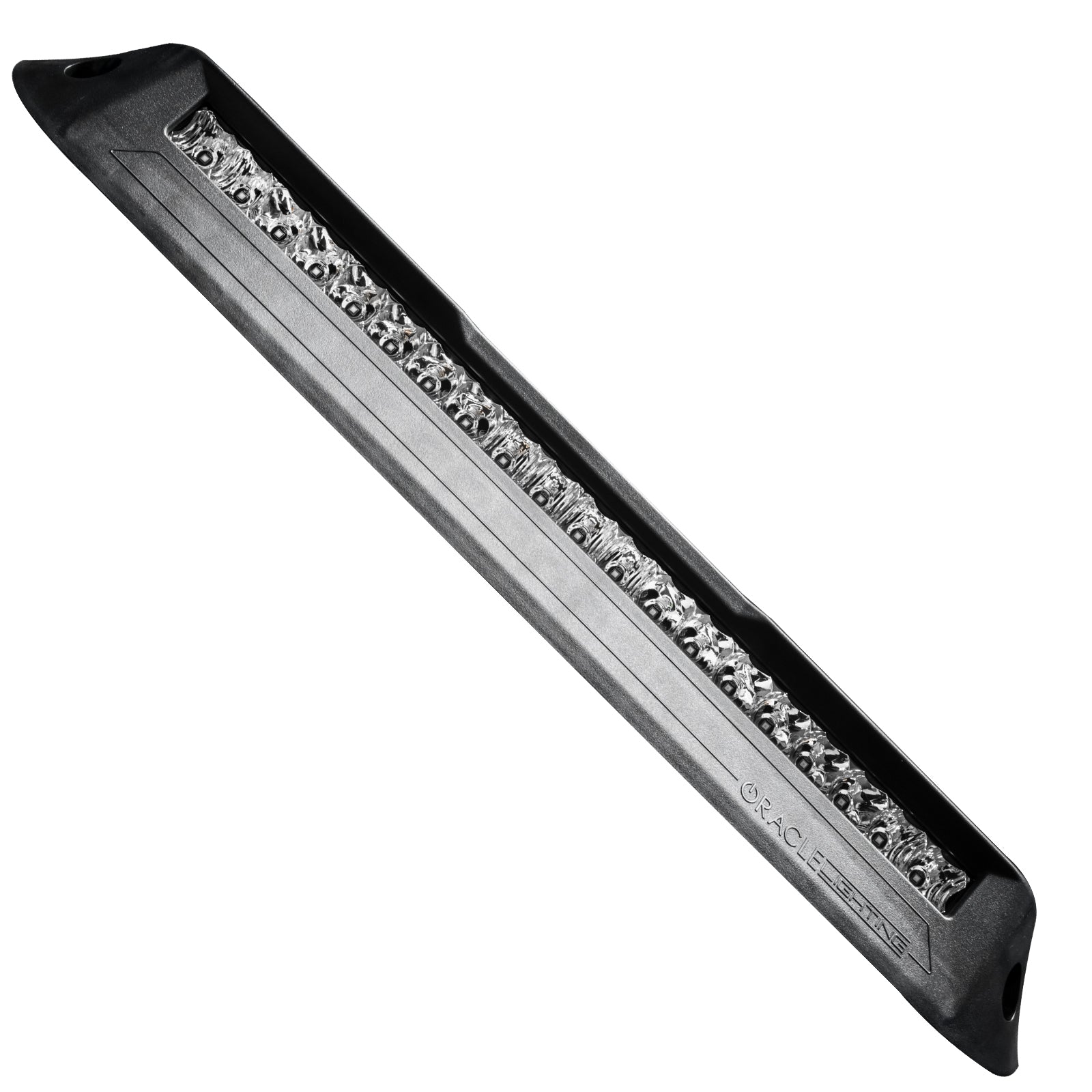

This new auxiliary light design from ORACLE Lighting incorporates both TIR (Total Internal Reflection) and LED Reflector Facing Technology to create a high-quality light output with a precision beam pattern. By combining both optic technologies this light provides an average 30 degree beam pattern and projects up to nearly 500M overall distance. The integrated LED marker lights feature both White and Amber LEDs which can be utilized for parking lights, DRL, and/or Turn Signals.
- Watts: 100W (20x 5W LED)
Specifications
| 29 | Lead Wire |
| 30 | Yes |
| 42 | 2 |
| 123 | 12 |
| 338 | 2 |
| 357 | Composite |
| 488 | Yes |
| 512 | No |
| 532 | Black |
| 975 | 100 |
| 1268 | No |
| 1271 | No |
| 1277 | Rectangle |
| 1279 | Clear |
| 1280 | 20 |
| 1286 | Painted |
| 1287 | 18.76 |
| 1289 | 1.91 |
| 1290 | 18.75 |
| 1427 | 31.84 |
| 1451 | Black |
| 2087 | 36 |
| 2095 | 16 |
| 2563 | Polycarbonate |
| 2781 | 31.98 |
| 2782 | 6061-T6 Billet Aluminum |
| 6452 | No |
| 8363 | 12000 |
| 9578 | Combination |
| Lens Width | 1.91 |
| Wattage | 100 |
| Brightness | 12000 |
| Wire Gauge Measurement | 16 |
| Lens Length | 18.75 |
| Lens Diameter | 18.76 |
| Wire Quantity | 2 |
| Terminal Quantity | 2 |
| Light Quantity | 20 |
| Base Length | 31.84 |
| Base Diameter | 31.98 |
| Wiring Harness Length | 36 |
| Base Material | 6061-T6 Billet Aluminum |
| Base Color | Black |
| Housing Color | Black |
| Lens Color | Clear |
| Light Beam Pattern | Combination |
| Housing Material | Composite |
| Terminal Type | Lead Wire |
| DOT Approved | No |
| Street Legal | No |
| Switch Included | No |
| Relay Included | No |
| Housing Finish | Painted |
| Lens Material | Polycarbonate |
| Housing Shape | Rectangle |
| Mounting Hardware Included | Yes |
| Wiring Harness Included | Yes |
| Prop 65 (C, R or CR) | CR |
| Lens | Optically Clear Lexan |
| Optics | Mixed Spot/ Flood |
| Lumen Output | 12000 |
| LED | Osram CRDP LED Chip |
| LED Life | 50,000+ Hours |
| Kelvin Temperature | 5500K |
| Housing | Polycarbonate |
| AMP Draw | 7.5A at 12VDC |
| Add-On | N/A |
| Watts | 100W (20x 5W LED) |
| Waterproof Rating | IP69K |
| Voltage | 9V-36V DC |
Packaging Information
Weight: 4 lbs
Dimensions: 6 x 6 x 30 IN
Safety
Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
1 Year Warranty
Share

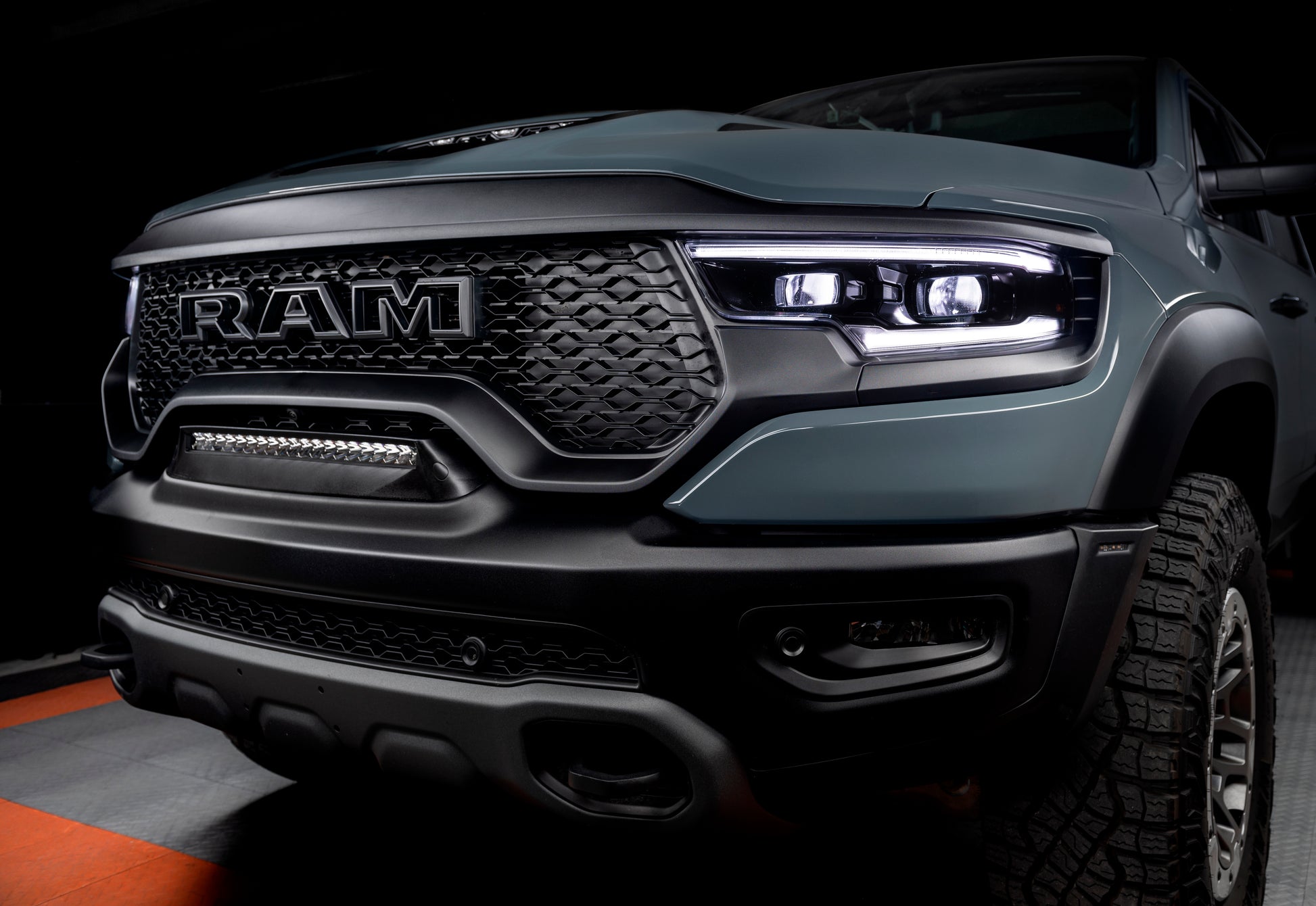

Vehicle Fitment
Vehicle Fitment
- 2019-2024 Ram 1500 Rebel — Center
- 2021-2024 Ram 1500 TRX — Center
- 2021 Ram 1500 TRX Launch Edition — Center
