Oracle Lighting 5885-005 2019-2022 RAM Rebel/TRX Front Bumper Flush LED Light Bar System
Oracle Lighting 5885-005 2019-2022 RAM Rebel/TRX Front Bumper Flush LED Light Bar System
Low stock: 1 left
Couldn't load pickup availability
Description & Features
Oracle Lighting 5885-005 2019-2022 RAM Rebel/TRX Front Bumper Flush LED Light Bar System

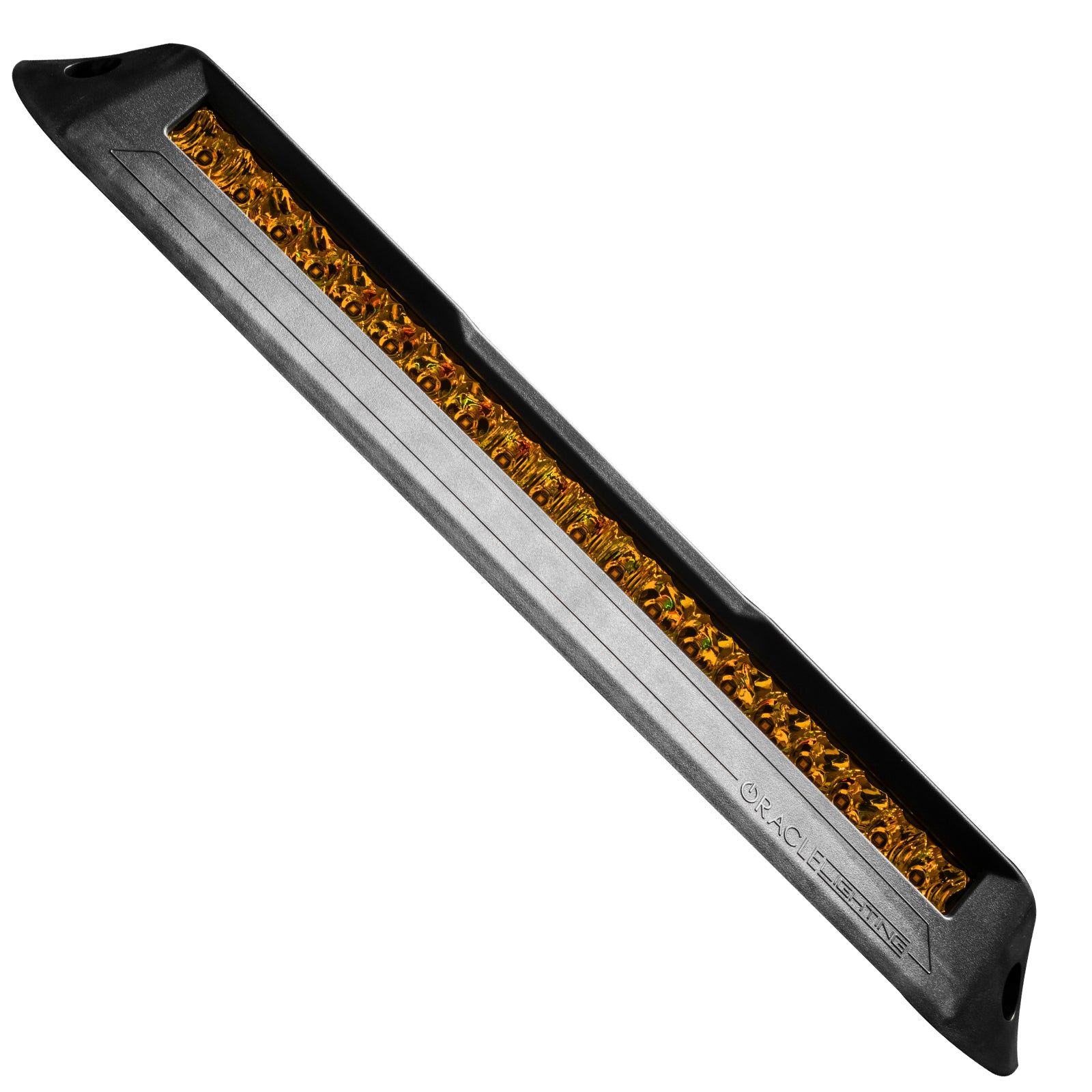

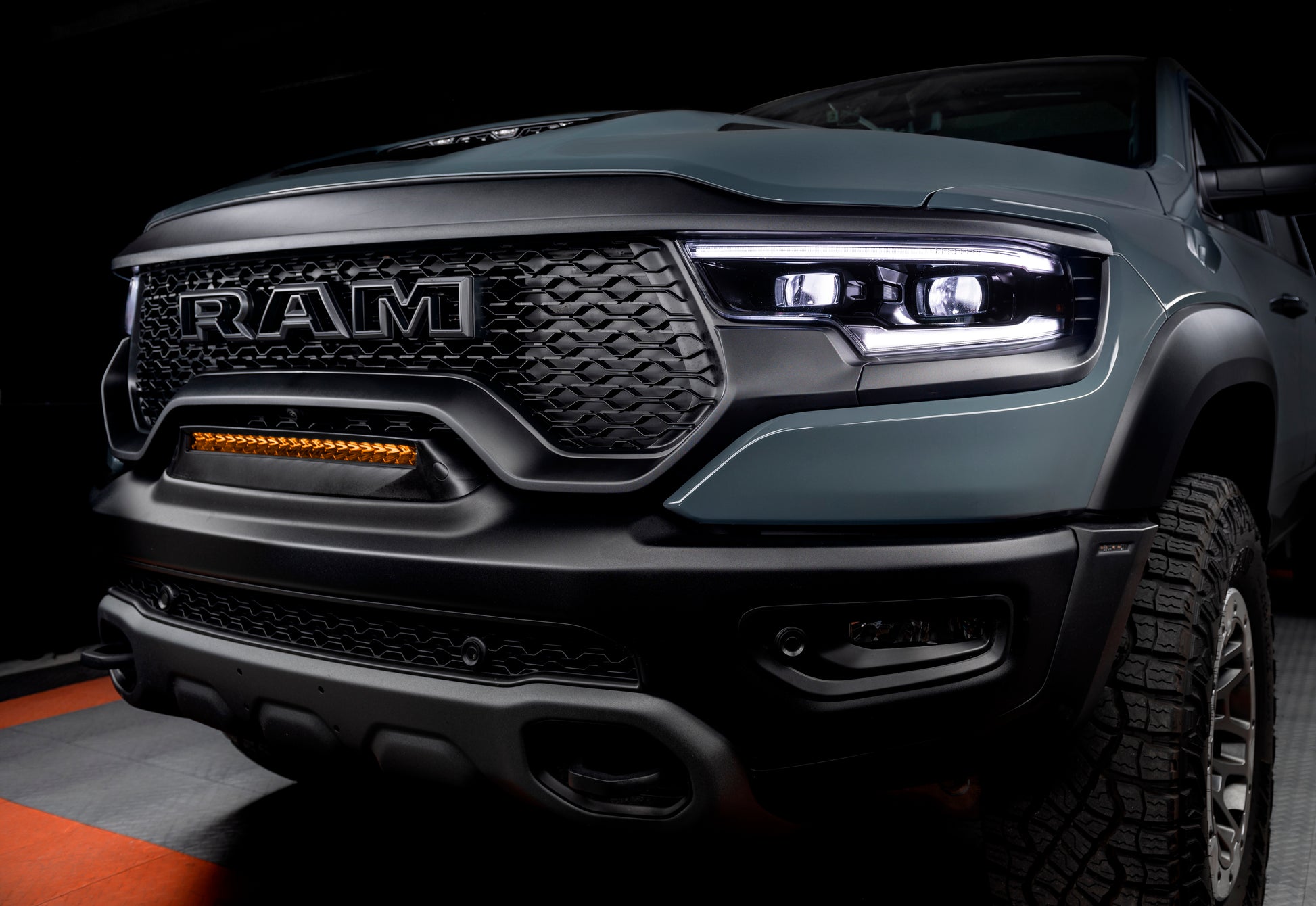

This unique new lighting system from ORACLE Lighting provides functional forward LED lighting while maintaining a factory appearance. Our high powered 100W LED light bar is fitted into a housing which is designed to mimic the shape of the original factory bumper and integrate into the front end of the 2019+ RAM 1500 TRX or Rebel. The lighting system is installed using rivet nuts, which require 2 holes 3/8" to attach the bar to the bumper. Wiring can easily connect to the factory AUX switches, if your truck is not equipped with AUX switches, we recommend you add our switched light bar wiring harness PART #2088-504 The projection of the light bar is a mixed beam with 8 of the LEDs using a flood (45? angle) beam and 12 of the LEDs using a spot (25? angle) beam the user gets the advantages of both a wide field of vision and a long narrow beam. With the average Apex Angle of 33? (8x45? + 12x25?) and calculating based on 14000Lm the total candela of the light is 54107.70cd.
- Optics: Mixed Spot/ Flood
Specifications
| 29 | Lead Wire |
| 30 | Yes |
| 42 | 2 |
| 123 | 12 |
| 338 | 2 |
| 357 | Composite |
| 488 | Yes |
| 512 | No |
| 532 | Black |
| 975 | 100 |
| 1268 | No |
| 1271 | No |
| 1277 | Rectangle |
| 1279 | Yellow |
| 1280 | 20 |
| 1286 | Painted |
| 1287 | 18.76 |
| 1289 | 1.91 |
| 1290 | 18.75 |
| 1427 | 31.84 |
| 1451 | Black |
| 2087 | 36 |
| 2095 | 16 |
| 2563 | Polycarbonate |
| 2781 | 31.98 |
| 2782 | 6061-T6 Billet Aluminum |
| 6452 | No |
| 8363 | 12000 |
| 9578 | Combination |
| Lens Width | 1.91 |
| Wattage | 100 |
| Voltage | 12 |
| Brightness | 12000 |
| Wire Gauge Measurement | 16 |
| Lens Length | 18.75 |
| Lens Diameter | 18.76 |
| Wire Quantity | 2 |
| Terminal Quantity | 2 |
| Light Quantity | 20 |
| Base Length | 31.84 |
| Base Diameter | 31.98 |
| Wiring Harness Length | 36 |
| Base Material | 6061-T6 Billet Aluminum |
| Base Color | Black |
| Housing Color | Black |
| Light Beam Pattern | Combination |
| Housing Material | Composite |
| Terminal Type | Lead Wire |
| DOT Approved | No |
| Street Legal | No |
| Switch Included | No |
| Relay Included | No |
| Housing Finish | Painted |
| Lens Material | Polycarbonate |
| Housing Shape | Rectangle |
| Lens Color | Yellow |
| Mounting Hardware Included | Yes |
| Wiring Harness Included | Yes |
| Lumen Output | 12,000lm |
| Optics | Mixed Spot/ Flood |
| LED Life | 50,000+ Hours |
| Lens | Optically Clear Lexan |
| LED | Osram CRDP LED Chip |
| Housing | Polycarbonate |
| Color | Amber Lens |
| Amperage | 7.5A @ 12VDC |
| Add-On | N/A |
| Watts | 100W (20x 5W LED) |
Packaging Information
Weight: 4 lbs
Dimensions: 6 x 6 x 30 IN
Safety
Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
1 Year Warranty
Share
Vehicle Fitment
Vehicle Fitment
- 2019-2024 Ram 1500 Rebel — Center
- 2021-2024 Ram 1500 TRX — Center
- 2021 Ram 1500 TRX Launch Edition — Center
