Oracle Lighting 5885-006 2019-2022 RAM Rebel/TRX Front Bumper Flush LED Light Bar System
Oracle Lighting 5885-006 2019-2022 RAM Rebel/TRX Front Bumper Flush LED Light Bar System
Low stock: 1 left
Couldn't load pickup availability
Description & Features

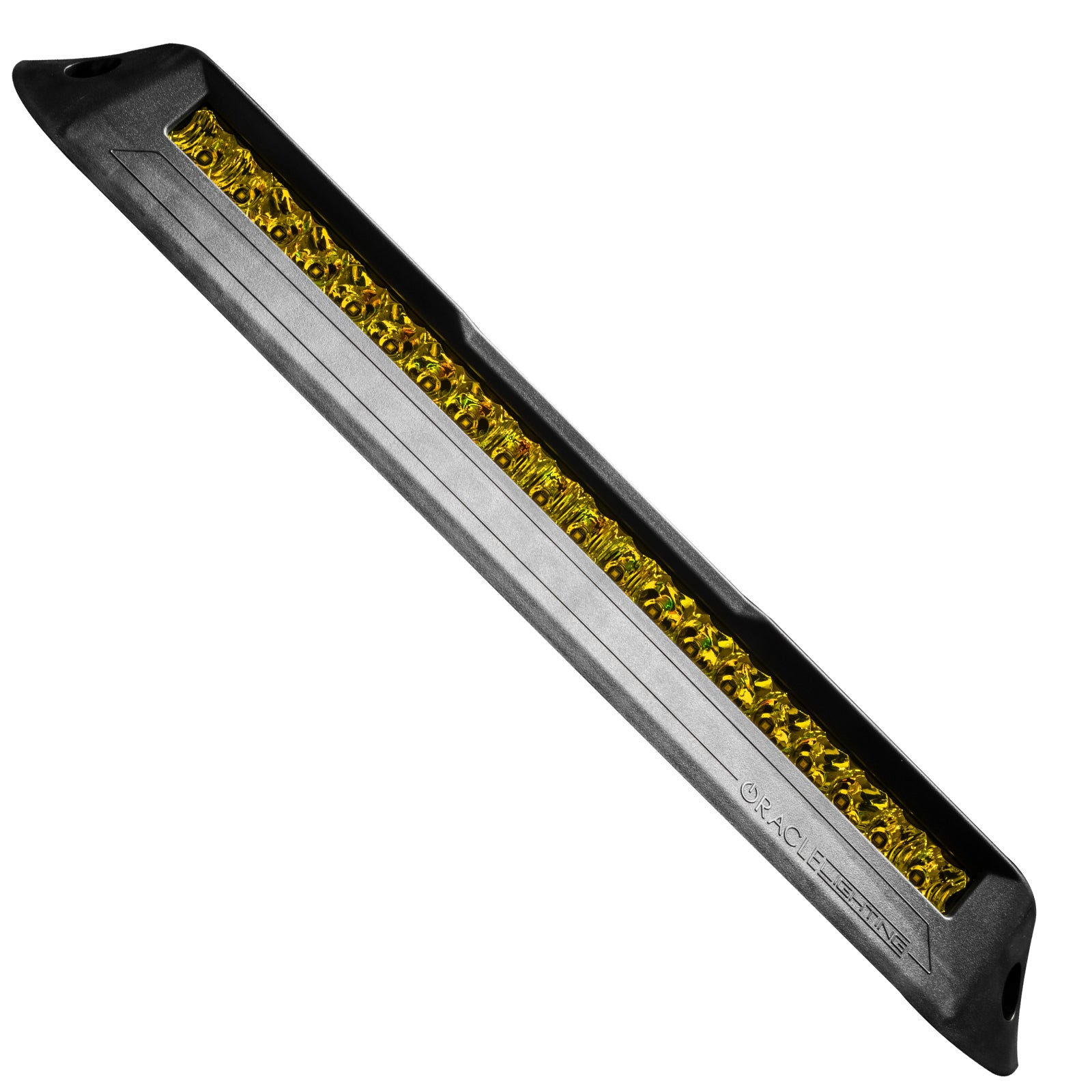

Oracle Lighting 5885-006 2019-2022 RAM Rebel/TRX Front Bumper Flush LED Light Bar System
This new auxiliary light design from ORACLE Lighting incorporates both TIR (Total Internal Reflection) and LED Reflector Facing Technology to create a high-quality light output with a precision beam pattern. By combining both optic technologies this light provides an average 30 degree beam pattern and projects up to nearly 500M overall distance. The integrated LED marker lights feature both White and Amber LEDs which can be utilized for parking lights, DRL, and/or Turn Signals.
- Watts: 100W (20x 5W LED)
Specifications
| 29 | Lead Wire |
| 30 | Yes |
| 42 | 2 |
| 123 | 12 |
| 338 | 2 |
| 357 | Composite |
| 488 | Yes |
| 512 | No |
| 532 | Black |
| 975 | 100 |
| 1268 | No |
| 1271 | No |
| 1277 | Rectangle |
| 1279 | Clear |
| 1280 | 20 |
| 1286 | Painted |
| 1287 | 18.76 |
| 1289 | 1.91 |
| 1290 | 18.75 |
| 1427 | 31.84 |
| 1451 | Black |
| 2087 | 36 |
| 2095 | 16 |
| 2563 | Polycarbonate |
| 2781 | 31.98 |
| 2782 | 6061-T6 Billet Aluminum |
| 6452 | No |
| 8363 | 12000 |
| 9578 | Combination |
| Lens Width | 1.91 |
| Wattage | 100 |
| Brightness | 12000 |
| Wire Gauge Measurement | 16 |
| Lens Length | 18.75 |
| Lens Diameter | 18.76 |
| Wire Quantity | 2 |
| Terminal Quantity | 2 |
| Light Quantity | 20 |
| Base Length | 31.84 |
| Base Diameter | 31.98 |
| Wiring Harness Length | 36 |
| Base Material | 6061-T6 Billet Aluminum |
| Base Color | Black |
| Housing Color | Black |
| Lens Color | Clear |
| Light Beam Pattern | Combination |
| Housing Material | Composite |
| Terminal Type | Lead Wire |
| DOT Approved | No |
| Street Legal | No |
| Switch Included | No |
| Relay Included | No |
| Housing Finish | Painted |
| Lens Material | Polycarbonate |
| Housing Shape | Rectangle |
| Mounting Hardware Included | Yes |
| Wiring Harness Included | Yes |
| Kelvin Temperature | 5500K |
| AMP Draw | 7.5A at 12VDC |
| Add-On | N/A |
| Housing | Polycarbonate |
| LED Life | 50,000+ Hours |
| Voltage | 9V-36V DC |
| LED | Osram CRDP LED Chip |
| Prop 65 (C, R or CR) | CR |
| Lens | Optically Clear Lexan |
| Lumen Output | 12000 |
| Watts | 100W (20x 5W LED) |
| Waterproof Rating | IP69K |
| Optics | Mixed Spot/ Flood |
Packaging Information
Weight: 4 lbs
Dimensions: 6 x 6 x 30 IN
Safety
Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
For more information visit www.P65Warnings.ca.gov
Warranty
1 Year Warranty
Share
Vehicle Fitment
Vehicle Fitment

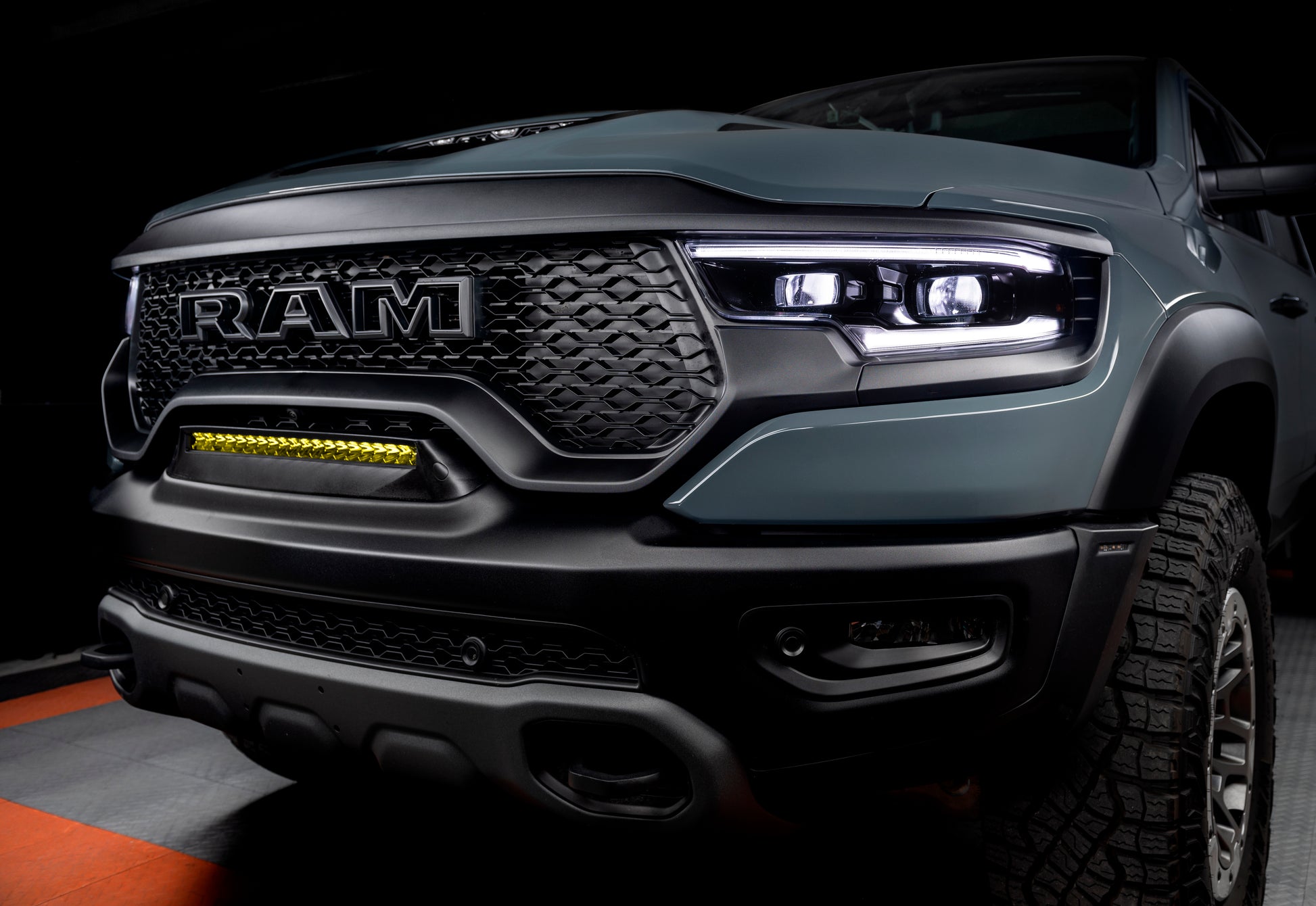

- 2019-2024 Ram 1500 Rebel — Center
- 2021-2024 Ram 1500 TRX — Center
- 2021 Ram 1500 TRX Launch Edition — Center
