Oracle Lighting 5928-LZZ-001 2021-2024 Ford Bronco Off Road LASER + LED Fog Light Kit for Steel Bumper

Oracle Lighting 5928-LZZ-001 2021-2024 Ford Bronco Off Road LASER + LED Fog Light Kit for Steel Bumper

Regular price $1,809.99 USD
Regular price Sale price $1,809.99 USD
Mechanic Division pricing available
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Quantity
Description & Features

Oracle Lighting 5928-LZZ-001 2021-2024 Ford Bronco Off Road LASER + LED Fog Light Kit for Steel Bumper

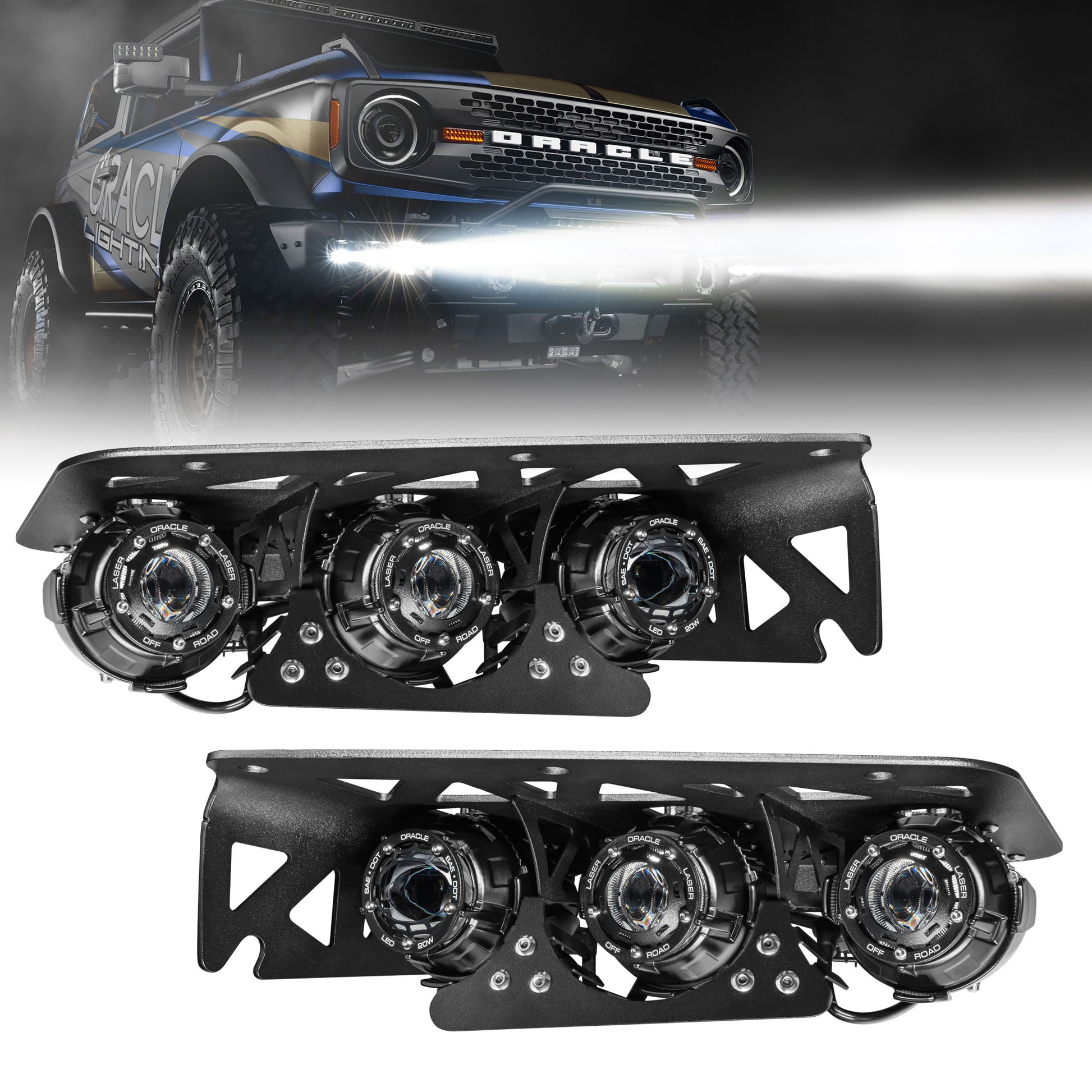

Featuring both an individual SAE Fog Light and two individual Off-Road Laser Auxiliary Light Modules, this new modular kit from ORACLE provides unparalleled lighting features for your new Bronco. The Fog Light features a single LED which functions to provide the user with additional lighting on road in a DOT/SAE-compliant fog light beam pattern to increase nighttime visibility. Off-road, the 10W Laser Auxiliary Light Modules each feature a single Laser diode that produces a hyper-focused beam that throws light over 3,000 feet away allowing the user to see further distance for high-speed driving. The fog light module has separate cables that can be connected to the factory fog light switch (if equipped) or to an auxiliary switch. If the Bronco is not equipped with the optional Aux Switches ORACLE offers a harness (Part# 2088-504) for easy wiring installation. The Laser auxiliary lights are intended for off-road use only and should be connected to an Aux switch. If the Bronco is not equipped with the optional Aux Switches ORACLE offers a harness (Part# 2088-504) for easy wiring installation. Not only are these lights bright and project for an impressive distance, but the styling is also very innovative. The skeletonized mount holds the individual futuristic LED and Laser Emitters with full leveling capabilities built into each individual emitter for functional aiming for the light. The Fog Light and the two individual Laser Auxiliary Light Modules each come in their own separate die-cast aluminum housings (three in total) which are individually adjustable when connected to the skeletonized mount. Each individual housing features a high-performance polycarbonate lens and heat-dissipating fins. The overall appearance is not only functional but the tactical blacked-out design is further enhanced by the laser-etched bezels around each projector lens. Disclaimer, Buyer acknowledges that the laser function of this light is not intended for road use and will only be used in an appropriate manner off-road. Buyer is solely responsible for any claims arising out of Buyer's non-compliance with this provision.

  • Input Voltage: 12VDC
Specifications
14 332
17 6000K
29 Pin
30 No
42 4
123 12
357 Cast Aluminum
488 Yes
512 No
532 Black
975 100
1268 Yes
1271 Yes
1274 Yes
1275 Black Powder Coat
1276 Clear
1277 Square
1822 LED
2563 Polycarbonate
5121 6
9086 LED
9578 Fog
Wattage 100
Voltage 12
Length 332
Terminal Quantity 4
Bulb Quantity 6
Color 6000K
Housing Color Black
Fog Light Case Finish Black Powder Coat
Housing Material Cast Aluminum
Fog Light Lens Color Clear
Light Beam Pattern Fog
Bulb Type LED
Bulb Technology LED
Mounting Hardware Included No
Switch Included No
Terminal Type Pin
Housing Shape Square
DOT Approved Yes
Street Legal Yes
Bulbs Included Yes
Wiring Harness Included Yes
Raw Lumens 7000 Total Raw Lumens
Prop 65 (C, R or CR) CR
Add-On N/A
Mount Powder Coated Carbon Steel
Lens Material Polycarbonate
LED Projection Distance 980 Ft
Laser Projection Distance 3250 Ft
Input Voltage 12VDC
Ingress Protection IP67
Housing material Die-cast aluminum
Amp Draw 3.6A / LED Laser
Total Power 100W (30W LED+ 20W Laser)
Packaging Information

Weight: 13 lbs
Dimensions: 6 x 14 x 16 IN

Safety

Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

For more information visit www.P65Warnings.ca.gov

Warranty

1 Year Warranty

⚠ Fitment Notes
  • Will only fit steel factory modular bumper.

Vehicle Fitment

  • 2021-2024 Ford Bronco Badlands
  • 2021-2023 Ford Bronco Base
  • 2021-2024 Ford Bronco Big Bend
  • 2021-2024 Ford Bronco Black Diamond
  • 2022-2024 Ford Bronco Everglades
  • 2021 Ford Bronco First Edition
  • 2023-2024 Ford Bronco Heritage Edition
  • 2023-2024 Ford Bronco Heritage Limited Edition
  • 2021-2024 Ford Bronco Outer Banks
  • 2021-2024 Ford Bronco Wildtrak
